Tutaki Details

Property	Value
Rupture Count	190
Ruptures Above Sect Min Mag	188
Ruptures w/ Nonzero Rates	3
Magnitude Range	[7.07, 8.27]
Length Range	[24, 518] km
Total Rate	7.031105E-5 /yr
Multi-Fault Rate	7.031105E-5 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	15

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

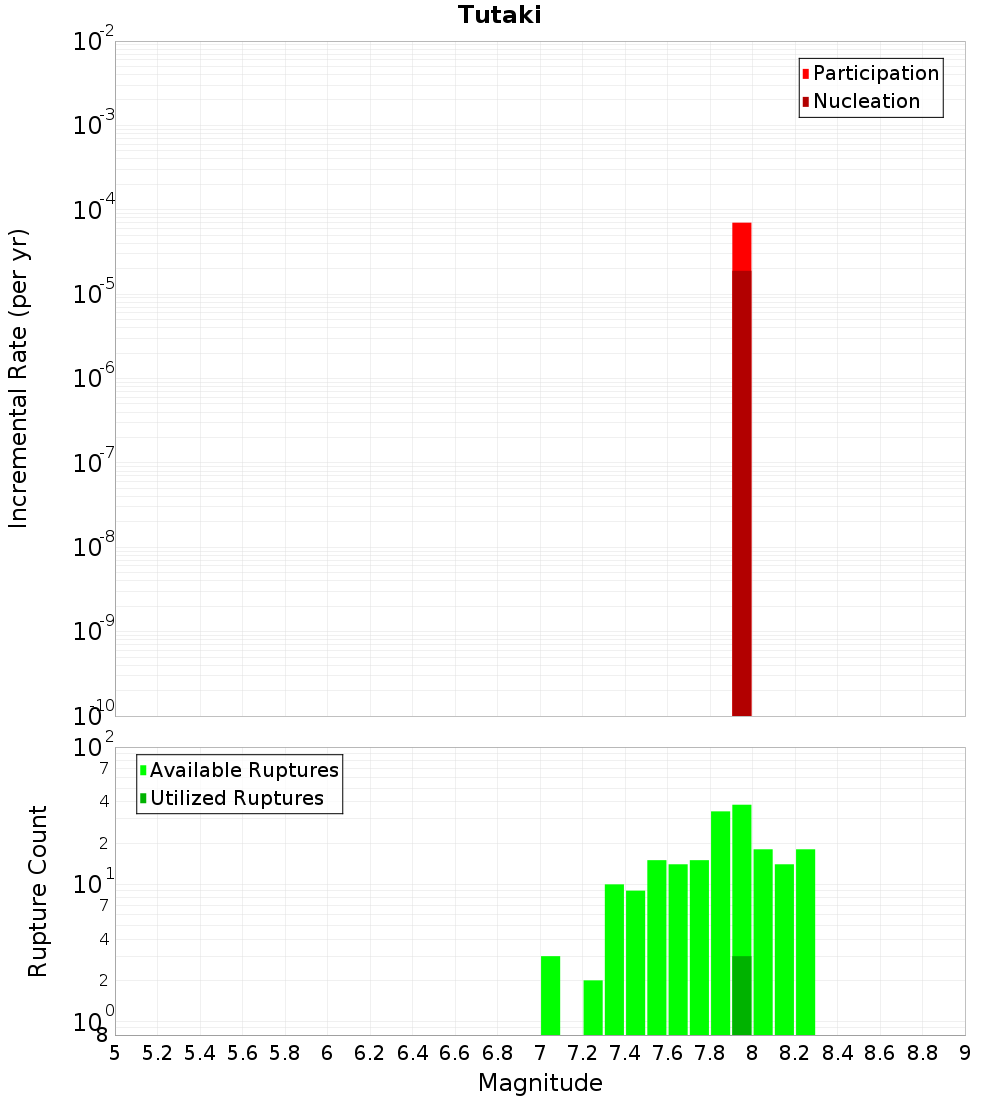

Magnitude-Frequency Distribution

Incremental	Cumulative

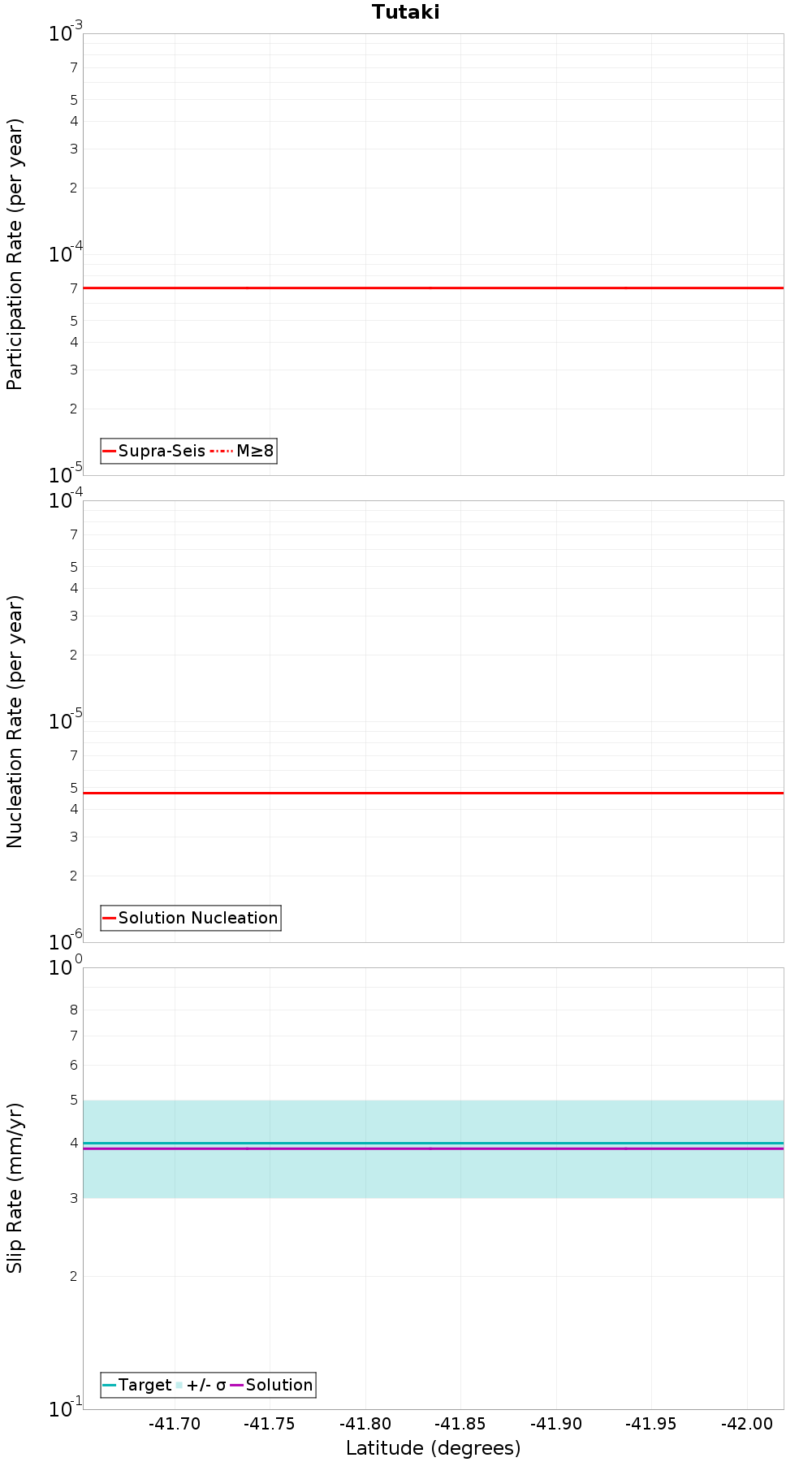

Along-Strike Values

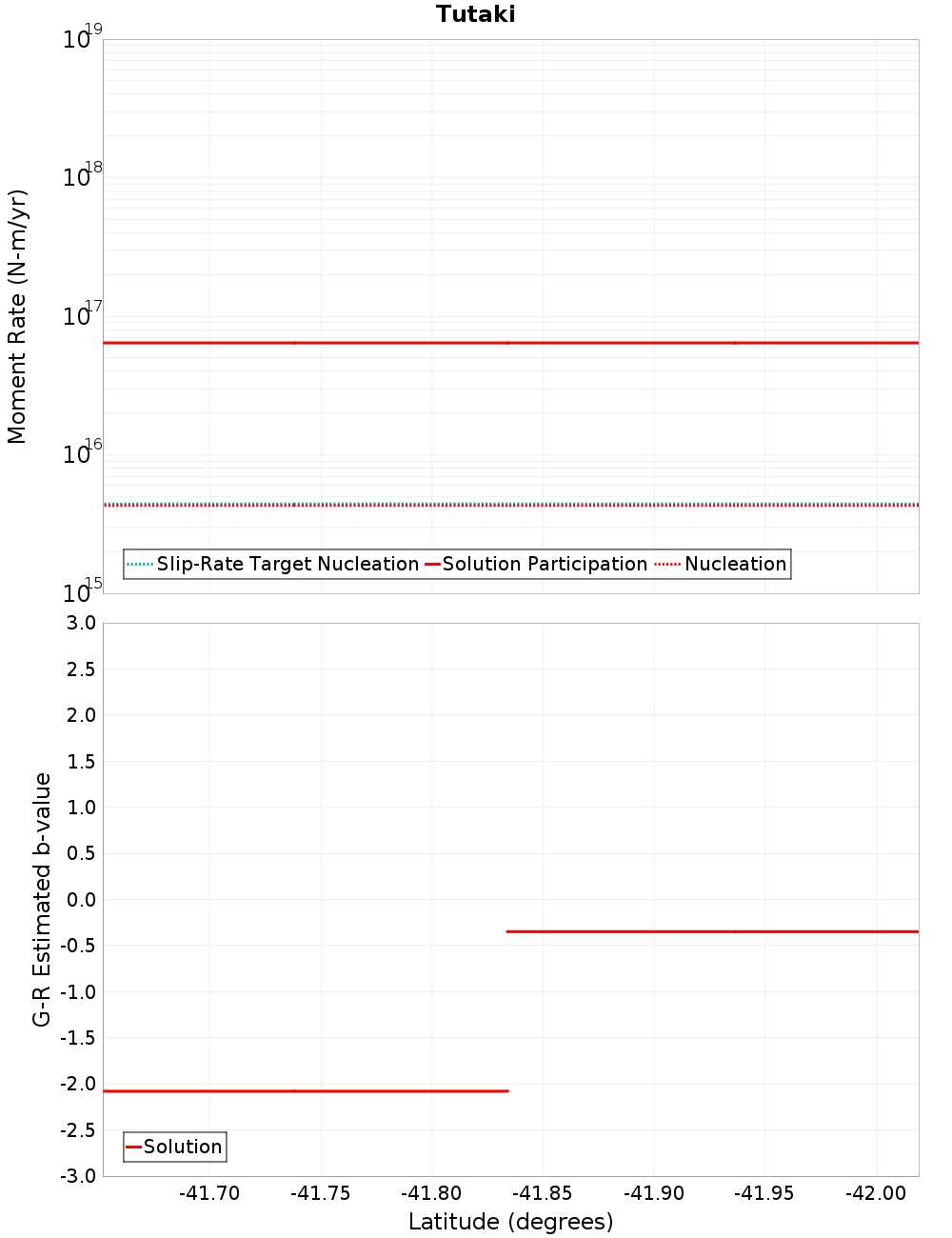

Moment-Rates and b-Values

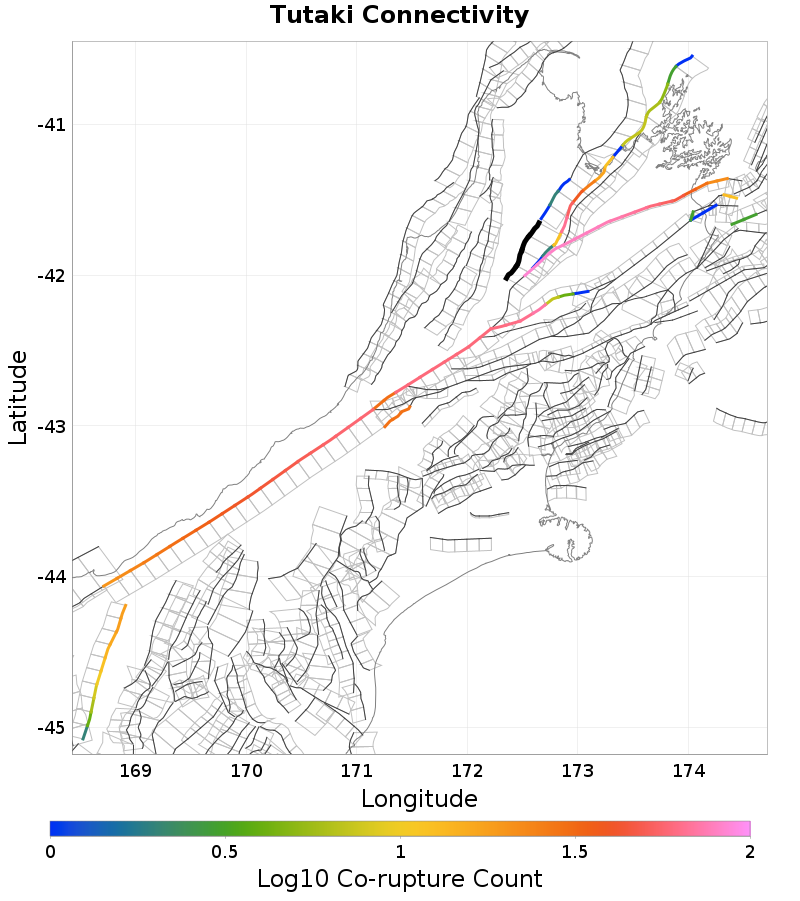

Connectivity

Nearby Sections

Fault Section
Alpine: Springs Junction to Tophouse, 0.13 km away
Flaxmore - Waimea - Tahunanui, 2.49 km away
Ruby Bay - Moutere, 3.43 km away
Wairau, 7.34 km away
Awatere: Southwest, 9.47 km away
Whangamoa, 14.86 km away
White Creek, 19.08 km away

Alpine: Springs Junction to Tophouse, 0.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTguMEVSWDlu
Connected?	true
Directly Connected?	true
Co-rupture Count	85
Co-rupture Rate	7.031105E-5

Flaxmore - Waimea - Tahunanui, 2.49 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTguMEVSWDlu
Connected?	true
Directly Connected?	true
Co-rupture Count	65
Co-rupture Rate	3.634519E-5

Ruby Bay - Moutere, 3.43 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTguMEVSWDlu
Connected?	true
Directly Connected?	true
Co-rupture Count	2
Co-rupture Rate	0.0

Wairau, 7.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTguMEVSWDlu
Connected?	true
Directly Connected?	false
Co-rupture Count	79
Co-rupture Rate	7.031105E-5

Awatere: Southwest, 9.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTguMEVSWDlu
Connected?	true
Directly Connected?	true
Co-rupture Count	71
Co-rupture Rate	0.0

Whangamoa, 14.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTguMEVSWDlu
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

White Creek, 19.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTguMEVSWDlu
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
