Kerepehi Waitoa Details
| Property | Value |
|---|---|
| Rupture Count | 126 |
| Ruptures Above Sect Min Mag | 123 |
| Ruptures w/ Nonzero Rates | 21 |
| Magnitude Range | [6.72, 7.57] |
| Length Range | [17, 121] km |
| Total Rate | 1.7602413E-4 /yr |
| Multi-Fault Rate | 1.3449969E-4 /yr (76.41%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 7 |
Table Of Contents

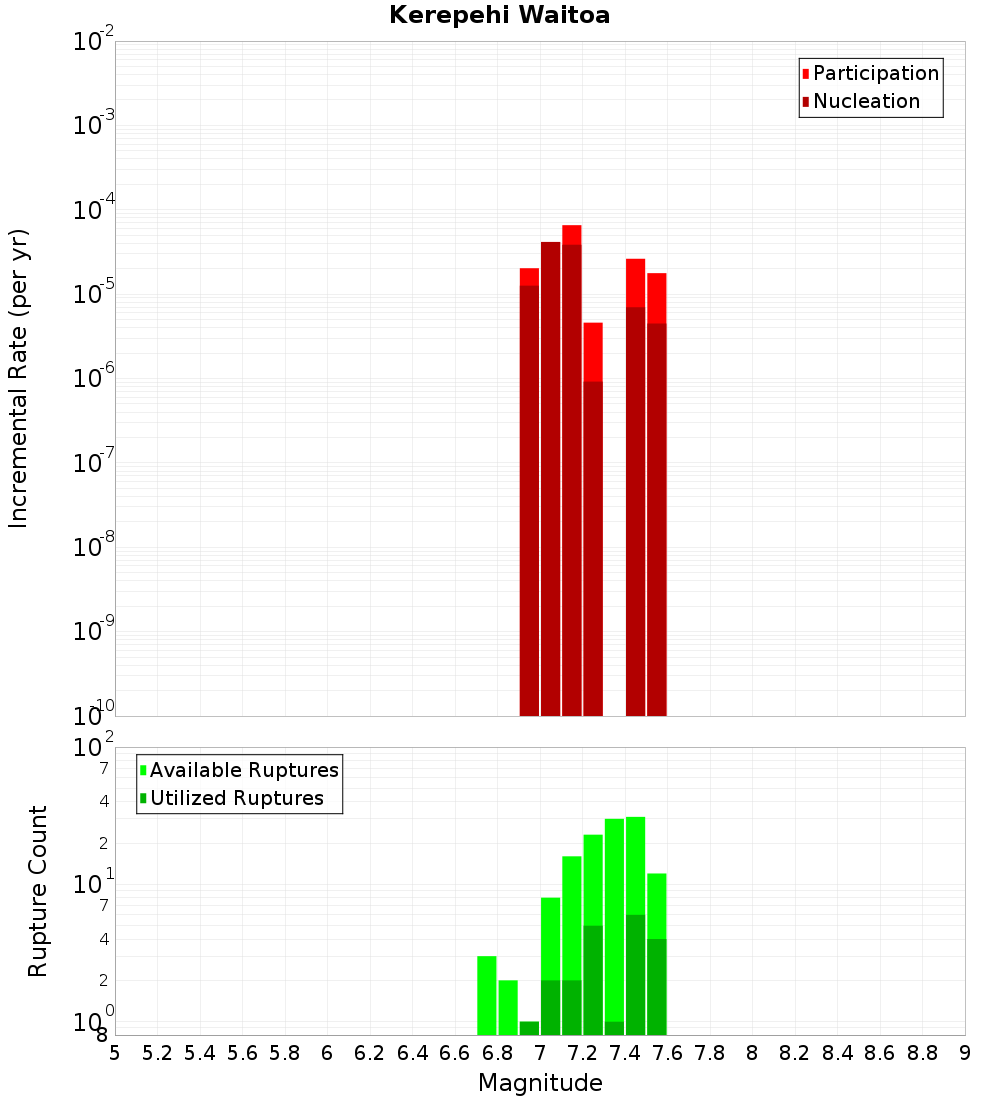

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

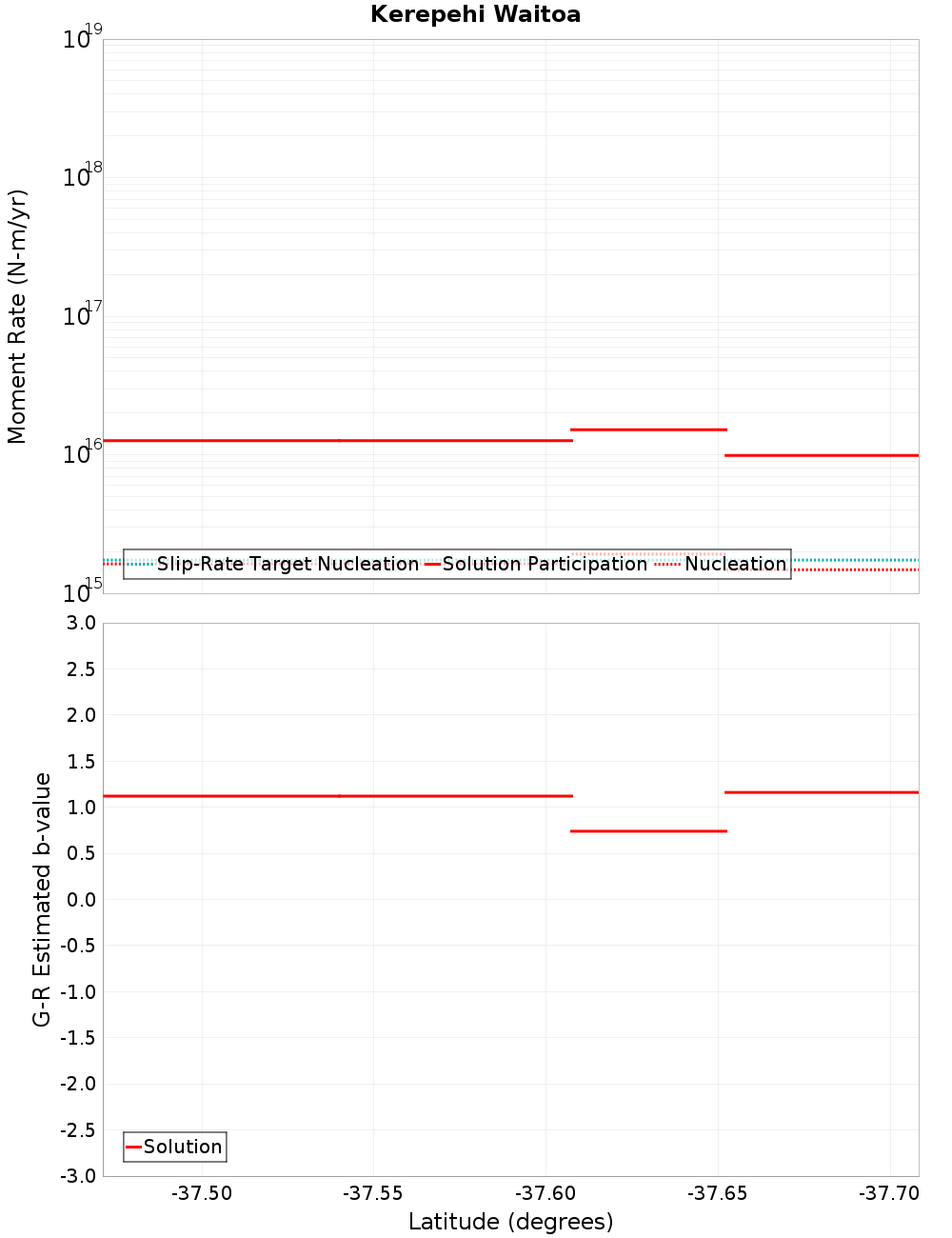

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Kerepehi Elstow, 1.73 km away |
| Kerepehi Te Poi, 1.86 km away |
| Te Puninga, 4.97 km away |
| Kerepehi Awaiti, 5.52 km away |
| Kerepehi Okoroire, 19.55 km away |
Kerepehi Elstow, 1.73 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjAuMFV4Skd3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 42 |
| Co-rupture Rate | 9.014559E-5 |
Kerepehi Te Poi, 1.86 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjAuMFV4Skd3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 82 |
| Co-rupture Rate | 4.6959747E-5 |
Te Puninga, 4.97 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjAuMFV4Skd3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 28 |
| Co-rupture Rate | 3.8568225E-5 |
Kerepehi Awaiti, 5.52 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjAuMFV4Skd3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 85 |
| Co-rupture Rate | 4.4143468E-5 |
Kerepehi Okoroire, 19.55 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjAuMFV4Skd3 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 29 |
| Co-rupture Rate | 3.925211E-5 |
