Uruti East - PorWest 1 Details

PropertyValue
Rupture Count18,351
Ruptures Above Sect Min Mag18,347
Ruptures w/ Nonzero Rates11
Magnitude Range[6.87, 8.62]
Length Range[22, 1,204] km
Total Rate3.1727052E-4 /yr
Multi-Fault Rate1.5717198E-4 /yr (49.54%)
Directly-Connected Faults4
All Co-Rupturing Faults86

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

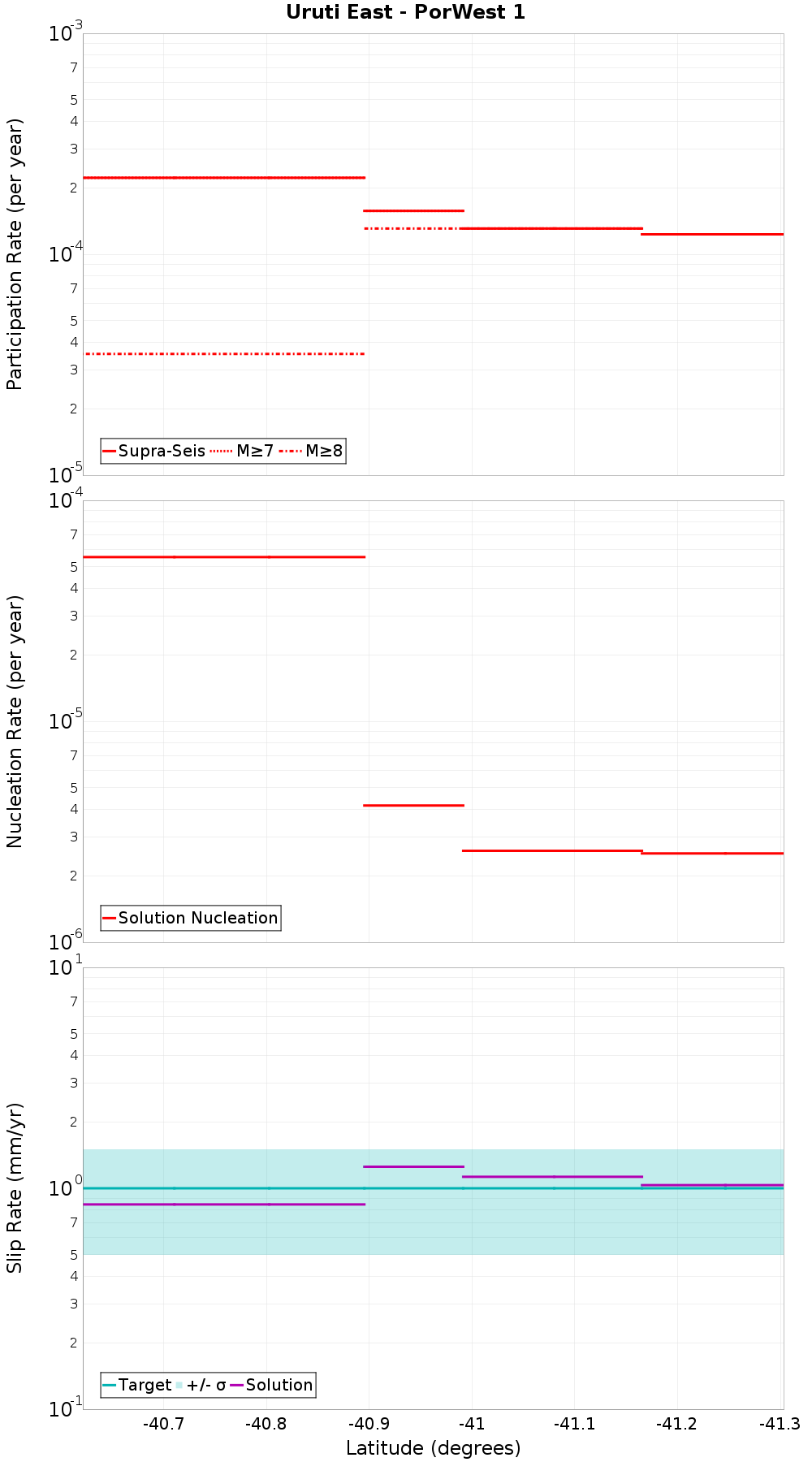

Along-Strike Values

(top)

Along-strike plot

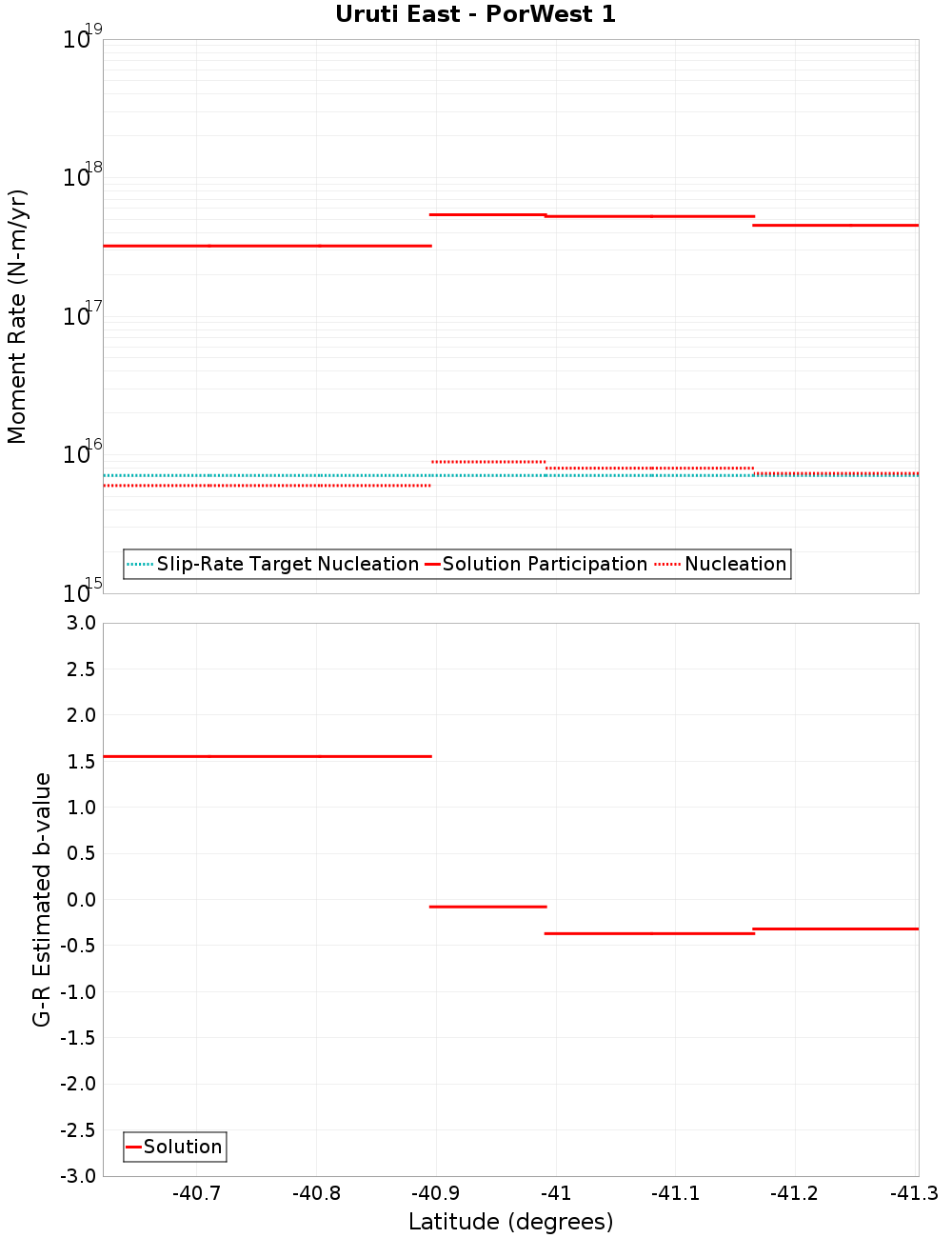

Moment-Rates and b-Values

(top)

Along-strike plot

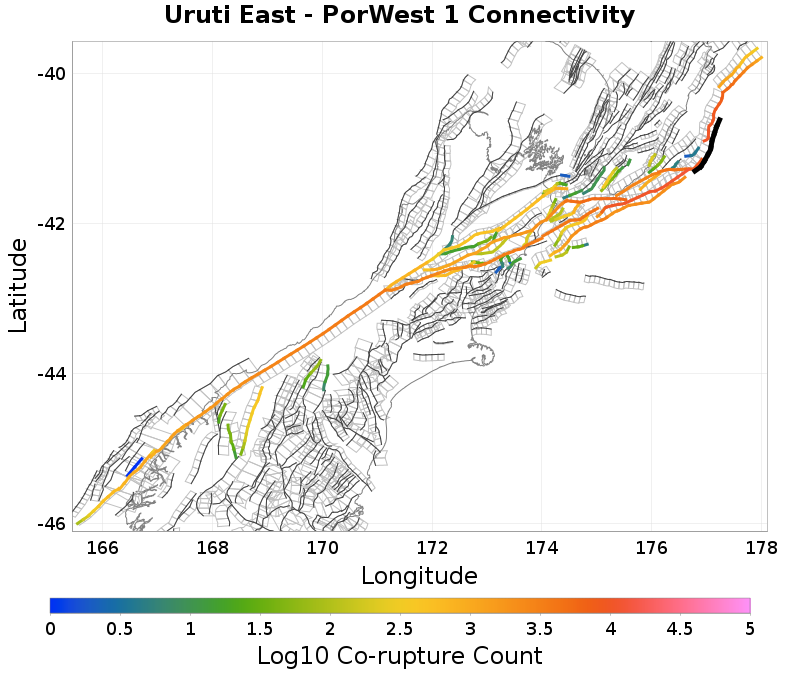

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Uruti Basin, 0.29 km away
Uruti Basin 2, 1.76 km away
Uruti Ridge 2, 2.58 km away
Madden Banks, 4.32 km away
Opouawe - Uruti, 5.54 km away
Pahaua, 7.19 km away
Uruti North, 10.36 km away
Whareama Bank, 16.17 km away

Uruti Basin, 0.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjAuMFV4Skd3
Connected?true
Directly Connected?true
Co-rupture Count7,159
Co-rupture Rate1.0012535E-4

Uruti Basin 2, 1.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjAuMFV4Skd3
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate0.0

Uruti Ridge 2, 2.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjAuMFV4Skd3
Connected?true
Directly Connected?true
Co-rupture Count8,892
Co-rupture Rate7.703425E-6

Madden Banks, 4.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjAuMFV4Skd3
Connected?true
Directly Connected?true
Co-rupture Count10,330
Co-rupture Rate1.2179124E-4

Opouawe - Uruti, 5.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjAuMFV4Skd3
Connected?true
Directly Connected?true
Co-rupture Count12,511
Co-rupture Rate3.058362E-5

Pahaua, 7.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjAuMFV4Skd3
Connected?true
Directly Connected?false
Co-rupture Count2,922
Co-rupture Rate0.0

Uruti North, 10.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjAuMFV4Skd3
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate0.0

Whareama Bank, 16.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjAuMFV4Skd3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
