Edgecumbe 1987 Details

PropertyValue
Rupture Count1,128
Ruptures Above Sect Min Mag1,128
Ruptures w/ Nonzero Rates26
Magnitude Range[6.79, 7.50]
Length Range[20, 136] km
Total Rate3.3910683E-4 /yr
Multi-Fault Rate2.8916966E-4 /yr (85.27%)
Directly-Connected Faults4
All Co-Rupturing Faults31

Table Of Contents

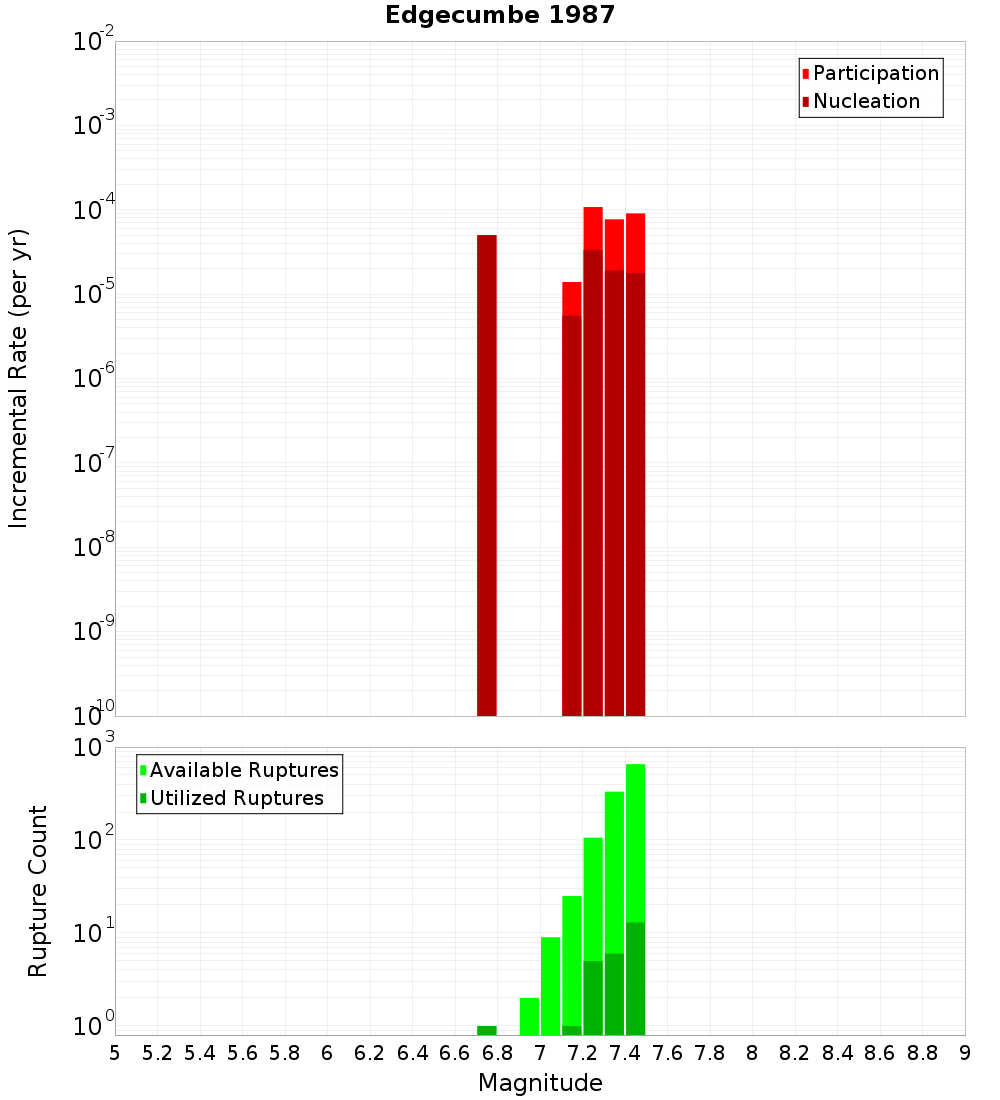

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

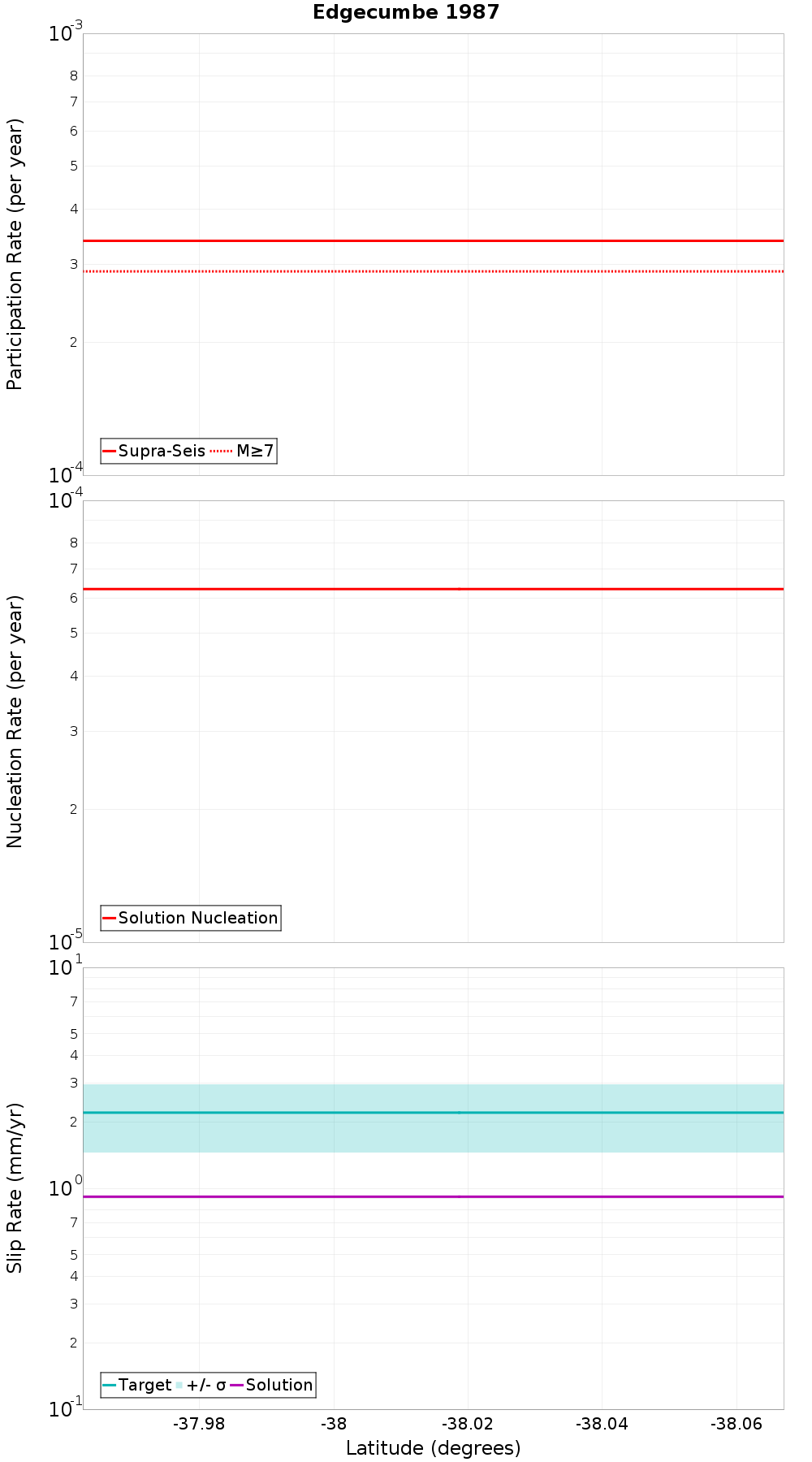

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

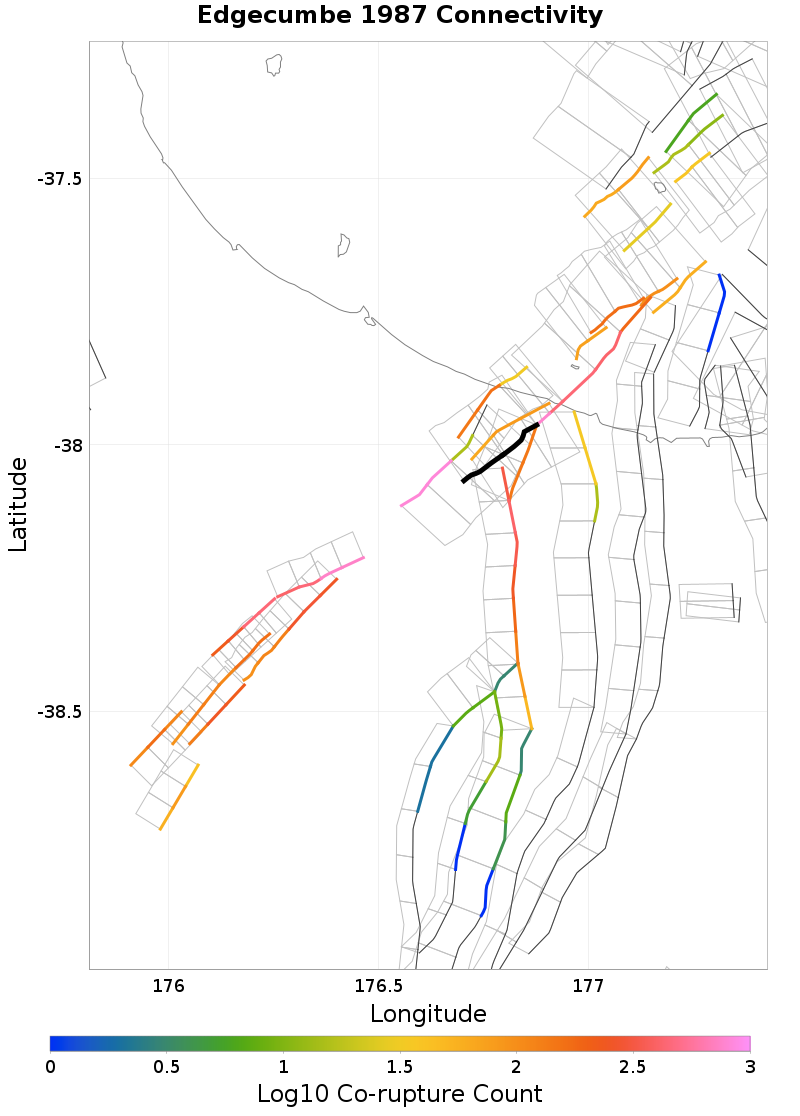

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Awakeri, 0 km away
Edgecumbe Coastal, 0 km away
Otakiri, 0.19 km away
Matata, 0.29 km away
Braemar, 0.32 km away
Waiohau: North, 2.18 km away
White Island 1, 4.49 km away
Whakatane: North, 7.15 km away
Rangitaiki 1, 15.01 km away

Awakeri, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjAuMHpkWGJa
Connected?true
Directly Connected?false
Co-rupture Count143
Co-rupture Rate1.4356422E-5

Edgecumbe Coastal, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjAuMHpkWGJa
Connected?true
Directly Connected?true
Co-rupture Count762
Co-rupture Rate2.8147033E-4

Otakiri, 0.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjAuMHpkWGJa
Connected?true
Directly Connected?false
Co-rupture Count82
Co-rupture Rate2.7799368E-5

Matata, 0.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjAuMHpkWGJa
Connected?true
Directly Connected?false
Co-rupture Count158
Co-rupture Rate3.1911295E-5

Braemar, 0.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjAuMHpkWGJa
Connected?true
Directly Connected?true
Co-rupture Count819
Co-rupture Rate1.7792777E-4

Waiohau: North, 2.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjAuMHpkWGJa
Connected?true
Directly Connected?true
Co-rupture Count420
Co-rupture Rate1.1710638E-4

White Island 1, 4.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjAuMHpkWGJa
Connected?true
Directly Connected?true
Co-rupture Count438
Co-rupture Rate7.699322E-6

Whakatane: North, 7.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjAuMHpkWGJa
Connected?true
Directly Connected?false
Co-rupture Count35
Co-rupture Rate1.6437362E-4

Rangitaiki 1, 15.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjAuMHpkWGJa
Connected?true
Directly Connected?false
Co-rupture Count72
Co-rupture Rate4.0848994E-5
