Edgecumbe Coastal Details

PropertyValue
Rupture Count1,844
Ruptures Above Sect Min Mag1,843
Ruptures w/ Nonzero Rates46
Magnitude Range[6.44, 7.50]
Length Range[7, 136] km
Total Rate7.0042466E-4 /yr
Multi-Fault Rate7.0042466E-4 /yr (100.00%)
Directly-Connected Faults8
All Co-Rupturing Faults36

Table Of Contents

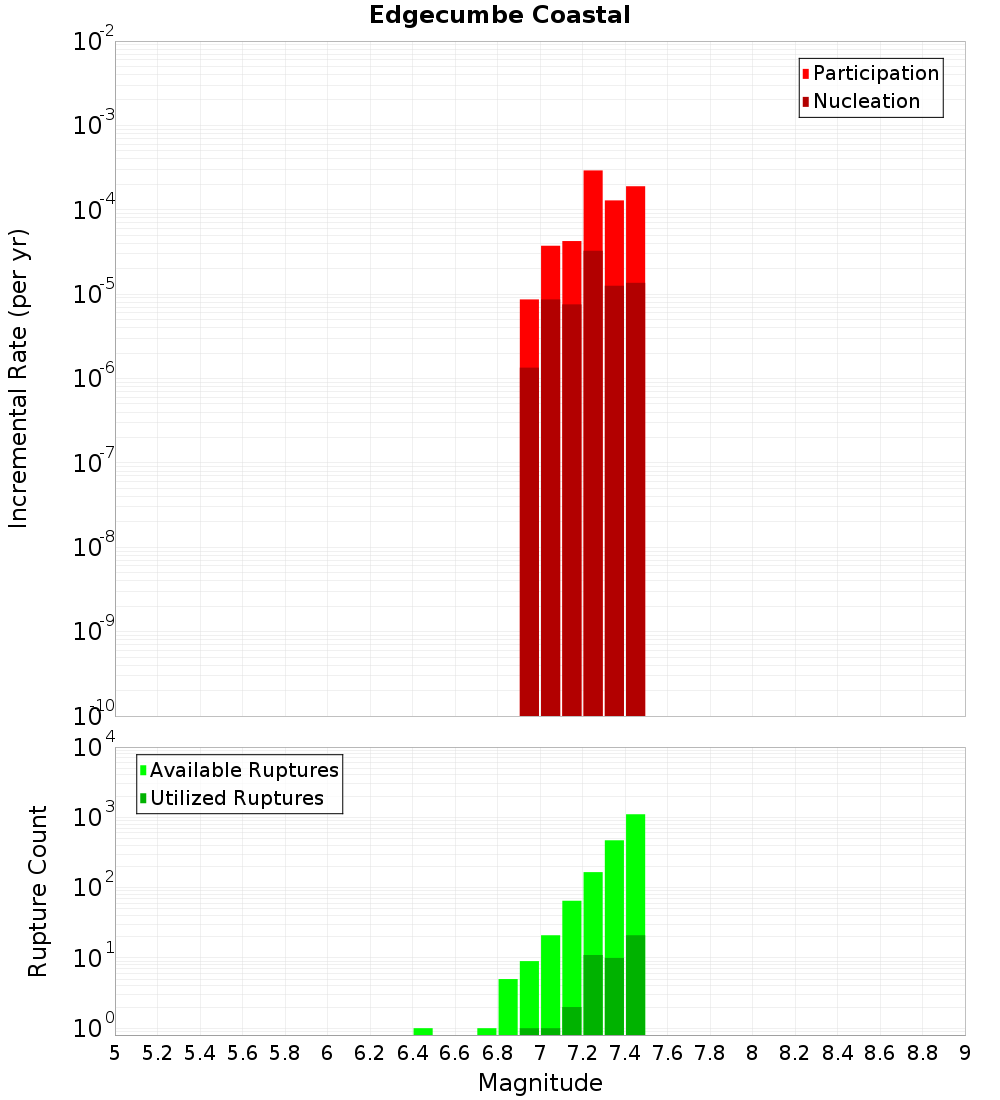

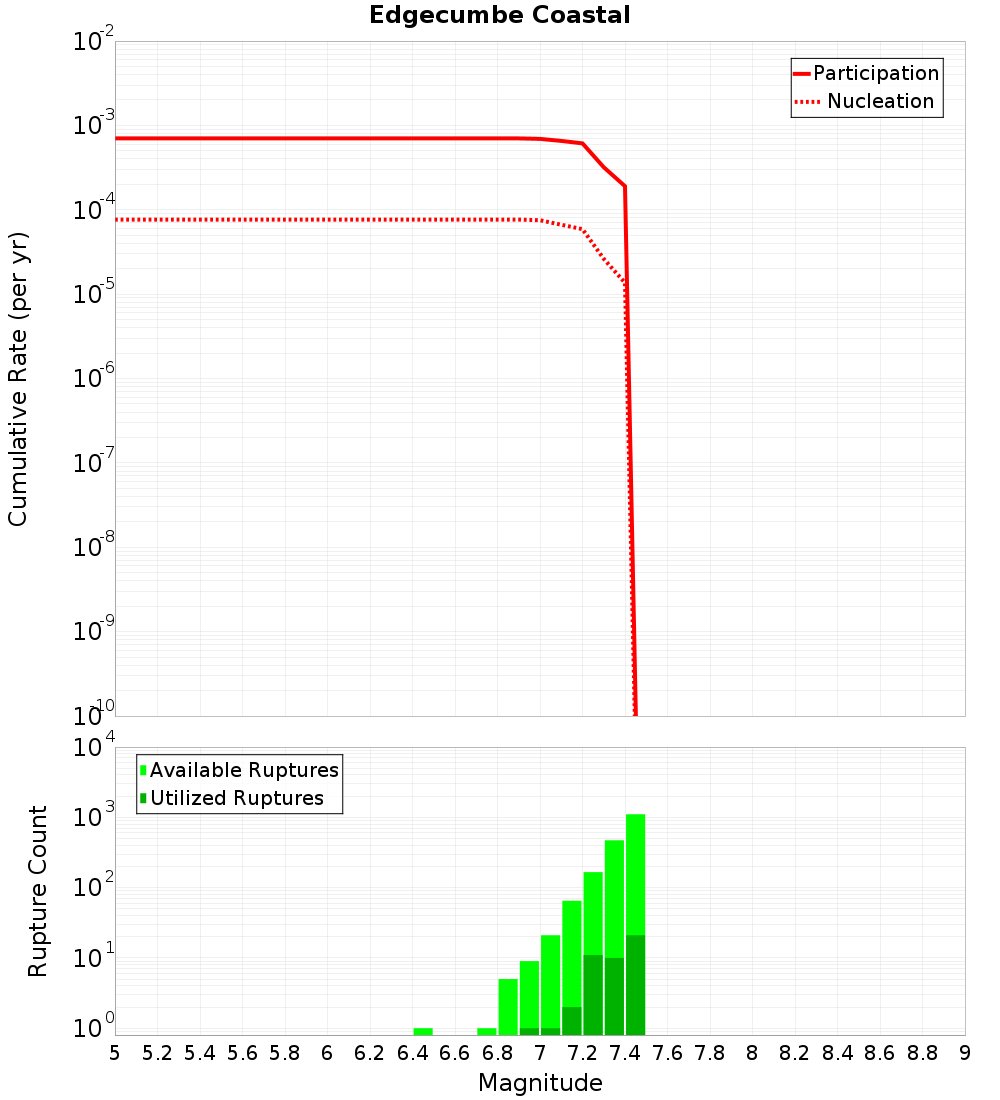

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

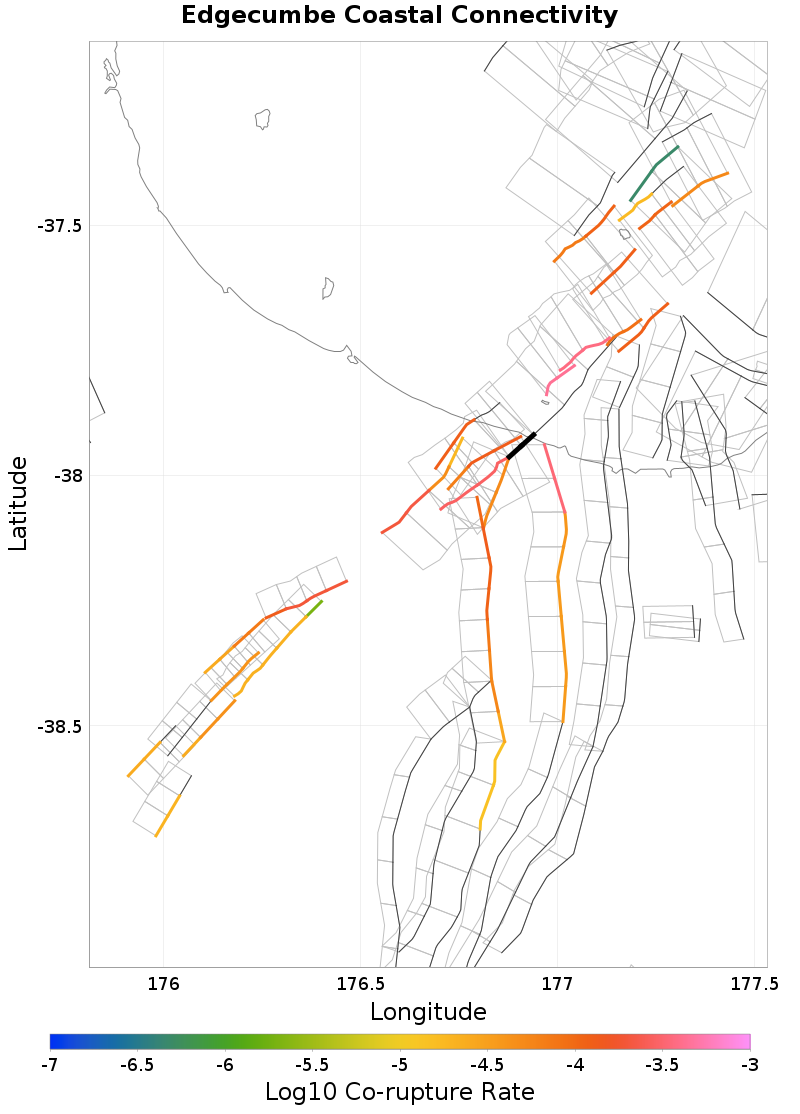

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
White Island 1, 0 km away
Edgecumbe 1987, 0 km away
Awakeri, 0 km away
Otakiri, 0.1 km away
Matata, 0.14 km away
Whakatane: North, 3.09 km away
Braemar, 4.62 km away
Rangitaiki 1, 8.81 km away
Waiohau: North, 11.47 km away
Rangitaiki 2, 14.83 km away
Waimana: North, 15.94 km away
Waiotahi: North, 18.75 km away
Waimanawa - Waikaremoana, 19.37 km away

White Island 1, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjAuMHpkWGJa
Connected?true
Directly Connected?true
Co-rupture Count784
Co-rupture Rate0.0

Edgecumbe 1987, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjAuMHpkWGJa
Connected?true
Directly Connected?true
Co-rupture Count762
Co-rupture Rate2.8147033E-4

Awakeri, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjAuMHpkWGJa
Connected?true
Directly Connected?true
Co-rupture Count466
Co-rupture Rate5.006971E-5

Otakiri, 0.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjAuMHpkWGJa
Connected?true
Directly Connected?true
Co-rupture Count148
Co-rupture Rate1.3111308E-4

Matata, 0.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjAuMHpkWGJa
Connected?true
Directly Connected?true
Co-rupture Count414
Co-rupture Rate1.2518716E-4

Whakatane: North, 3.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjAuMHpkWGJa
Connected?true
Directly Connected?true
Co-rupture Count100
Co-rupture Rate3.3256807E-4

Braemar, 4.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjAuMHpkWGJa
Connected?true
Directly Connected?true
Co-rupture Count1,079
Co-rupture Rate2.178129E-4

Rangitaiki 1, 8.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjAuMHpkWGJa
Connected?true
Directly Connected?true
Co-rupture Count400
Co-rupture Rate4.311559E-4

Waiohau: North, 11.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjAuMHpkWGJa
Connected?true
Directly Connected?false
Co-rupture Count638
Co-rupture Rate1.2997635E-4

Rangitaiki 2, 14.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjAuMHpkWGJa
Connected?true
Directly Connected?false
Co-rupture Count576
Co-rupture Rate3.711208E-4

Waimana: North, 15.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjAuMHpkWGJa
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waiotahi: North, 18.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjAuMHpkWGJa
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waimanawa - Waikaremoana, 19.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjAuMHpkWGJa
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
