Waihi West Details
| Property | Value |
|---|---|
| Rupture Count | 22 |
| Ruptures Above Sect Min Mag | 19 |
| Ruptures w/ Nonzero Rates | 8 |
| Magnitude Range | [6.24, 7.17] |
| Length Range | [10, 60] km |
| Total Rate | 2.3291643E-4 /yr |
| Multi-Fault Rate | 2.3291643E-4 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 2 |
Table Of Contents

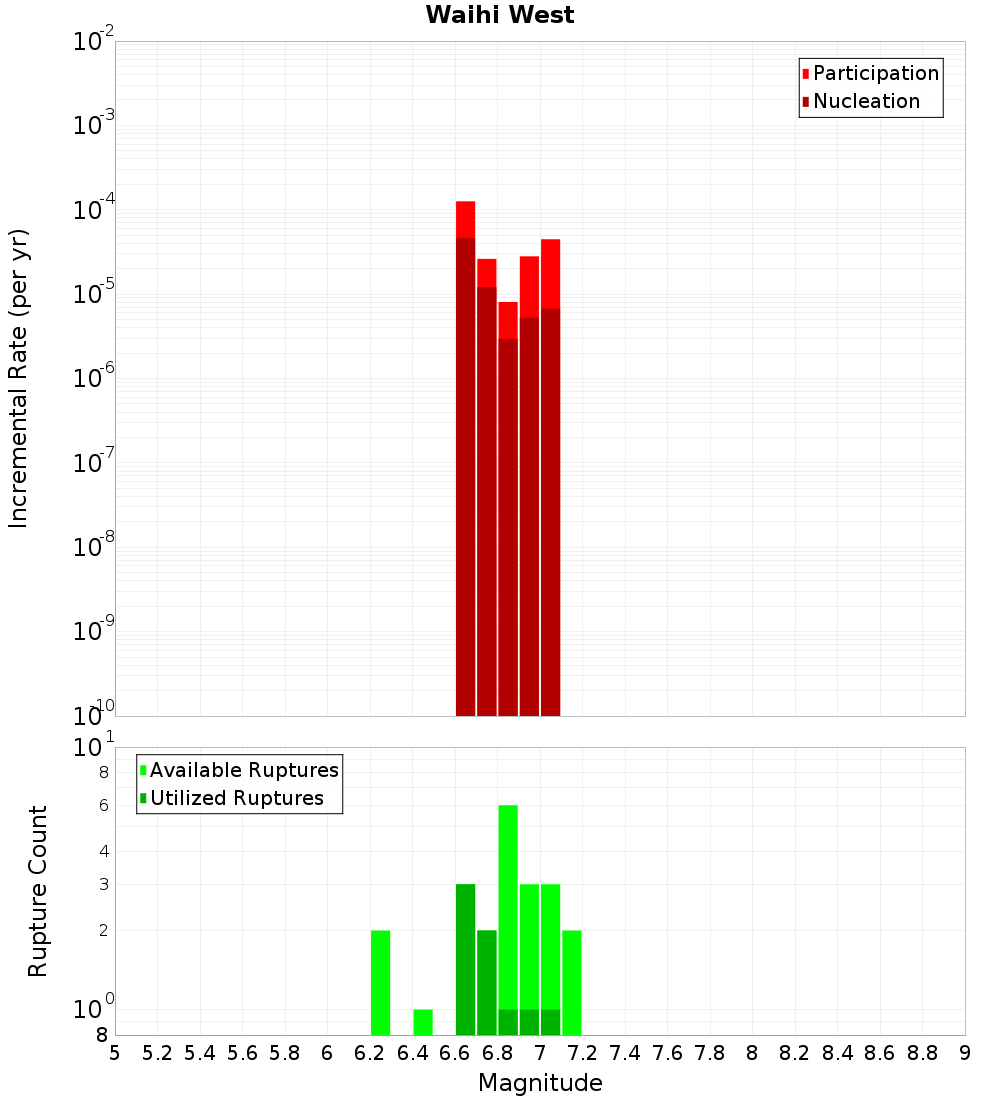

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

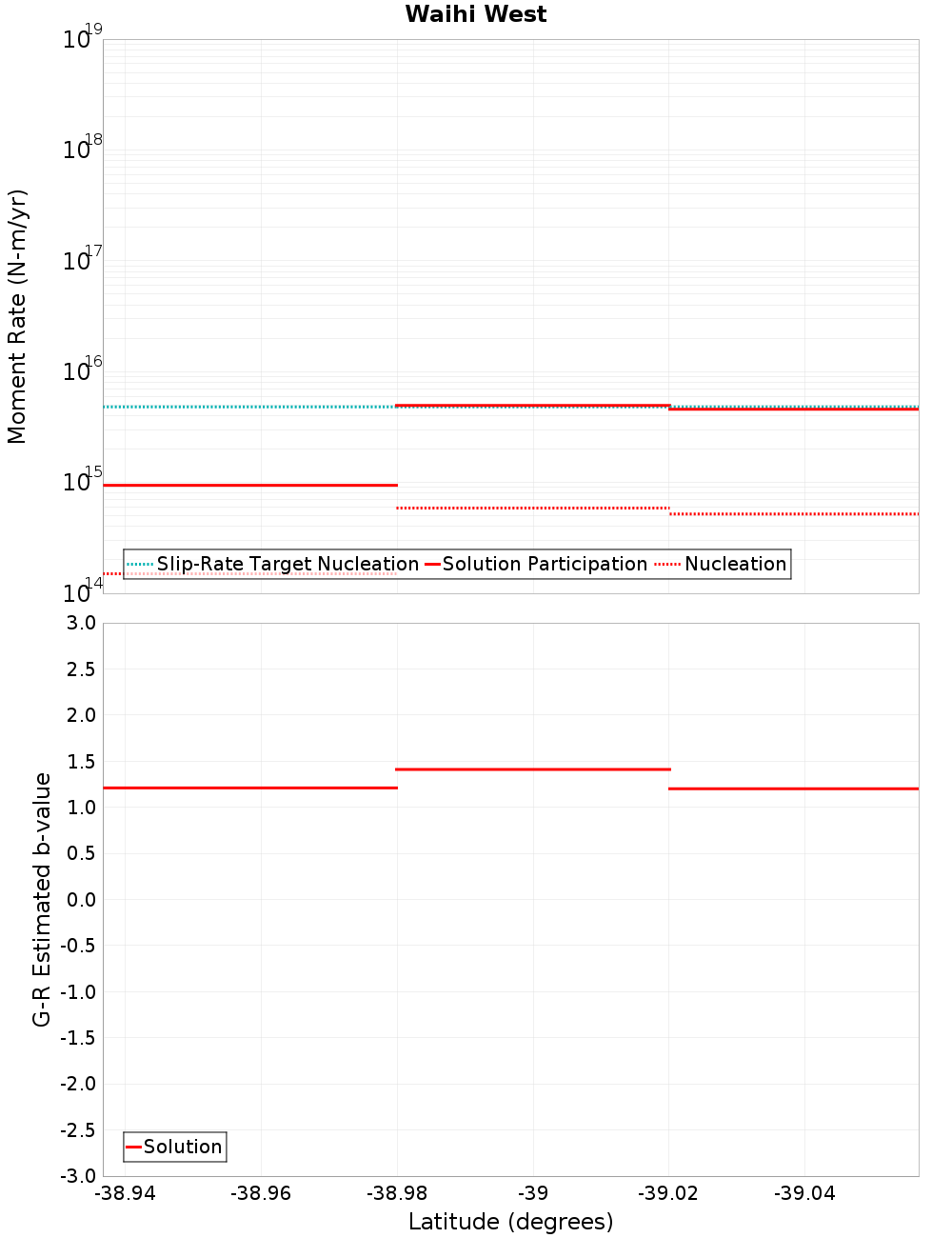

Moment-Rates and b-Values

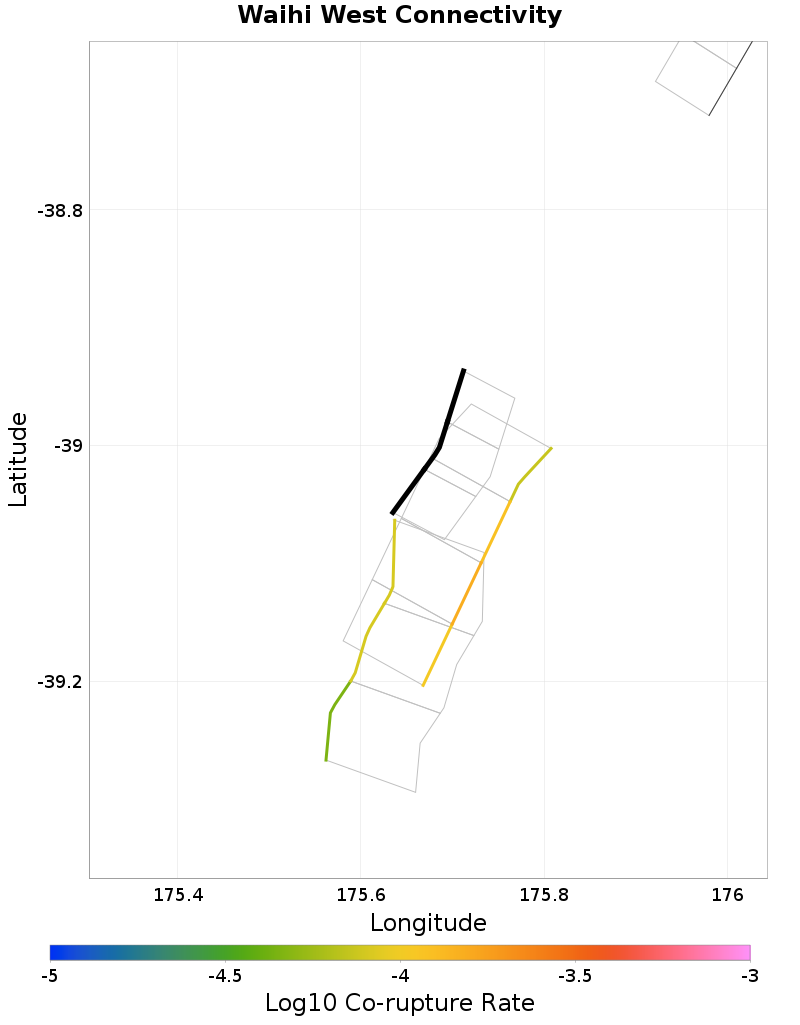

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Poutu, 0.1 km away |
| Waihi South, 0.44 km away |
Poutu, 0.1 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjAuMHpkWGJa | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 16 |
| Co-rupture Rate | 2.2484674E-4 |
Waihi South, 0.44 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjAuMHpkWGJa | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 10 |
| Co-rupture Rate | 8.084864E-5 |
