Alpine: Caswell Details

PropertyValue
Rupture Count58,343
Ruptures Above Sect Min Mag58,342
Ruptures w/ Nonzero Rates134
Magnitude Range[6.91, 8.63]
Length Range[22, 1,204] km
Total Rate0.0031878524 /yr
Multi-Fault Rate0.0031878524 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults127

Table Of Contents

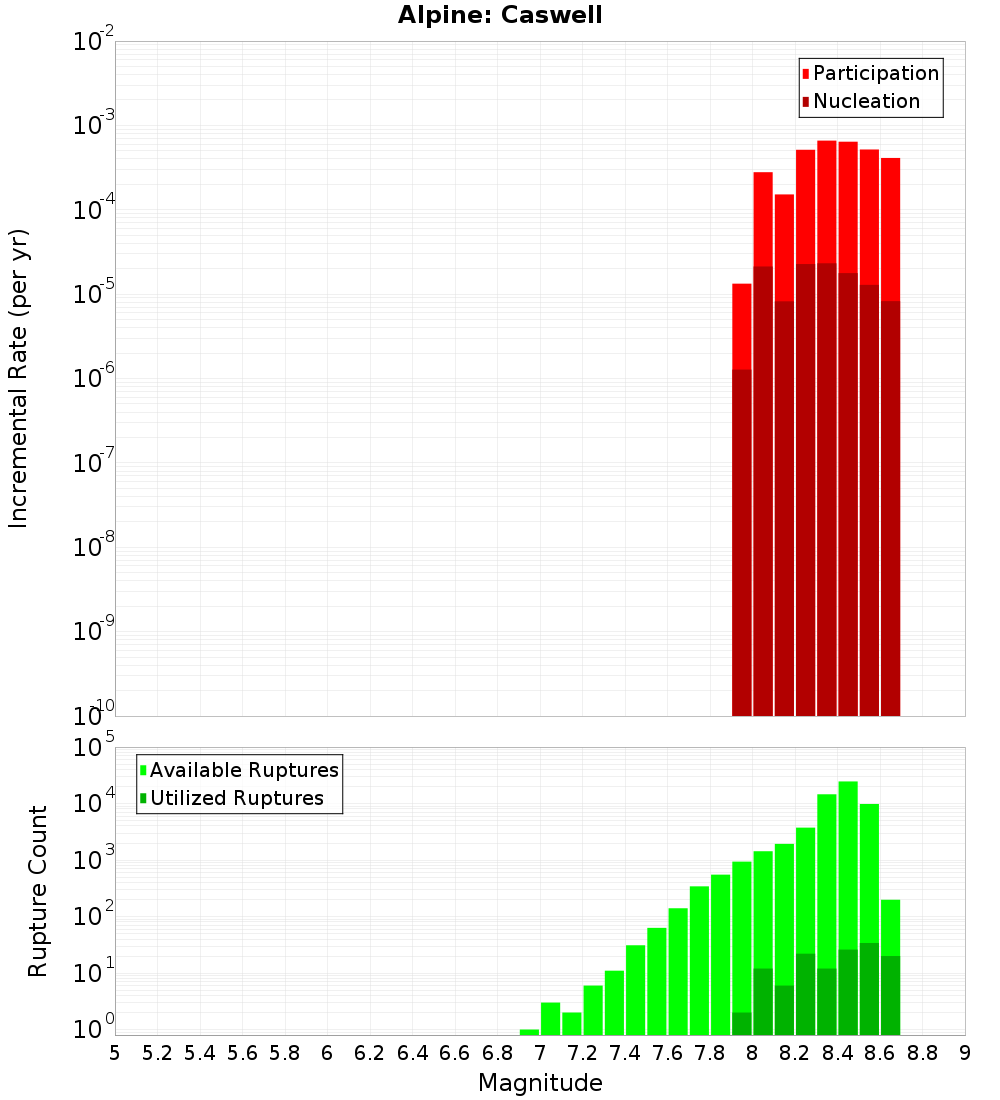

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

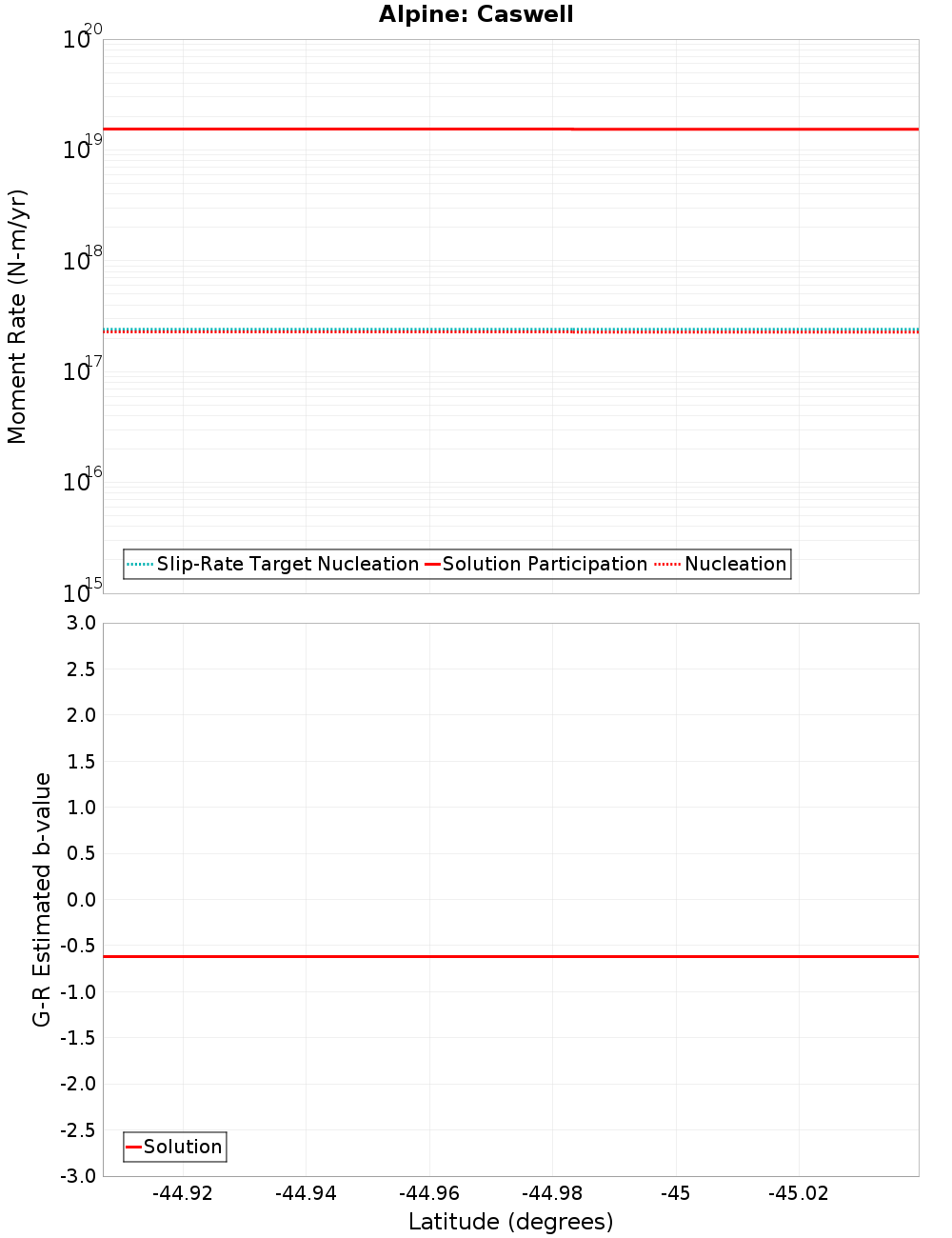

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Alpine: Nancy, 0 km away
Alpine: Caswell - South George, 0 km away
Central Wedge 1 & 2 & 3, 0.16 km away
South Wedge 2, 0.28 km away
Central Wedge 4 - South Wedge 411, 0.31 km away
Alpine: Resolution - Charles, 3.34 km away
Alpine: Resolution - Dagg, 11.23 km away

Alpine: Nancy, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjguMFFjMjJB
Connected?true
Directly Connected?true
Co-rupture Count30,001
Co-rupture Rate0.0015210509

Alpine: Caswell - South George, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjguMFFjMjJB
Connected?true
Directly Connected?true
Co-rupture Count58,141
Co-rupture Rate0.0031745436

Central Wedge 1 & 2 & 3, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjguMFFjMjJB
Connected?true
Directly Connected?true
Co-rupture Count6,522
Co-rupture Rate2.4950079E-5

South Wedge 2, 0.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjguMFFjMjJB
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Central Wedge 4 - South Wedge 411, 0.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjguMFFjMjJB
Connected?true
Directly Connected?false
Co-rupture Count536
Co-rupture Rate7.778121E-5

Alpine: Resolution - Charles, 3.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjguMFFjMjJB
Connected?true
Directly Connected?true
Co-rupture Count20,360
Co-rupture Rate0.0016418517

Alpine: Resolution - Dagg, 11.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjguMFFjMjJB
Connected?true
Directly Connected?false
Co-rupture Count46,896
Co-rupture Rate0.0031629025
