Matata Details

Property	Value
Rupture Count	19,369
Ruptures Above Sect Min Mag	19,368
Ruptures w/ Nonzero Rates	7
Magnitude Range	[6.55, 8.32]
Length Range	[14, 606] km
Total Rate	3.208307E-4 /yr
Multi-Fault Rate	3.208307E-4 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	92

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

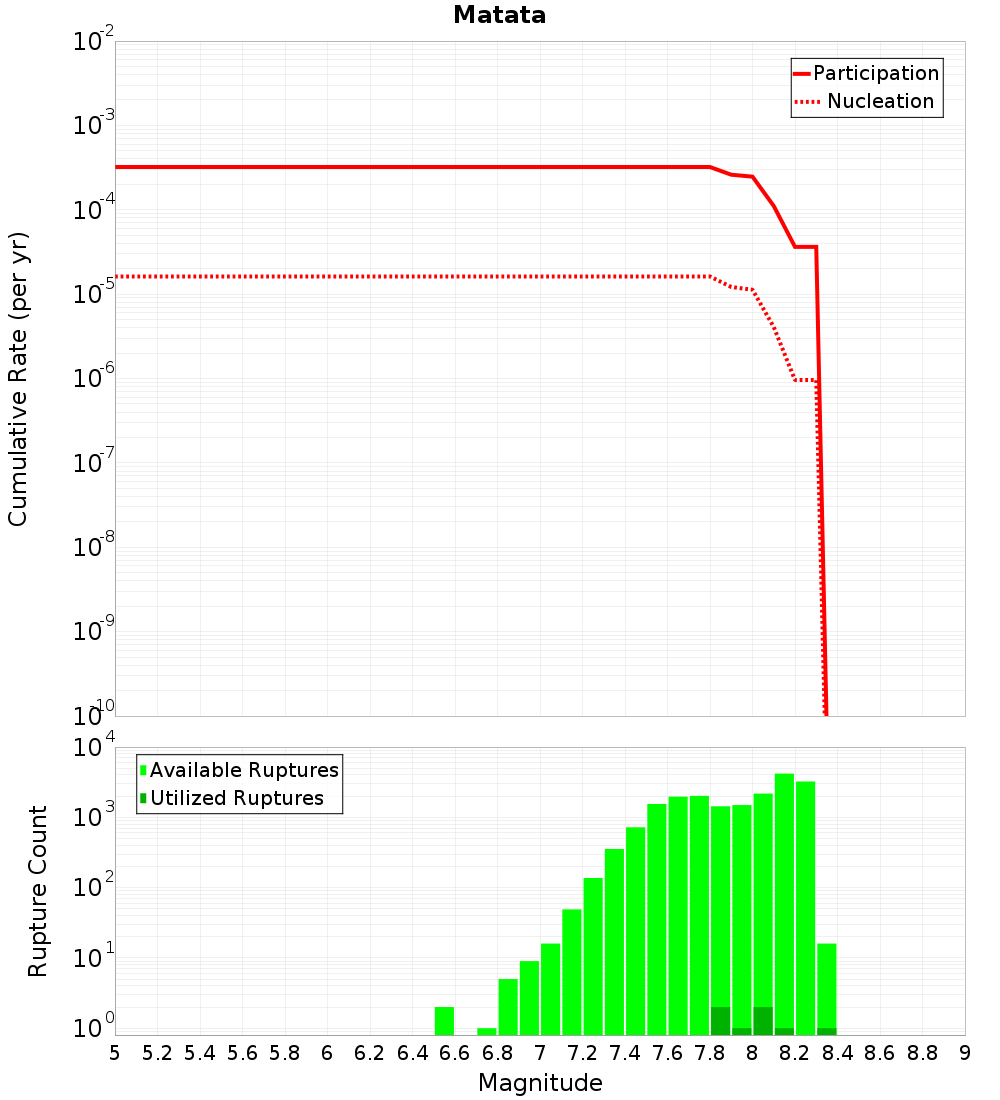

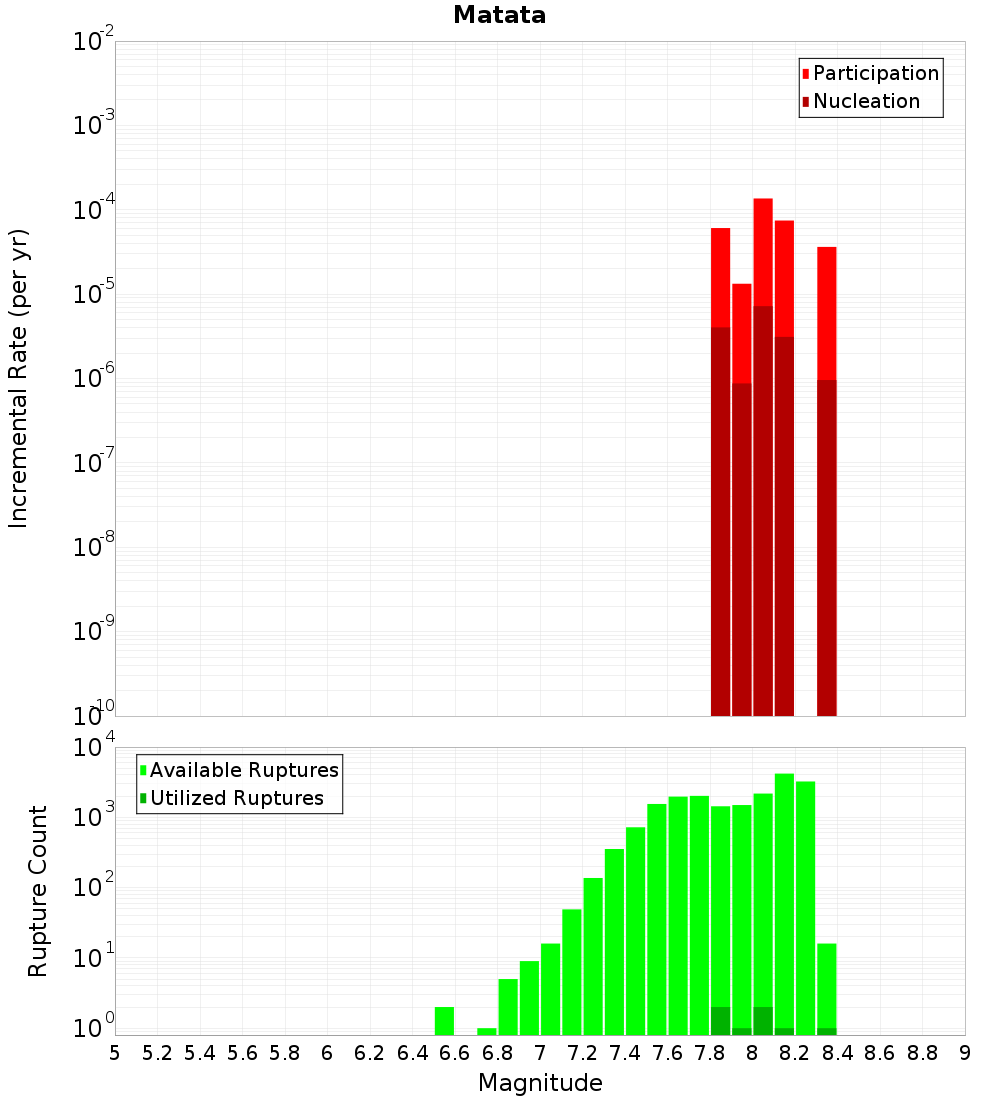

Magnitude-Frequency Distribution

Incremental	Cumulative

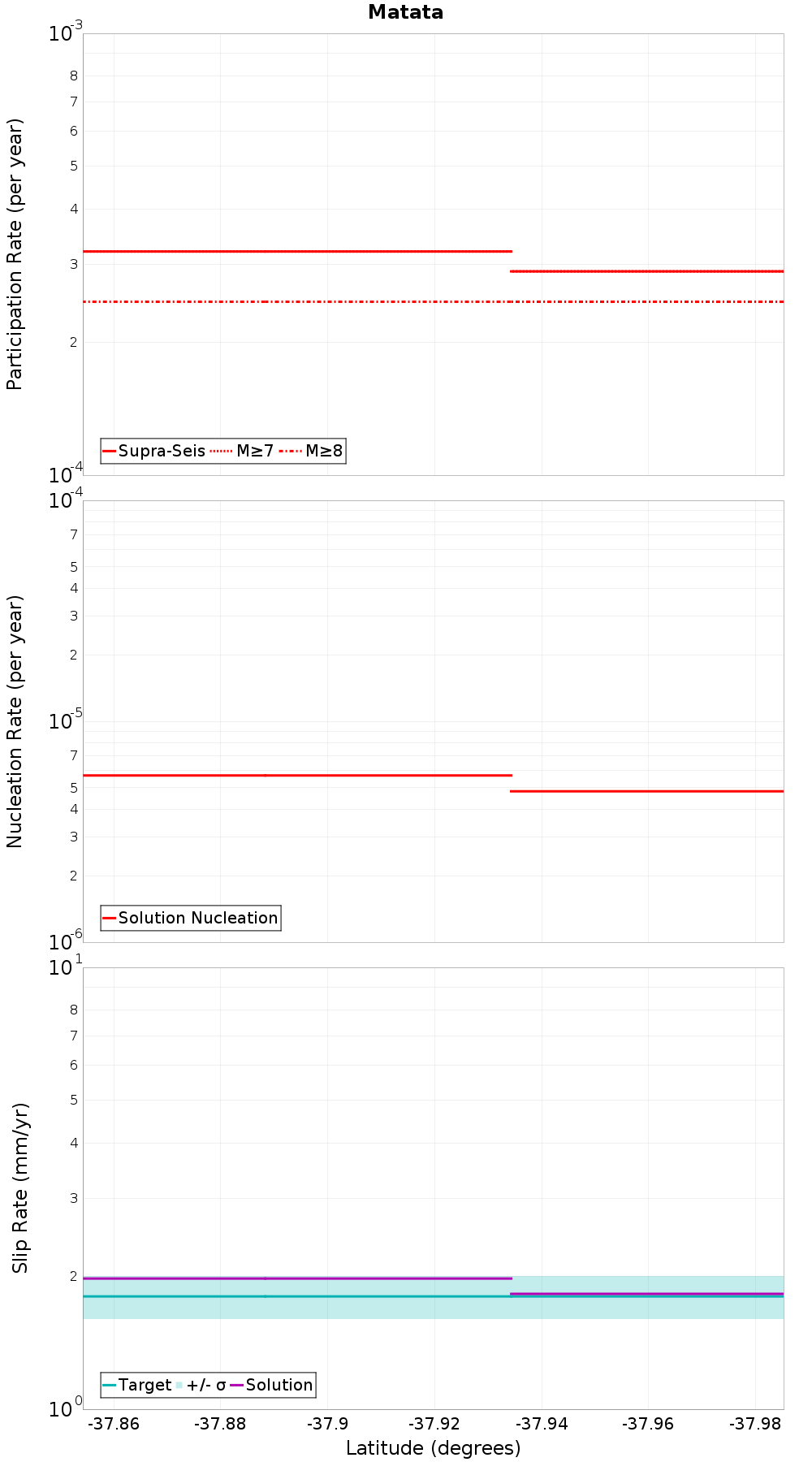

Along-Strike Values

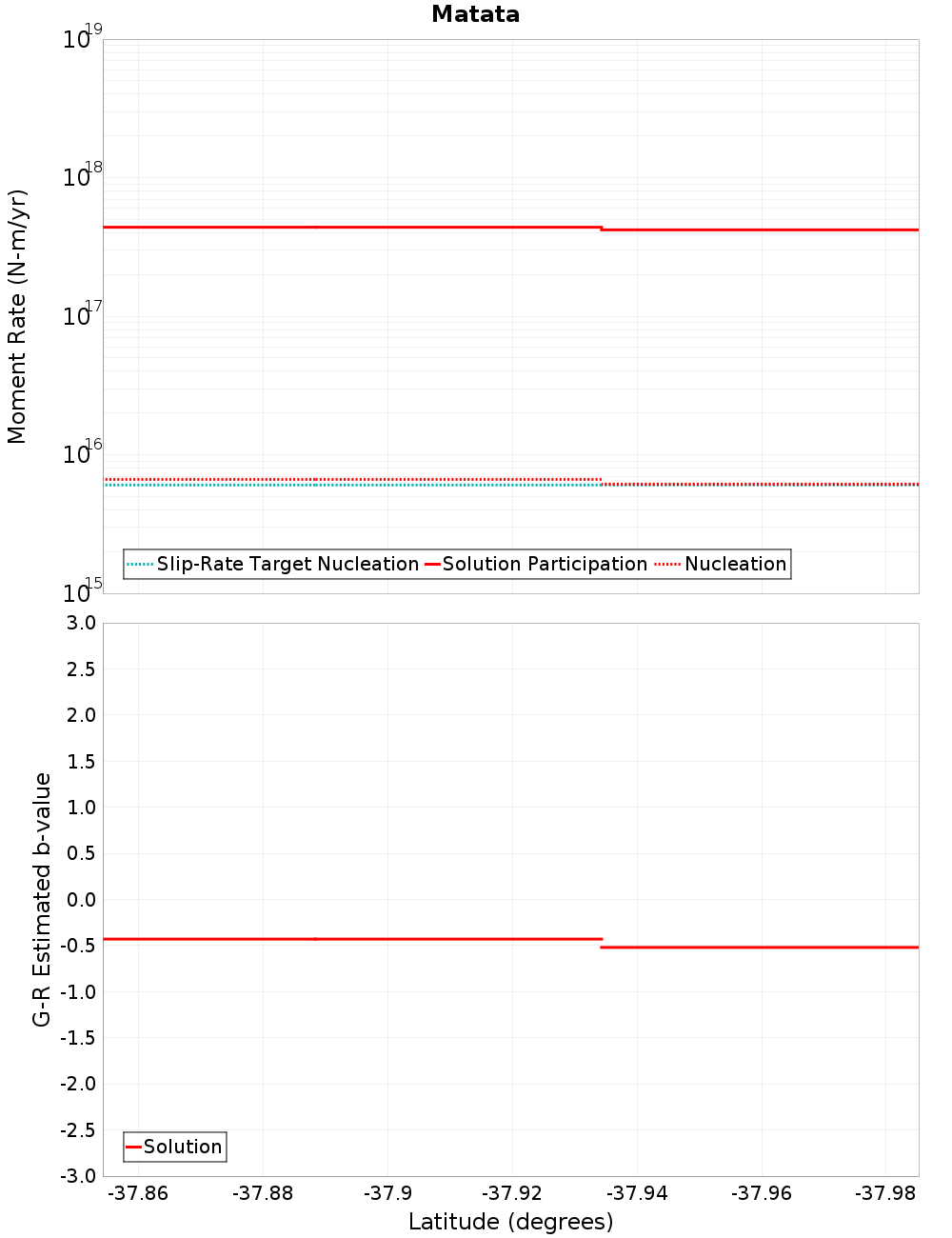

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Edgecumbe Coastal, 0.14 km away
Awakeri, 0.16 km away
White Island 1, 0.2 km away
Edgecumbe 1987, 0.29 km away
Braemar, 0.98 km away
Whakatane: North, 1.44 km away
Waiohau: North, 2.01 km away
Otakiri, 4.49 km away
Rangitaiki 1, 9.11 km away
Waimana: North, 14.4 km away
Rangitaiki 2, 15.14 km away
Waimanawa - Waikaremoana, 17.19 km away
Waiotahi: North, 18.33 km away

Edgecumbe Coastal, 0.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjguMFFjMjJB
Connected?	true
Directly Connected?	true
Co-rupture Count	2,389
Co-rupture Rate	0.0

Awakeri, 0.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjguMFFjMjJB
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

White Island 1, 0.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjguMFFjMjJB
Connected?	true
Directly Connected?	true
Co-rupture Count	16,605
Co-rupture Rate	3.208307E-4

Edgecumbe 1987, 0.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjguMFFjMjJB
Connected?	true
Directly Connected?	false
Co-rupture Count	558
Co-rupture Rate	0.0

Braemar, 0.98 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjguMFFjMjJB
Connected?	true
Directly Connected?	true
Co-rupture Count	7,263
Co-rupture Rate	2.601288E-4

Whakatane: North, 1.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjguMFFjMjJB
Connected?	true
Directly Connected?	false
Co-rupture Count	112
Co-rupture Rate	0.0

Waiohau: North, 2.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjguMFFjMjJB
Connected?	true
Directly Connected?	true
Co-rupture Count	16,448
Co-rupture Rate	2.601288E-4

Otakiri, 4.49 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjguMFFjMjJB
Connected?	true
Directly Connected?	true
Co-rupture Count	58
Co-rupture Rate	0.0

Rangitaiki 1, 9.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjguMFFjMjJB
Connected?	true
Directly Connected?	false
Co-rupture Count	304
Co-rupture Rate	0.0

Waimana: North, 14.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjguMFFjMjJB
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Rangitaiki 2, 15.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjguMFFjMjJB
Connected?	true
Directly Connected?	false
Co-rupture Count	3,687
Co-rupture Rate	0.0

Waimanawa - Waikaremoana, 17.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjguMFFjMjJB
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waiotahi: North, 18.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjguMFFjMjJB
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
