Rangitaiki 2 Details

PropertyValue
Rupture Count9,008
Ruptures Above Sect Min Mag9,008
Ruptures w/ Nonzero Rates14
Magnitude Range[6.66, 8.00]
Length Range[13, 303] km
Total Rate4.193106E-4 /yr
Multi-Fault Rate4.193106E-4 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults53

Table Of Contents

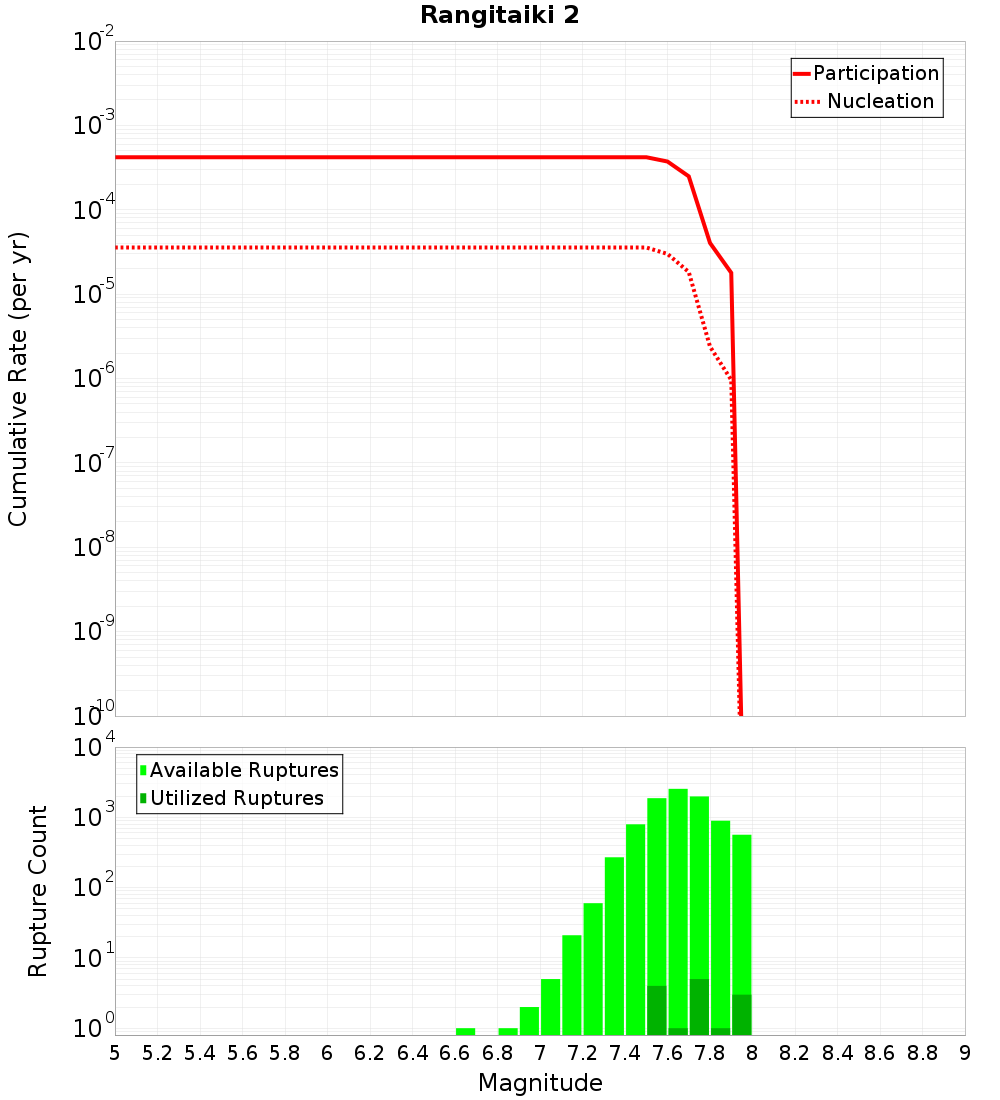

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

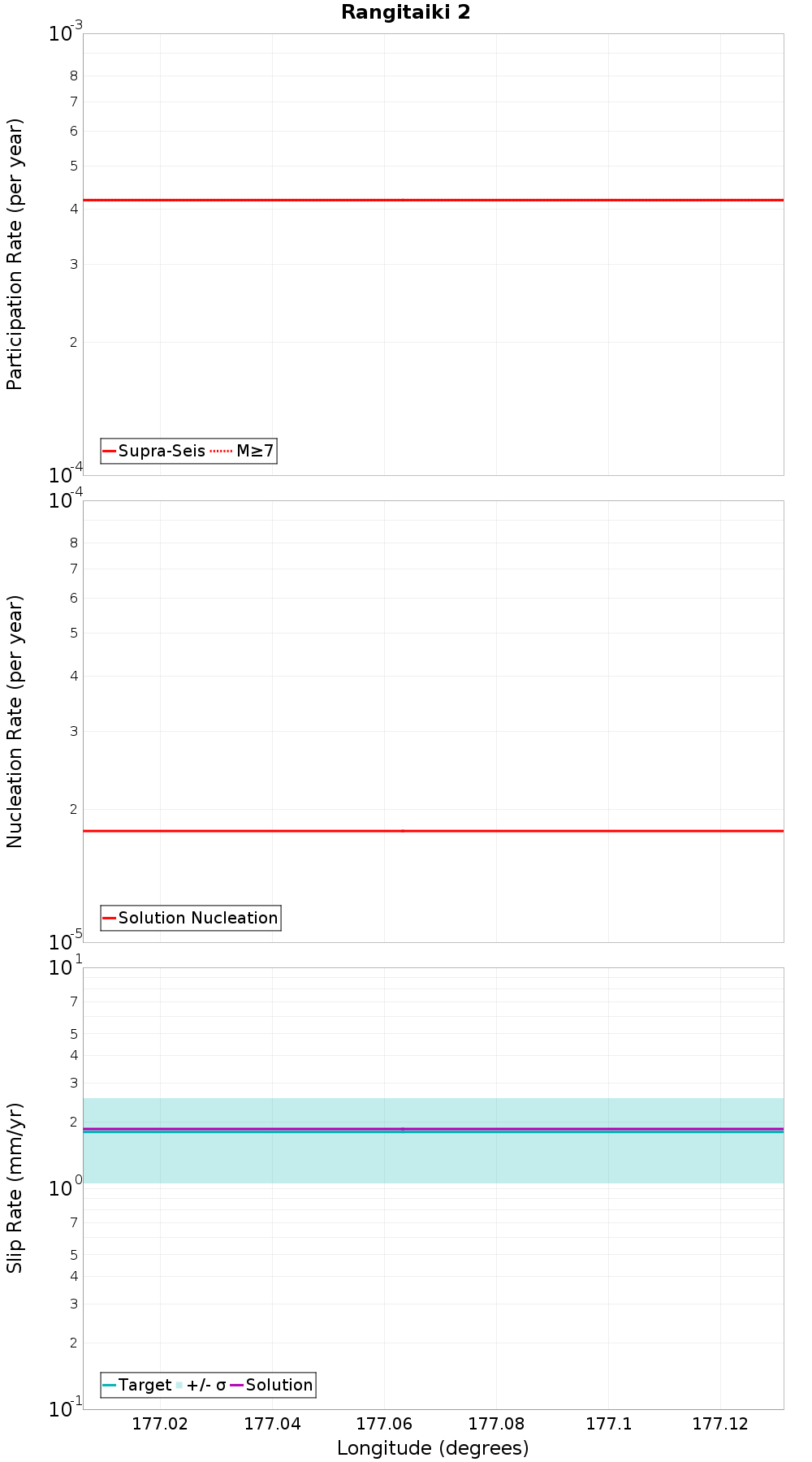

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Ohiwa 1, 0.42 km awayOhae 1, 14.97 km away
Whakaari 4, 0.45 km awayOpotiki 3, 15.11 km away
Rangitaiki 1, 0.74 km awayMatata, 15.14 km away
White Island 1, 0.77 km awayTe Arawa 1, 16.46 km away
White Island 2, 2.66 km awayWhakatane: North, 16.94 km away
Waimanawa - Waikaremoana, 6.46 km awayOtakiri, 17.19 km away
Calypso 2, 8.01 km awayVolkner 3, 17.97 km away
Waimana: North, 9.4 km awayOhae 2, 19.04 km away
Edgecumbe Coastal, 14.83 km awayTuatoru 1, 19.16 km away
Waiotahi: North, 14.87 km away

Ohiwa 1, 0.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjguMFN1NWN4
Connected?true
Directly Connected?true
Co-rupture Count2,484
Co-rupture Rate2.4892452E-5

Whakaari 4, 0.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjguMFN1NWN4
Connected?true
Directly Connected?true
Co-rupture Count5,357
Co-rupture Rate1.8545773E-4

Rangitaiki 1, 0.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjguMFN1NWN4
Connected?true
Directly Connected?true
Co-rupture Count2,057
Co-rupture Rate3.9576026E-4

White Island 1, 0.77 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjguMFN1NWN4
Connected?true
Directly Connected?true
Co-rupture Count6,815
Co-rupture Rate2.355035E-5

White Island 2, 2.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjguMFN1NWN4
Connected?true
Directly Connected?true
Co-rupture Count1,954
Co-rupture Rate1.9945181E-4

Waimanawa - Waikaremoana, 6.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjguMFN1NWN4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Calypso 2, 8.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjguMFN1NWN4
Connected?true
Directly Connected?true
Co-rupture Count1,465
Co-rupture Rate3.440107E-5

Waimana: North, 9.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjguMFN1NWN4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Edgecumbe Coastal, 14.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjguMFN1NWN4
Connected?true
Directly Connected?false
Co-rupture Count4,999
Co-rupture Rate3.0207008E-4

Waiotahi: North, 14.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjguMFN1NWN4
Connected?true
Directly Connected?false
Co-rupture Count27
Co-rupture Rate0.0

Ohae 1, 14.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjguMFN1NWN4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Opotiki 3, 15.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjguMFN1NWN4
Connected?true
Directly Connected?false
Co-rupture Count270
Co-rupture Rate0.0

Matata, 15.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjguMFN1NWN4
Connected?true
Directly Connected?false
Co-rupture Count2,787
Co-rupture Rate5.544033E-5

Te Arawa 1, 16.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjguMFN1NWN4
Connected?true
Directly Connected?false
Co-rupture Count3,698
Co-rupture Rate1.2464193E-4

Whakatane: North, 16.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjguMFN1NWN4
Connected?true
Directly Connected?false
Co-rupture Count778
Co-rupture Rate6.940431E-5

Otakiri, 17.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjguMFN1NWN4
Connected?true
Directly Connected?false
Co-rupture Count601
Co-rupture Rate1.2385444E-4

Volkner 3, 17.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjguMFN1NWN4
Connected?true
Directly Connected?false
Co-rupture Count357
Co-rupture Rate1.05366125E-4

Ohae 2, 19.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjguMFN1NWN4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tuatoru 1, 19.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjguMFN1NWN4
Connected?true
Directly Connected?false
Co-rupture Count1,240
Co-rupture Rate1.5205816E-4
