Te Whaiti South Details

PropertyValue
Rupture Count7,510
Ruptures Above Sect Min Mag7,506
Ruptures w/ Nonzero Rates8
Magnitude Range[6.85, 8.37]
Length Range[20, 634] km
Total Rate1.6167422E-4 /yr
Multi-Fault Rate1.6167422E-4 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults95

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

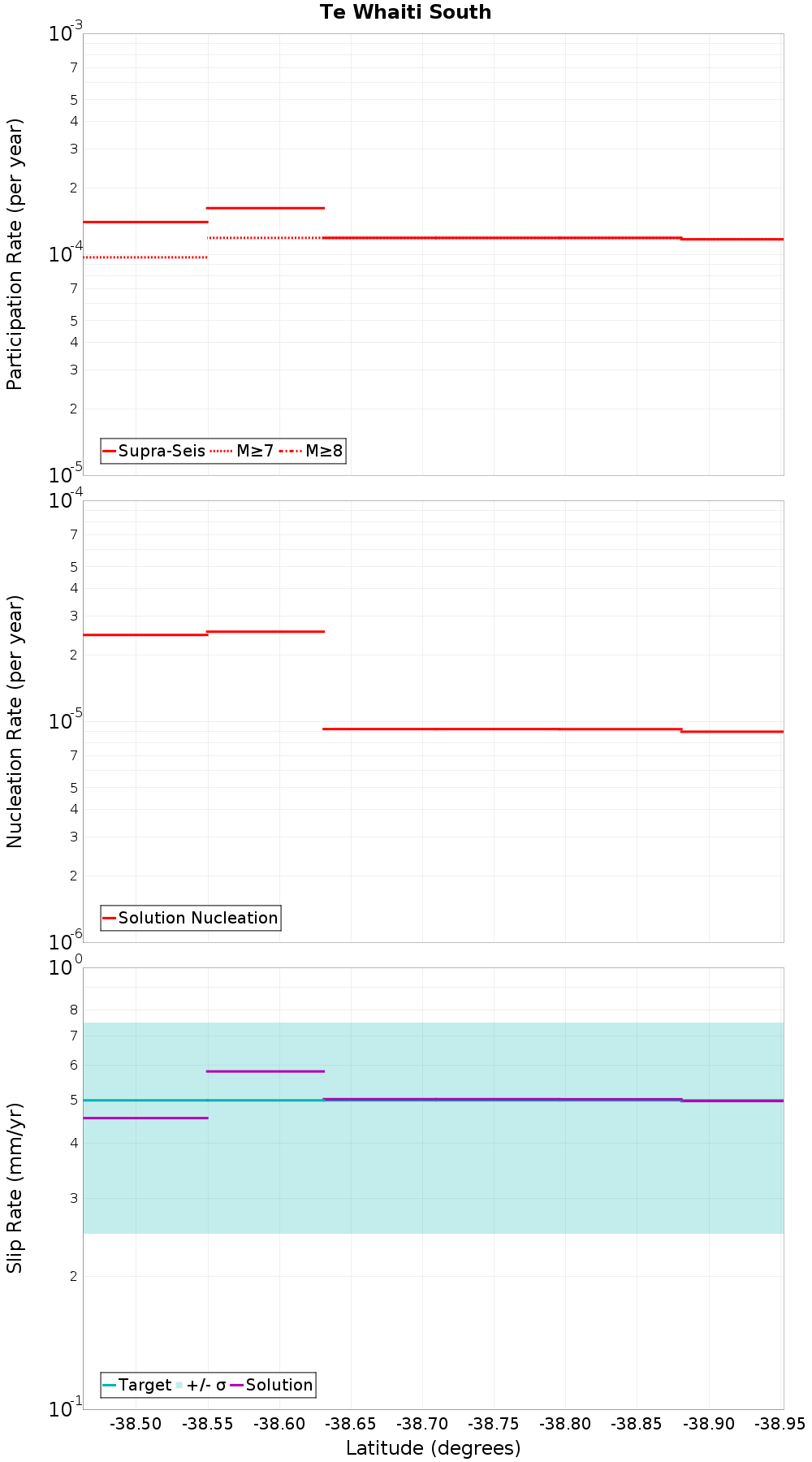

Along-Strike Values

(top)

Along-strike plot

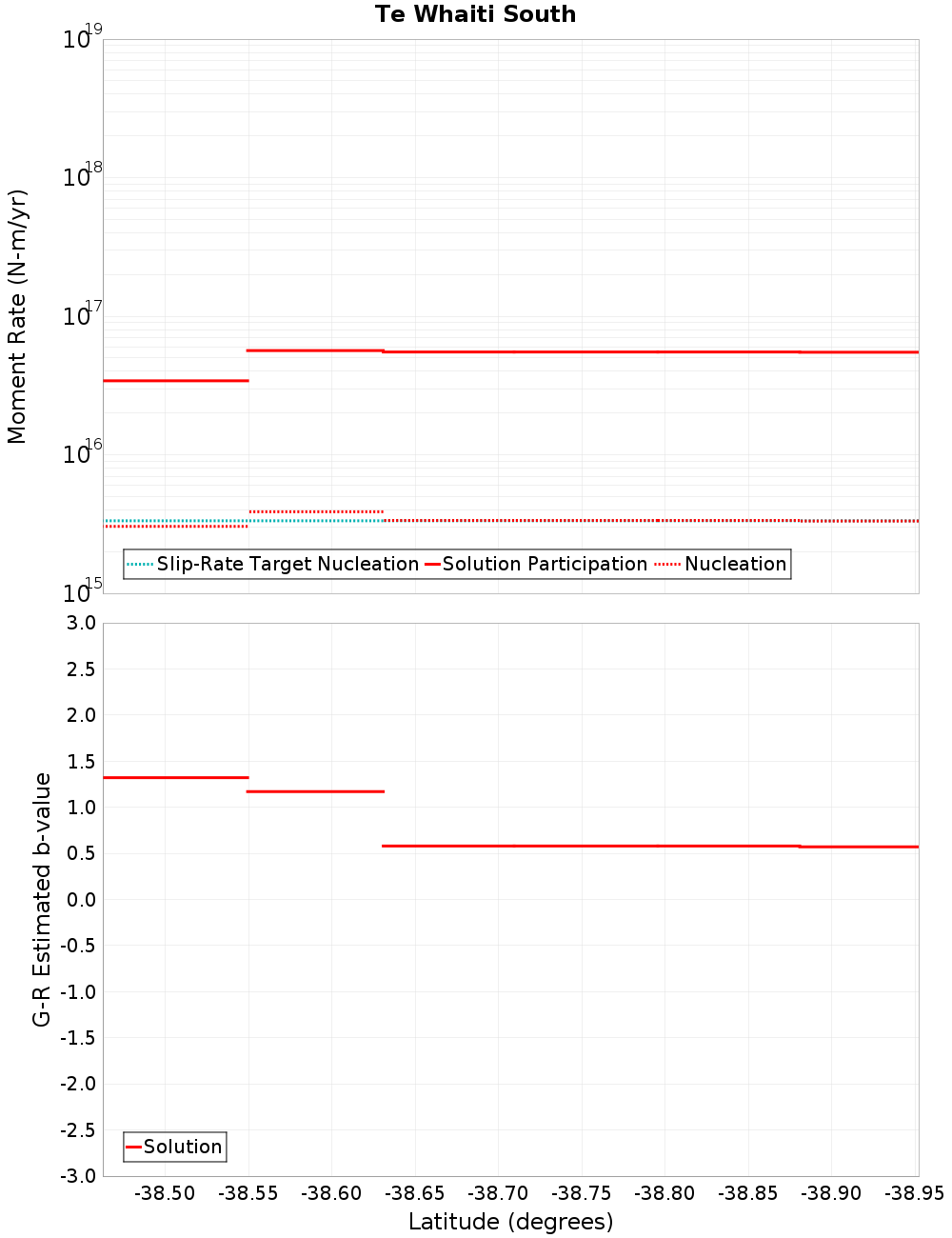

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Te Whaiti North, 0 km away
Wheao: North, 0 km away
Wheao: South, 0.44 km away
Waiohau: South, 0.76 km away
Waiohau: North, 1.94 km away
Ruahine: North, 9.06 km away
Whakatane: South, 11.9 km away
Waimana: South, 14.57 km away
Whakatane: North, 14.65 km away
Mohaka: North, 15.34 km away
Waiotahi: South, 18.53 km away

Te Whaiti North, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjguMFN1NWN4
Connected?true
Directly Connected?true
Co-rupture Count408
Co-rupture Rate1.3981649E-4

Wheao: North, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjguMFN1NWN4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wheao: South, 0.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjguMFN1NWN4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waiohau: South, 0.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjguMFN1NWN4
Connected?true
Directly Connected?true
Co-rupture Count266
Co-rupture Rate0.0

Waiohau: North, 1.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjguMFN1NWN4
Connected?true
Directly Connected?true
Co-rupture Count4,645
Co-rupture Rate2.1857737E-5

Ruahine: North, 9.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjguMFN1NWN4
Connected?true
Directly Connected?true
Co-rupture Count5,231
Co-rupture Rate8.127881E-5

Whakatane: South, 11.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjguMFN1NWN4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waimana: South, 14.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjguMFN1NWN4
Connected?true
Directly Connected?true
Co-rupture Count42
Co-rupture Rate0.0

Whakatane: North, 14.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjguMFN1NWN4
Connected?true
Directly Connected?false
Co-rupture Count98
Co-rupture Rate3.0104666E-5

Mohaka: North, 15.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjguMFN1NWN4
Connected?true
Directly Connected?false
Co-rupture Count37
Co-rupture Rate0.0

Waiotahi: South, 18.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjguMFN1NWN4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
