Tuatoru 2 Details

PropertyValue
Rupture Count8,972
Ruptures Above Sect Min Mag8,972
Ruptures w/ Nonzero Rates21
Magnitude Range[6.87, 8.00]
Length Range[14, 301] km
Total Rate5.3200003E-4 /yr
Multi-Fault Rate5.3200003E-4 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults46

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

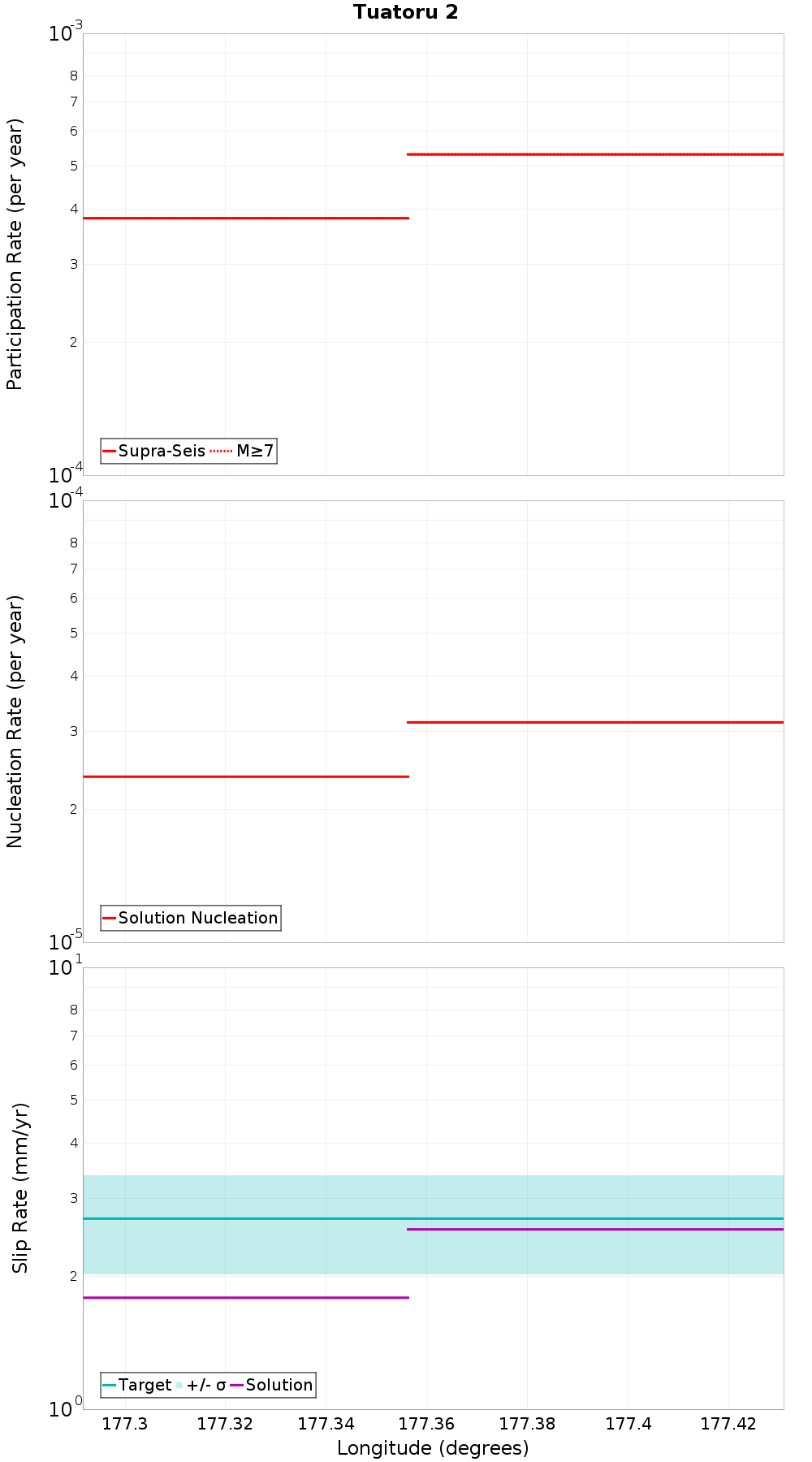

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Otara West 3, 0.1 km awayTuakana 6, 11.58 km away
Te Arawa 3, 0.11 km awayTuakana 7, 12.24 km away
Te Arawa 2, 0.13 km awayOtara West 1, 12.32 km away
Otara East 1, 0.2 km awayVolkner 3, 12.56 km away
Te Arawa 1, 0.34 km awayCalypso 2, 12.9 km away
Tuatoru 1, 0.43 km awayOtara West 2, 15.5 km away
Otara East 2, 8.63 km awayHariki, 18.73 km away
Volkner 4, 10.03 km awayWhite Island 2, 19.44 km away
Whakaari 4, 11.04 km away

Otara West 3, 0.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjguMFN1NWN4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Te Arawa 3, 0.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjguMFN1NWN4
Connected?true
Directly Connected?false
Co-rupture Count240
Co-rupture Rate2.5249507E-5

Te Arawa 2, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjguMFN1NWN4
Connected?true
Directly Connected?true
Co-rupture Count3,061
Co-rupture Rate1.664628E-4

Otara East 1, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjguMFN1NWN4
Connected?true
Directly Connected?true
Co-rupture Count5,553
Co-rupture Rate5.3200003E-4

Te Arawa 1, 0.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjguMFN1NWN4
Connected?true
Directly Connected?true
Co-rupture Count3,561
Co-rupture Rate2.1839247E-4

Tuatoru 1, 0.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjguMFN1NWN4
Connected?true
Directly Connected?true
Co-rupture Count2,677
Co-rupture Rate2.3768954E-4

Otara East 2, 8.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjguMFN1NWN4
Connected?true
Directly Connected?false
Co-rupture Count2,419
Co-rupture Rate4.4415725E-4

Volkner 4, 10.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjguMFN1NWN4
Connected?true
Directly Connected?false
Co-rupture Count17
Co-rupture Rate0.0

Whakaari 4, 11.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjguMFN1NWN4
Connected?true
Directly Connected?false
Co-rupture Count5,955
Co-rupture Rate1.7684491E-4

Tuakana 6, 11.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjguMFN1NWN4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tuakana 7, 12.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjguMFN1NWN4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otara West 1, 12.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjguMFN1NWN4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Volkner 3, 12.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjguMFN1NWN4
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Calypso 2, 12.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjguMFN1NWN4
Connected?true
Directly Connected?false
Co-rupture Count499
Co-rupture Rate3.2691558E-5

Otara West 2, 15.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjguMFN1NWN4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hariki, 18.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjguMFN1NWN4
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0

White Island 2, 19.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjguMFN1NWN4
Connected?true
Directly Connected?false
Co-rupture Count2,481
Co-rupture Rate2.850832E-4
