Tuapeka Details

PropertyValue
Rupture Count9
Ruptures Above Sect Min Mag8
Ruptures w/ Nonzero Rates5
Magnitude Range[7.08, 7.84]
Length Range[27, 153] km
Total Rate2.2140553E-5 /yr
Multi-Fault Rate0.0 /yr (0.00%)
Directly-Connected Faults1
All Co-Rupturing Faults4

Table Of Contents

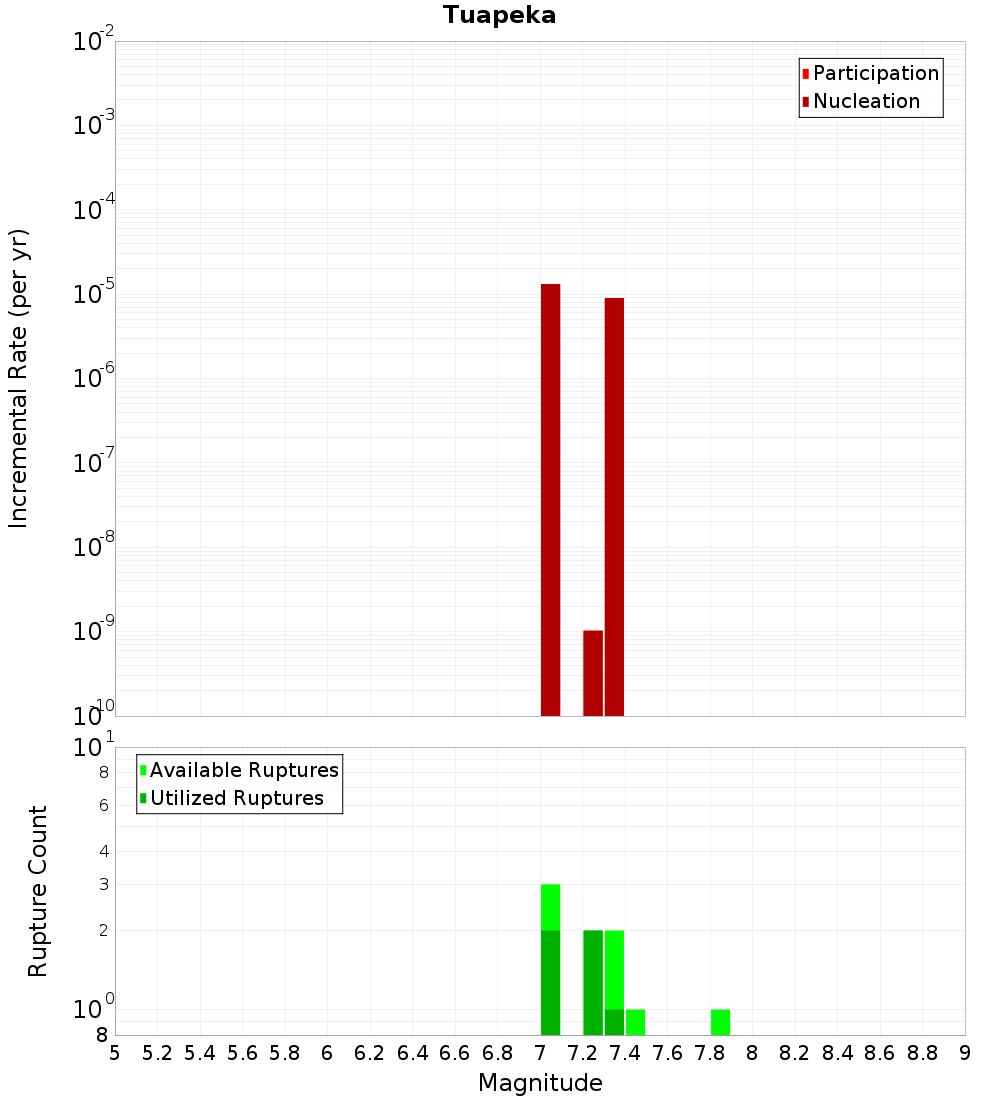

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

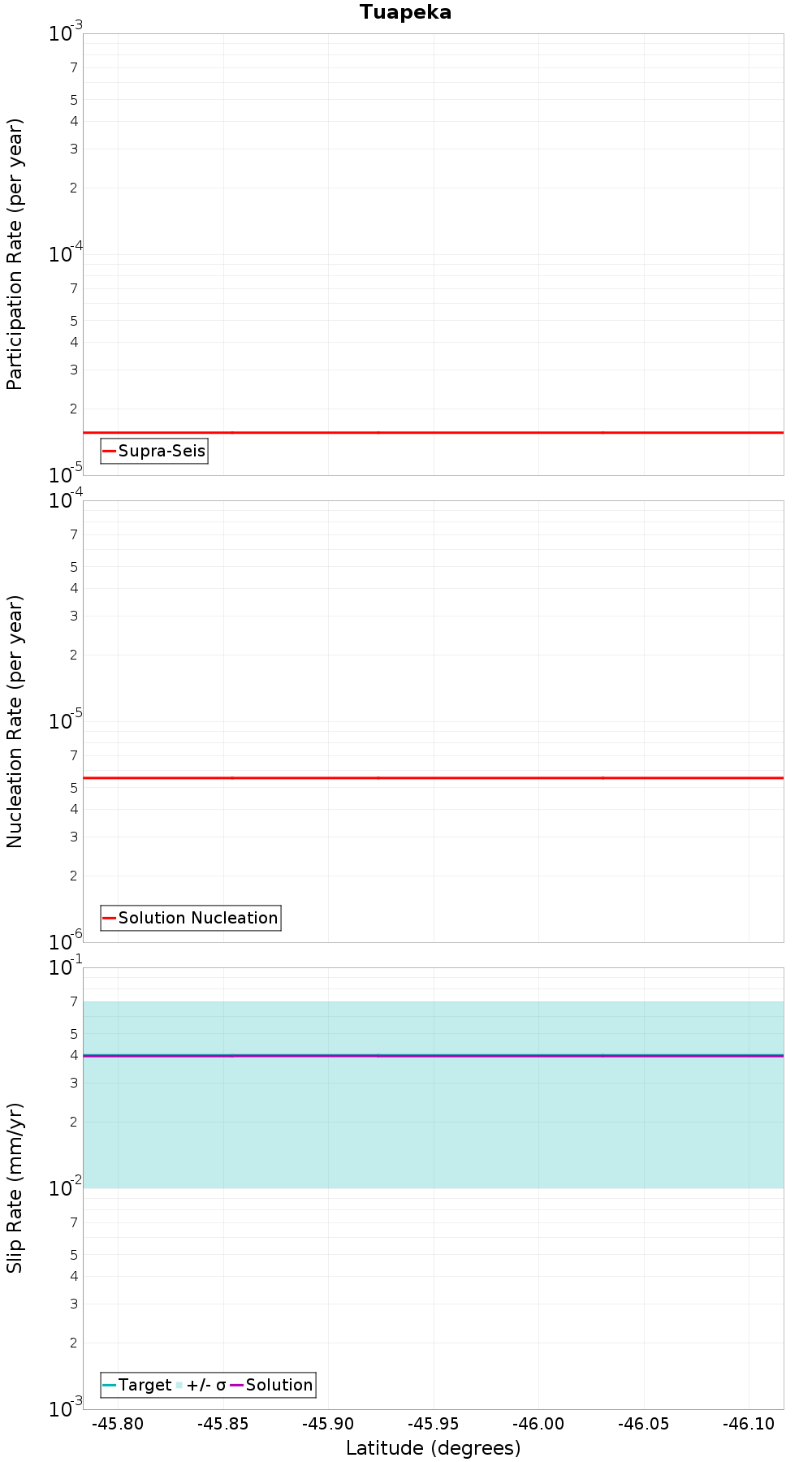

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Blue Mountain, 0.23 km awayClifton, 6.7 km away
Beaumont River, 0.91 km awayWaitahuna 2, 10.05 km away
Backbone, 1.03 km awayAkatore, 14.57 km away
Teviot, 1.07 km awayBeacon Hill, 14.81 km away
Waitahuna 1, 1.92 km awayHyde South - The Twins, 14.98 km away
Spylaw, 2.17 km awayWendon Valley, 15.02 km away
Titri South, 4.19 km awayMaungatua - North Taieri, 16.01 km away
Titri Central, 6.22 km awayOld Man, 16.07 km away
Otanomomo, 6.25 km away

Blue Mountain, 0.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjkuMGpBUFo3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Beaumont River, 0.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjkuMGpBUFo3
Connected?true
Directly Connected?true
Co-rupture Count3
Co-rupture Rate0.0

Backbone, 1.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjkuMGpBUFo3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Teviot, 1.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjkuMGpBUFo3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waitahuna 1, 1.92 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjkuMGpBUFo3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Spylaw, 2.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjkuMGpBUFo3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Titri South, 4.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjkuMGpBUFo3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Titri Central, 6.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjkuMGpBUFo3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otanomomo, 6.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjkuMGpBUFo3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Clifton, 6.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjkuMGpBUFo3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waitahuna 2, 10.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjkuMGpBUFo3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Akatore, 14.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjkuMGpBUFo3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Beacon Hill, 14.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjkuMGpBUFo3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hyde South - The Twins, 14.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjkuMGpBUFo3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wendon Valley, 15.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjkuMGpBUFo3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Maungatua - North Taieri, 16.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjkuMGpBUFo3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Old Man, 16.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NjkuMGpBUFo3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
