Ruahine: South Details

PropertyValue
Rupture Count26,732
Ruptures Above Sect Min Mag26,729
Ruptures w/ Nonzero Rates23
Magnitude Range[6.99, 8.60]
Length Range[24, 1,113] km
Total Rate1.6943987E-4 /yr
Multi-Fault Rate1.6943987E-4 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults101

Table Of Contents

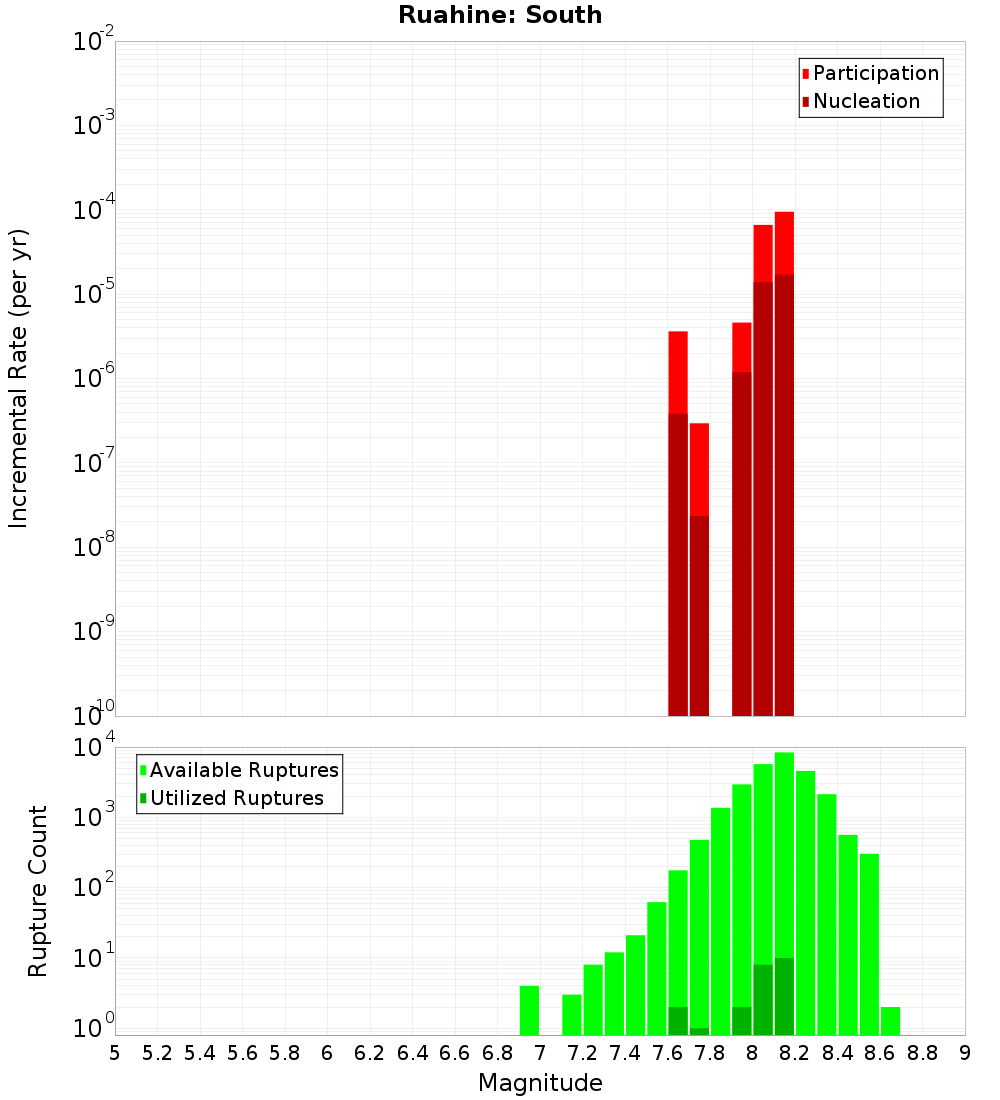

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

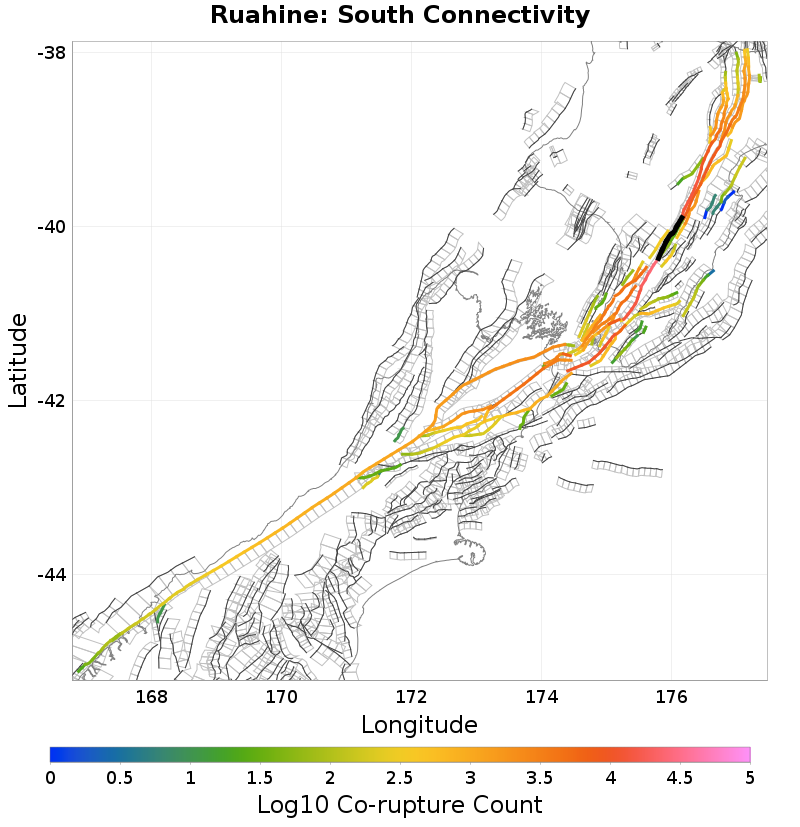

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Wellington: Pahiatua, 0 km away
Mohaka: South, 0 km away
Ruahine: Central, 0.16 km away
Rangefront, 0.19 km away
Woodville, 1.31 km away
Pohangina, 5.25 km away
Pahiatua, 5.97 km away
Ruataniwha, 9.87 km away
Maunga, 13.33 km away
Wakarara, 14.13 km away
Tokomaru, 14.38 km away
Northern Ohariu, 18.29 km away
Taonui, 18.79 km away

Wellington: Pahiatua, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NzcuMEJwTDJu
Connected?true
Directly Connected?true
Co-rupture Count25,263
Co-rupture Rate1.6943987E-4

Mohaka: South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NzcuMEJwTDJu
Connected?true
Directly Connected?true
Co-rupture Count7,825
Co-rupture Rate6.372181E-5

Ruahine: Central, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NzcuMEJwTDJu
Connected?true
Directly Connected?true
Co-rupture Count14,205
Co-rupture Rate1.0180381E-4

Rangefront, 0.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NzcuMEJwTDJu
Connected?true
Directly Connected?true
Co-rupture Count2,292
Co-rupture Rate0.0

Woodville, 1.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NzcuMEJwTDJu
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pohangina, 5.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NzcuMEJwTDJu
Connected?true
Directly Connected?true
Co-rupture Count338
Co-rupture Rate0.0

Pahiatua, 5.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NzcuMEJwTDJu
Connected?true
Directly Connected?true
Co-rupture Count468
Co-rupture Rate3.9142456E-6

Ruataniwha, 9.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NzcuMEJwTDJu
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Maunga, 13.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NzcuMEJwTDJu
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wakarara, 14.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NzcuMEJwTDJu
Connected?true
Directly Connected?false
Co-rupture Count1,713
Co-rupture Rate0.0

Tokomaru, 14.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NzcuMEJwTDJu
Connected?true
Directly Connected?false
Co-rupture Count2,104
Co-rupture Rate0.0

Northern Ohariu, 18.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NzcuMEJwTDJu
Connected?true
Directly Connected?false
Co-rupture Count4,806
Co-rupture Rate3.967637E-5

Taonui, 18.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NzcuMEJwTDJu
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
