Whangamata West Details

Property	Value
Rupture Count	1,054
Ruptures Above Sect Min Mag	1,051
Ruptures w/ Nonzero Rates	14
Magnitude Range	[6.29, 7.50]
Length Range	[10, 143] km
Total Rate	8.791979E-4 /yr
Multi-Fault Rate	8.791979E-4 /yr (100.00%)
Directly-Connected Faults	3
All Co-Rupturing Faults	16

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

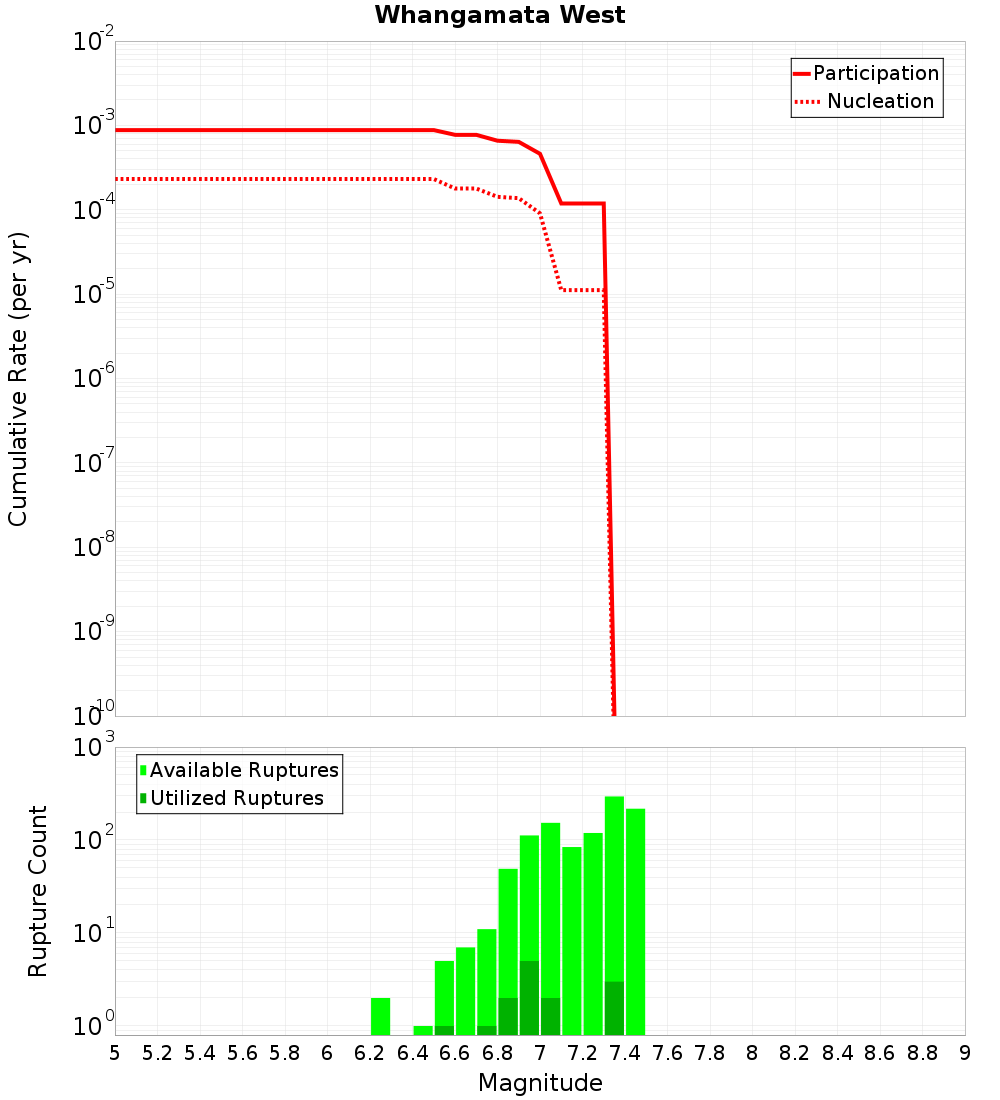

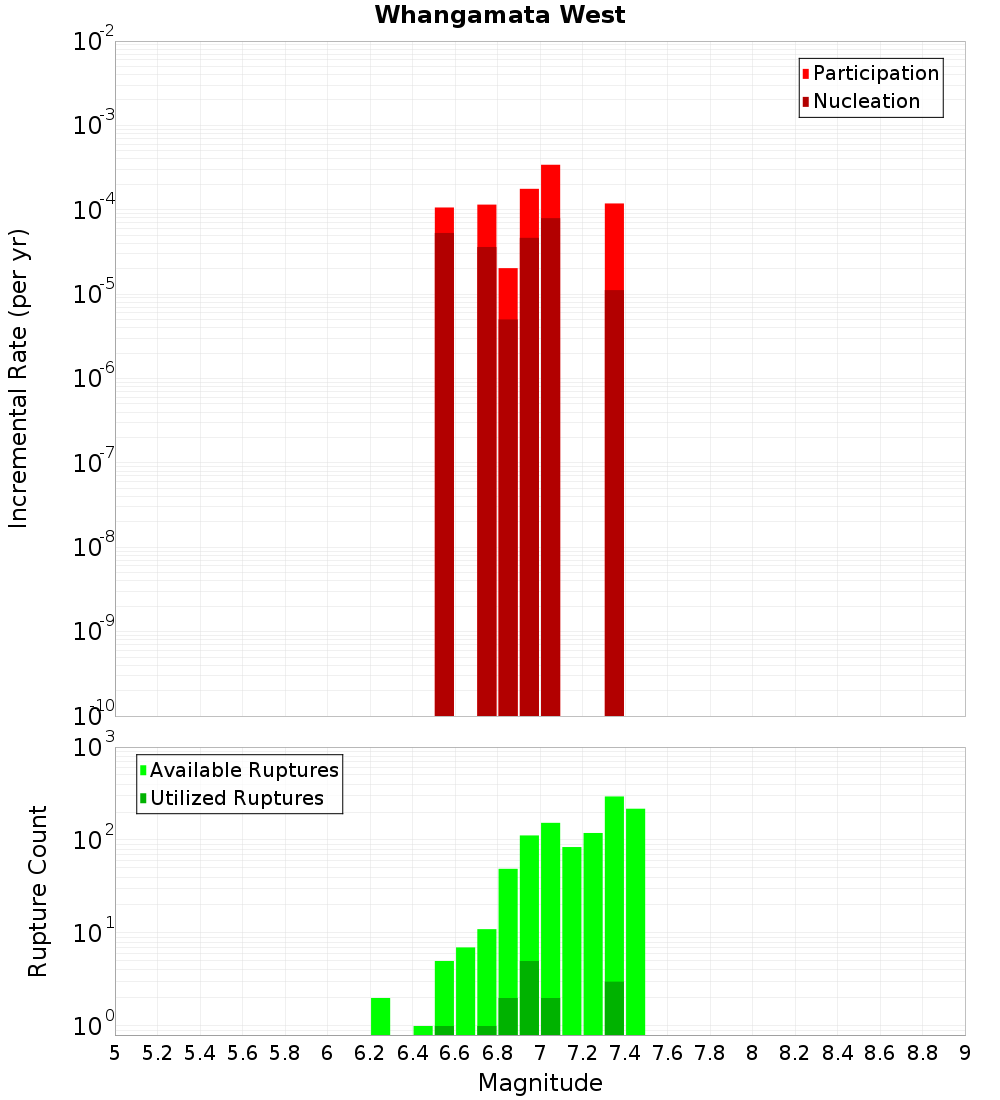

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

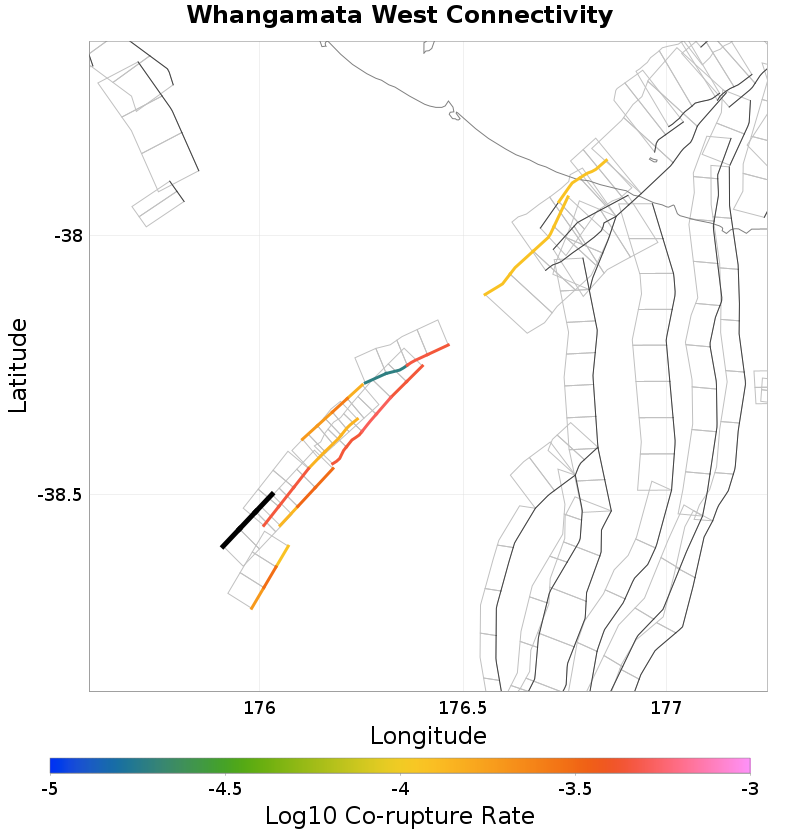

Connectivity

Nearby Sections

Fault Section
Puketerata, 0.11 km away
Orakeikorako, 0.23 km away
Kaiapo, 0.25 km away
Puketerata North, 9.6 km away
Maleme, 12.98 km away
Paeroa, 13.84 km away

Puketerata, 0.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NzcuMEJwTDJu
Connected?	true
Directly Connected?	true
Co-rupture Count	277
Co-rupture Rate	4.4926372E-4

Orakeikorako, 0.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NzcuMEJwTDJu
Connected?	true
Directly Connected?	true
Co-rupture Count	770
Co-rupture Rate	3.2352732E-4

Kaiapo, 0.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NzcuMEJwTDJu
Connected?	true
Directly Connected?	true
Co-rupture Count	439
Co-rupture Rate	2.9725998E-4

Puketerata North, 9.6 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NzcuMEJwTDJu
Connected?	true
Directly Connected?	false
Co-rupture Count	426
Co-rupture Rate	1.4149817E-4

Maleme, 12.98 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NzcuMEJwTDJu
Connected?	true
Directly Connected?	false
Co-rupture Count	706
Co-rupture Rate	2.6354453E-4

Paeroa, 13.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NzcuMEJwTDJu
Connected?	true
Directly Connected?	false
Co-rupture Count	523
Co-rupture Rate	5.092465E-4
