Hanmer Details

PropertyValue
Rupture Count744
Ruptures Above Sect Min Mag744
Ruptures w/ Nonzero Rates8
Magnitude Range[6.89, 8.47]
Length Range[19, 747] km
Total Rate3.4919378E-4 /yr
Multi-Fault Rate3.4919378E-4 /yr (100.00%)
Directly-Connected Faults2
All Co-Rupturing Faults84

Table Of Contents

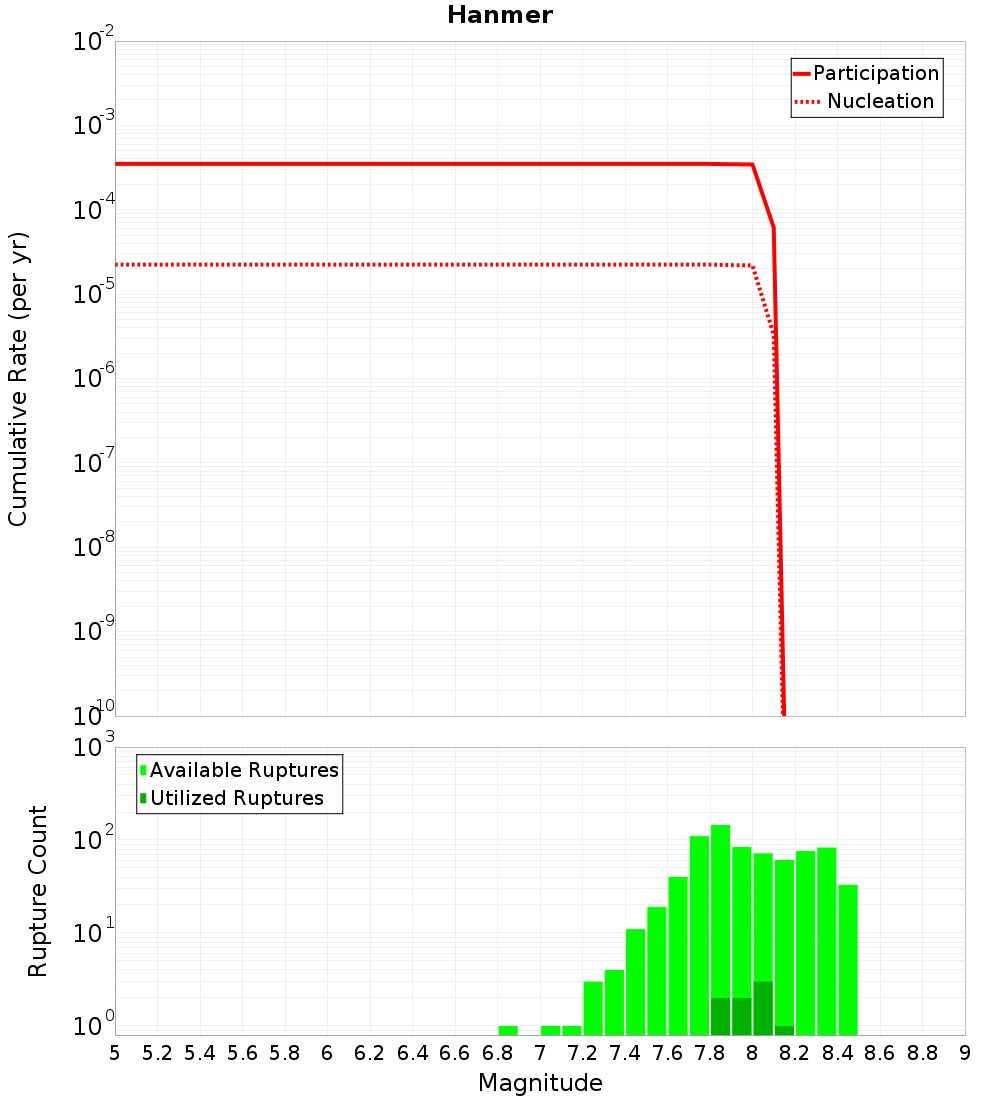

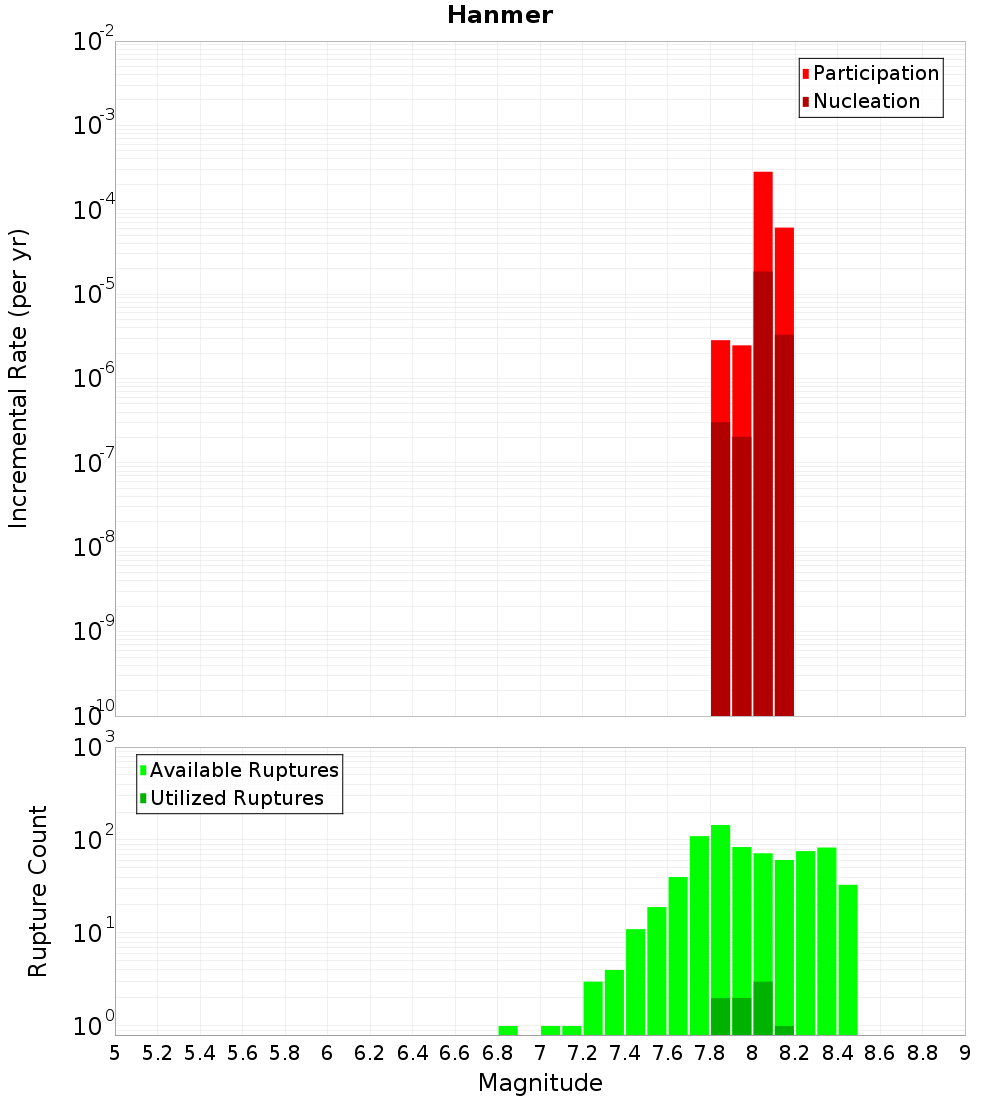

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

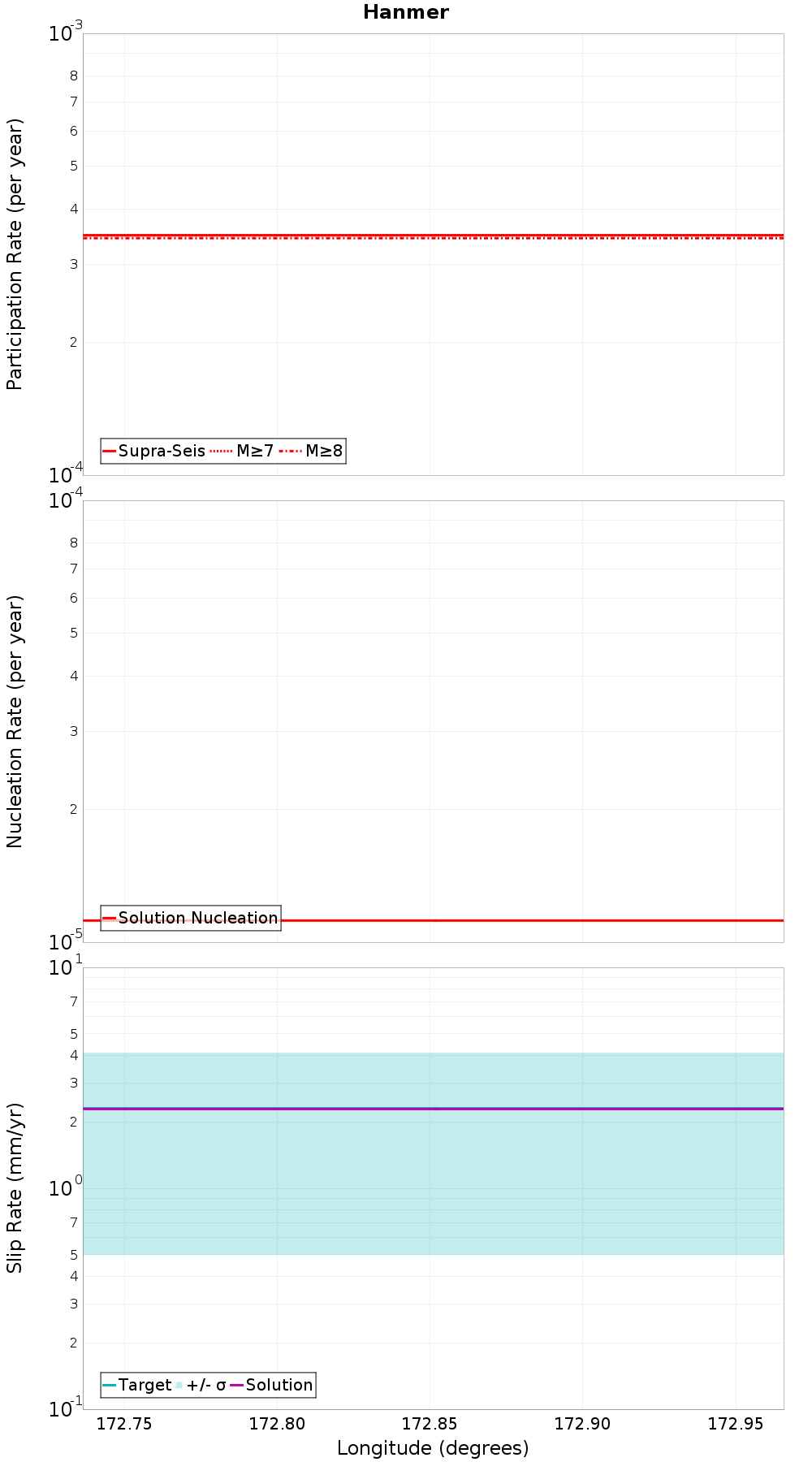

Along-Strike Values

(top)

Along-strike plot

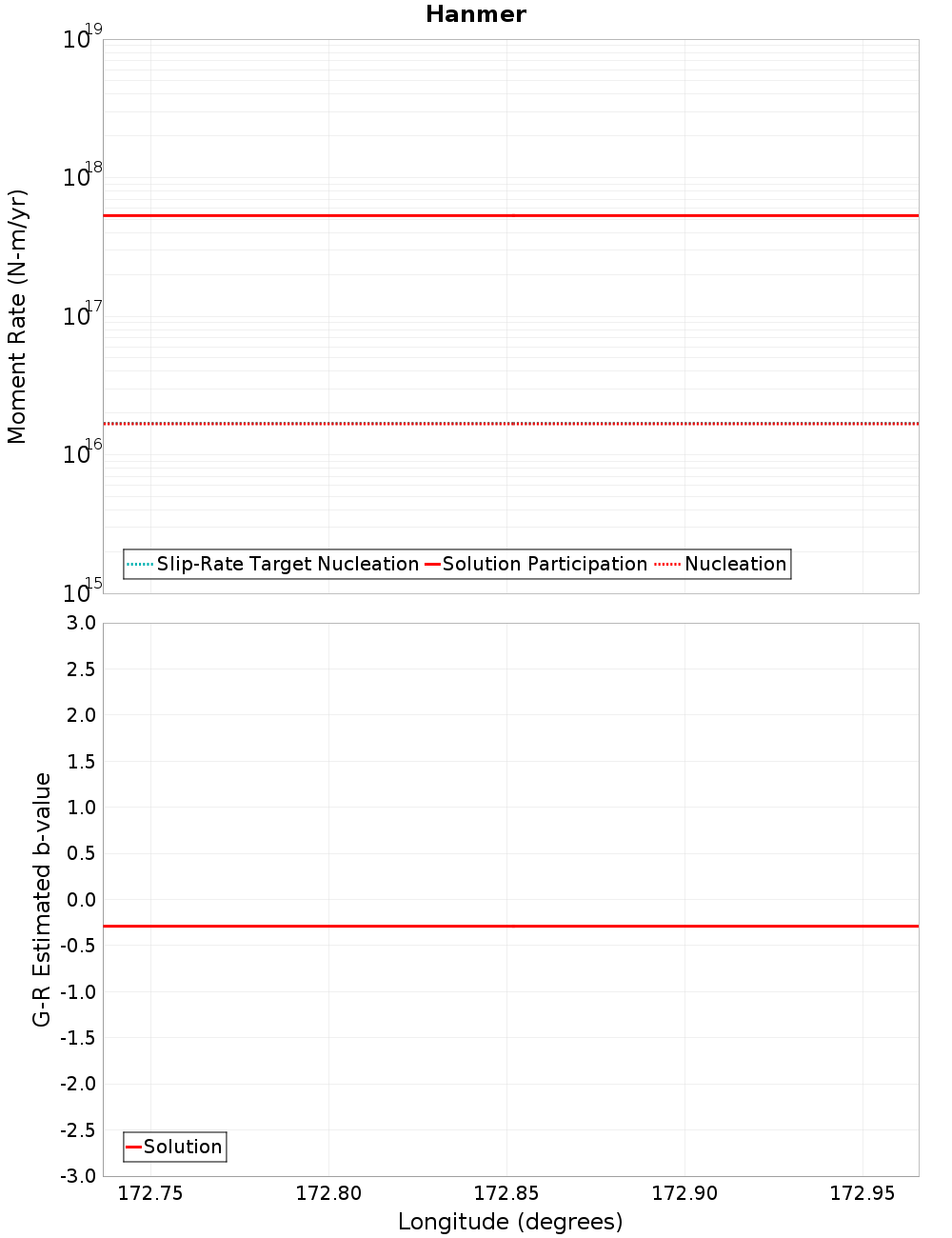

Moment-Rates and b-Values

(top)

Along-strike plot

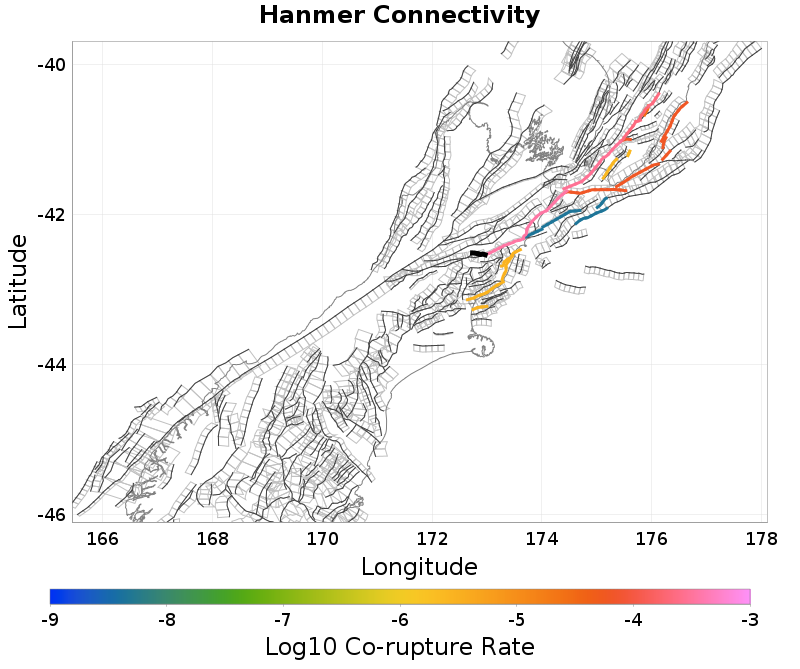

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Hope: Hamner SE, 0 km awayElliott, 12.46 km away
Hope: Conway, 0 km awayKakapo, 12.92 km away
Hope: Hanmer NW, 0.2 km awayClarence: Central, 13.19 km away
Hope: Hamner SW, 0.55 km awayHope: Hope River, 13.39 km away
Kaiwara North, 5.4 km awayHurunui Peak, 15.05 km away
Hope: Kakapo-2-Hamner, 7.2 km awayBalmoral, 15.66 km away
The Humps, 9.06 km awayLeonard Mound, 17.29 km away
Leader: South, 11.1 km awayEsk North, 18.41 km away
Mt Culverden, 11.2 km awayHundalee, 18.66 km away
Clarence: Southwest, 11.45 km awayLowry, 19.93 km away

Hope: Hamner SE, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NzguMGVBZWZU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hope: Conway, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NzguMGVBZWZU
Connected?true
Directly Connected?true
Co-rupture Count460
Co-rupture Rate3.4919378E-4

Hope: Hanmer NW, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NzguMGVBZWZU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hope: Hamner SW, 0.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NzguMGVBZWZU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kaiwara North, 5.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NzguMGVBZWZU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hope: Kakapo-2-Hamner, 7.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NzguMGVBZWZU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

The Humps, 9.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NzguMGVBZWZU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Leader: South, 11.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NzguMGVBZWZU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mt Culverden, 11.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NzguMGVBZWZU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Clarence: Southwest, 11.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NzguMGVBZWZU
Connected?true
Directly Connected?true
Co-rupture Count507
Co-rupture Rate0.0

Elliott, 12.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NzguMGVBZWZU
Connected?true
Directly Connected?false
Co-rupture Count65
Co-rupture Rate0.0

Kakapo, 12.92 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NzguMGVBZWZU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Clarence: Central, 13.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NzguMGVBZWZU
Connected?true
Directly Connected?false
Co-rupture Count8
Co-rupture Rate0.0

Hope: Hope River, 13.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NzguMGVBZWZU
Connected?true
Directly Connected?false
Co-rupture Count69
Co-rupture Rate0.0

Hurunui Peak, 15.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NzguMGVBZWZU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Balmoral, 15.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NzguMGVBZWZU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Leonard Mound, 17.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NzguMGVBZWZU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Esk North, 18.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NzguMGVBZWZU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hundalee, 18.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NzguMGVBZWZU
Connected?true
Directly Connected?false
Co-rupture Count16
Co-rupture Rate2.8412258E-6

Lowry, 19.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NzguMGVBZWZU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
