Kaweka Details

Property	Value
Rupture Count	173
Ruptures Above Sect Min Mag	170
Ruptures w/ Nonzero Rates	5
Magnitude Range	[6.97, 8.19]
Length Range	[24, 414] km
Total Rate	2.1513827E-4 /yr
Multi-Fault Rate	2.1513827E-4 /yr (100.00%)
Directly-Connected Faults	1
All Co-Rupturing Faults	25

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

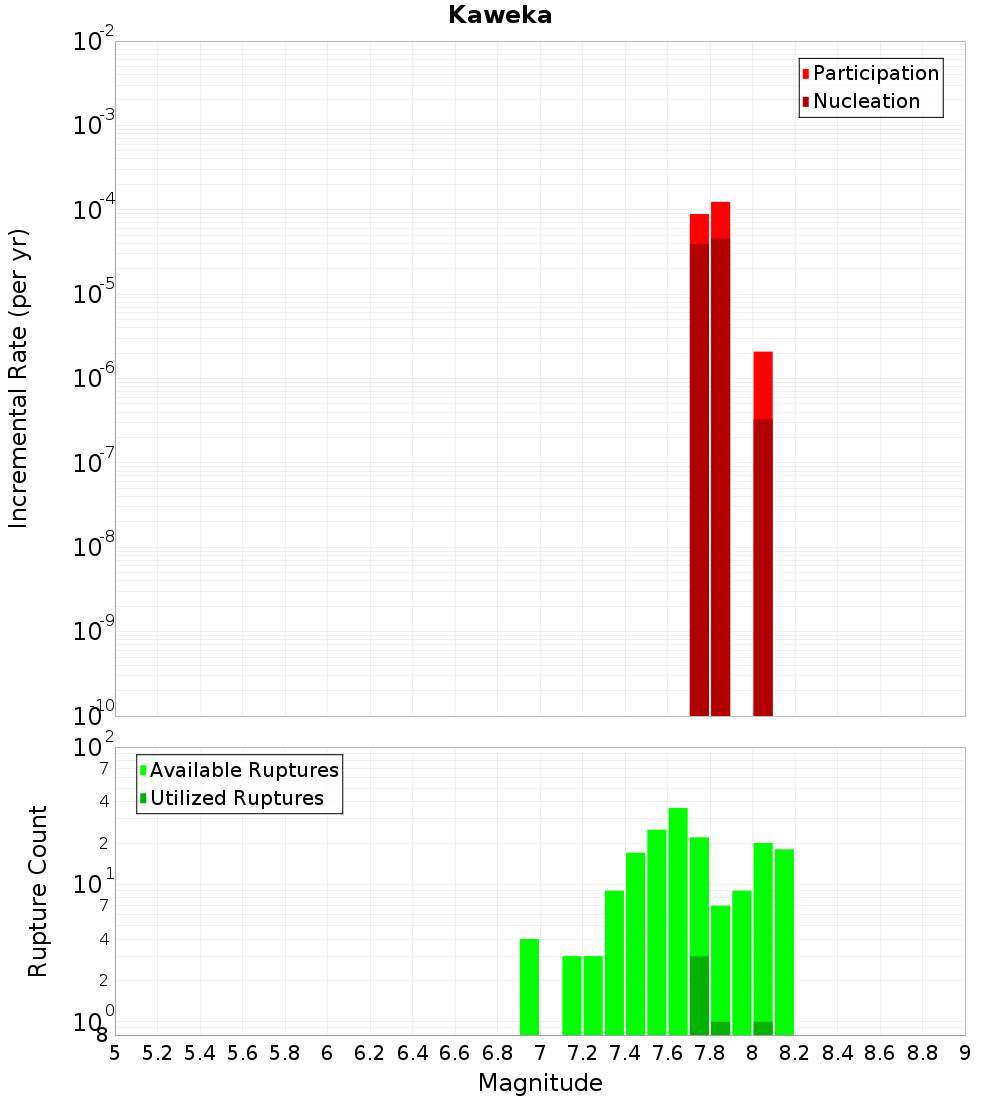

Magnitude-Frequency Distribution

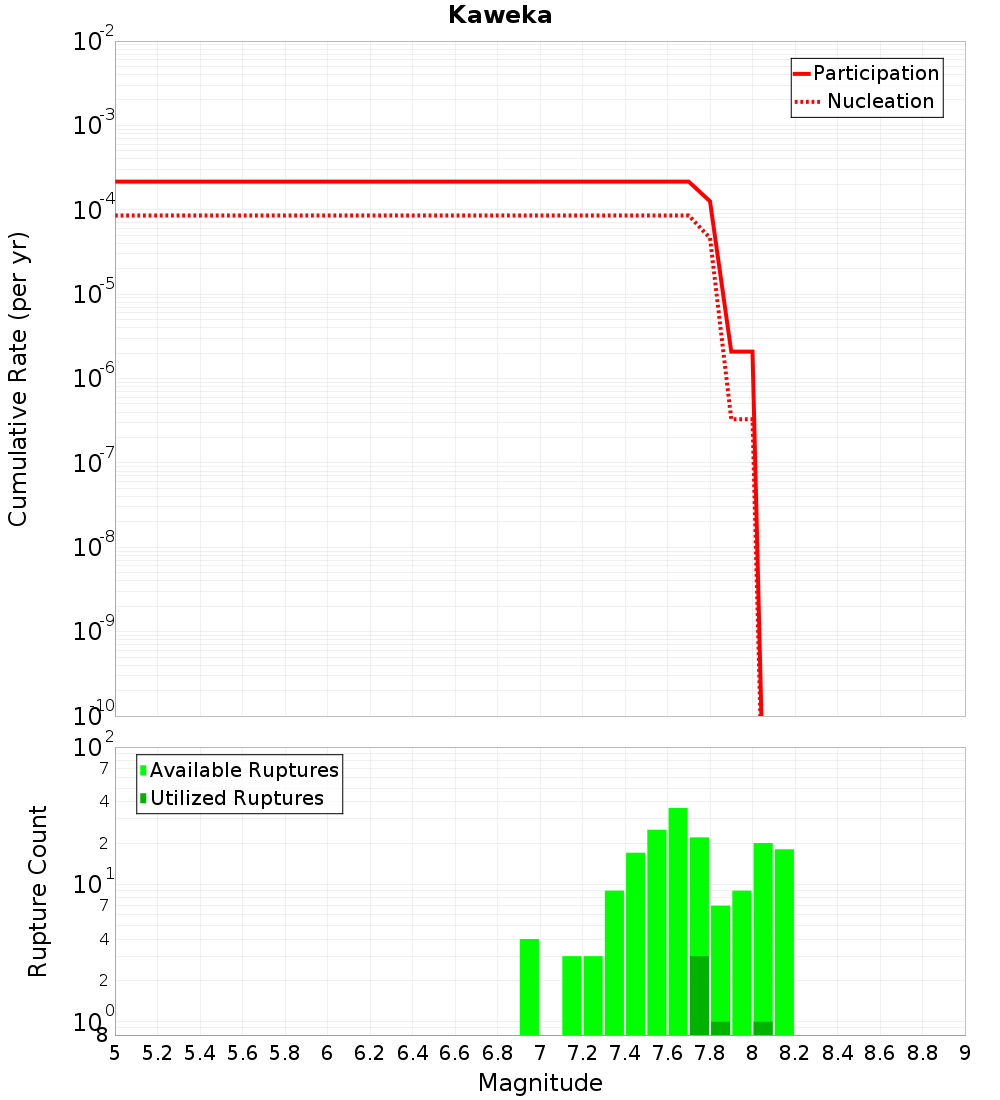

Incremental	Cumulative

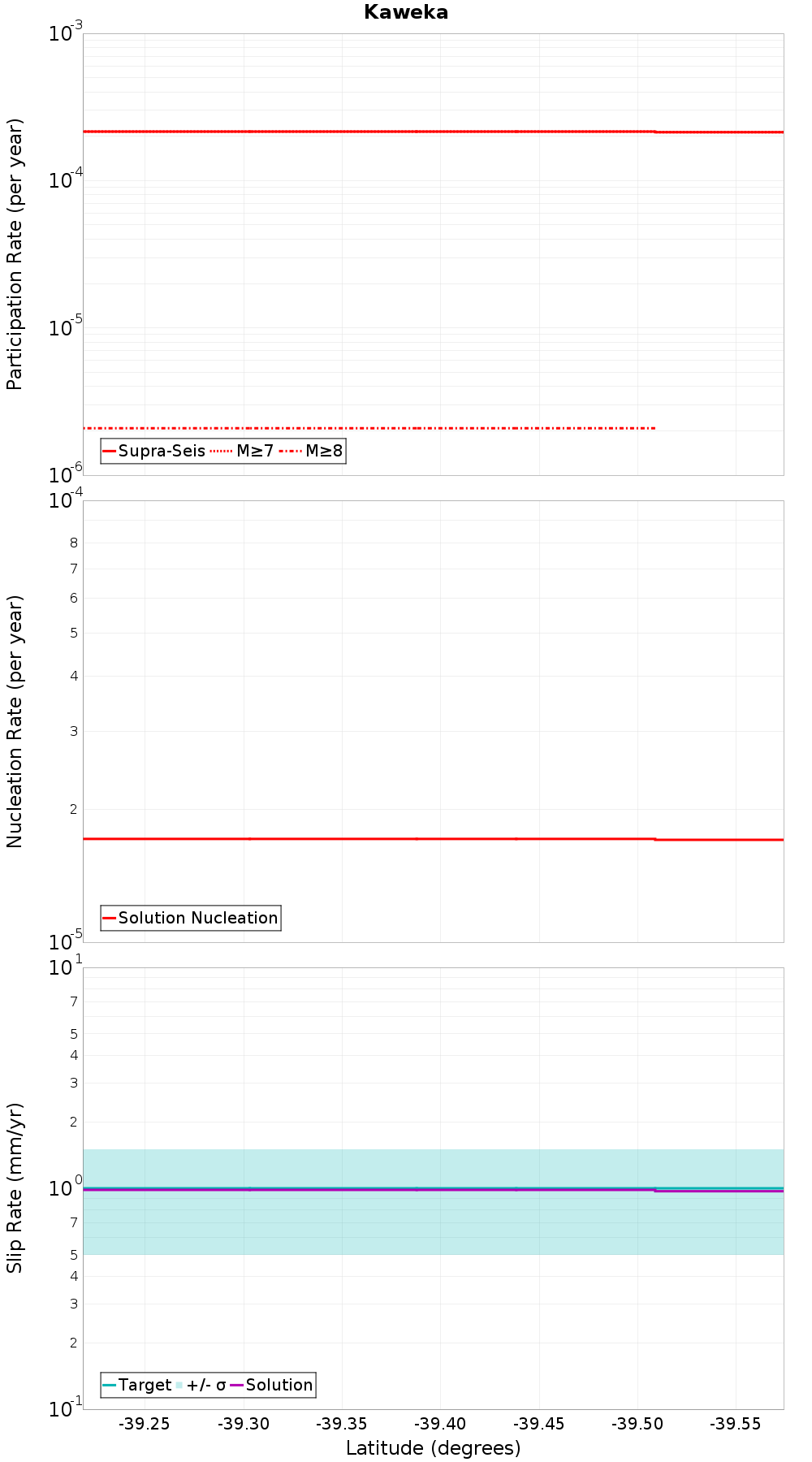

Along-Strike Values

Moment-Rates and b-Values

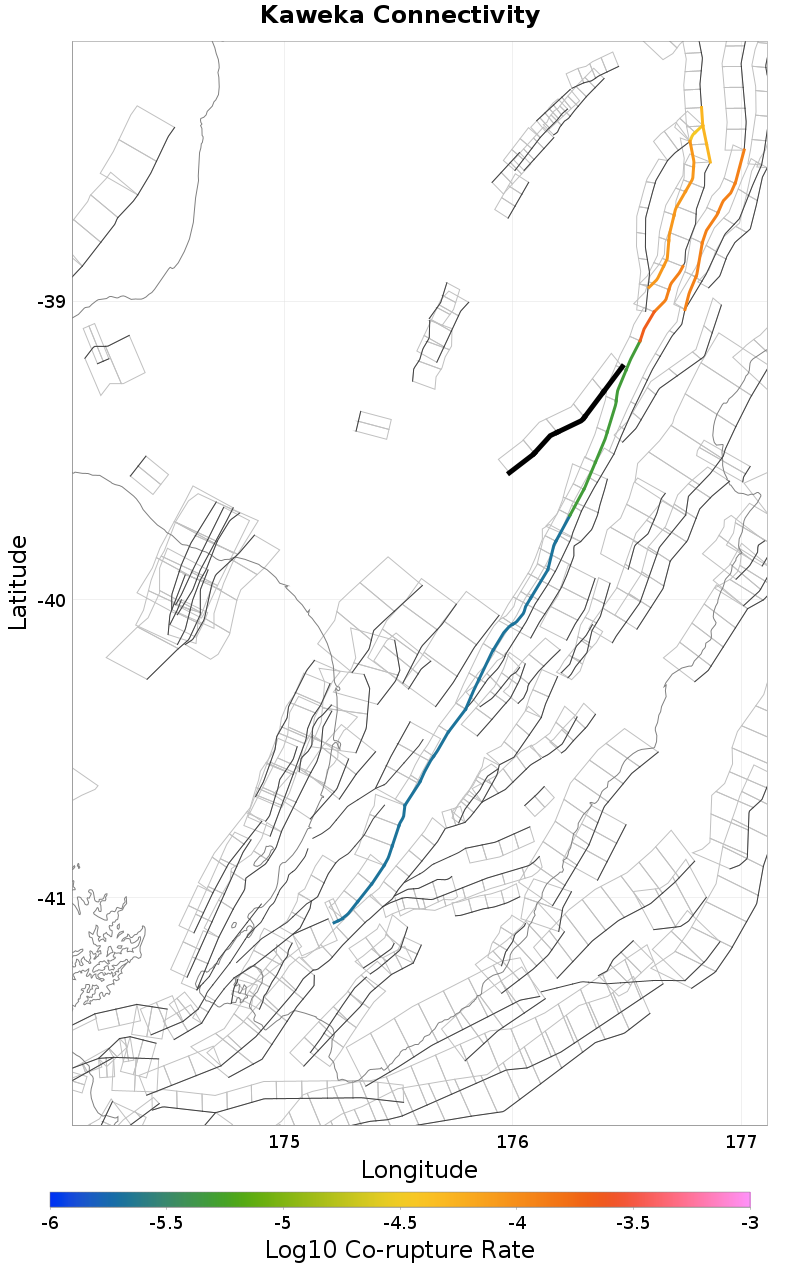

Connectivity

Nearby Sections

Fault Section
Ruahine: North, 1.83 km away
Mohaka: North, 10.6 km away
Patoka - Rangiora, 15.89 km away
Ruahine: Central, 16.09 km away
Mohaka: South, 17.19 km away
Wakarara, 18.88 km away
Wheao: South, 19.18 km away

Ruahine: North, 1.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NzguMGVBZWZU
Connected?	true
Directly Connected?	true
Co-rupture Count	163
Co-rupture Rate	2.1513827E-4

Mohaka: North, 10.6 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NzguMGVBZWZU
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Patoka - Rangiora, 15.89 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NzguMGVBZWZU
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ruahine: Central, 16.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NzguMGVBZWZU
Connected?	true
Directly Connected?	false
Co-rupture Count	59
Co-rupture Rate	4.785622E-6

Mohaka: South, 17.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NzguMGVBZWZU
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wakarara, 18.88 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NzguMGVBZWZU
Connected?	true
Directly Connected?	false
Co-rupture Count	4
Co-rupture Rate	0.0

Wheao: South, 19.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NzguMGVBZWZU
Connected?	true
Directly Connected?	false
Co-rupture Count	9
Co-rupture Rate	0.0
