Wakarara Details

Property	Value
Rupture Count	5,854
Ruptures Above Sect Min Mag	5,854
Ruptures w/ Nonzero Rates	5
Magnitude Range	[7.07, 8.30]
Length Range	[26, 536] km
Total Rate	2.8982155E-5 /yr
Multi-Fault Rate	2.8982155E-5 /yr (100.00%)
Directly-Connected Faults	3
All Co-Rupturing Faults	73

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

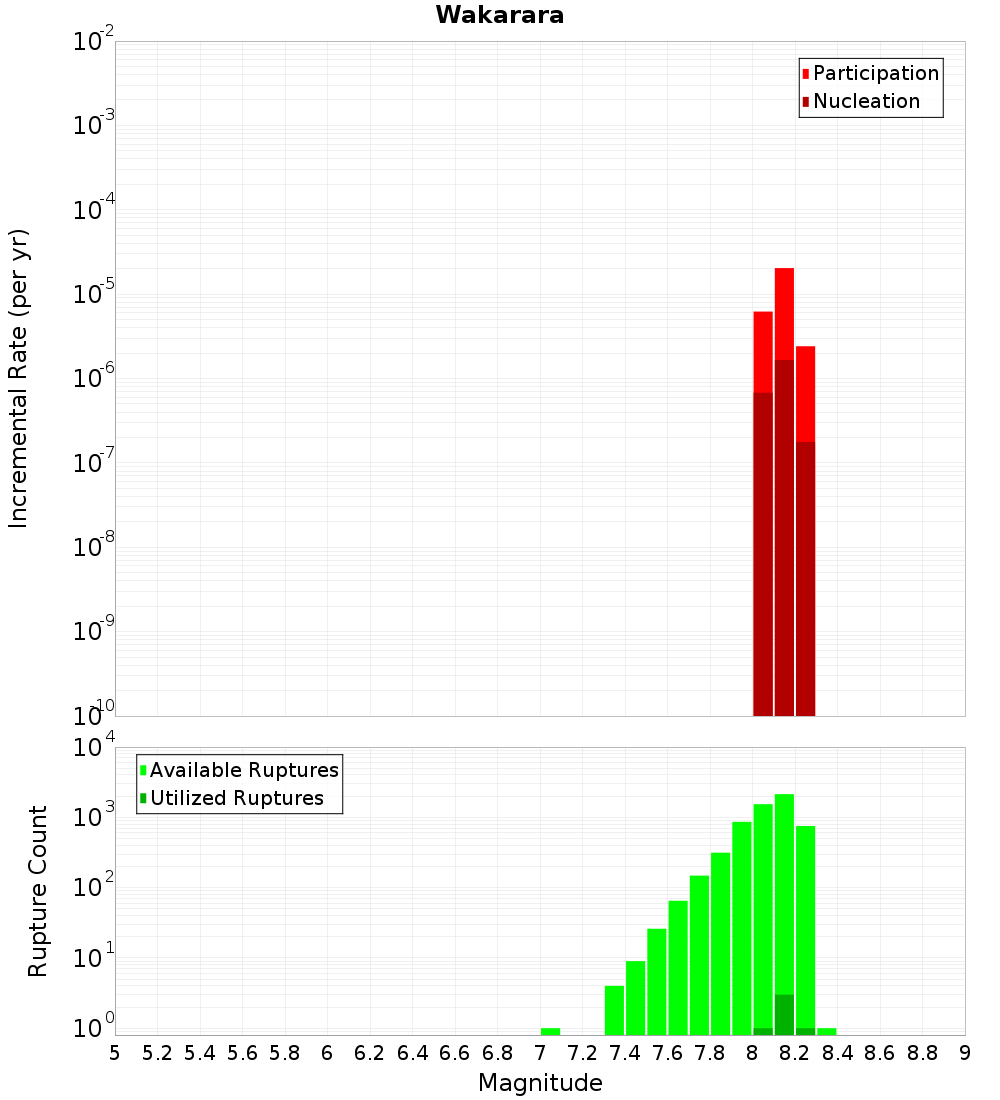

Magnitude-Frequency Distribution

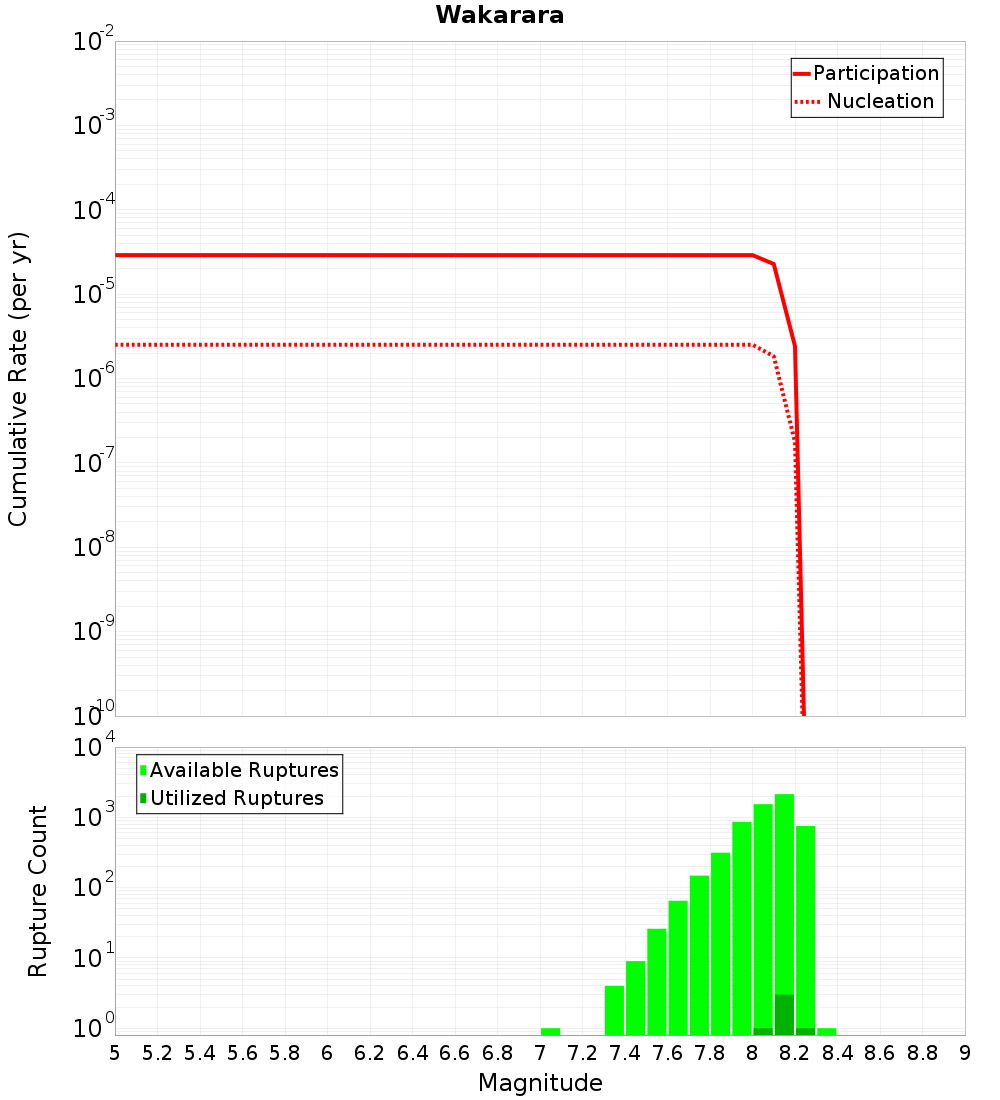

Incremental	Cumulative

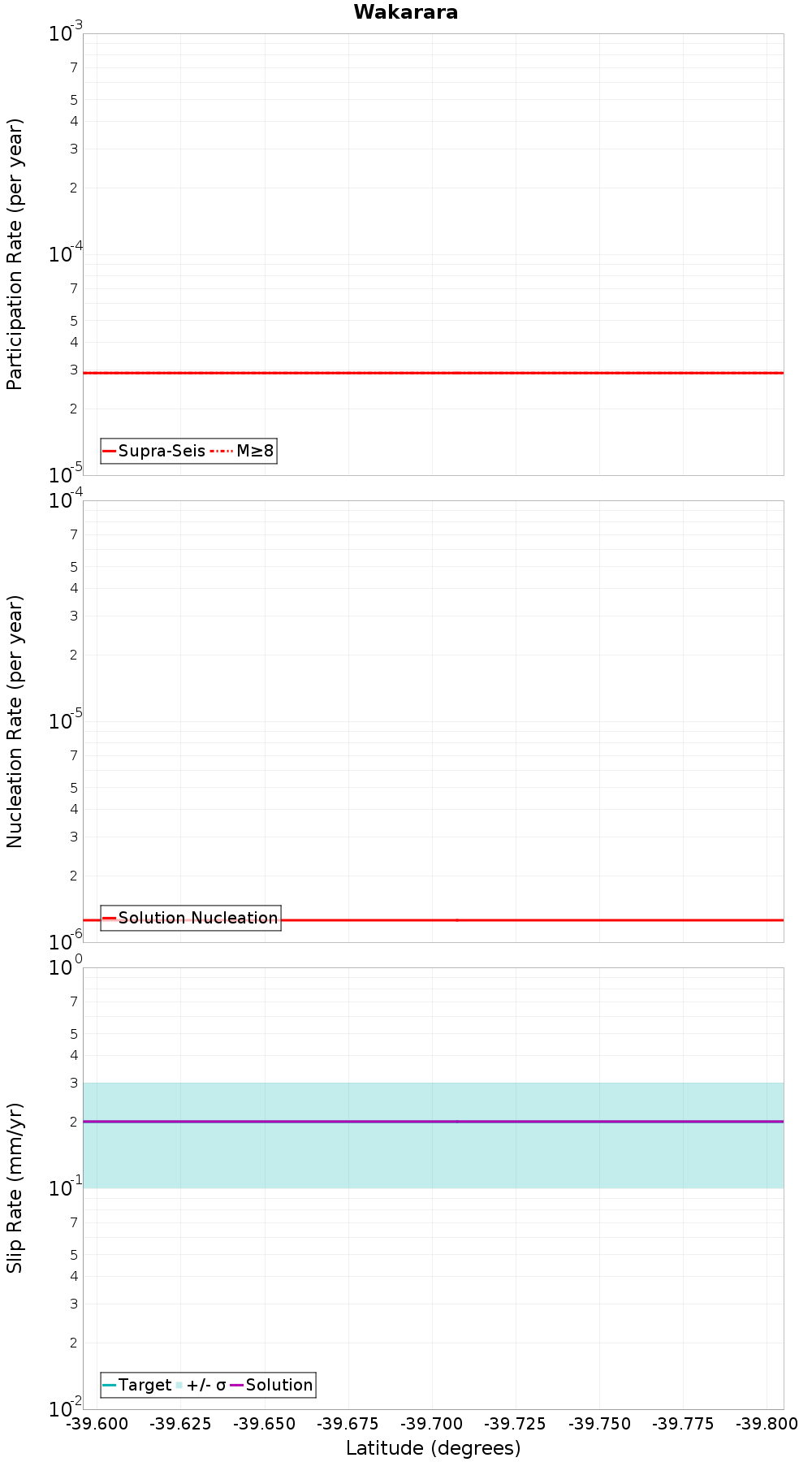

Along-Strike Values

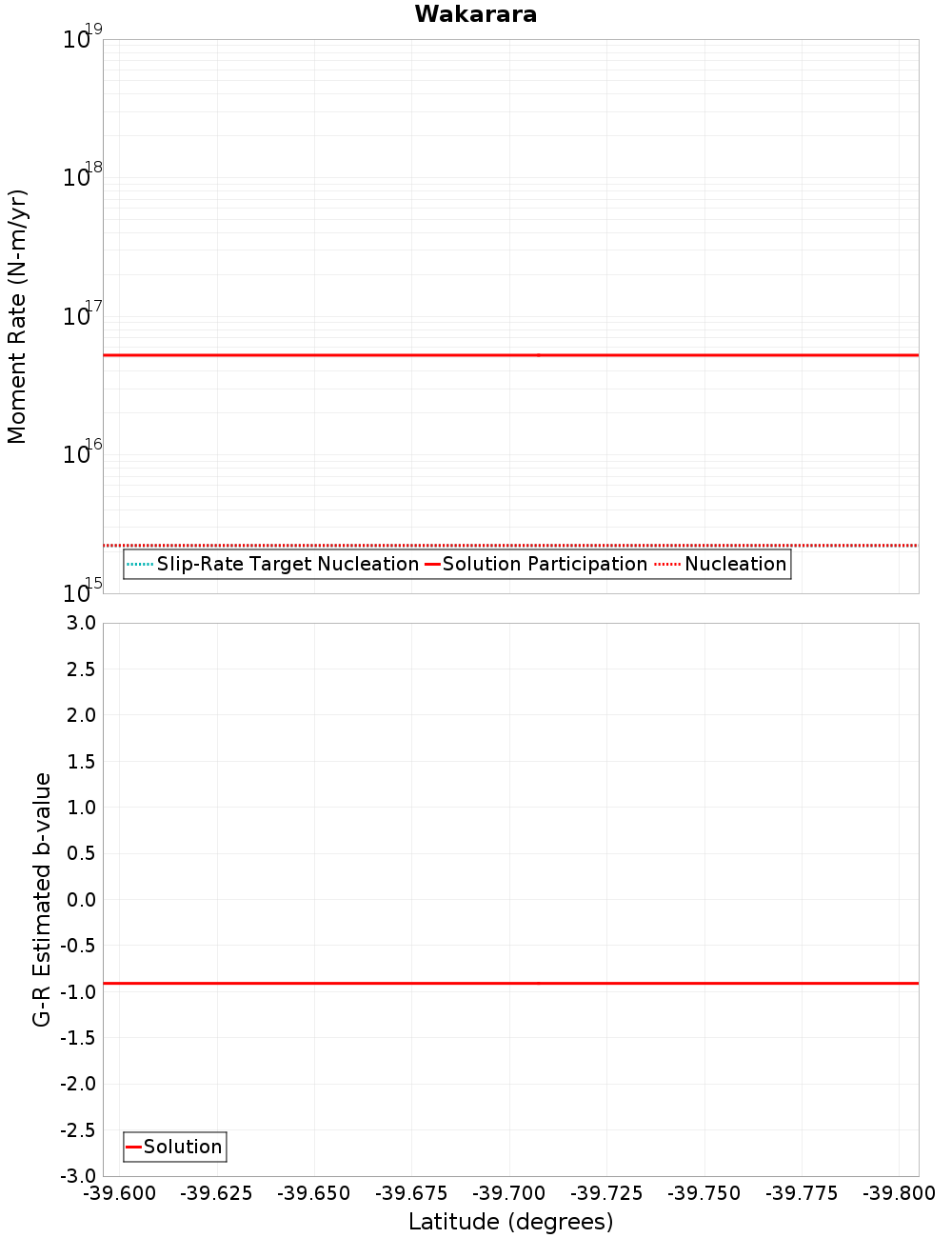

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Rangefront, 0 km away
Ruahine: Central, 0.11 km away
Mohaka: South, 0.13 km away
Ruahine: North, 4 km away
Mohaka: North, 9.63 km away
Ruataniwha, 13.37 km away
Ruahine: South, 14.13 km away
Te Heka, 14.9 km away
Patoka - Rangiora, 14.99 km away
Awanui, 18.32 km away
Oruawharo - Mangatoro, 18.53 km away
Kaweka, 18.88 km away

Rangefront, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NzguMGVBZWZU
Connected?	true
Directly Connected?	true
Co-rupture Count	5,548
Co-rupture Rate	2.8982155E-5

Ruahine: Central, 0.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NzguMGVBZWZU
Connected?	true
Directly Connected?	false
Co-rupture Count	409
Co-rupture Rate	0.0

Mohaka: South, 0.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NzguMGVBZWZU
Connected?	true
Directly Connected?	true
Co-rupture Count	6,910
Co-rupture Rate	5.796431E-5

Ruahine: North, 4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NzguMGVBZWZU
Connected?	true
Directly Connected?	true
Co-rupture Count	2,124
Co-rupture Rate	0.0

Mohaka: North, 9.63 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NzguMGVBZWZU
Connected?	true
Directly Connected?	false
Co-rupture Count	2,989
Co-rupture Rate	2.2768018E-5

Ruataniwha, 13.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NzguMGVBZWZU
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ruahine: South, 14.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NzguMGVBZWZU
Connected?	true
Directly Connected?	false
Co-rupture Count	1,713
Co-rupture Rate	0.0

Te Heka, 14.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NzguMGVBZWZU
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Patoka - Rangiora, 14.99 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NzguMGVBZWZU
Connected?	true
Directly Connected?	false
Co-rupture Count	193
Co-rupture Rate	6.214137E-6

Awanui, 18.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NzguMGVBZWZU
Connected?	true
Directly Connected?	false
Co-rupture Count	3
Co-rupture Rate	0.0

Oruawharo - Mangatoro, 18.53 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NzguMGVBZWZU
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Kaweka, 18.88 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NzguMGVBZWZU
Connected?	true
Directly Connected?	false
Co-rupture Count	4
Co-rupture Rate	0.0
