Waipukurau - Poukawa Details
| Property | Value |
|---|---|
| Rupture Count | 240 |
| Ruptures Above Sect Min Mag | 235 |
| Ruptures w/ Nonzero Rates | 19 |
| Magnitude Range | [6.78, 8.30] |
| Length Range | [19, 540] km |
| Total Rate | 9.1073965E-4 /yr |
| Multi-Fault Rate | 4.3149083E-4 /yr (47.38%) |
| Directly-Connected Faults | 5 |
| All Co-Rupturing Faults | 29 |
Table Of Contents

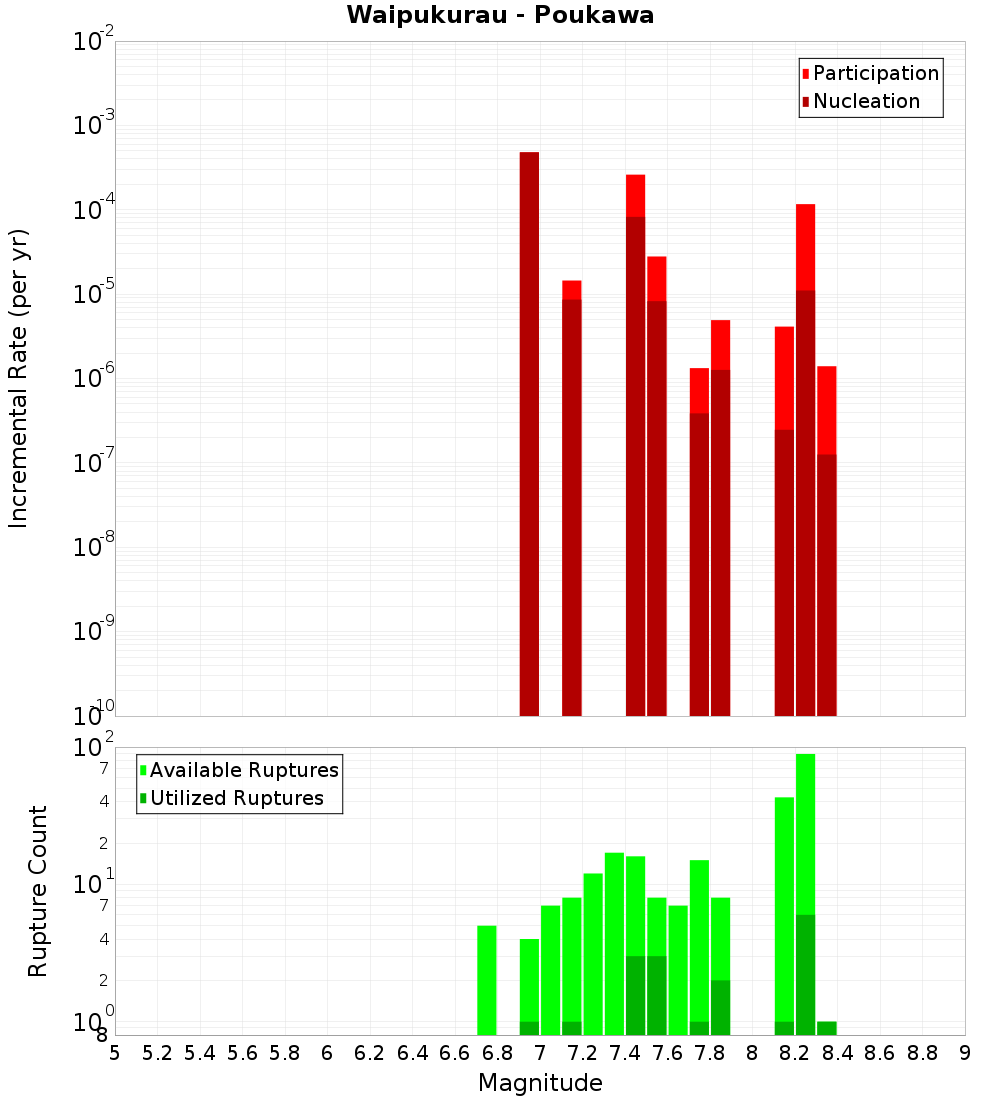

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

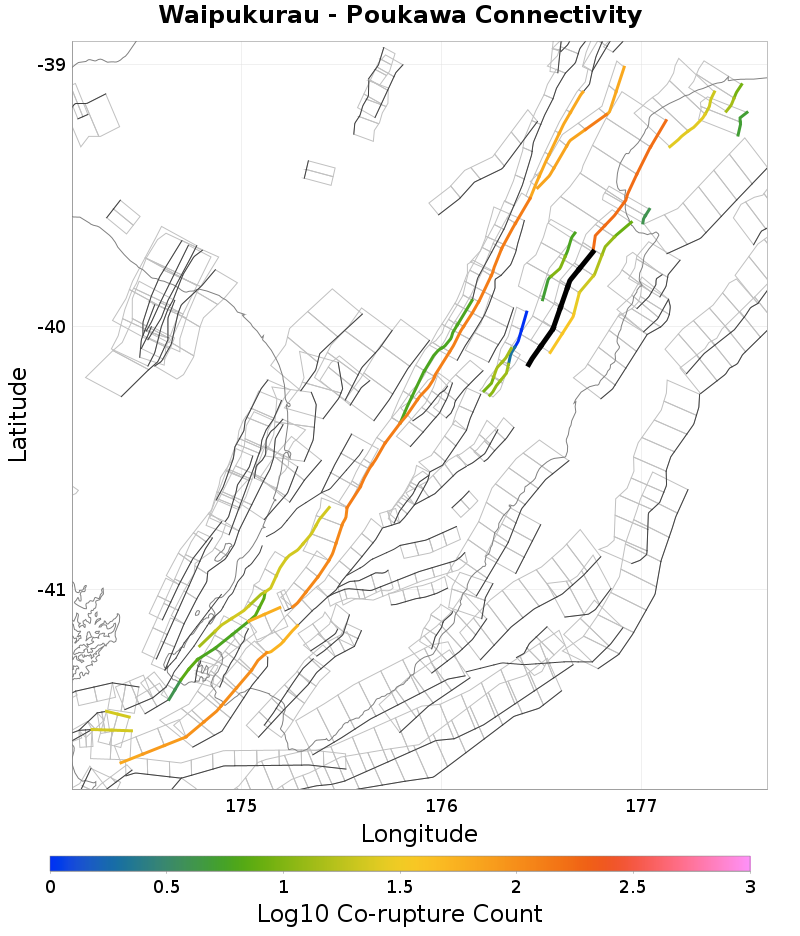

Connectivity
 |  |
|---|
Nearby Sections
Awanui, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NzguMHg3WXFS | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 170 |
| Co-rupture Rate | 1.28324E-4 |
Clear Hills - Waikopiro, 0.34 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NzguMHg3WXFS | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 14 |
| Co-rupture Rate | 3.0006782E-5 |
Oruawharo - Mangatoro, 3.21 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NzguMHg3WXFS | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 13 |
| Co-rupture Rate | 3.3747776E-5 |
Tukituki Thrust, 3.57 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NzguMHg3WXFS | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 38 |
| Co-rupture Rate | 2.5717565E-4 |
Te Heka, 5.65 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NzguMHg3WXFS | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 10 |
| Co-rupture Rate | 1.7805445E-5 |
Ruataniwha, 13.21 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NzguMHg3WXFS | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Maunga, 15.83 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NzguMHg3WXFS | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Waimarama 1 & 2, 18.7 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NzguMHg3WXFS | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
