Braemar Details

Property	Value
Rupture Count	9,901
Ruptures Above Sect Min Mag	9,899
Ruptures w/ Nonzero Rates	74
Magnitude Range	[6.59, 8.00]
Length Range	[14, 305] km
Total Rate	9.332832E-4 /yr
Multi-Fault Rate	9.332832E-4 /yr (100.00%)
Directly-Connected Faults	7
All Co-Rupturing Faults	54

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

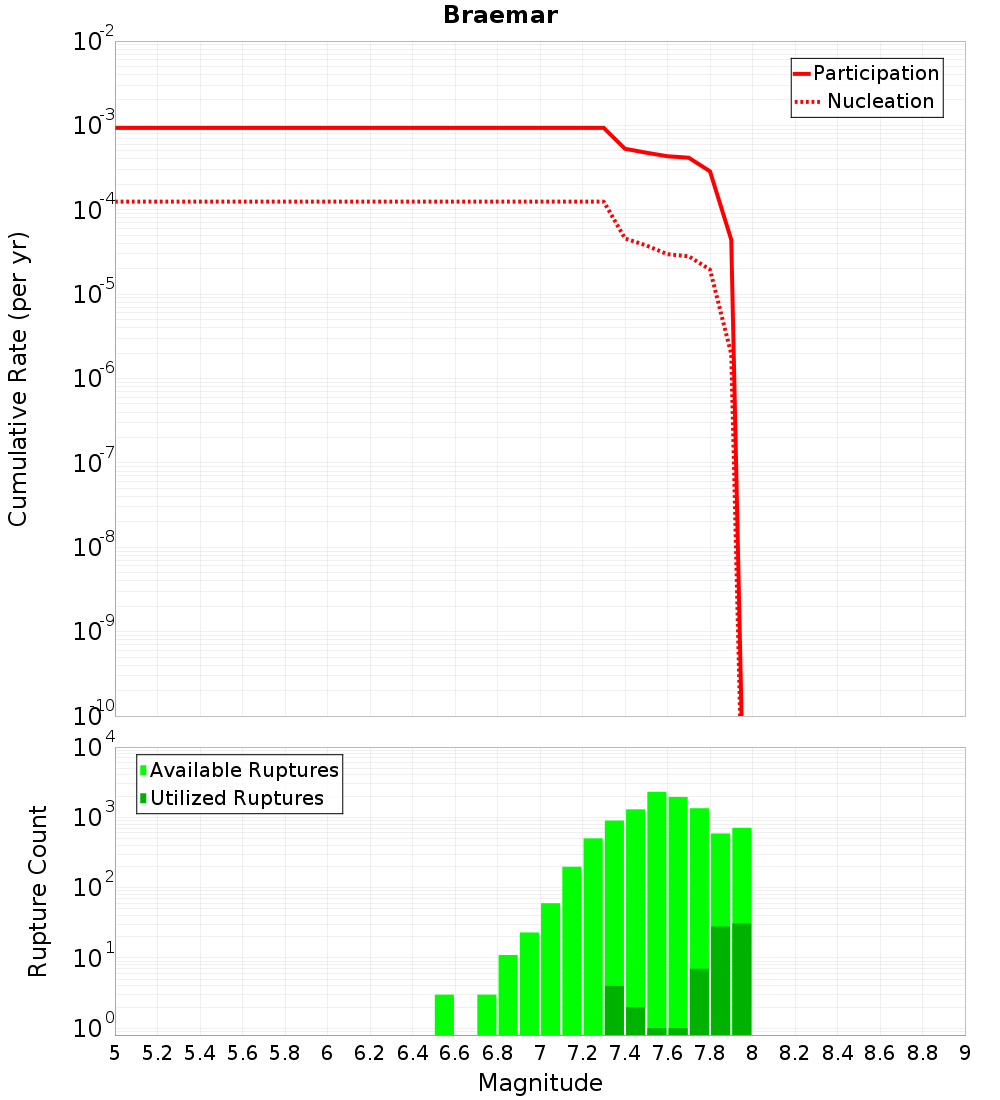

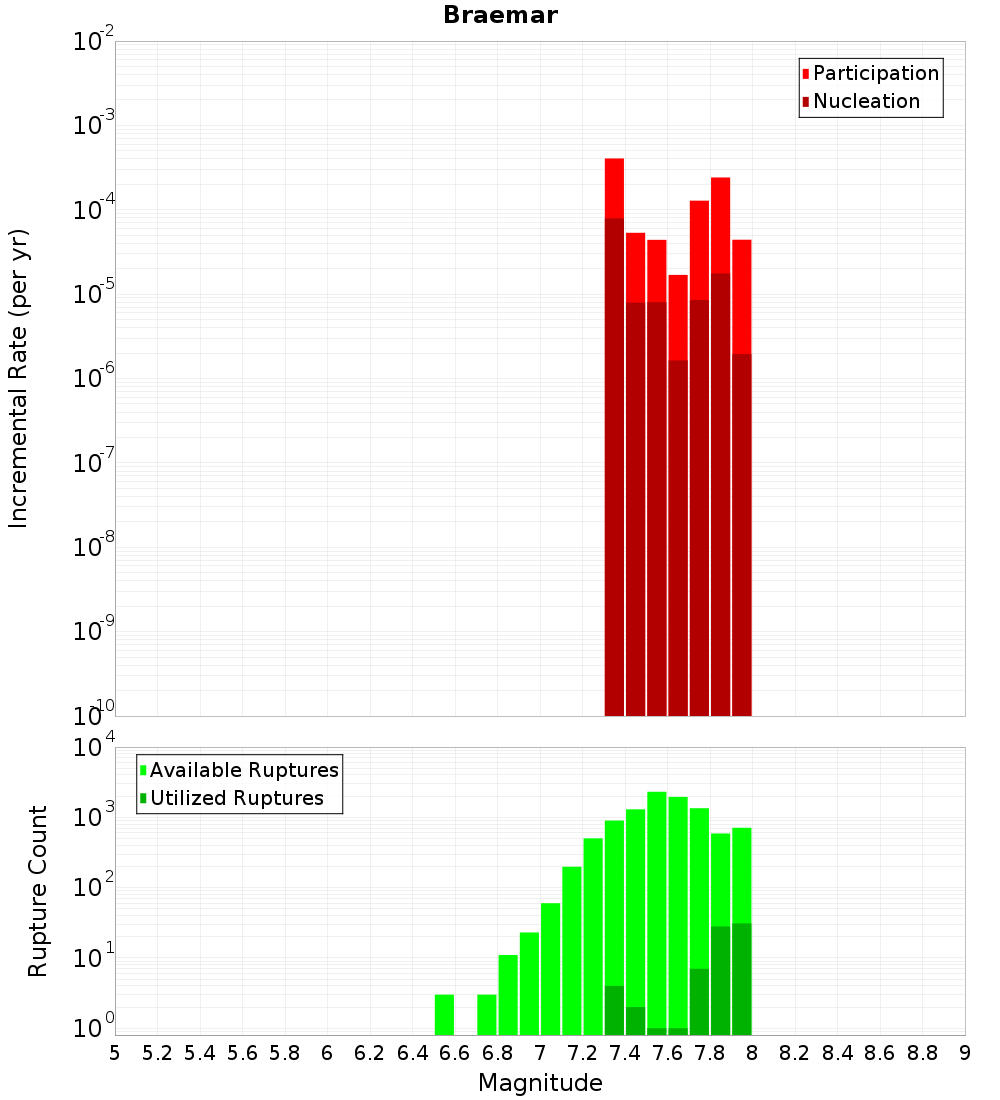

Magnitude-Frequency Distribution

Incremental	Cumulative

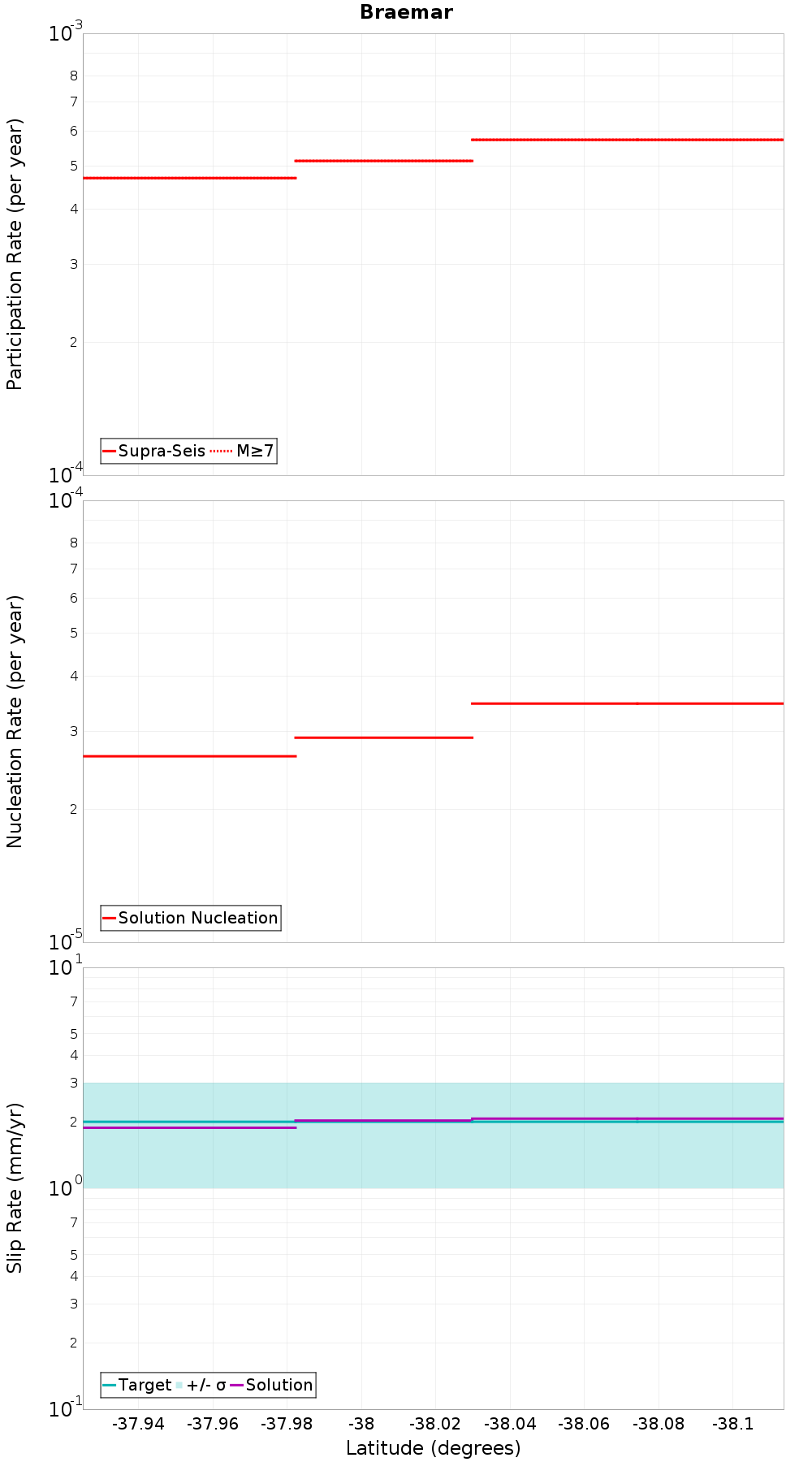

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Awakeri, 0.1 km away
Waiohau: North, 0.22 km away
Otakiri, 0.26 km away
Edgecumbe 1987, 0.32 km away
Matata, 0.98 km away
Edgecumbe Coastal, 4.62 km away
Whakatane: North, 4.83 km away
White Island 1, 11.21 km away
EarthquakeFlat - Tumunui, 12.8 km away
Waimana: North, 18.49 km away

Awakeri, 0.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODQuMFFxbWg1
Connected?	true
Directly Connected?	true
Co-rupture Count	1,784
Co-rupture Rate	2.9900568E-5

Waiohau: North, 0.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODQuMFFxbWg1
Connected?	true
Directly Connected?	true
Co-rupture Count	2,848
Co-rupture Rate	2.0153512E-4

Otakiri, 0.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODQuMFFxbWg1
Connected?	true
Directly Connected?	true
Co-rupture Count	975
Co-rupture Rate	4.7561683E-4

Edgecumbe 1987, 0.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODQuMFFxbWg1
Connected?	true
Directly Connected?	true
Co-rupture Count	2,690
Co-rupture Rate	3.8904548E-4

Matata, 0.98 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODQuMFFxbWg1
Connected?	true
Directly Connected?	true
Co-rupture Count	4,074
Co-rupture Rate	3.0567427E-4

Edgecumbe Coastal, 4.62 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODQuMFFxbWg1
Connected?	true
Directly Connected?	true
Co-rupture Count	4,197
Co-rupture Rate	4.1894606E-4

Whakatane: North, 4.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODQuMFFxbWg1
Connected?	true
Directly Connected?	false
Co-rupture Count	62
Co-rupture Rate	4.3999364E-5

White Island 1, 11.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODQuMFFxbWg1
Connected?	true
Directly Connected?	false
Co-rupture Count	7,147
Co-rupture Rate	4.7181803E-4

EarthquakeFlat - Tumunui, 12.8 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODQuMFFxbWg1
Connected?	true
Directly Connected?	true
Co-rupture Count	5,453
Co-rupture Rate	5.740251E-4

Waimana: North, 18.49 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODQuMFFxbWg1
Connected?	true
Directly Connected?	false
Co-rupture Count	16
Co-rupture Rate	1.4081852E-4
