Ngatoro South 5 Details
| Property | Value |
|---|---|
| Rupture Count | 27 |
| Ruptures Above Sect Min Mag | 26 |
| Ruptures w/ Nonzero Rates | 5 |
| Magnitude Range | [6.66, 7.44] |
| Length Range | [14, 65] km |
| Total Rate | 9.071594E-4 /yr |
| Multi-Fault Rate | 9.071594E-4 /yr (100.00%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 5 |
Table Of Contents

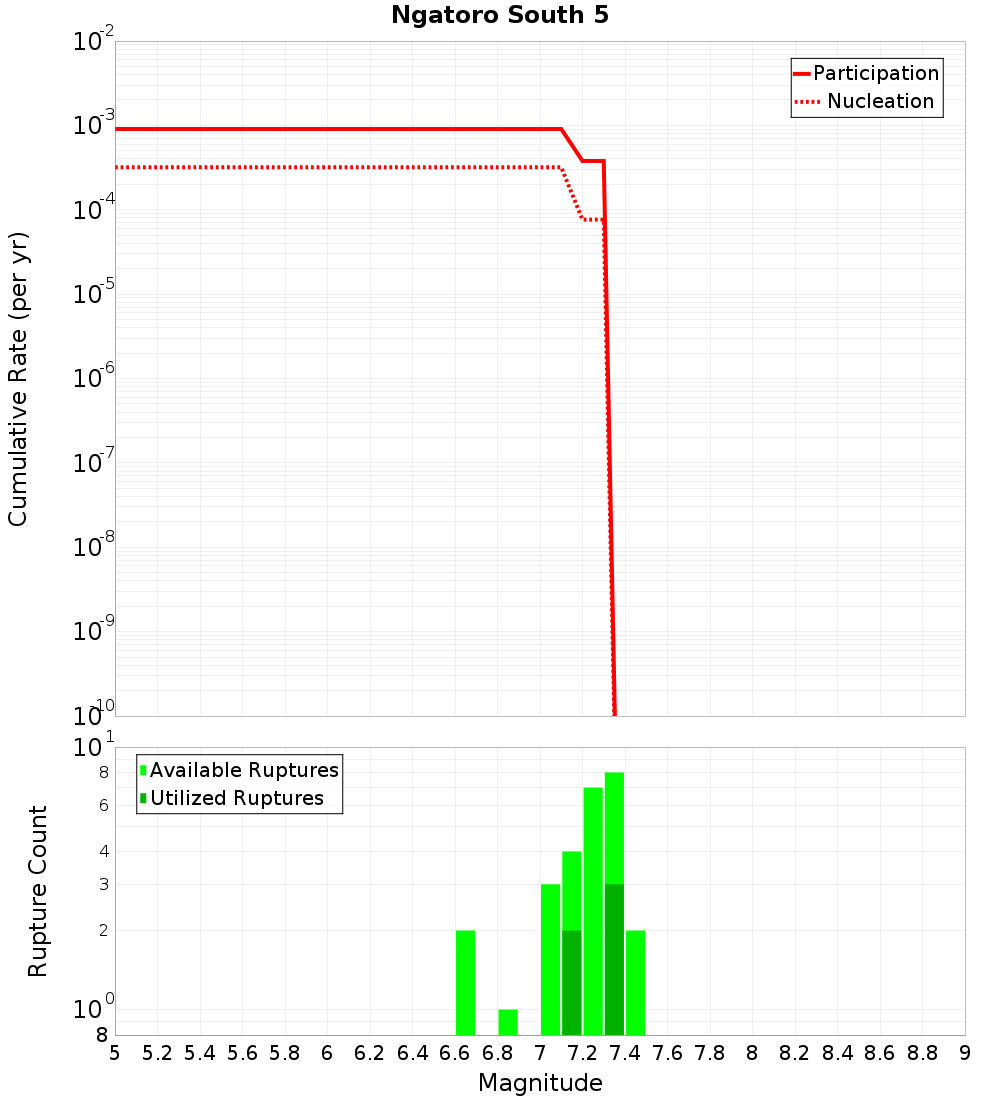

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

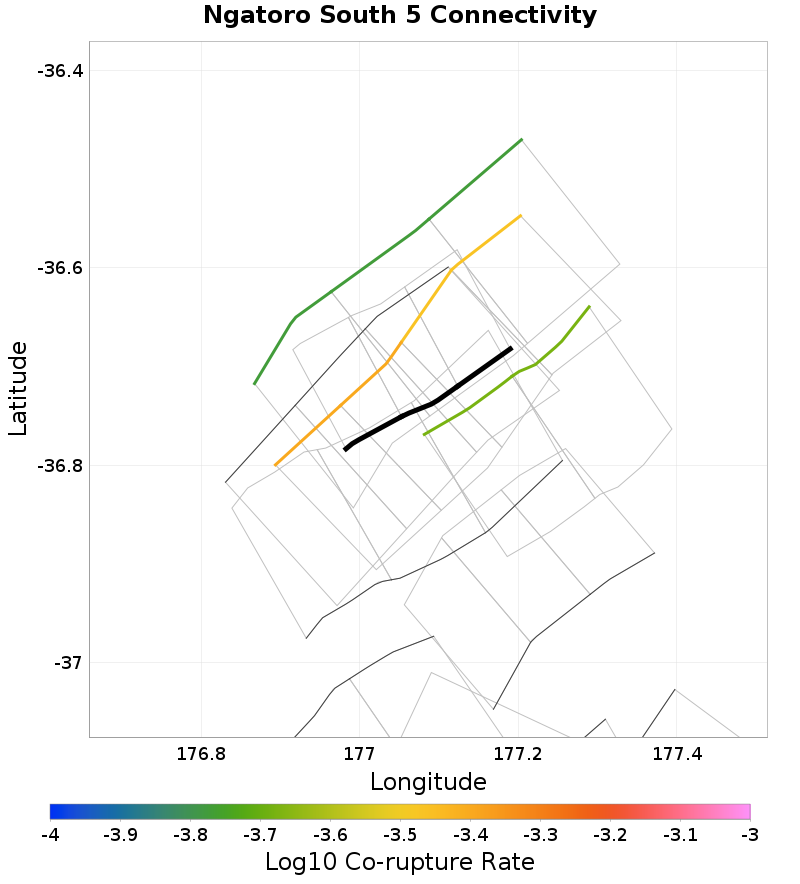

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Ohena 4, 0.16 km away |
| Ohena 2, 0.16 km away |
| Ohena 3, 0.25 km away |
| Ngatoro South 2, 2.58 km away |
| Tauranga Trough West 2, 10.46 km away |
Ohena 4, 0.16 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODQuMFFxbWg1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 6 |
| Co-rupture Rate | 1.6821903E-4 |
Ohena 2, 0.16 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODQuMFFxbWg1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 14 |
| Co-rupture Rate | 7.4008986E-4 |
Ohena 3, 0.25 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODQuMFFxbWg1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 5 |
| Co-rupture Rate | 0.0 |
Ngatoro South 2, 2.58 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODQuMFFxbWg1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 3 |
| Co-rupture Rate | 2.0906361E-4 |
Tauranga Trough West 2, 10.46 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODQuMFFxbWg1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 3 |
| Co-rupture Rate | 0.0 |
