Ostler South Details

PropertyValue
Rupture Count1,258
Ruptures Above Sect Min Mag1,257
Ruptures w/ Nonzero Rates47
Magnitude Range[7.13, 8.47]
Length Range[25, 789] km
Total Rate5.8182055E-4 /yr
Multi-Fault Rate3.24296E-4 /yr (55.74%)
Directly-Connected Faults3
All Co-Rupturing Faults63

Table Of Contents

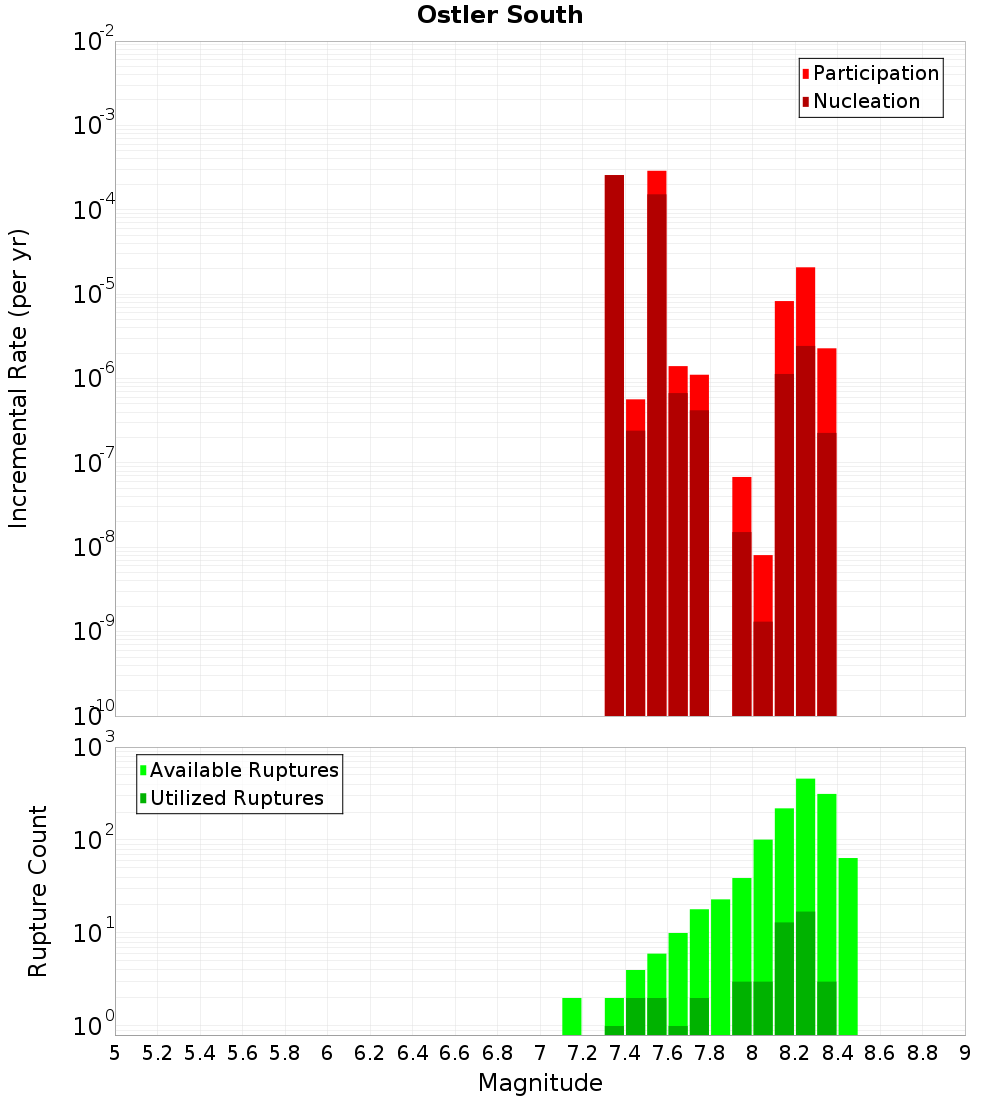

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

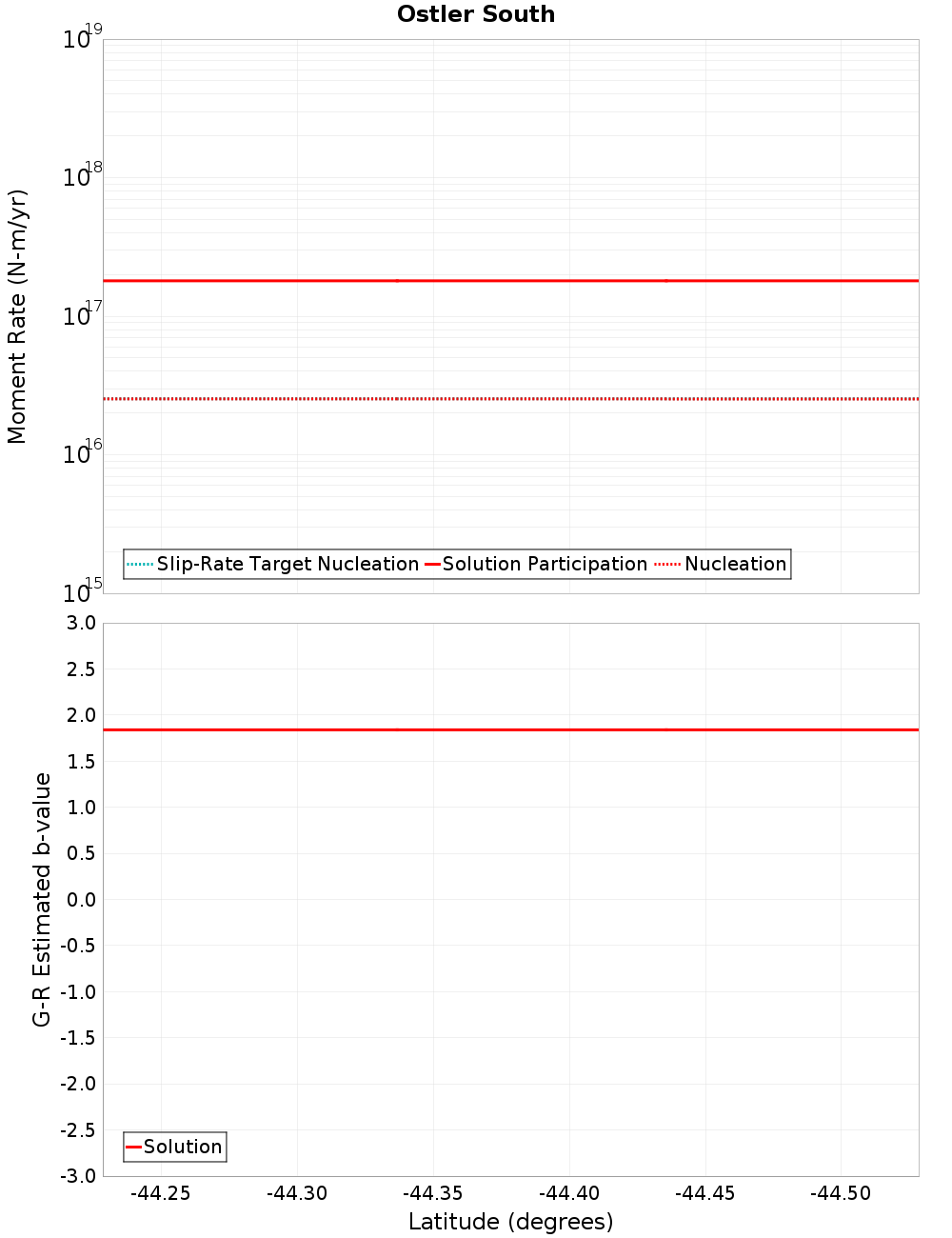

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Ostler North, 1.89 km away
Hawkdun, 2.35 km away
Dromedary, 3.83 km away
Lindis River, 7.13 km away
Omarama Saddle, 7.55 km away
Falstone, 8.01 km away
Fern Gully, 8.7 km away
Blue Lake, 9.43 km away
Timaru Creek, 9.79 km away
Barrier Range, 12.24 km away
Grandview, 14.98 km away
Gibson, 16.59 km away
Dingle, 17.92 km away
Hopkins, 19.15 km away
Mt Sutton, 19.97 km away

Ostler North, 1.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODQuMFFxbWg1
Connected?true
Directly Connected?true
Co-rupture Count1,208
Co-rupture Rate3.2429417E-4

Hawkdun, 2.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODQuMFFxbWg1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Dromedary, 3.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODQuMFFxbWg1
Connected?true
Directly Connected?true
Co-rupture Count734
Co-rupture Rate7.0524806E-7

Lindis River, 7.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODQuMFFxbWg1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Omarama Saddle, 7.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODQuMFFxbWg1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Falstone, 8.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODQuMFFxbWg1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Fern Gully, 8.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODQuMFFxbWg1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Blue Lake, 9.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODQuMFFxbWg1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Timaru Creek, 9.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODQuMFFxbWg1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Barrier Range, 12.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODQuMFFxbWg1
Connected?true
Directly Connected?true
Co-rupture Count22
Co-rupture Rate2.0039292E-6

Grandview, 14.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODQuMFFxbWg1
Connected?true
Directly Connected?false
Co-rupture Count527
Co-rupture Rate1.0529134E-7

Gibson, 16.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODQuMFFxbWg1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Dingle, 17.92 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODQuMFFxbWg1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hopkins, 19.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODQuMFFxbWg1
Connected?true
Directly Connected?false
Co-rupture Count1,073
Co-rupture Rate3.1829633E-5

Mt Sutton, 19.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODQuMFFxbWg1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
