Raggedy - Blackstone Details

PropertyValue
Rupture Count47
Ruptures Above Sect Min Mag46
Ruptures w/ Nonzero Rates17
Magnitude Range[7.01, 8.05]
Length Range[22, 225] km
Total Rate5.7307097E-5 /yr
Multi-Fault Rate3.7284528E-5 /yr (65.06%)
Directly-Connected Faults3
All Co-Rupturing Faults16

Table Of Contents

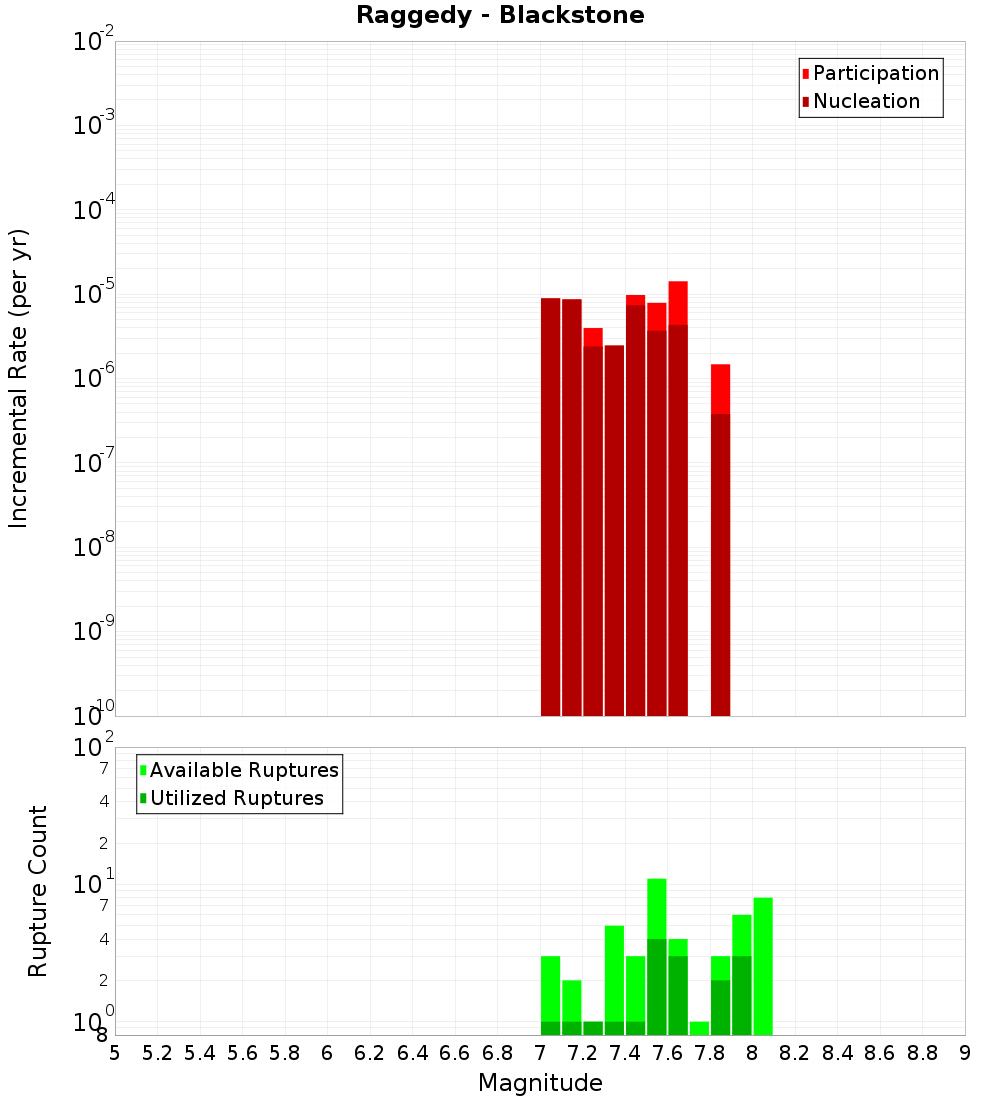

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

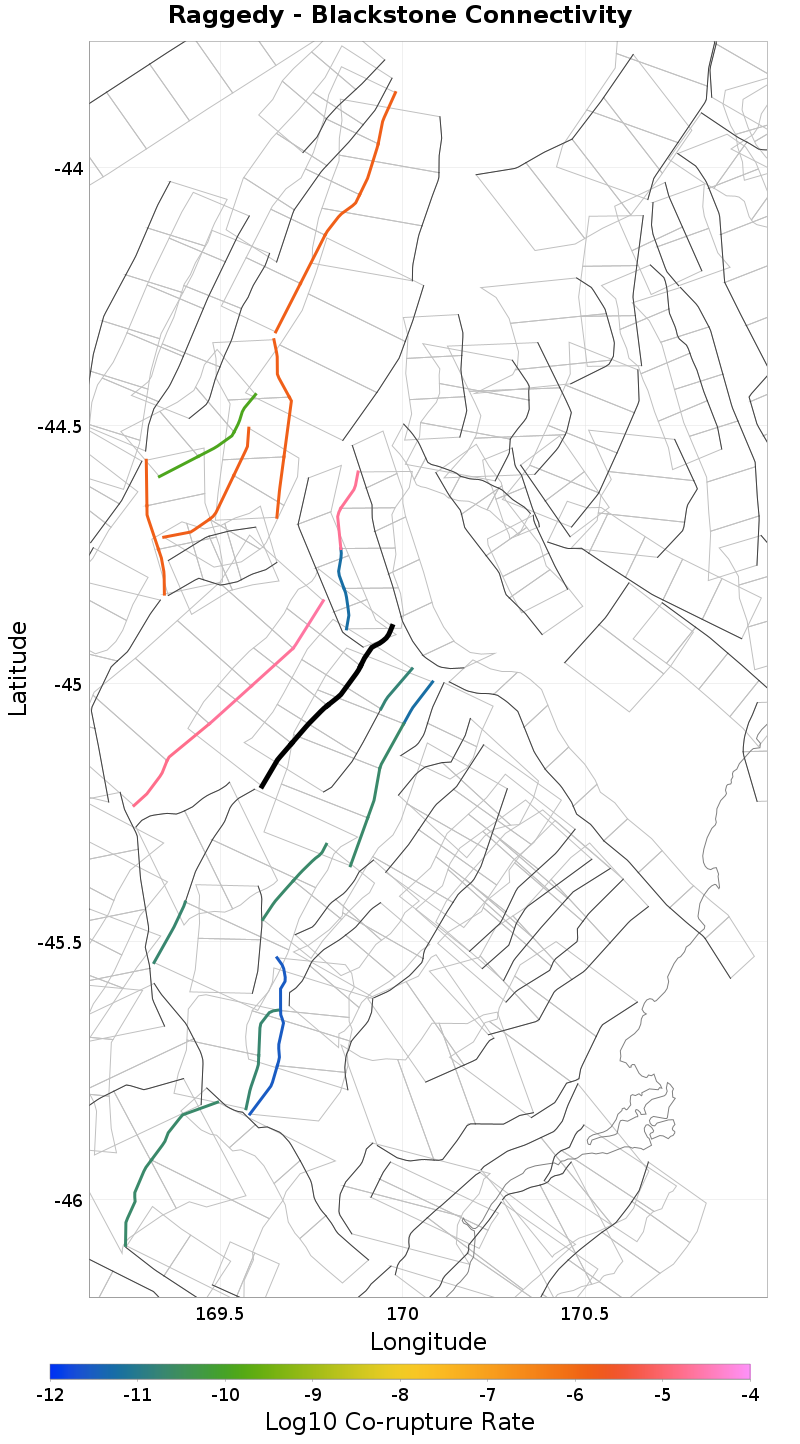

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Blue Lake, 0.17 km away
Omarama Saddle, 0.26 km away
Little Valley, 1.45 km away
Hawkdun, 2.51 km away
Goodger, 4.77 km away
Galloway, 4.8 km away
Garibaldi, 6.01 km away
Dunstan, 9.93 km away
Gimmerburn, 10.19 km away
Lindis River, 12.11 km away
Grandview, 14.9 km away
Cross Eden, 15.73 km away
Cluden, 15.76 km away
Waihemo, 16.54 km away
Long Valley, 18.62 km away

Blue Lake, 0.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODQuMFFxbWg1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Omarama Saddle, 0.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODQuMFFxbWg1
Connected?true
Directly Connected?true
Co-rupture Count19
Co-rupture Rate1.9054962E-5

Little Valley, 1.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODQuMFFxbWg1
Connected?true
Directly Connected?false
Co-rupture Count13
Co-rupture Rate1.9570314E-11

Hawkdun, 2.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODQuMFFxbWg1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Goodger, 4.77 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODQuMFFxbWg1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Galloway, 4.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODQuMFFxbWg1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Garibaldi, 6.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODQuMFFxbWg1
Connected?true
Directly Connected?true
Co-rupture Count12
Co-rupture Rate1.670908E-11

Dunstan, 9.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODQuMFFxbWg1
Connected?true
Directly Connected?true
Co-rupture Count20
Co-rupture Rate2.3559529E-5

Gimmerburn, 10.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODQuMFFxbWg1
Connected?true
Directly Connected?false
Co-rupture Count17
Co-rupture Rate2.2416213E-11

Lindis River, 12.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODQuMFFxbWg1
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate1.5992566E-6

Grandview, 14.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODQuMFFxbWg1
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate1.4741748E-6

Cross Eden, 15.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODQuMFFxbWg1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Cluden, 15.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODQuMFFxbWg1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waihemo, 16.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODQuMFFxbWg1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Long Valley, 18.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODQuMFFxbWg1
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate2.2416213E-11
