Wairau Details
| Property | Value |
|---|---|
| Rupture Count | 27,053 |
| Ruptures Above Sect Min Mag | 27,044 |
| Ruptures w/ Nonzero Rates | 184 |
| Magnitude Range | [6.80, 8.63] |
| Length Range | [20, 1,119] km |
| Total Rate | 0.0023968492 /yr |
| Multi-Fault Rate | 0.0023815406 /yr (99.36%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 99 |
Table Of Contents

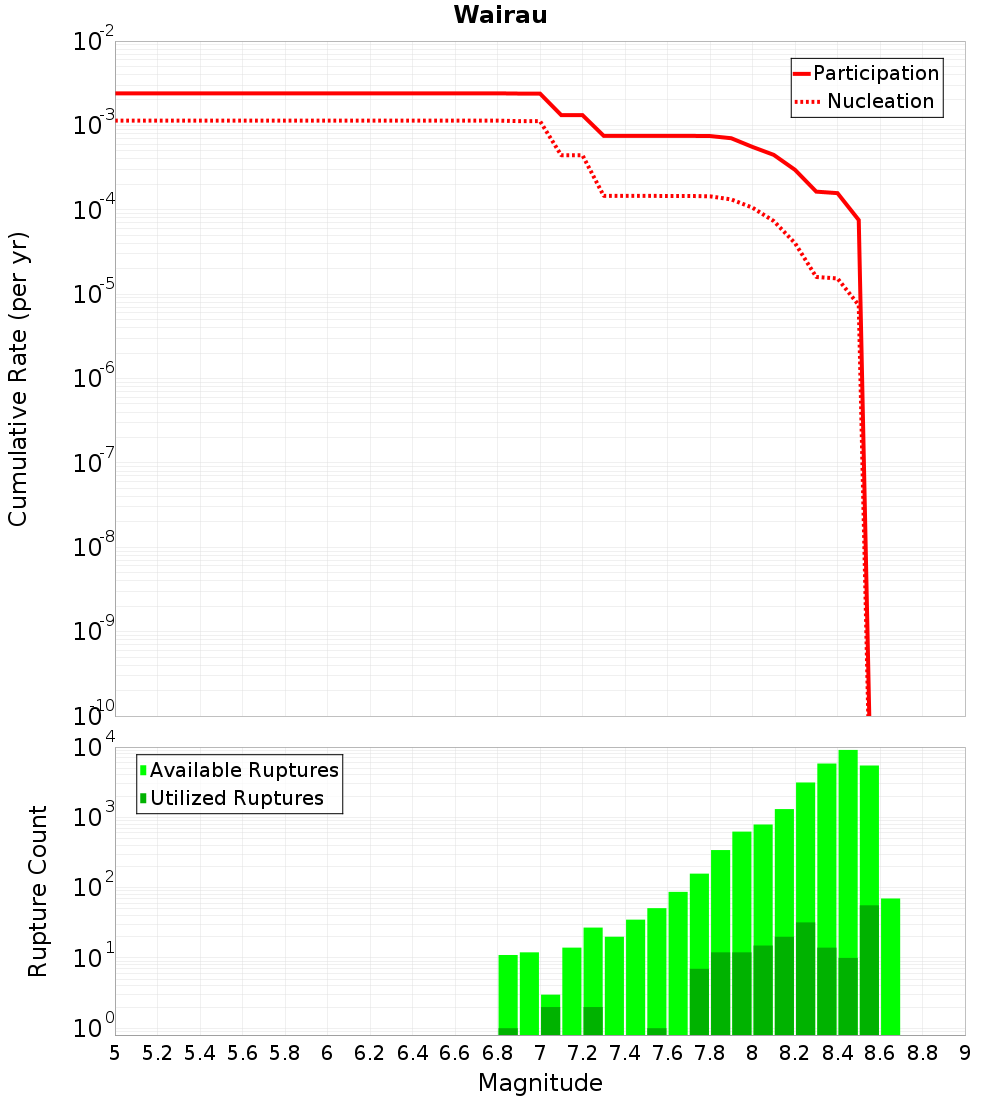

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

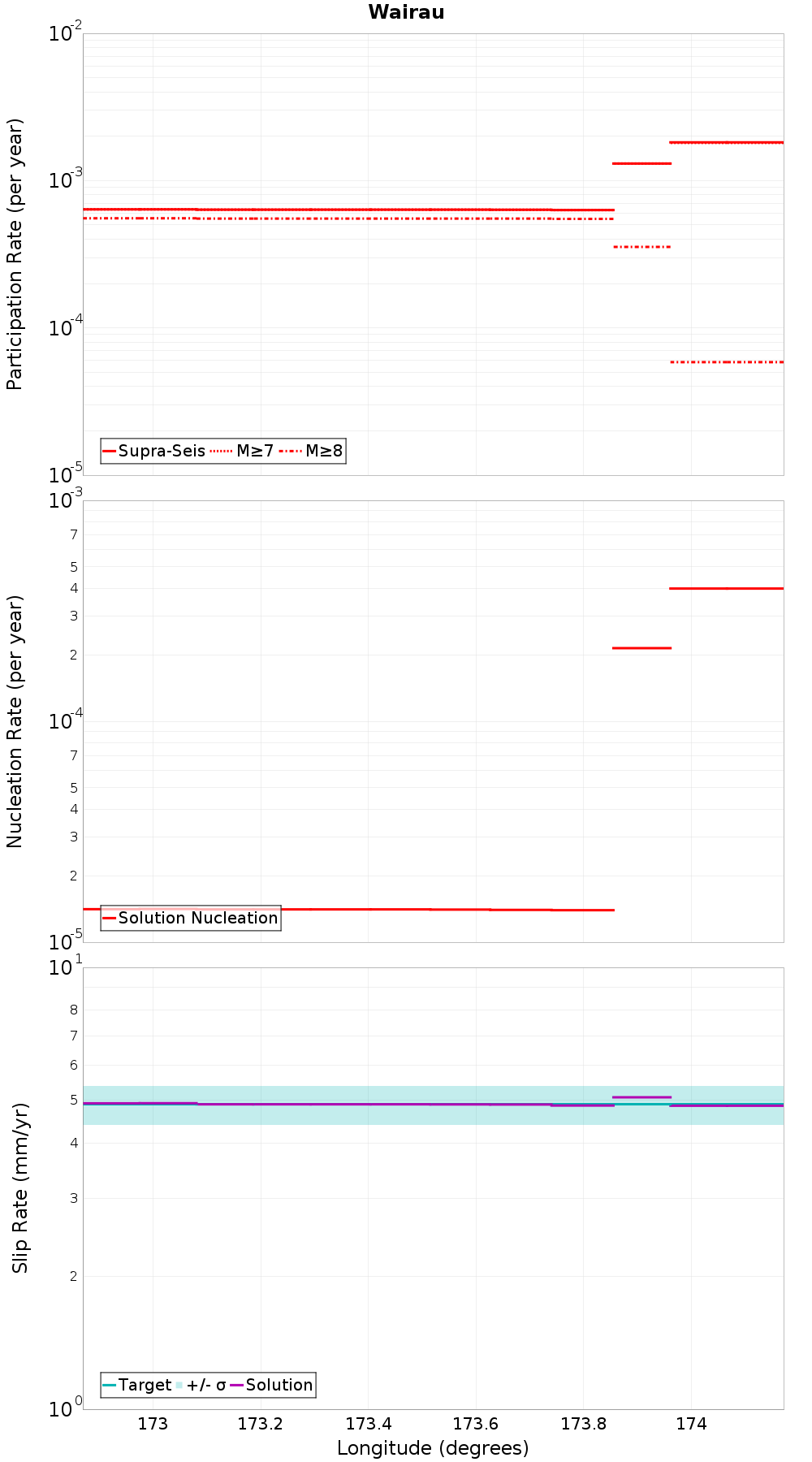

Along-Strike Values

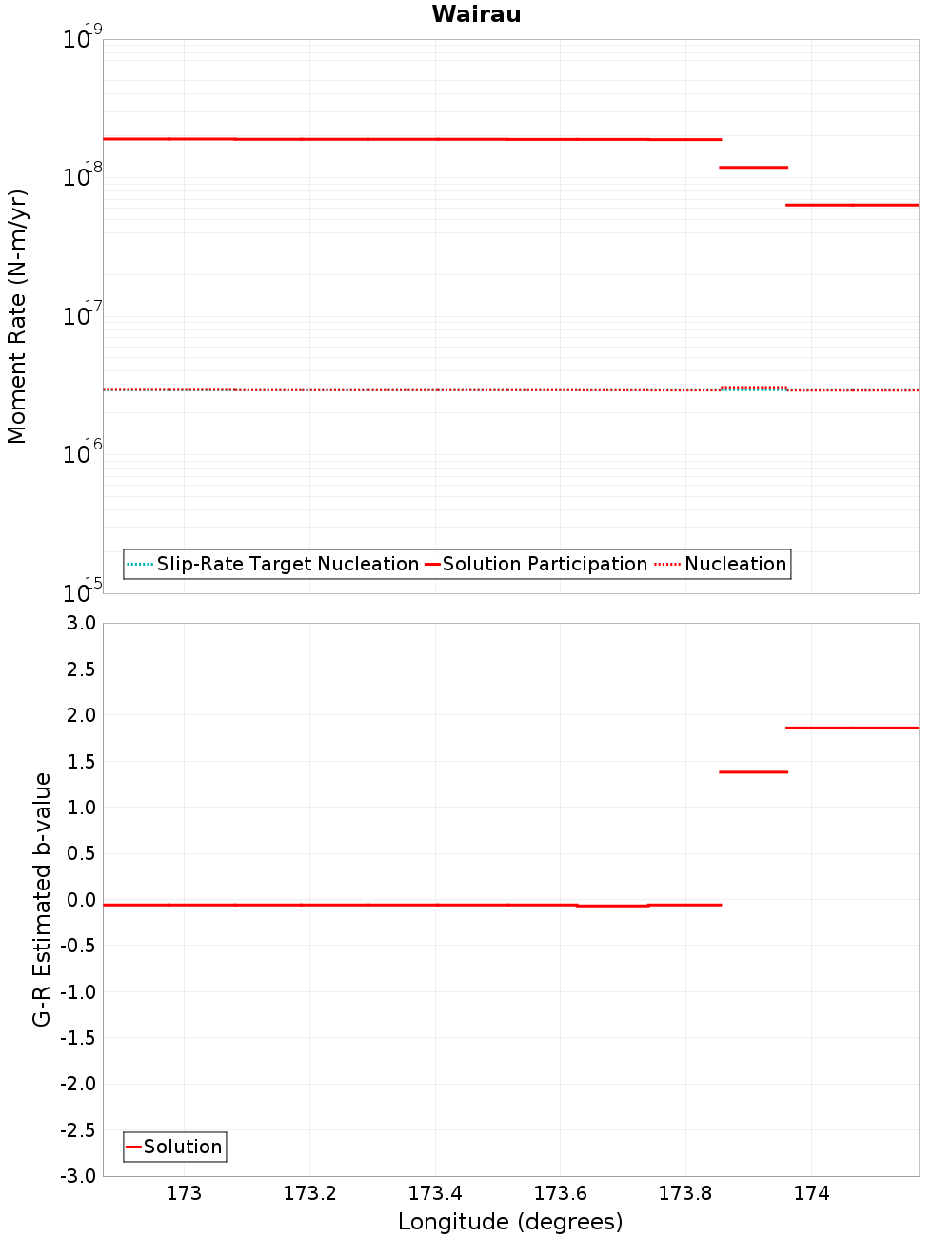

Moment-Rates and b-Values

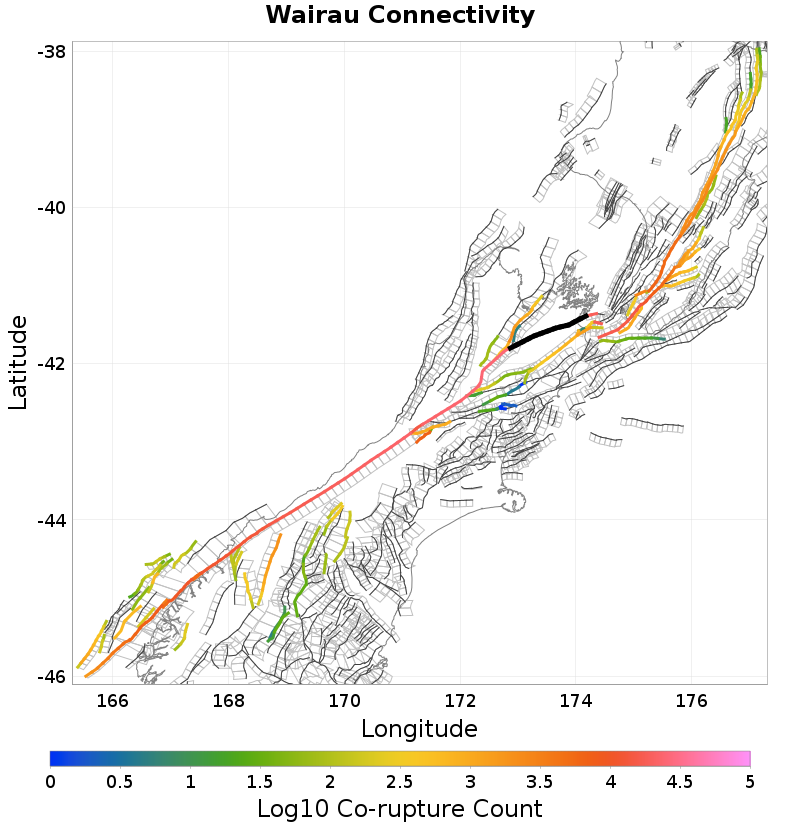

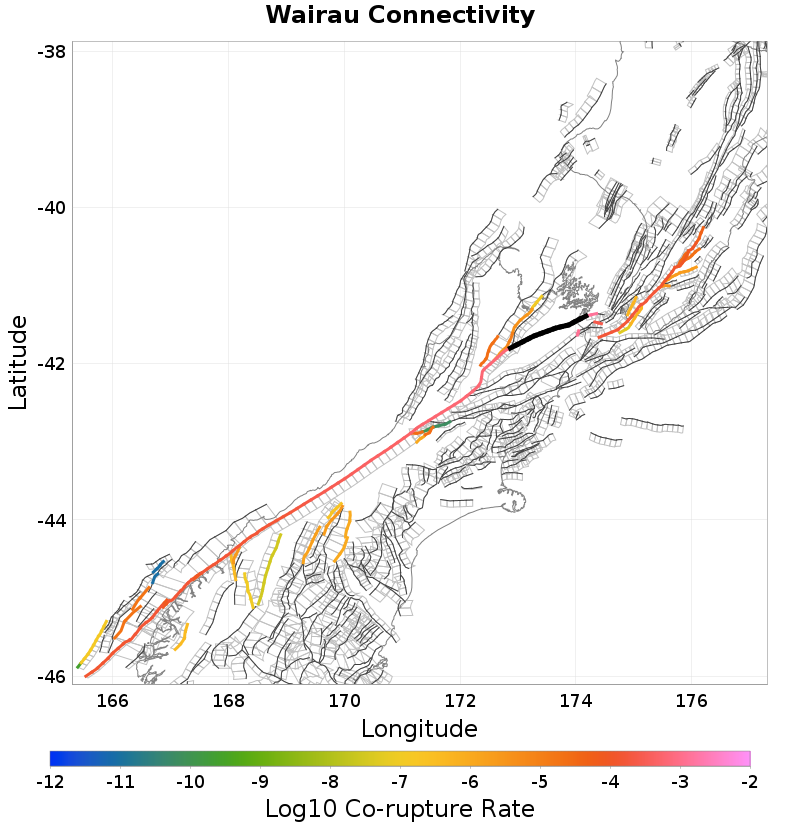

Connectivity
 |  |
|---|
Nearby Sections
Wairau 2, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODQuMFFxbWg1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 18,675 |
| Co-rupture Rate | 0.0013756115 |
Whangamoa, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODQuMFFxbWg1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 5 |
| Co-rupture Rate | 0.0 |
Alpine: Springs Junction to Tophouse, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODQuMFFxbWg1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 24,945 |
| Co-rupture Rate | 6.3791993E-4 |
Flaxmore - Waimea - Tahunanui, 0.17 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODQuMFFxbWg1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2,456 |
| Co-rupture Rate | 1.1135802E-5 |
Tutaki, 7.34 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODQuMFFxbWg1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 79 |
| Co-rupture Rate | 2.3284178E-5 |
Awatere: Northeast 1, 11.05 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODQuMFFxbWg1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 745 |
| Co-rupture Rate | 0.0 |
Awatere: Northeast 2, 12.04 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODQuMFFxbWg1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1,430 |
| Co-rupture Rate | 0.0 |
Cloudy 2, 12.85 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODQuMFFxbWg1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 105 |
| Co-rupture Rate | 0.0 |
Cloudy 1, 12.85 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODQuMFFxbWg1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 378 |
| Co-rupture Rate | 0.0 |
Wairau 3, 13.7 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODQuMFFxbWg1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Vernon 1, 14 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODQuMFFxbWg1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 728 |
| Co-rupture Rate | 0.0012461902 |
Vernon 2, 14 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODQuMFFxbWg1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 6 |
| Co-rupture Rate | 0.0 |
Ruby Bay - Moutere, 14.99 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODQuMFFxbWg1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Vernon 3, 15.38 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODQuMFFxbWg1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Cloudy 3, 15.4 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODQuMFFxbWg1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 18,344 |
| Co-rupture Rate | 2.7085532E-4 |
Ohariu South 1, 16.44 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODQuMFFxbWg1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Vernon 4, 17.5 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODQuMFFxbWg1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 143 |
| Co-rupture Rate | 0.0 |
