White Creek - buried Details

Property	Value
Rupture Count	633
Ruptures Above Sect Min Mag	633
Ruptures w/ Nonzero Rates	60
Magnitude Range	[6.84, 8.35]
Length Range	[19, 610] km
Total Rate	8.3481704E-5 /yr
Multi-Fault Rate	8.3481704E-5 /yr (100.00%)
Directly-Connected Faults	2
All Co-Rupturing Faults	76

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

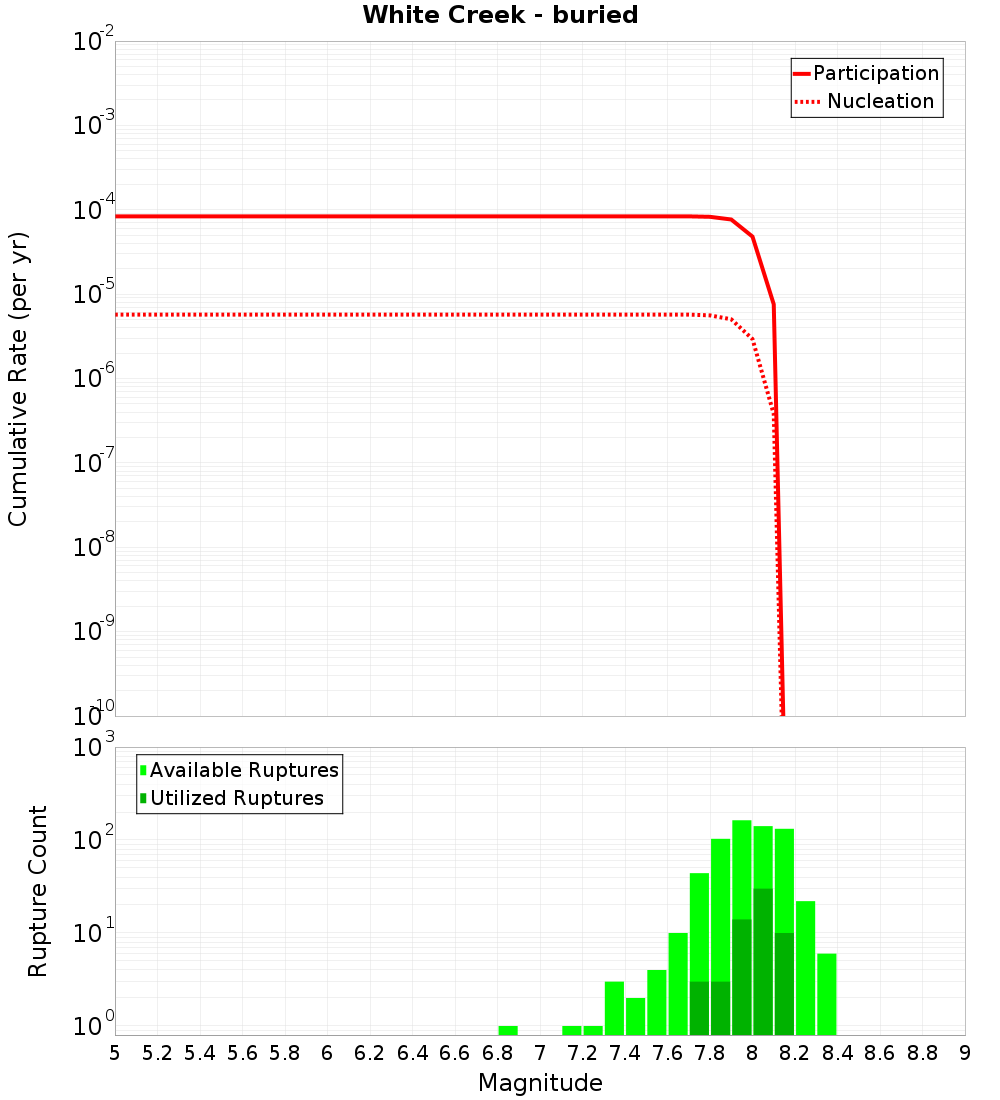

Magnitude-Frequency Distribution

Incremental	Cumulative

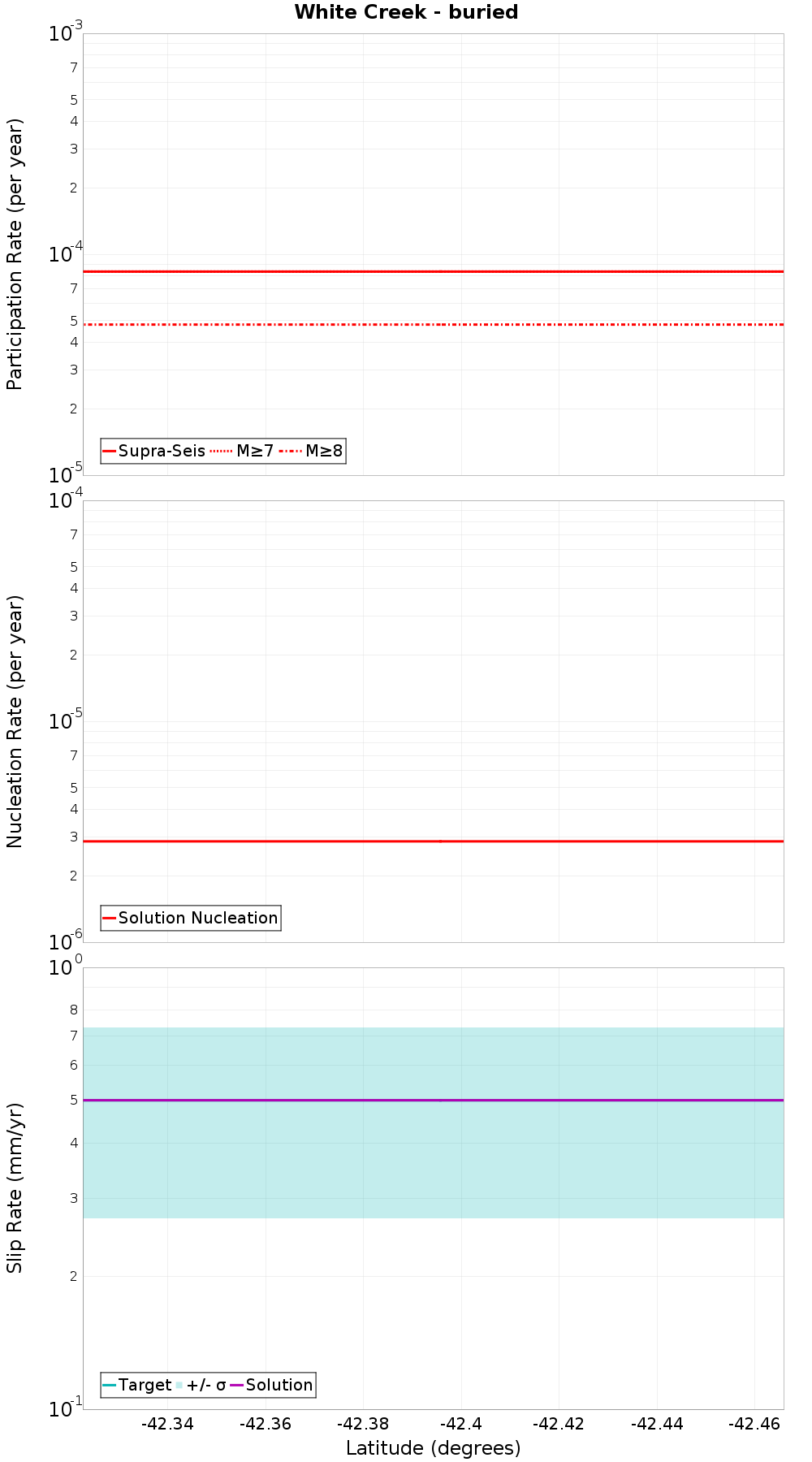

Along-Strike Values

Moment-Rates and b-Values

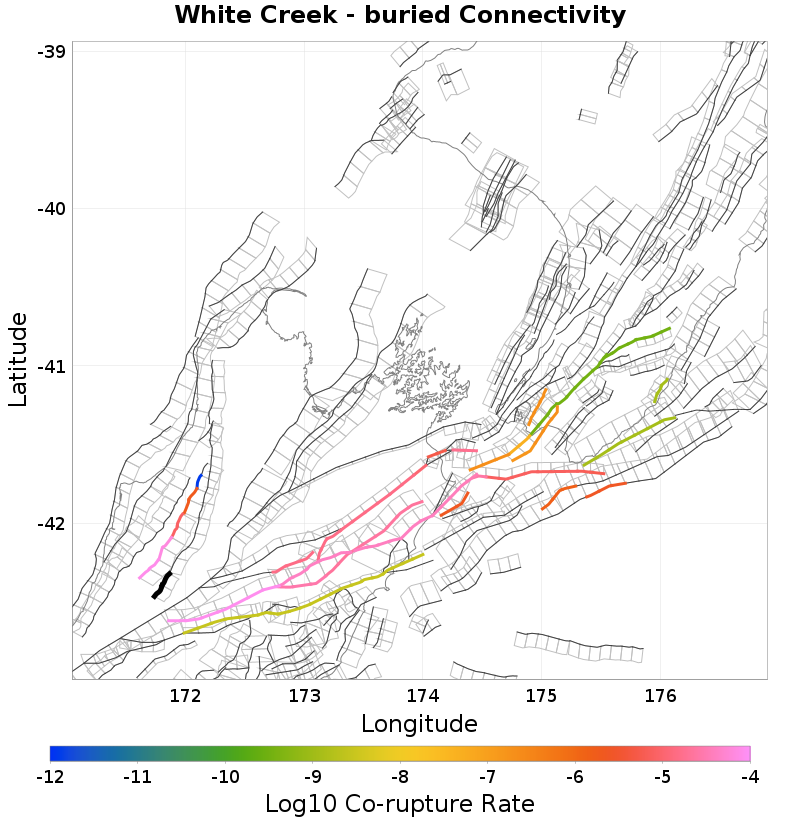

Connectivity

Nearby Sections

Fault Section
White Creek, 0.99 km away
Clarence: Southwest, 6.06 km away
Lyell South, 7.39 km away
Alpine: Kaniere to Springs Junction, 12.03 km away
Fowlers, 15.44 km away
Hope: Hurunui, 17.6 km away
Hope: Hope River, 18.56 km away

White Creek, 0.99 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODQuMFFxbWg1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Clarence: Southwest, 6.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODQuMFFxbWg1
Connected?	true
Directly Connected?	true
Co-rupture Count	629
Co-rupture Rate	8.3481704E-5

Lyell South, 7.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODQuMFFxbWg1
Connected?	true
Directly Connected?	true
Co-rupture Count	276
Co-rupture Rate	7.932054E-5

Alpine: Kaniere to Springs Junction, 12.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODQuMFFxbWg1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Fowlers, 15.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODQuMFFxbWg1
Connected?	true
Directly Connected?	false
Co-rupture Count	70
Co-rupture Rate	1.4670223E-5

Hope: Hurunui, 17.6 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODQuMFFxbWg1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hope: Hope River, 18.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODQuMFFxbWg1
Connected?	true
Directly Connected?	false
Co-rupture Count	55
Co-rupture Rate	2.7273277E-9
