Rangefront Details
| Property | Value |
|---|---|
| Rupture Count | 10,407 |
| Ruptures Above Sect Min Mag | 10,405 |
| Ruptures w/ Nonzero Rates | 185 |
| Magnitude Range | [6.94, 8.32] |
| Length Range | [21, 552] km |
| Total Rate | 9.508241E-5 /yr |
| Multi-Fault Rate | 9.1726615E-5 /yr (96.47%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 101 |
Table Of Contents

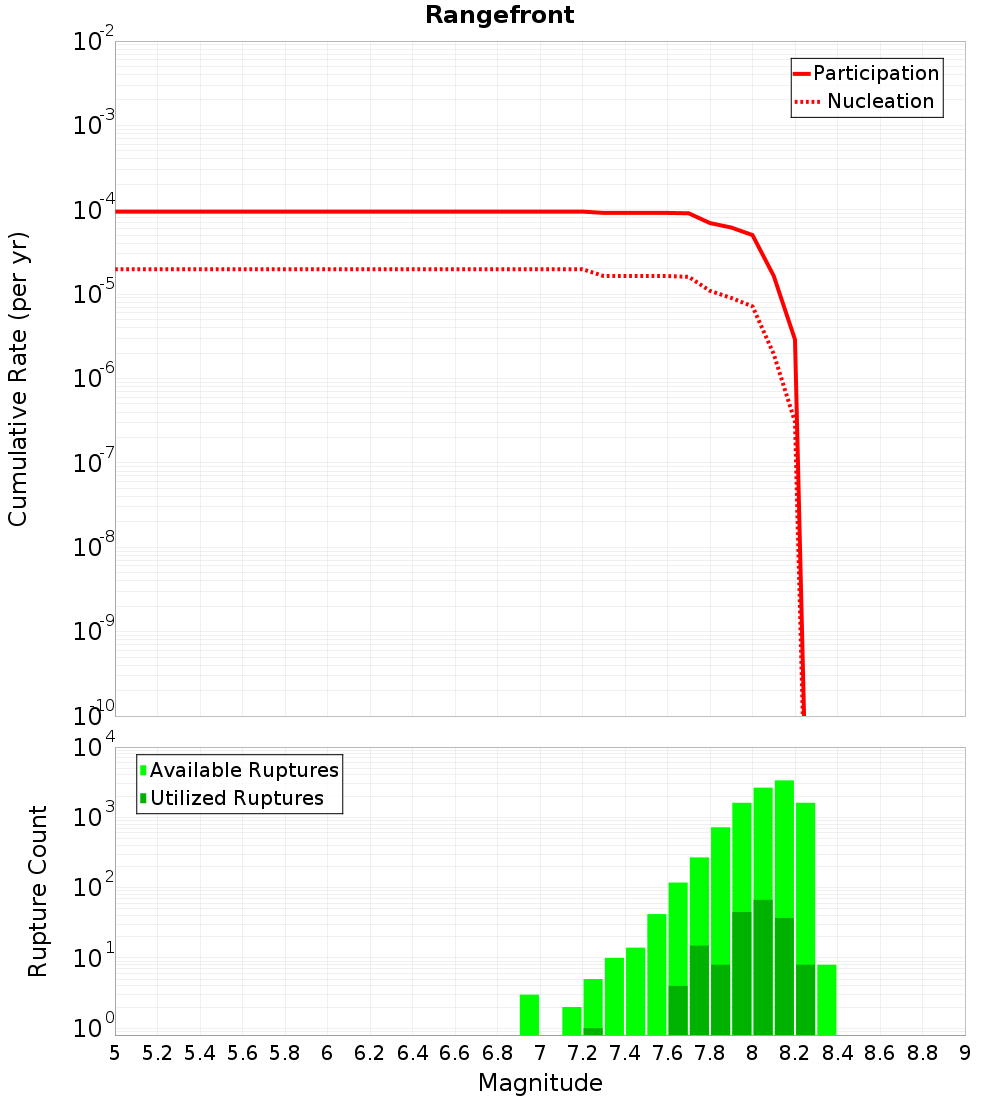

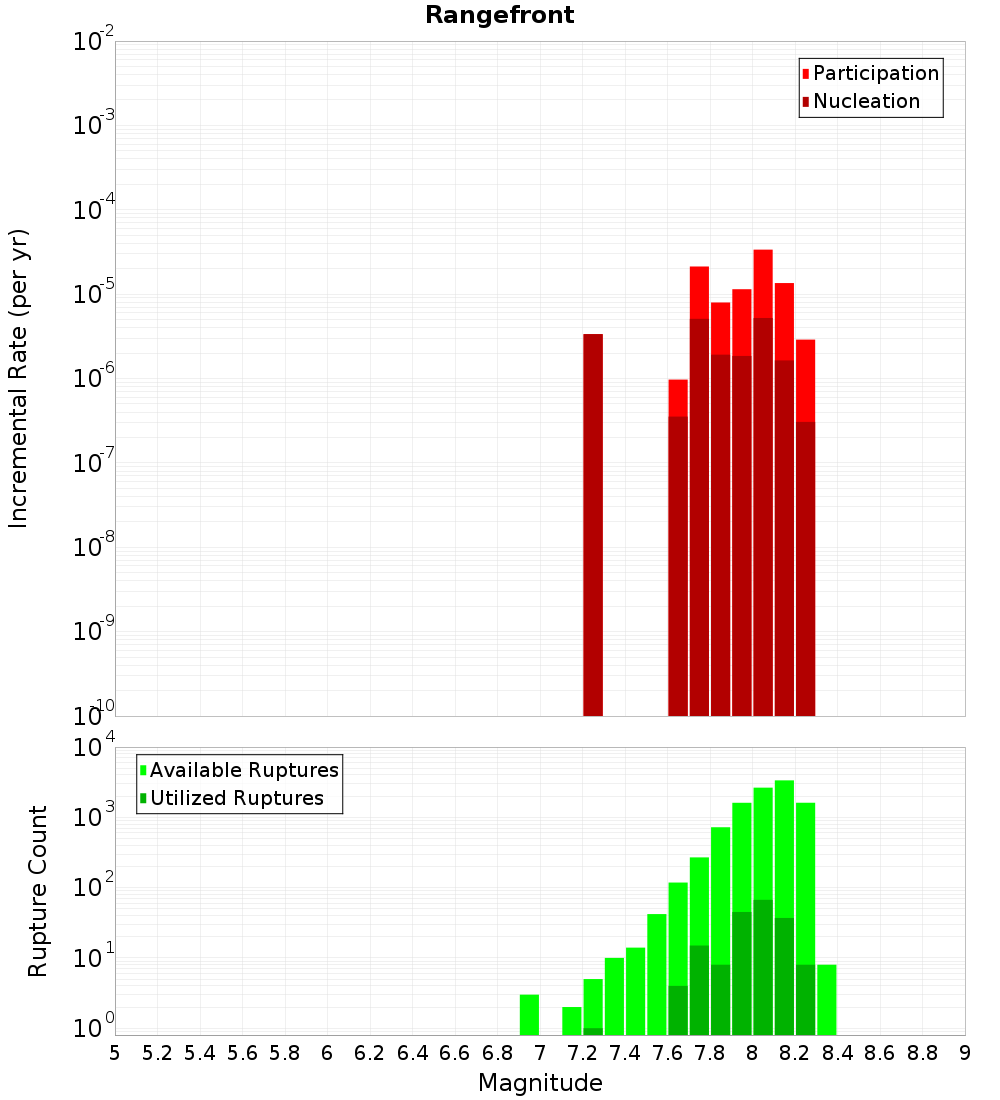

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

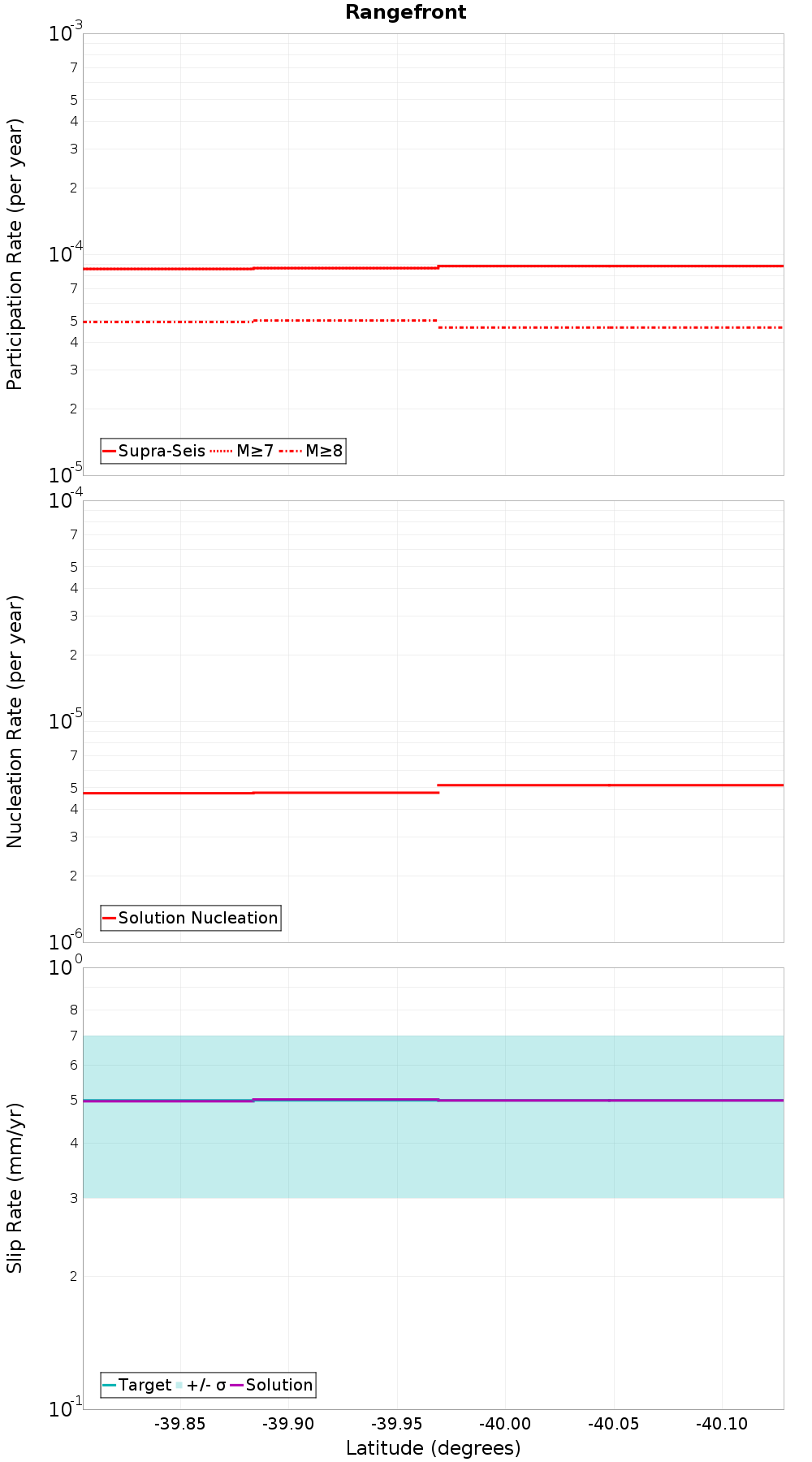

Along-Strike Values

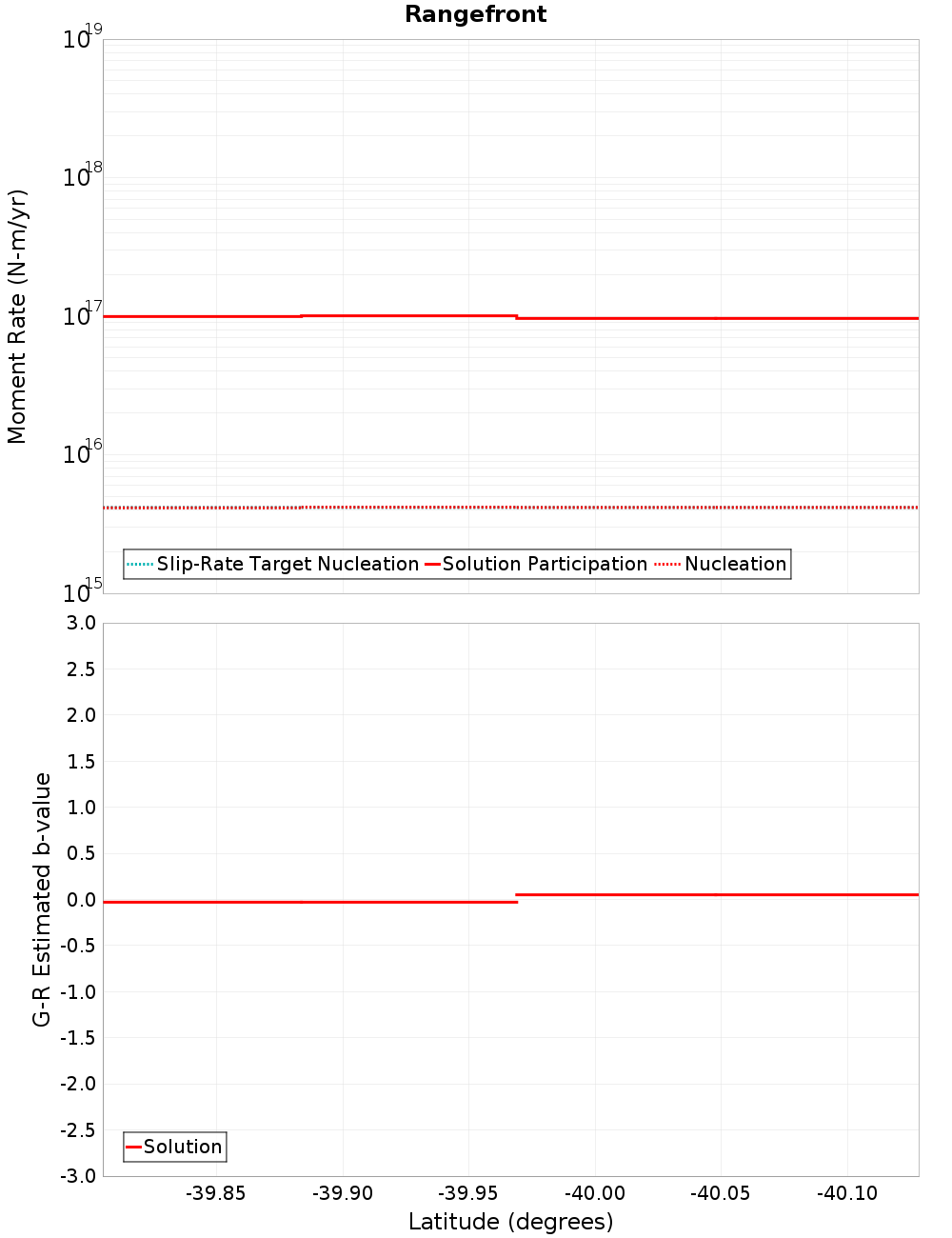

Moment-Rates and b-Values

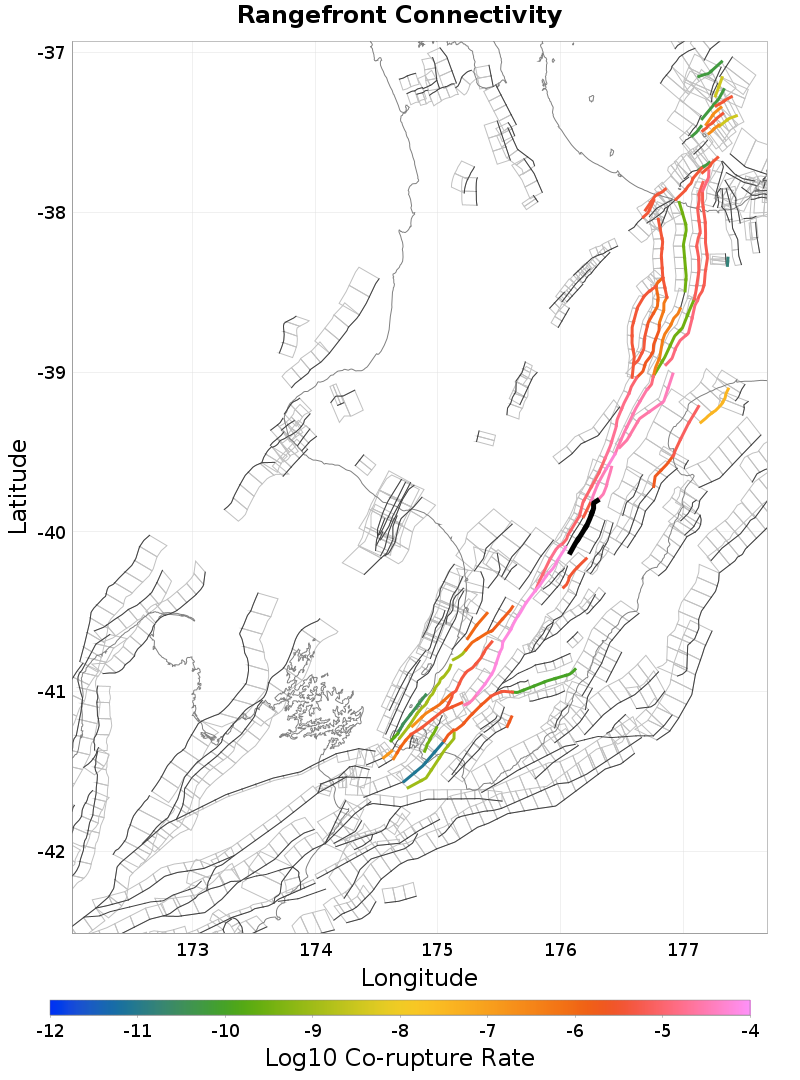

Connectivity
 |  |
|---|
Nearby Sections
Wakarara, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODUuMDlkOThB | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 7,452 |
| Co-rupture Rate | 3.2892327E-5 |
Ruahine: South, 0.19 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODUuMDlkOThB | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2,608 |
| Co-rupture Rate | 1.7194132E-5 |
Ruahine: Central, 0.2 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODUuMDlkOThB | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 995 |
| Co-rupture Rate | 1.0157861E-5 |
Mohaka: South, 0.2 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODUuMDlkOThB | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 12,414 |
| Co-rupture Rate | 1.1849702E-4 |
Ruataniwha, 8.95 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODUuMDlkOThB | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Pahiatua, 9.78 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODUuMDlkOThB | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 68 |
| Co-rupture Rate | 0.0 |
Maunga, 10.17 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODUuMDlkOThB | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 9 |
| Co-rupture Rate | 3.3672322E-6 |
Woodville, 10.84 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODUuMDlkOThB | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Pohangina, 12.41 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODUuMDlkOThB | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 45 |
| Co-rupture Rate | 0.0 |
Oruawharo - Mangatoro, 15.62 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODUuMDlkOThB | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Clear Hills - Waikopiro, 16.39 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODUuMDlkOThB | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Waewaepa, 16.75 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODUuMDlkOThB | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Te Heka, 17.34 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODUuMDlkOThB | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
