Ruahine: North Details

PropertyValue
Rupture Count23,590
Ruptures Above Sect Min Mag23,587
Ruptures w/ Nonzero Rates355
Magnitude Range[6.97, 8.60]
Length Range[24, 1,113] km
Total Rate3.0398267E-4 /yr
Multi-Fault Rate3.0398267E-4 /yr (100.00%)
Directly-Connected Faults8
All Co-Rupturing Faults101

Table Of Contents

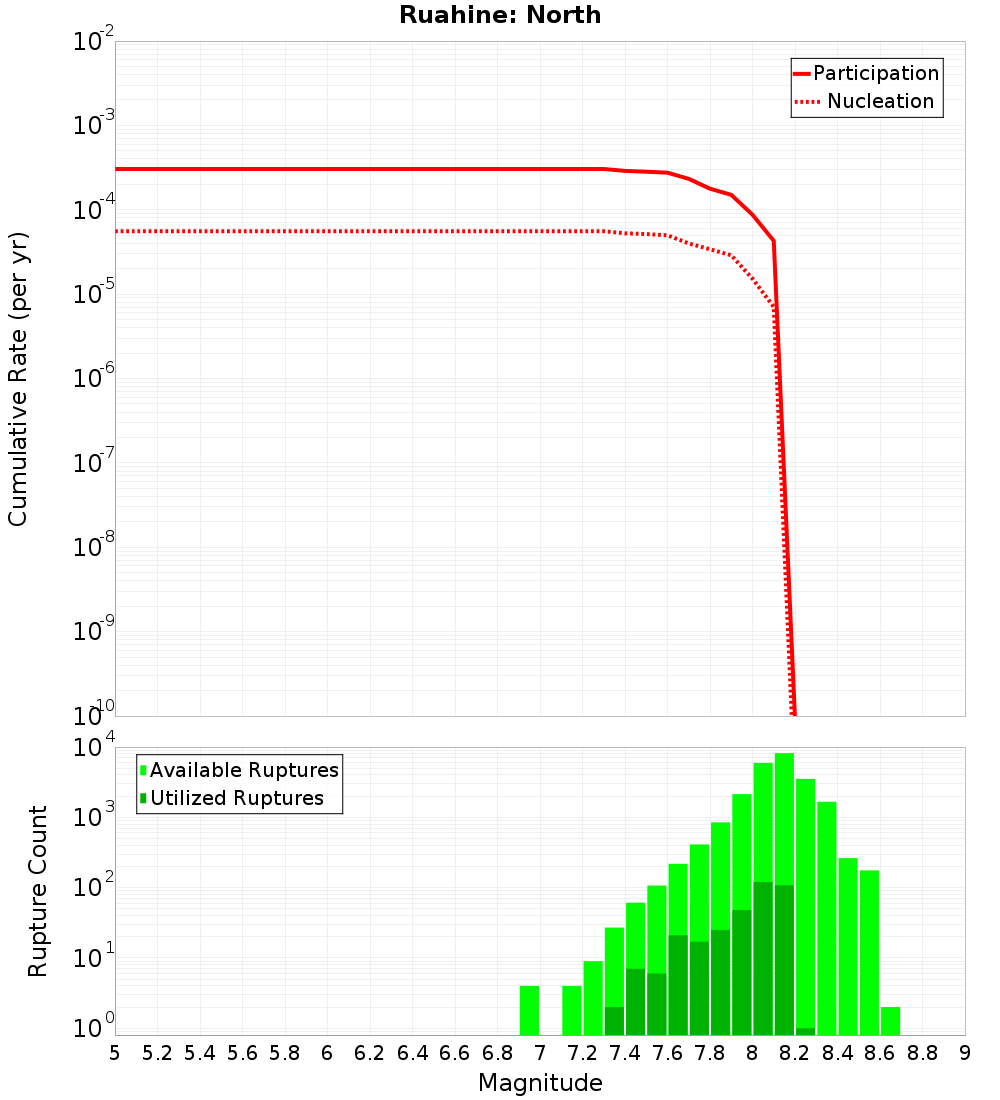

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

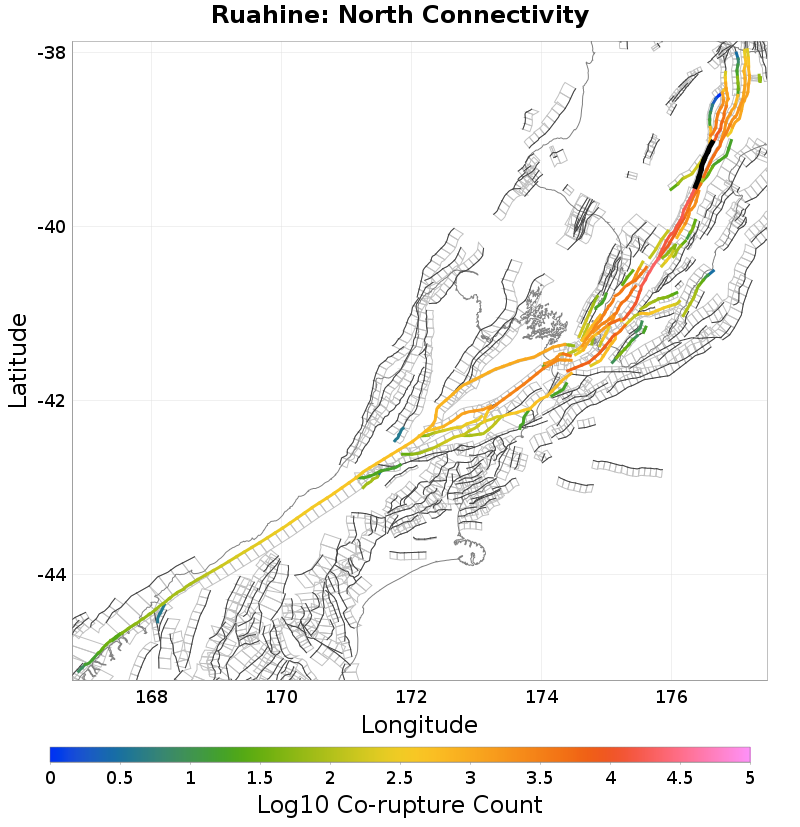

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Waiohau: South, 0 km away
Ruahine: Central, 0 km away
Kaweka, 1.83 km away
Wheao: South, 2.68 km away
Wakarara, 4 km away
Mohaka: South, 4.35 km away
Mohaka: North, 5.2 km away
Patoka - Rangiora, 6.53 km away
Te Whaiti South, 9.06 km away
Whakatane: South, 11.52 km away
Waimana: South, 11.54 km away
Awanui, 17.89 km away
Te Heka, 19.72 km away

Waiohau: South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODUuMEVmVDNh
Connected?true
Directly Connected?true
Co-rupture Count8,543
Co-rupture Rate1.2111073E-4

Ruahine: Central, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODUuMEVmVDNh
Connected?true
Directly Connected?true
Co-rupture Count17,206
Co-rupture Rate1.5735975E-4

Kaweka, 1.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODUuMEVmVDNh
Connected?true
Directly Connected?true
Co-rupture Count163
Co-rupture Rate1.2560852E-4

Wheao: South, 2.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODUuMEVmVDNh
Connected?true
Directly Connected?true
Co-rupture Count609
Co-rupture Rate2.9584702E-5

Wakarara, 4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODUuMEVmVDNh
Connected?true
Directly Connected?true
Co-rupture Count2,124
Co-rupture Rate1.9240328E-5

Mohaka: South, 4.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODUuMEVmVDNh
Connected?true
Directly Connected?true
Co-rupture Count9,525
Co-rupture Rate9.476409E-5

Mohaka: North, 5.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODUuMEVmVDNh
Connected?true
Directly Connected?true
Co-rupture Count5,118
Co-rupture Rate1.5999922E-6

Patoka - Rangiora, 6.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODUuMEVmVDNh
Connected?true
Directly Connected?false
Co-rupture Count49
Co-rupture Rate0.0

Te Whaiti South, 9.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODUuMEVmVDNh
Connected?true
Directly Connected?true
Co-rupture Count3,542
Co-rupture Rate6.2814586E-5

Whakatane: South, 11.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODUuMEVmVDNh
Connected?true
Directly Connected?false
Co-rupture Count2,003
Co-rupture Rate3.9139682E-5

Waimana: South, 11.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODUuMEVmVDNh
Connected?true
Directly Connected?false
Co-rupture Count3,131
Co-rupture Rate9.9766E-10

Awanui, 17.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODUuMEVmVDNh
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Te Heka, 19.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODUuMEVmVDNh
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
