Spylaw Details

PropertyValue
Rupture Count238
Ruptures Above Sect Min Mag238
Ruptures w/ Nonzero Rates36
Magnitude Range[7.30, 8.25]
Length Range[31, 351] km
Total Rate8.238188E-5 /yr
Multi-Fault Rate2.969597E-5 /yr (36.05%)
Directly-Connected Faults4
All Co-Rupturing Faults38

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

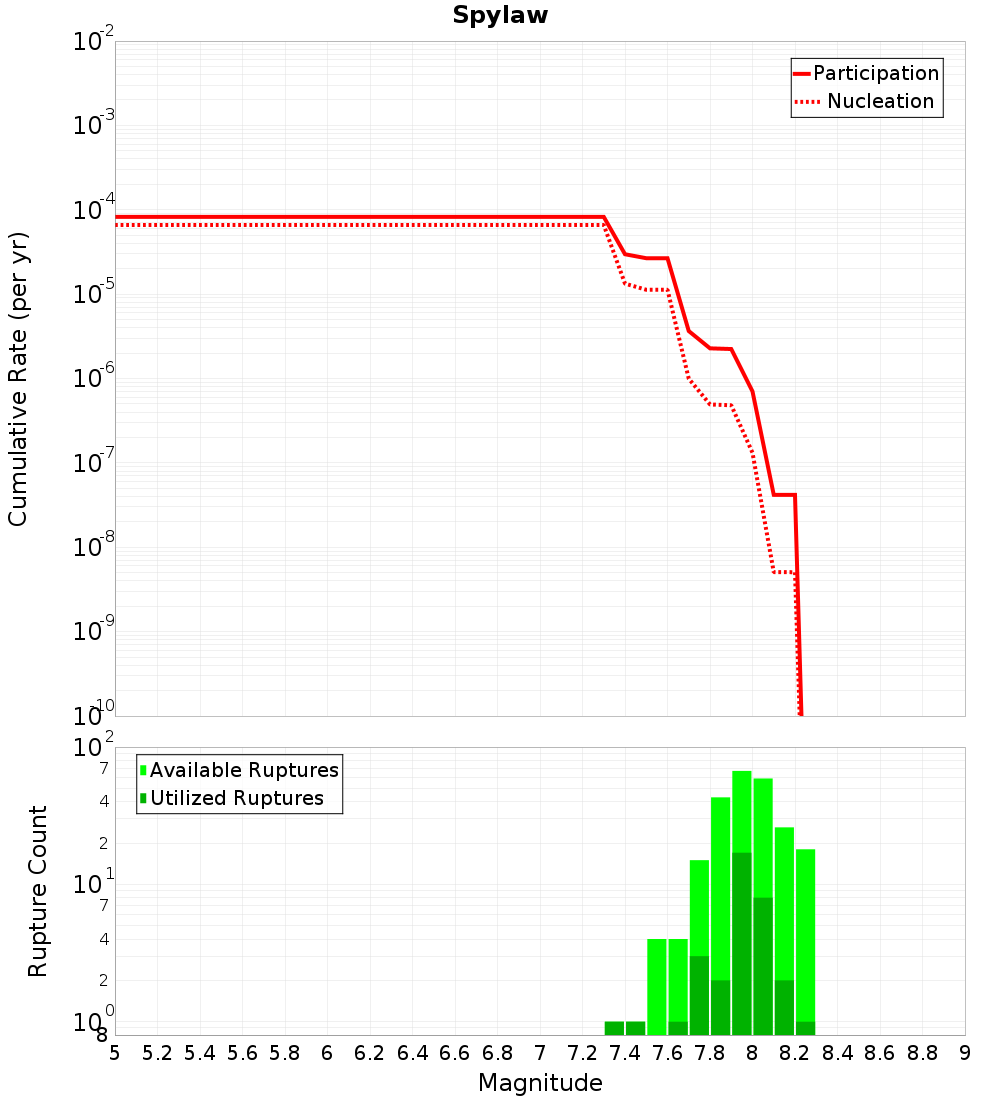

Incremental PlotCumulative Plot

Along-Strike Values

(top)

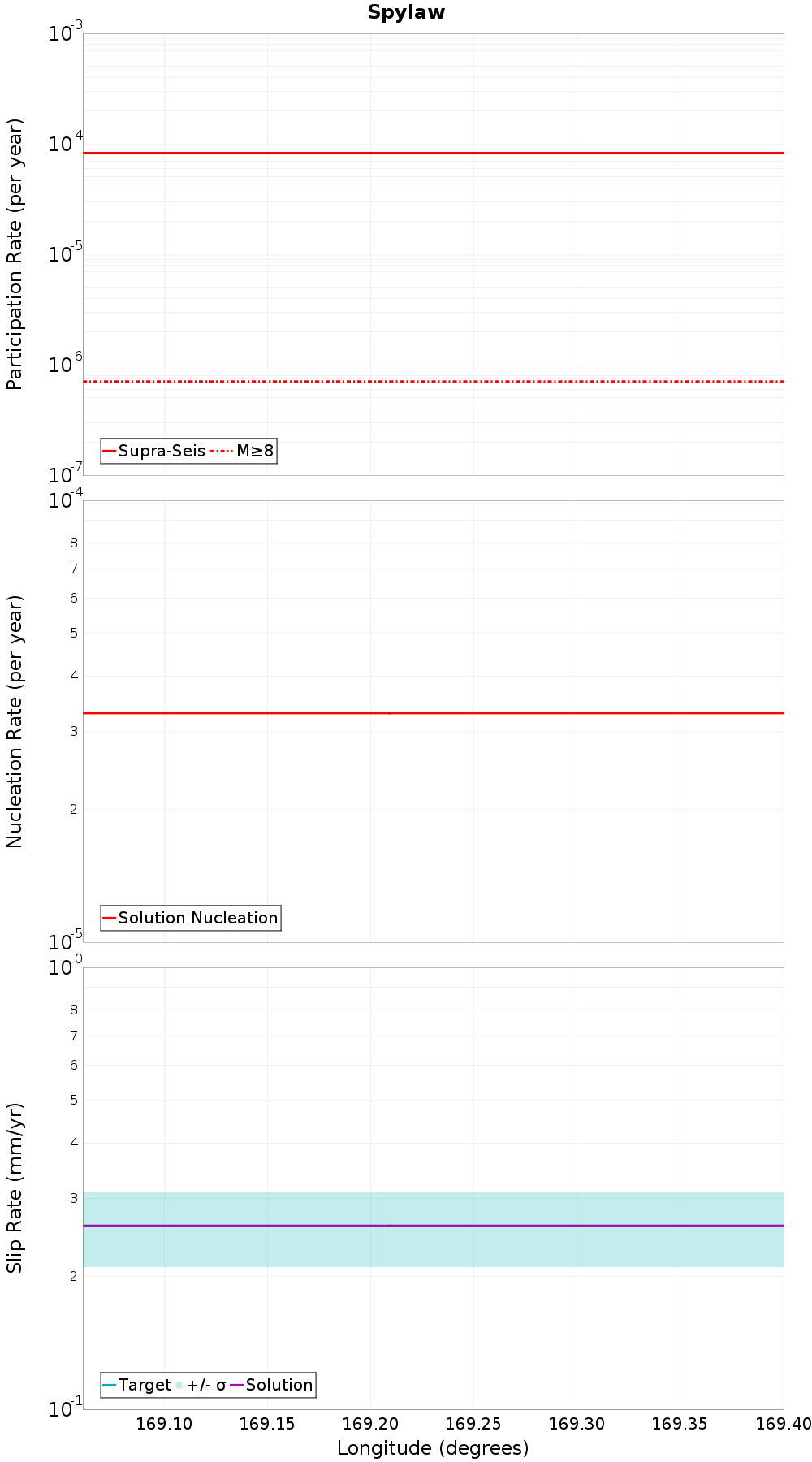

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

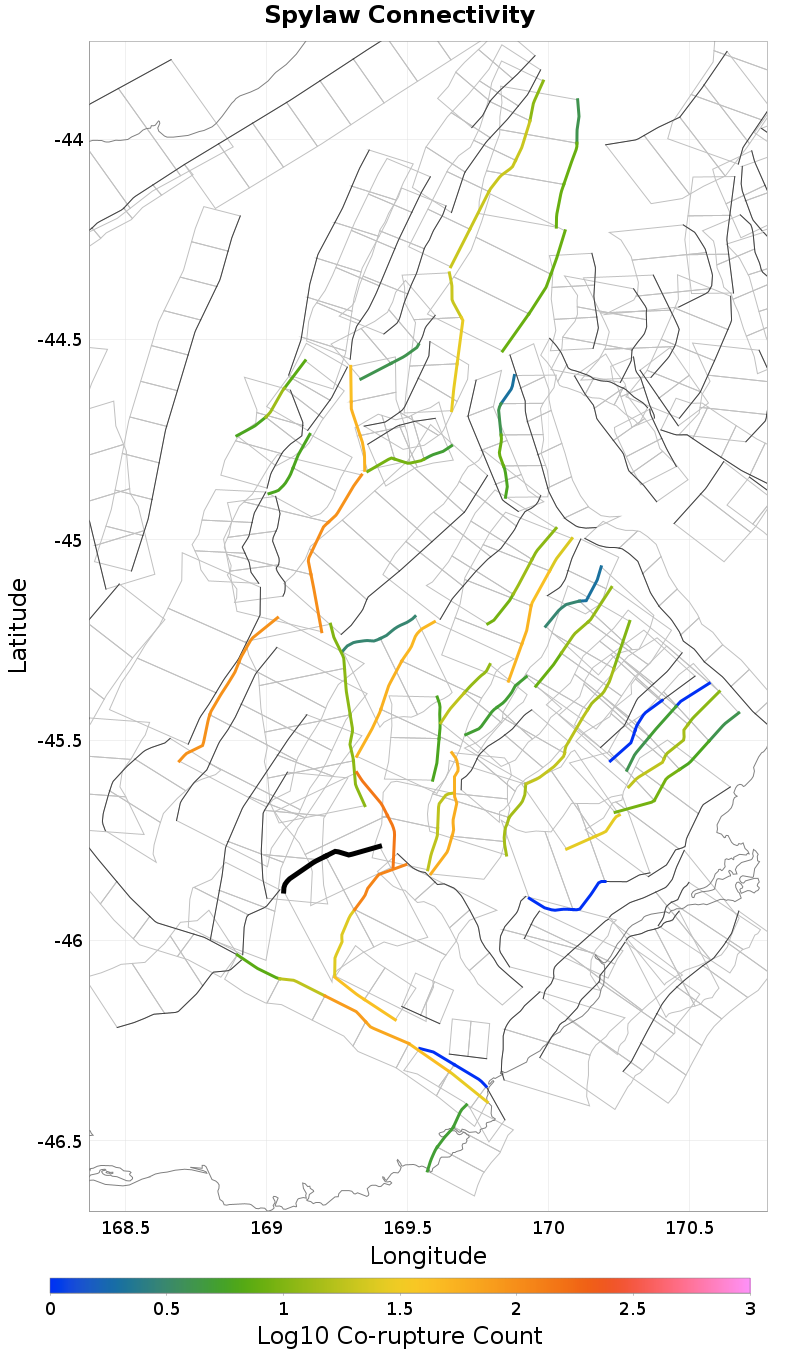

MapMap

Nearby Sections

(top)

Fault Section
Teviot, 0.07 km away
Beacon Hill, 0.19 km away
Waikaka, 1.11 km away
Tuapeka, 2.17 km away
Wendon Valley, 3.67 km away
Blue Mountain, 3.89 km away
Backbone, 4.47 km away
Clifton, 8.67 km away
Hillfoot, 11.54 km away
Old Man, 11.99 km away
Beaumont River, 12.97 km away
Waikaia, 15.07 km away
Hyde South - The Twins, 19.17 km away
Hedgehope, 19.53 km away

Teviot, 0.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODUuMEVmVDNh
Connected?true
Directly Connected?true
Co-rupture Count144
Co-rupture Rate2.251502E-6

Beacon Hill, 0.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODUuMEVmVDNh
Connected?true
Directly Connected?true
Co-rupture Count42
Co-rupture Rate4.3821196E-6

Waikaka, 1.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODUuMEVmVDNh
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tuapeka, 2.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODUuMEVmVDNh
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wendon Valley, 3.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODUuMEVmVDNh
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Blue Mountain, 3.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODUuMEVmVDNh
Connected?true
Directly Connected?true
Co-rupture Count117
Co-rupture Rate2.4392835E-5

Backbone, 4.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODUuMEVmVDNh
Connected?true
Directly Connected?false
Co-rupture Count18
Co-rupture Rate3.243441E-10

Clifton, 8.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODUuMEVmVDNh
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hillfoot, 11.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODUuMEVmVDNh
Connected?true
Directly Connected?true
Co-rupture Count83
Co-rupture Rate1.6631603E-7

Old Man, 11.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODUuMEVmVDNh
Connected?true
Directly Connected?false
Co-rupture Count11
Co-rupture Rate2.8195526E-8

Beaumont River, 12.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODUuMEVmVDNh
Connected?true
Directly Connected?false
Co-rupture Count60
Co-rupture Rate1.1141437E-8

Waikaia, 15.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODUuMEVmVDNh
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hyde South - The Twins, 19.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODUuMEVmVDNh
Connected?true
Directly Connected?false
Co-rupture Count14
Co-rupture Rate6.9423905E-8

Hedgehope, 19.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODUuMEVmVDNh
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
