Whakaari 4 Details

PropertyValue
Rupture Count823
Ruptures Above Sect Min Mag823
Ruptures w/ Nonzero Rates13
Magnitude Range[6.80, 7.50]
Length Range[18, 109] km
Total Rate8.8653277E-4 /yr
Multi-Fault Rate8.8653277E-4 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults28

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

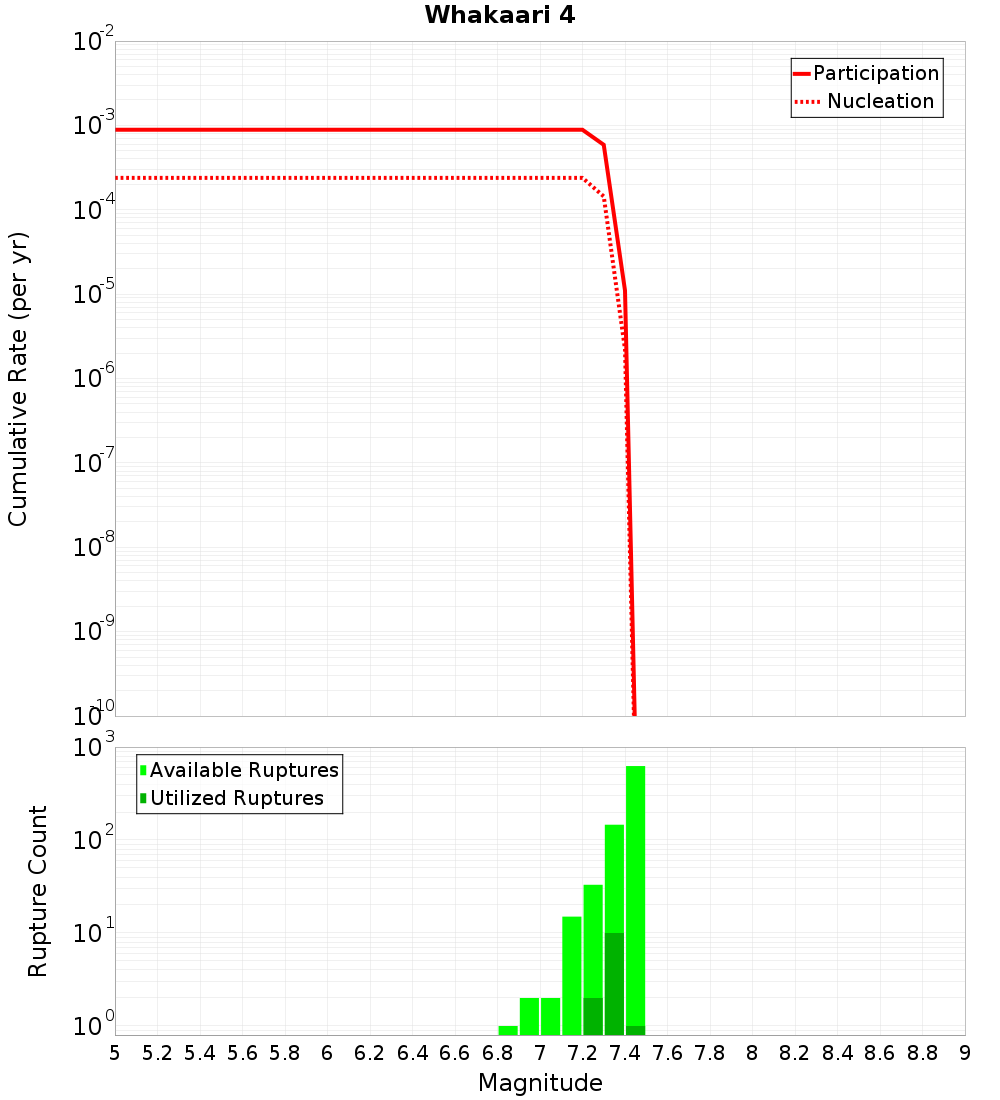

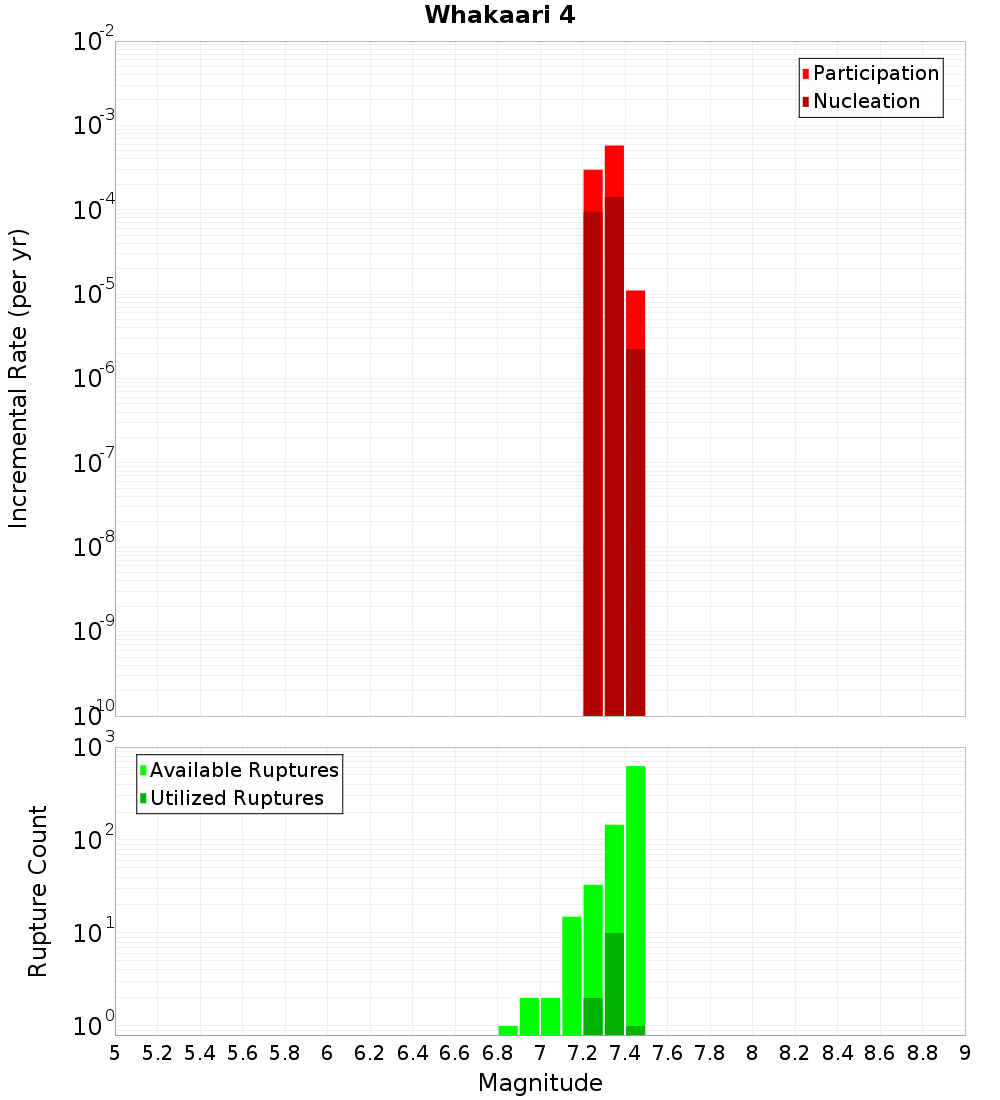

Incremental PlotCumulative Plot

Along-Strike Values

(top)

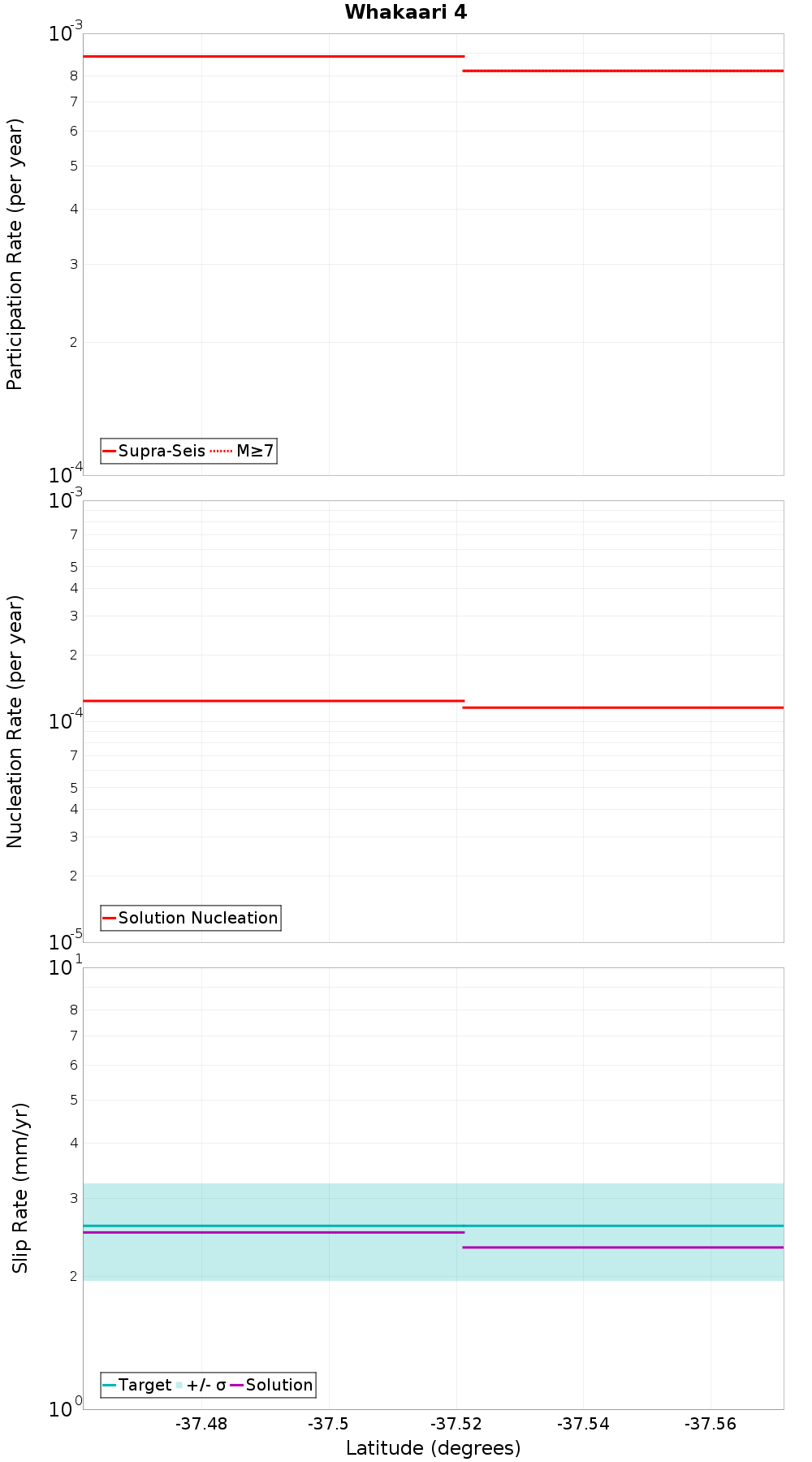

Along-strike plot

Moment-Rates and b-Values

(top)

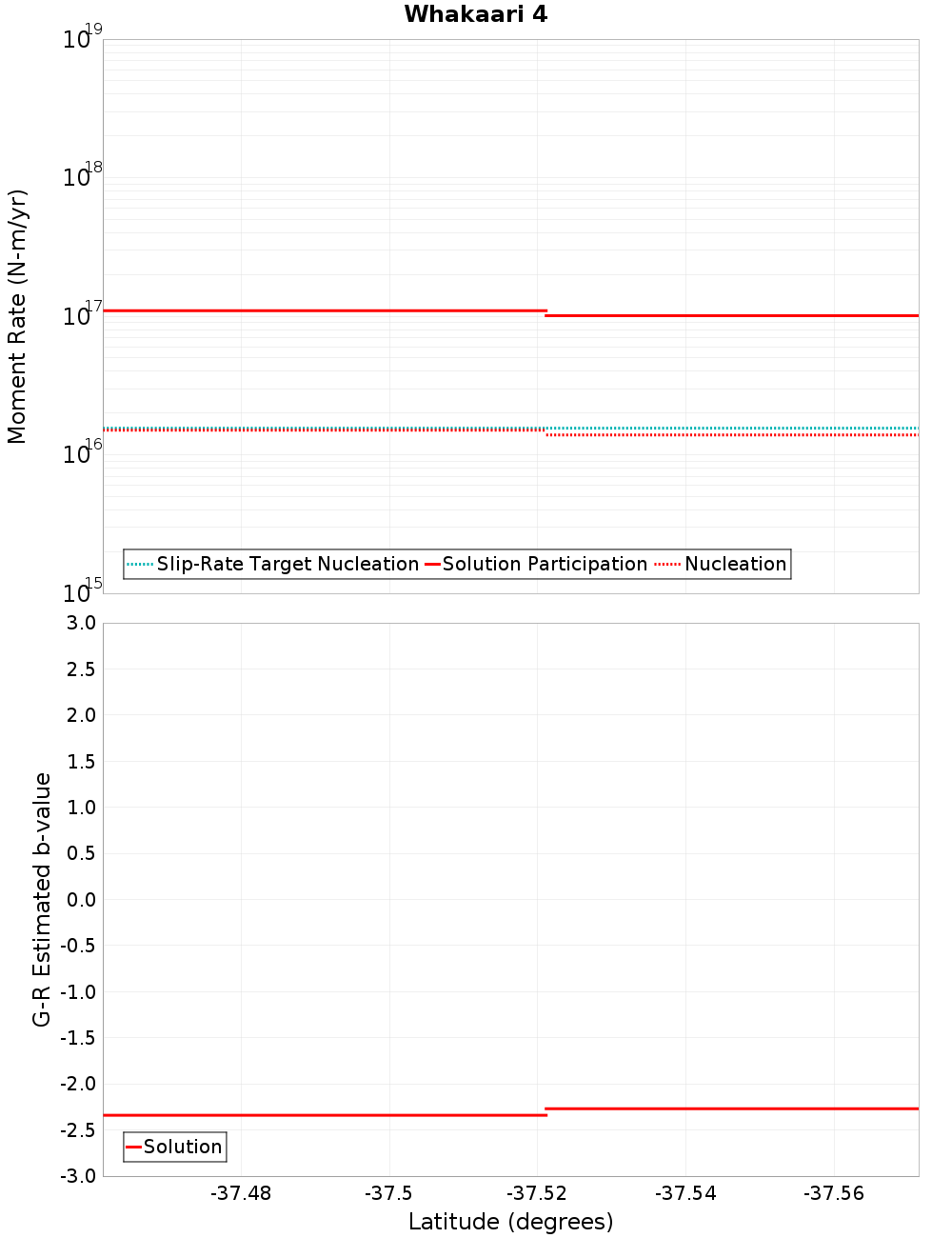

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Ohiwa 1, 0.14 km awayWaimanawa - Waikaremoana, 7.01 km away
Calypso 2, 0.2 km awayOpotiki 3, 8.08 km away
Rangitaiki 2, 0.45 km awayRangitaiki 1, 10.86 km away
White Island 2, 0.45 km awayTuatoru 2, 11.04 km away
White Island 1, 1.52 km awayTe Arawa 3, 14.7 km away
Volkner 3, 1.58 km awayWaimana: North, 15.48 km away
Te Arawa 1, 2.25 km awayHariki, 17.21 km away
Te Arawa 2, 3.86 km awayOhae 1, 17.38 km away
Volkner 4, 5.31 km awayOtara West 1, 18.82 km away
Tuatoru 1, 5.84 km away

Ohiwa 1, 0.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODUuMEVmVDNh
Connected?true
Directly Connected?true
Co-rupture Count311
Co-rupture Rate2.8716263E-4

Calypso 2, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODUuMEVmVDNh
Connected?true
Directly Connected?false
Co-rupture Count32
Co-rupture Rate0.0

Rangitaiki 2, 0.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODUuMEVmVDNh
Connected?true
Directly Connected?true
Co-rupture Count402
Co-rupture Rate2.896322E-4

White Island 2, 0.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODUuMEVmVDNh
Connected?true
Directly Connected?false
Co-rupture Count64
Co-rupture Rate0.0

White Island 1, 1.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODUuMEVmVDNh
Connected?true
Directly Connected?true
Co-rupture Count532
Co-rupture Rate9.967877E-7

Volkner 3, 1.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODUuMEVmVDNh
Connected?true
Directly Connected?false
Co-rupture Count12
Co-rupture Rate0.0

Te Arawa 1, 2.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODUuMEVmVDNh
Connected?true
Directly Connected?true
Co-rupture Count197
Co-rupture Rate2.477117E-4

Te Arawa 2, 3.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODUuMEVmVDNh
Connected?true
Directly Connected?true
Co-rupture Count166
Co-rupture Rate2.2080717E-4

Volkner 4, 5.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODUuMEVmVDNh
Connected?true
Directly Connected?true
Co-rupture Count39
Co-rupture Rate1.6722009E-4

Tuatoru 1, 5.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODUuMEVmVDNh
Connected?true
Directly Connected?true
Co-rupture Count169
Co-rupture Rate1.4385533E-4

Waimanawa - Waikaremoana, 7.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODUuMEVmVDNh
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Opotiki 3, 8.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODUuMEVmVDNh
Connected?true
Directly Connected?false
Co-rupture Count12
Co-rupture Rate0.0

Rangitaiki 1, 10.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODUuMEVmVDNh
Connected?true
Directly Connected?false
Co-rupture Count180
Co-rupture Rate1.1698884E-4

Tuatoru 2, 11.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODUuMEVmVDNh
Connected?true
Directly Connected?false
Co-rupture Count109
Co-rupture Rate3.646625E-4

Te Arawa 3, 14.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODUuMEVmVDNh
Connected?true
Directly Connected?false
Co-rupture Count30
Co-rupture Rate2.477117E-4

Waimana: North, 15.48 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODUuMEVmVDNh
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hariki, 17.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODUuMEVmVDNh
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohae 1, 17.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODUuMEVmVDNh
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otara West 1, 18.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2ODUuMEVmVDNh
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
