Awakeri Details

Property	Value
Rupture Count	8,523
Ruptures Above Sect Min Mag	8,523
Ruptures w/ Nonzero Rates	12
Magnitude Range	[6.66, 8.28]
Length Range	[17, 537] km
Total Rate	5.684596E-5 /yr
Multi-Fault Rate	5.684596E-5 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	87

Table Of Contents

Magnitude-Frequency Distribution

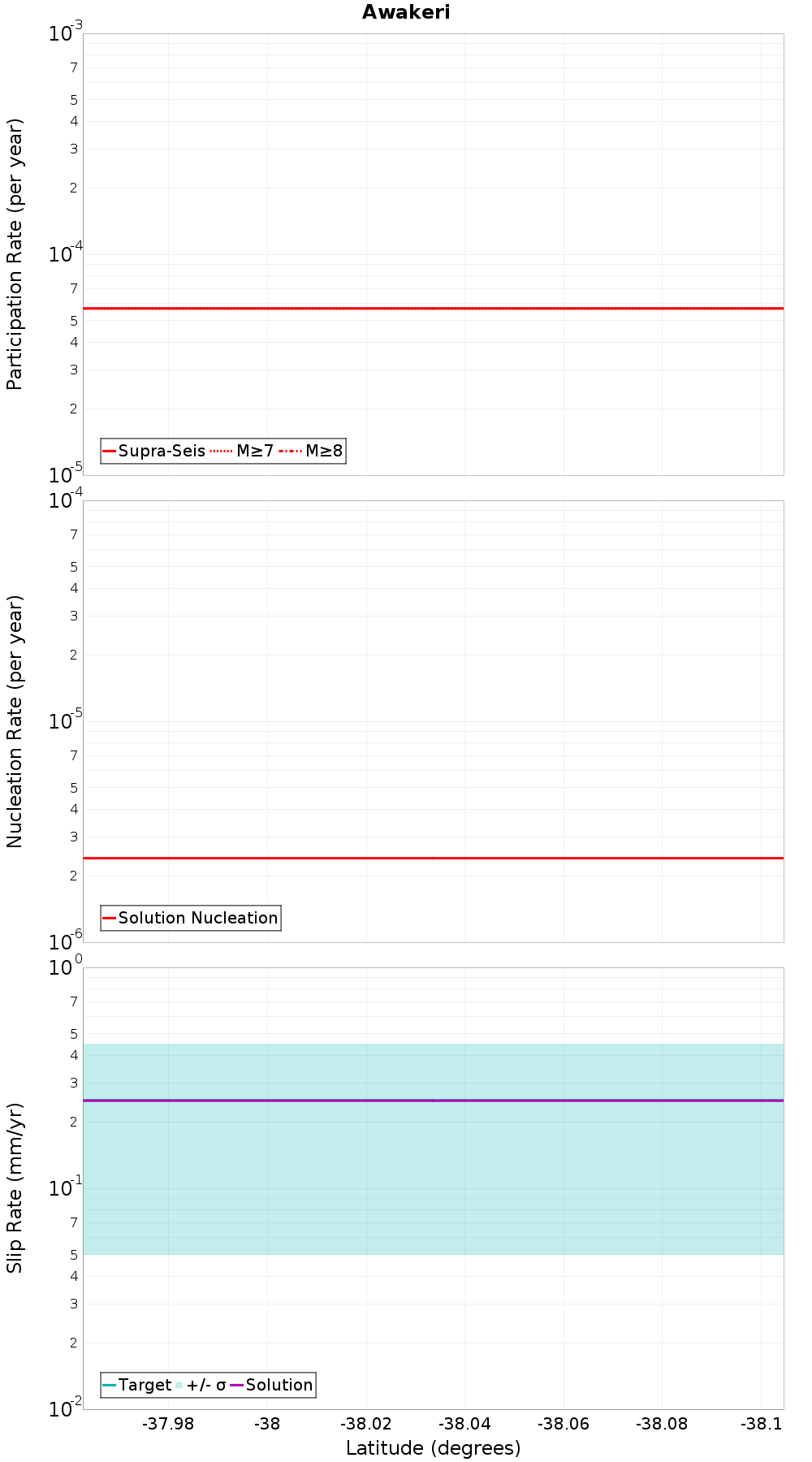

Along-Strike Values
- Moment-Rates and b-Values

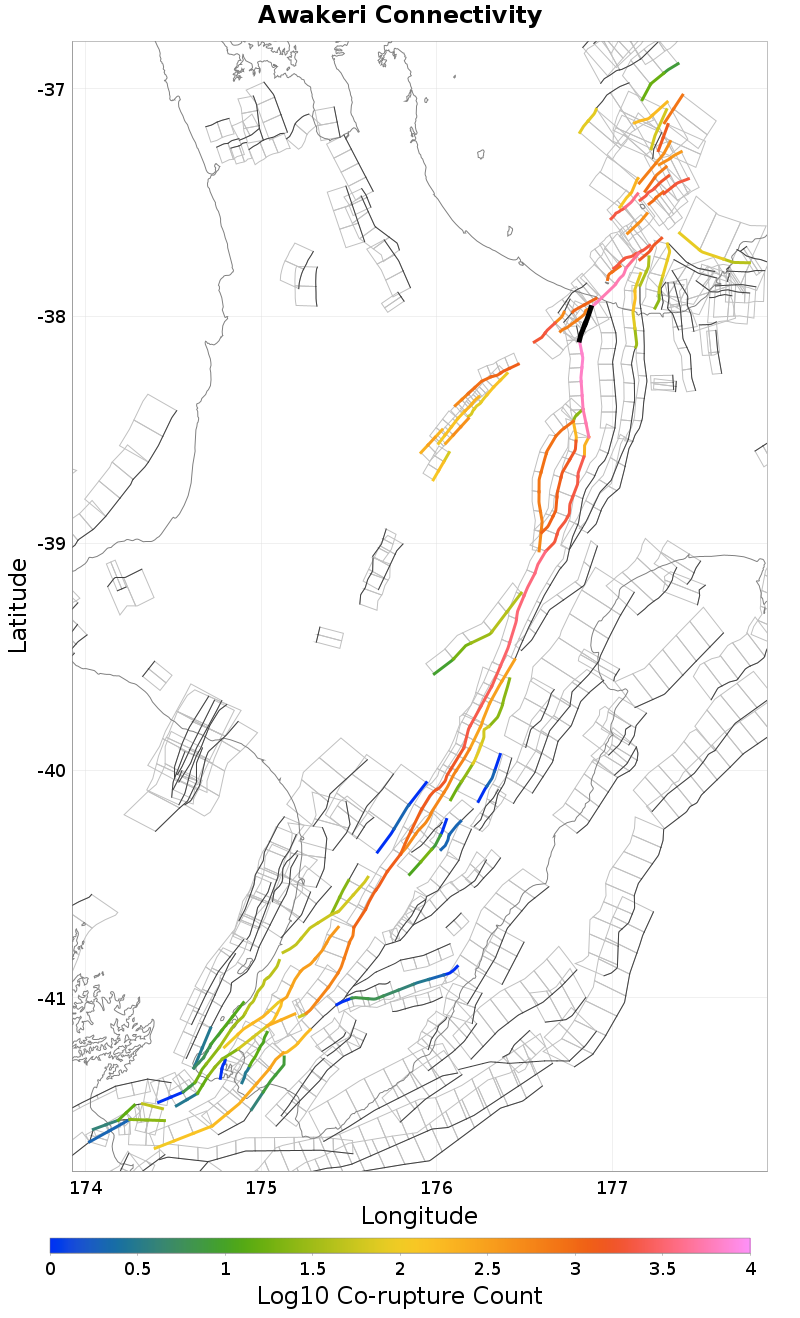

Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Edgecumbe 1987, 0 km away
Edgecumbe Coastal, 0 km away
Braemar, 0.1 km away
Otakiri, 0.1 km away
Waiohau: North, 0.13 km away
Matata, 0.16 km away
White Island 1, 7.32 km away
Whakatane: North, 7.56 km away
Rangitaiki 1, 16.13 km away

Edgecumbe 1987, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?	true
Directly Connected?	false
Co-rupture Count	658
Co-rupture Rate	0.0

Edgecumbe Coastal, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?	true
Directly Connected?	true
Co-rupture Count	6,360
Co-rupture Rate	5.684596E-5

Braemar, 0.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?	true
Directly Connected?	true
Co-rupture Count	2,130
Co-rupture Rate	2.5723471E-5

Otakiri, 0.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?	true
Directly Connected?	true
Co-rupture Count	1,141
Co-rupture Rate	0.0

Waiohau: North, 0.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?	true
Directly Connected?	true
Co-rupture Count	6,930
Co-rupture Rate	2.9053672E-7

Matata, 0.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

White Island 1, 7.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?	true
Directly Connected?	false
Co-rupture Count	5,563
Co-rupture Rate	2.5723471E-5

Whakatane: North, 7.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Rangitaiki 1, 16.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?	true
Directly Connected?	false
Co-rupture Count	874
Co-rupture Rate	3.112249E-5
