Awatere: Northeast 1 Details

PropertyValue
Rupture Count34,362
Ruptures Above Sect Min Mag34,358
Ruptures w/ Nonzero Rates122
Magnitude Range[6.89, 8.62]
Length Range[22, 1,204] km
Total Rate0.0015147355 /yr
Multi-Fault Rate0.0015147355 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults151

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

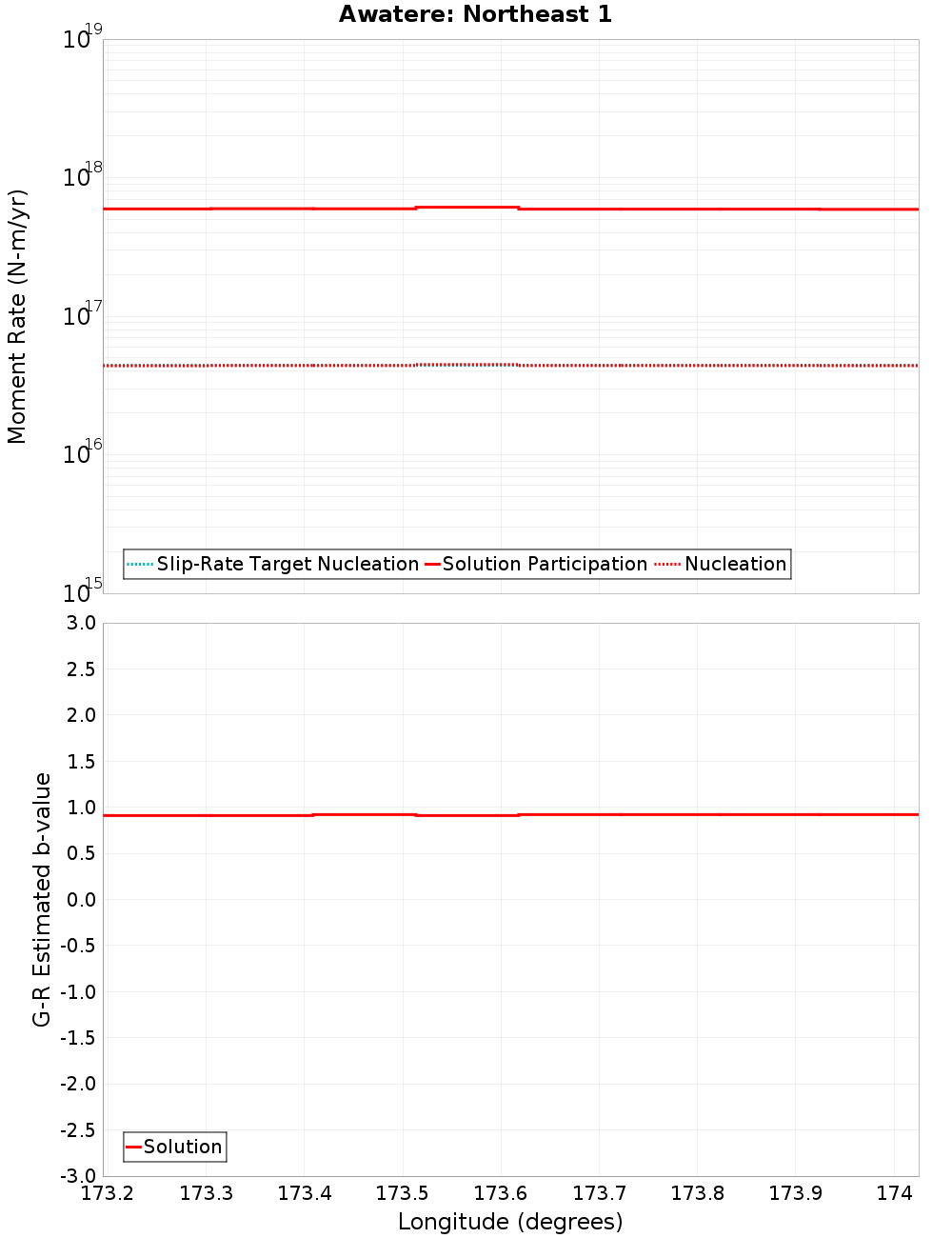

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Barefell, 0 km awayWairau, 11.05 km away
Vernon 1, 0 km awayJordan, 12.64 km away
Awatere: Northeast 2, 0 km awayFowlers, 14.06 km away
Awatere: Southwest, 0.1 km awayVernon 3, 16.03 km away
Vernon 2, 4.62 km awayCloudy 1, 17.19 km away
Elliott, 9.09 km awayFidget, 17.38 km away
Clarence: Northeast, 9.18 km awayLondon Hill, 19.17 km away
Clarence: Central, 10.17 km awayNeedles East 2, 19.71 km away

Barefell, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?true
Directly Connected?true
Co-rupture Count3,894
Co-rupture Rate1.0760712E-4

Vernon 1, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?true
Directly Connected?false
Co-rupture Count43
Co-rupture Rate0.0

Awatere: Northeast 2, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?true
Directly Connected?true
Co-rupture Count19,614
Co-rupture Rate1.4169479E-4

Awatere: Southwest, 0.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?true
Directly Connected?true
Co-rupture Count19,836
Co-rupture Rate7.5756246E-4

Vernon 2, 4.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?true
Directly Connected?true
Co-rupture Count11,006
Co-rupture Rate0.0010824142

Elliott, 9.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?true
Directly Connected?false
Co-rupture Count241
Co-rupture Rate1.6820997E-5

Clarence: Northeast, 9.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?true
Directly Connected?true
Co-rupture Count291
Co-rupture Rate2.3255972E-4

Clarence: Central, 10.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Wairau, 11.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?true
Directly Connected?false
Co-rupture Count745
Co-rupture Rate0.0

Jordan, 12.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?true
Directly Connected?true
Co-rupture Count2,313
Co-rupture Rate5.3813663E-5

Fowlers, 14.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?true
Directly Connected?false
Co-rupture Count3,215
Co-rupture Rate6.6888715E-5

Vernon 3, 16.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?true
Directly Connected?false
Co-rupture Count52
Co-rupture Rate1.4169479E-4

Cloudy 1, 17.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?true
Directly Connected?false
Co-rupture Count14,968
Co-rupture Rate3.348011E-4

Fidget, 17.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

London Hill, 19.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Needles East 2, 19.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
