Barefell Details

PropertyValue
Rupture Count3,917
Ruptures Above Sect Min Mag3,917
Ruptures w/ Nonzero Rates58
Magnitude Range[6.91, 8.57]
Length Range[18, 1,026] km
Total Rate1.0760712E-4 /yr
Multi-Fault Rate1.0760712E-4 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults109

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

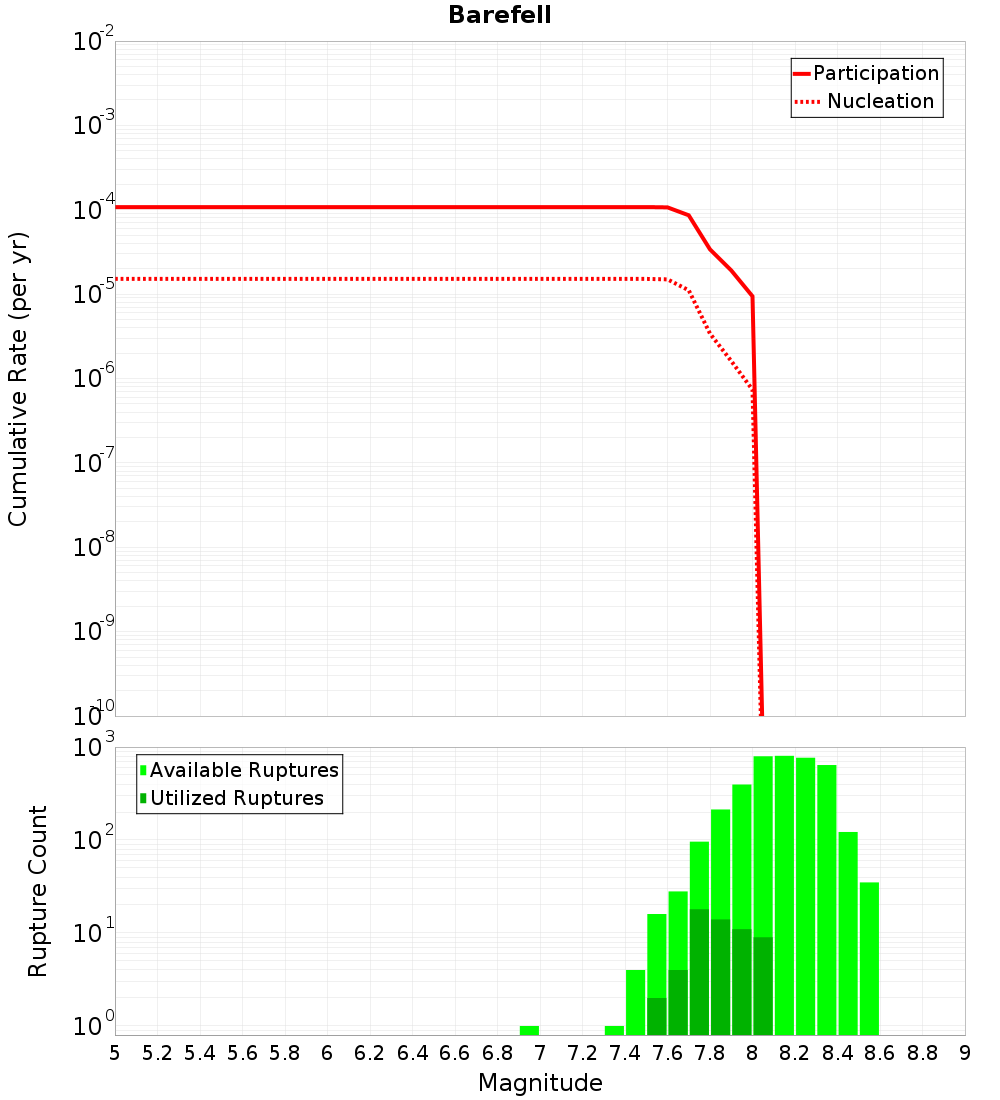

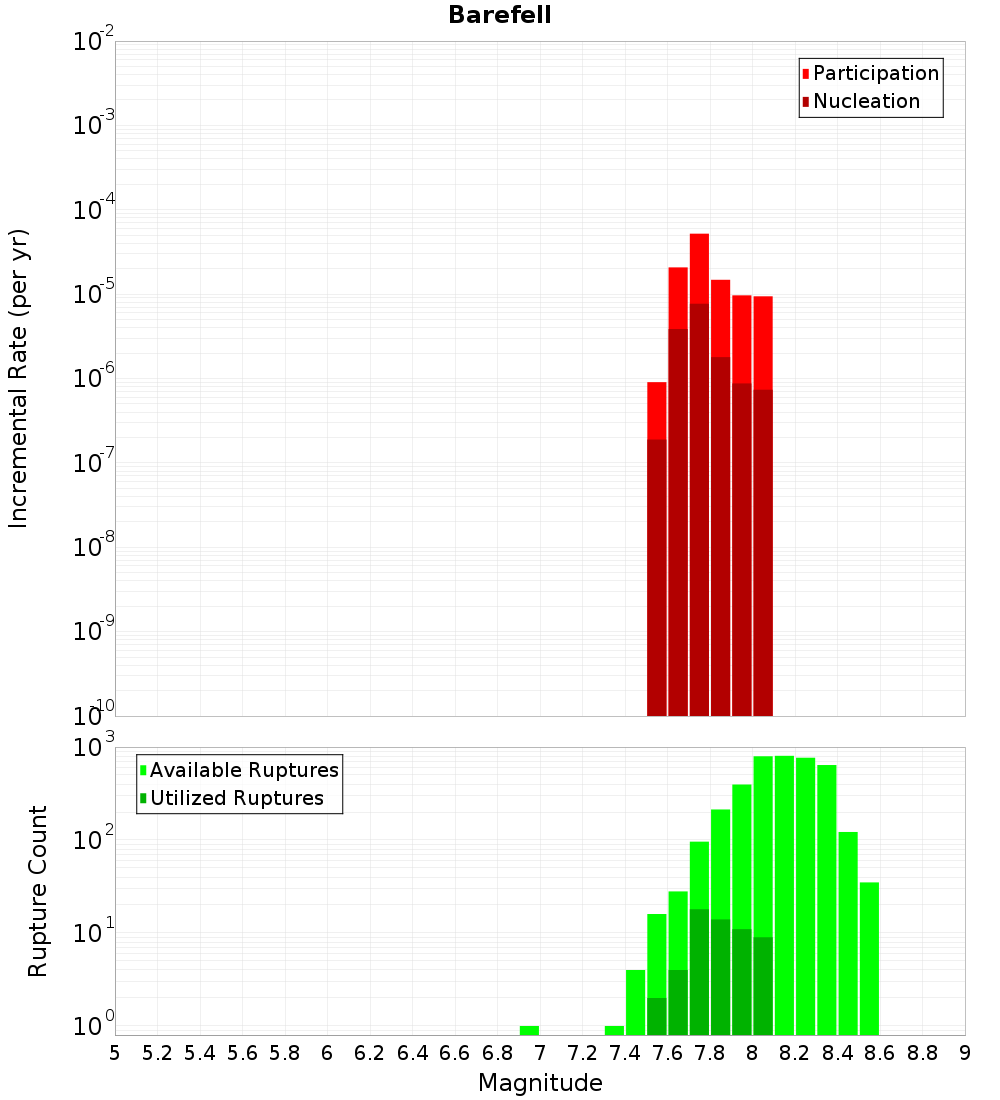

Incremental PlotCumulative Plot

Along-Strike Values

(top)

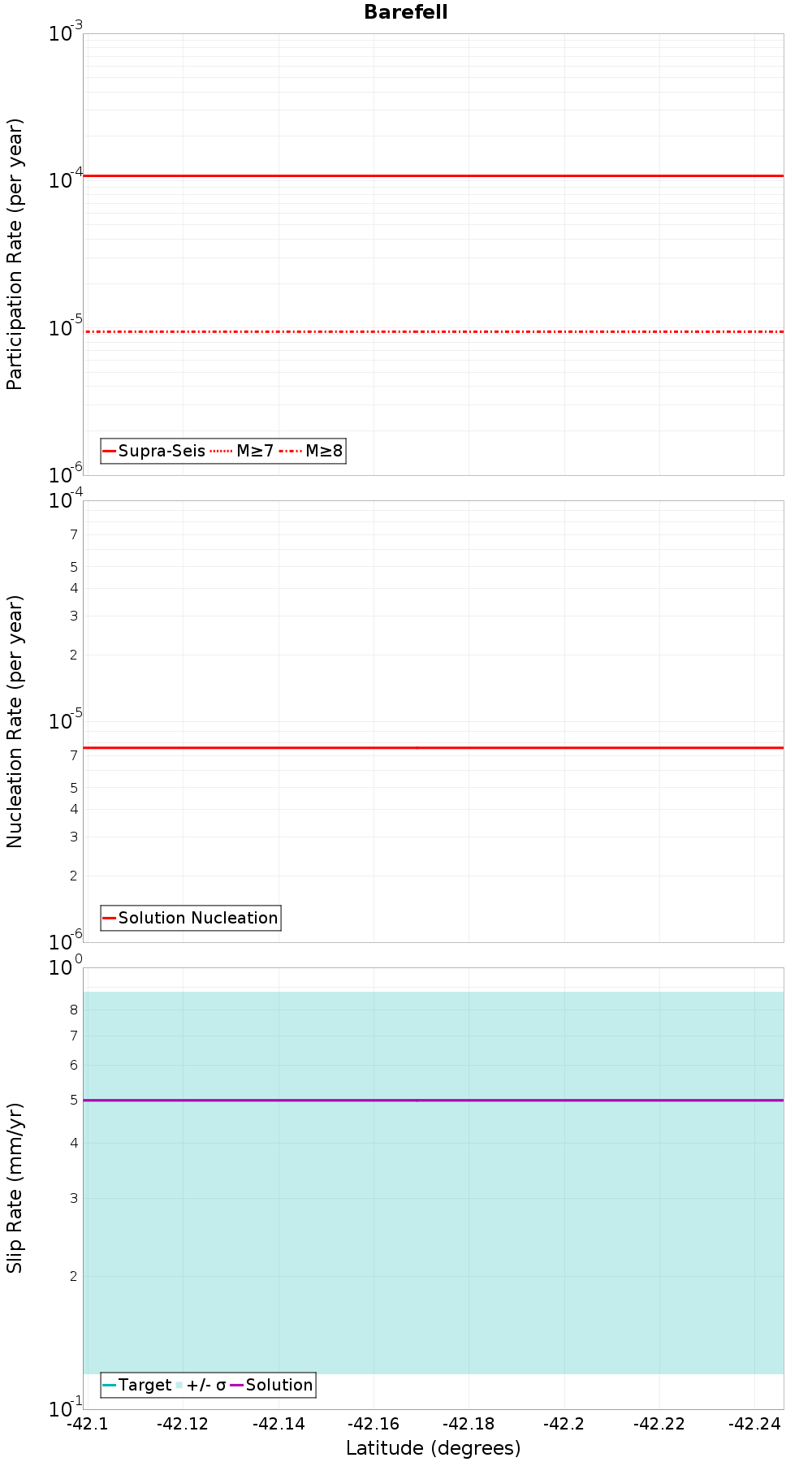

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Awatere: Northeast 1, 0 km away
Clarence: Central, 0.11 km away
Awatere: Southwest, 0.17 km away
Fowlers, 0.26 km away
Elliott, 8.47 km away
Clarence: Northeast, 16.85 km away

Awatere: Northeast 1, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?true
Directly Connected?true
Co-rupture Count3,894
Co-rupture Rate1.0760712E-4

Clarence: Central, 0.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Awatere: Southwest, 0.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?true
Directly Connected?true
Co-rupture Count8
Co-rupture Rate0.0

Fowlers, 0.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?true
Directly Connected?true
Co-rupture Count3,216
Co-rupture Rate6.4573615E-5

Elliott, 8.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Clarence: Northeast, 16.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
