Caswell High 1 Details

Property	Value
Rupture Count	7,290
Ruptures Above Sect Min Mag	7,273
Ruptures w/ Nonzero Rates	97
Magnitude Range	[6.61, 8.55]
Length Range	[15, 998] km
Total Rate	4.752319E-4 /yr
Multi-Fault Rate	2.510759E-4 /yr (52.83%)
Directly-Connected Faults	4
All Co-Rupturing Faults	65

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

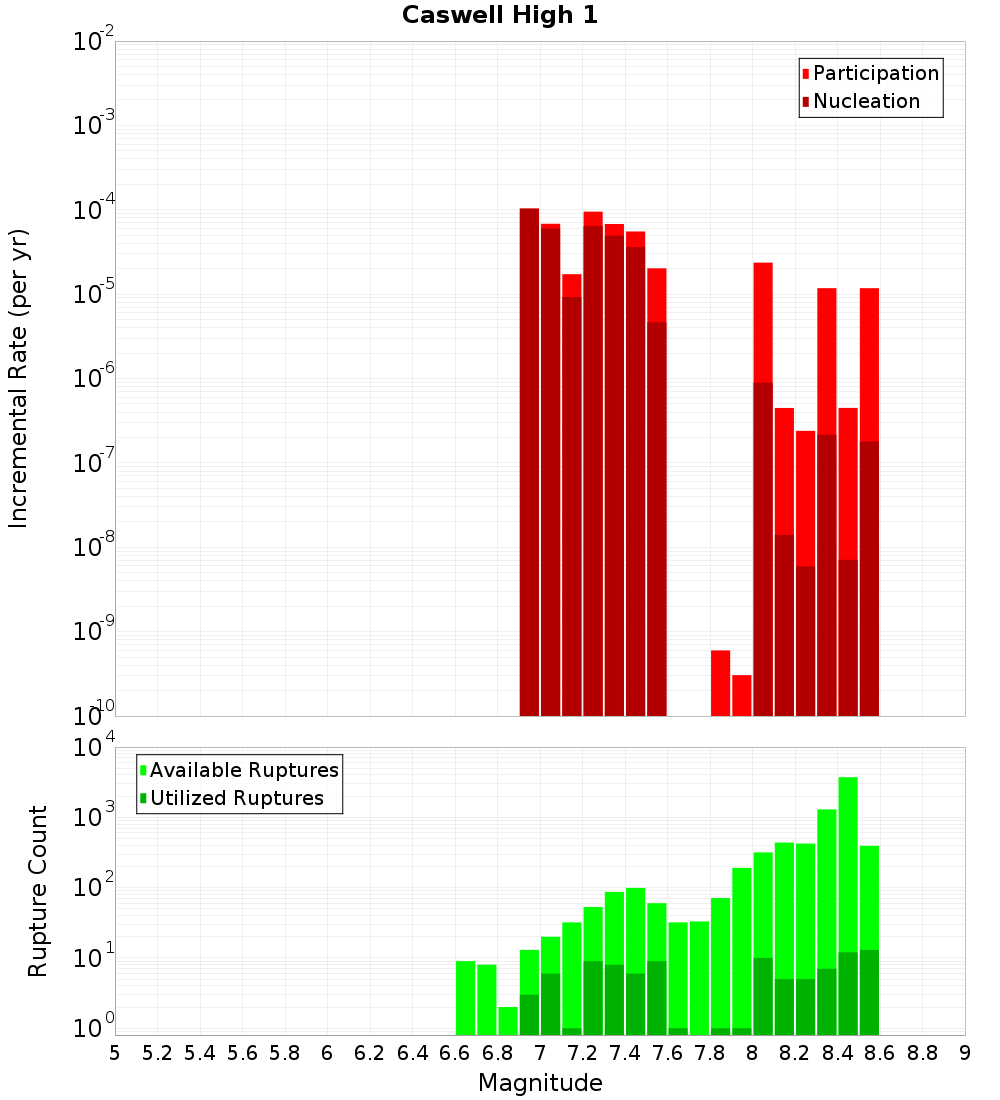

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Caswell High 4, 2.01 km away
Caswell High 3, 4.37 km away
Caswell 211, 4.71 km away
Alpine: Resolution - Five Fingers, 11.73 km away
South Wedge 5, 13.13 km away
Caswell High 5, 16.05 km away
South Wedge 3-6-10, 17.48 km away

Caswell High 4, 2.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?	true
Directly Connected?	true
Co-rupture Count	455
Co-rupture Rate	1.269839E-5

Caswell High 3, 4.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?	true
Directly Connected?	true
Co-rupture Count	63
Co-rupture Rate	1.4582102E-4

Caswell 211, 4.71 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?	true
Directly Connected?	true
Co-rupture Count	31
Co-rupture Rate	5.085188E-5

Alpine: Resolution - Five Fingers, 11.73 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?	true
Directly Connected?	true
Co-rupture Count	6,929
Co-rupture Rate	8.659465E-5

South Wedge 5, 13.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Caswell High 5, 16.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?	true
Directly Connected?	false
Co-rupture Count	190
Co-rupture Rate	7.1309E-5

South Wedge 3-6-10, 17.48 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?	true
Directly Connected?	false
Co-rupture Count	2
Co-rupture Rate	7.3075803E-6
