Mokonui Northeast Details

Property	Value
Rupture Count	1,438
Ruptures Above Sect Min Mag	1,431
Ruptures w/ Nonzero Rates	96
Magnitude Range	[6.52, 8.61]
Length Range	[13, 1,087] km
Total Rate	1.1559046E-4 /yr
Multi-Fault Rate	1.1559046E-4 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	79

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

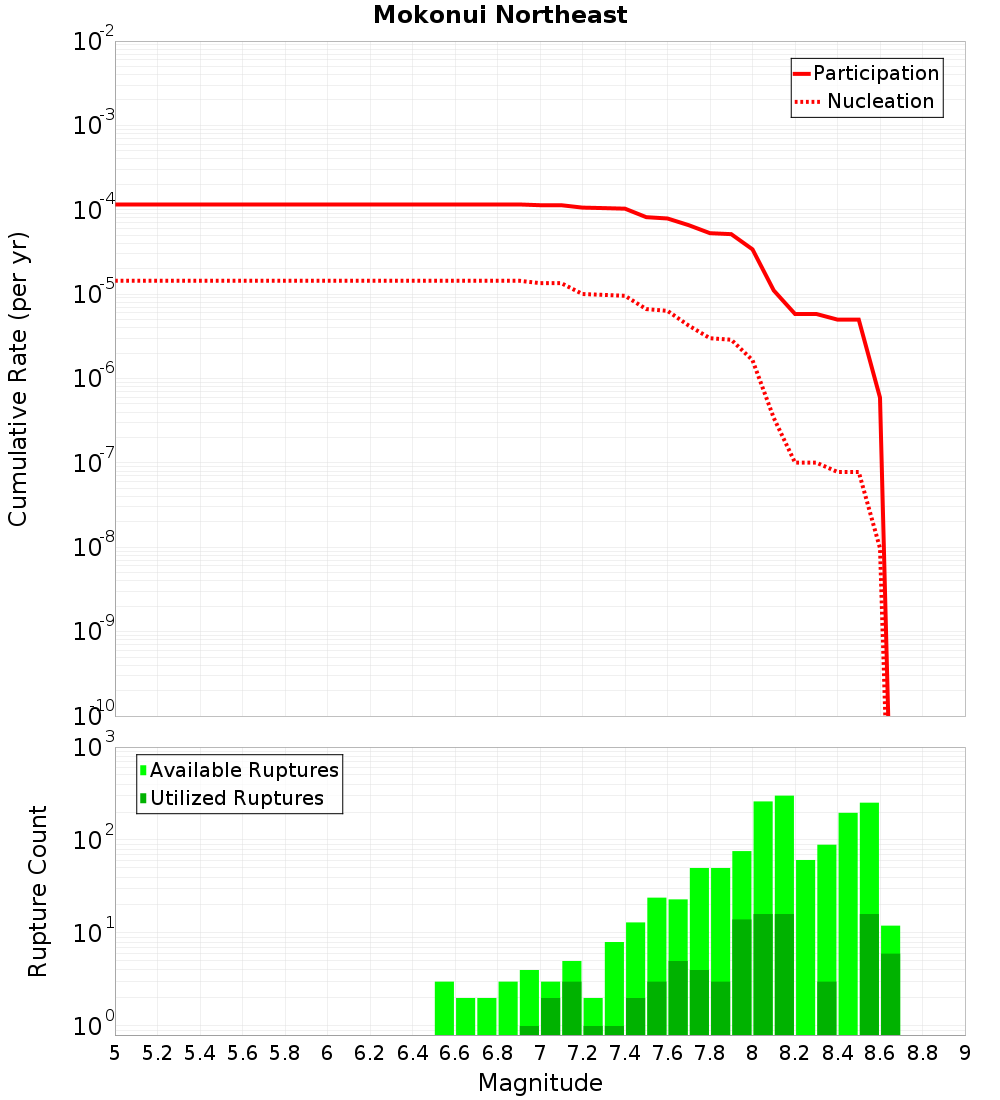

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

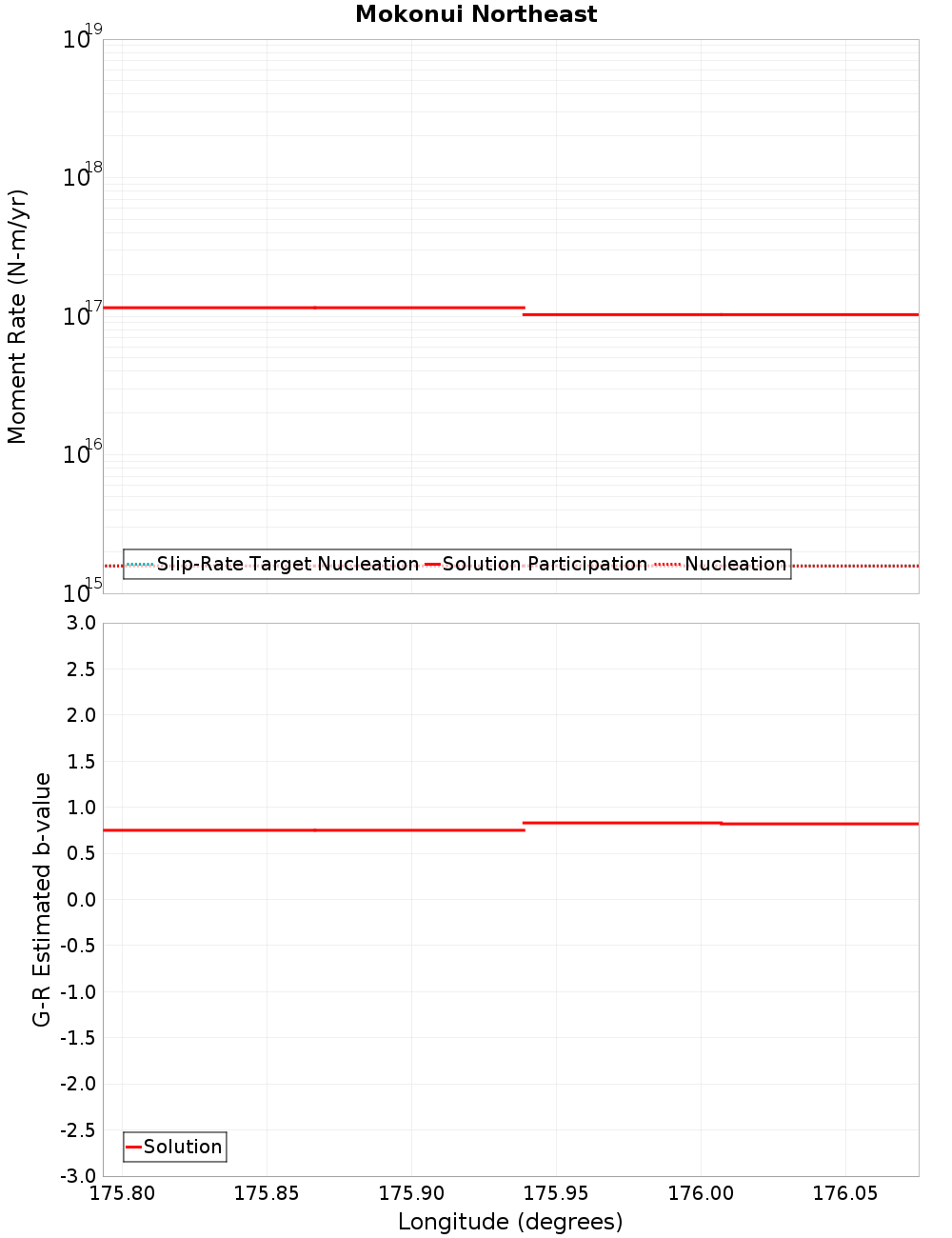

Moment-Rates and b-Values

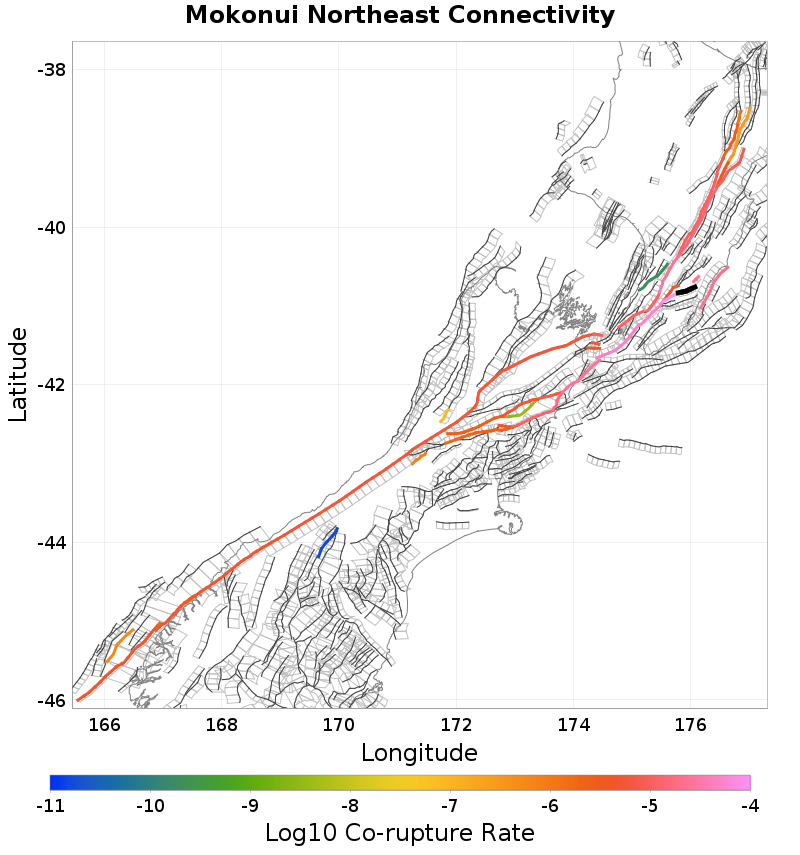

Connectivity

Nearby Sections

Fault Section
Mokonui Southwest, 0 km away
Mataikona, 3.45 km away
Waitawhiti, 7.82 km away
Dreyers Rock, 9.25 km away
Alfredton South, 9.5 km away
Carterton, 9.67 km away
Pa Valley, 9.8 km away
Wairarapa: 3, 10.14 km away
Masterton, 11.3 km away
Kaumingi, 11.8 km away
Mataikona East, 12.95 km away
Riversdale North, 13.07 km away
Saunders Road, 15.66 km away
Alfredton North, 15.66 km away

Mokonui Southwest, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?	true
Directly Connected?	true
Co-rupture Count	1,292
Co-rupture Rate	8.973568E-5

Mataikona, 3.45 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?	true
Directly Connected?	true
Co-rupture Count	131
Co-rupture Rate	2.136826E-5

Waitawhiti, 7.82 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?	true
Directly Connected?	true
Co-rupture Count	37
Co-rupture Rate	2.1711945E-5

Dreyers Rock, 9.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?	true
Directly Connected?	true
Co-rupture Count	162
Co-rupture Rate	4.768292E-6

Alfredton South, 9.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?	true
Directly Connected?	false
Co-rupture Count	3
Co-rupture Rate	0.0

Carterton, 9.67 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Pa Valley, 9.8 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?	true
Directly Connected?	false
Co-rupture Count	19
Co-rupture Rate	0.0

Wairarapa: 3, 10.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?	true
Directly Connected?	false
Co-rupture Count	1,161
Co-rupture Rate	5.008007E-5

Masterton, 11.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Kaumingi, 11.8 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Mataikona East, 12.95 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Riversdale North, 13.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Saunders Road, 15.66 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Alfredton North, 15.66 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?	true
Directly Connected?	false
Co-rupture Count	1
Co-rupture Rate	0.0
