Okaia 5 Details
| Property | Value |
|---|---|
| Rupture Count | 6 |
| Ruptures Above Sect Min Mag | 6 |
| Ruptures w/ Nonzero Rates | 6 |
| Magnitude Range | [7.07, 7.65] |
| Length Range | [23, 83] km |
| Total Rate | 8.577401E-6 /yr |
| Multi-Fault Rate | 8.576972E-6 /yr (99.99%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 4 |
Table Of Contents

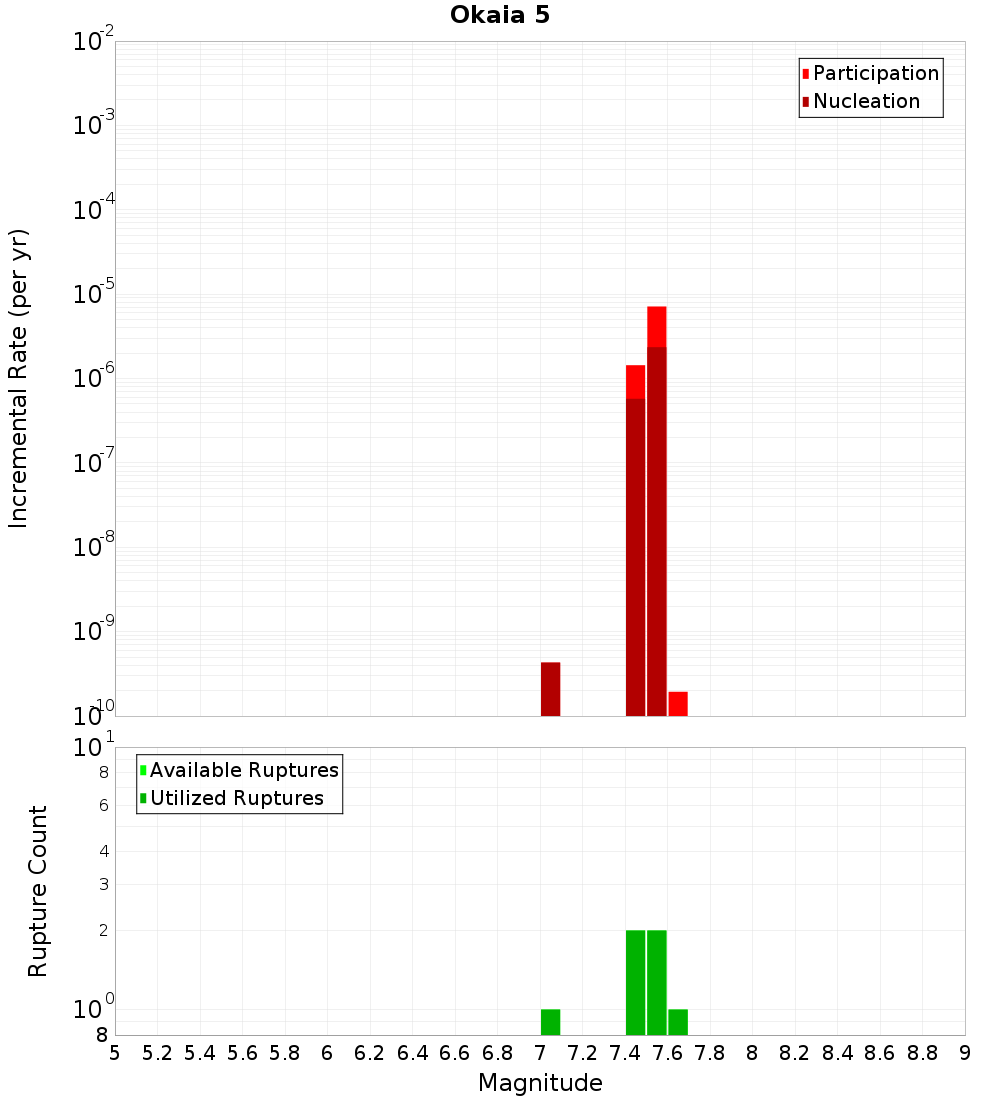

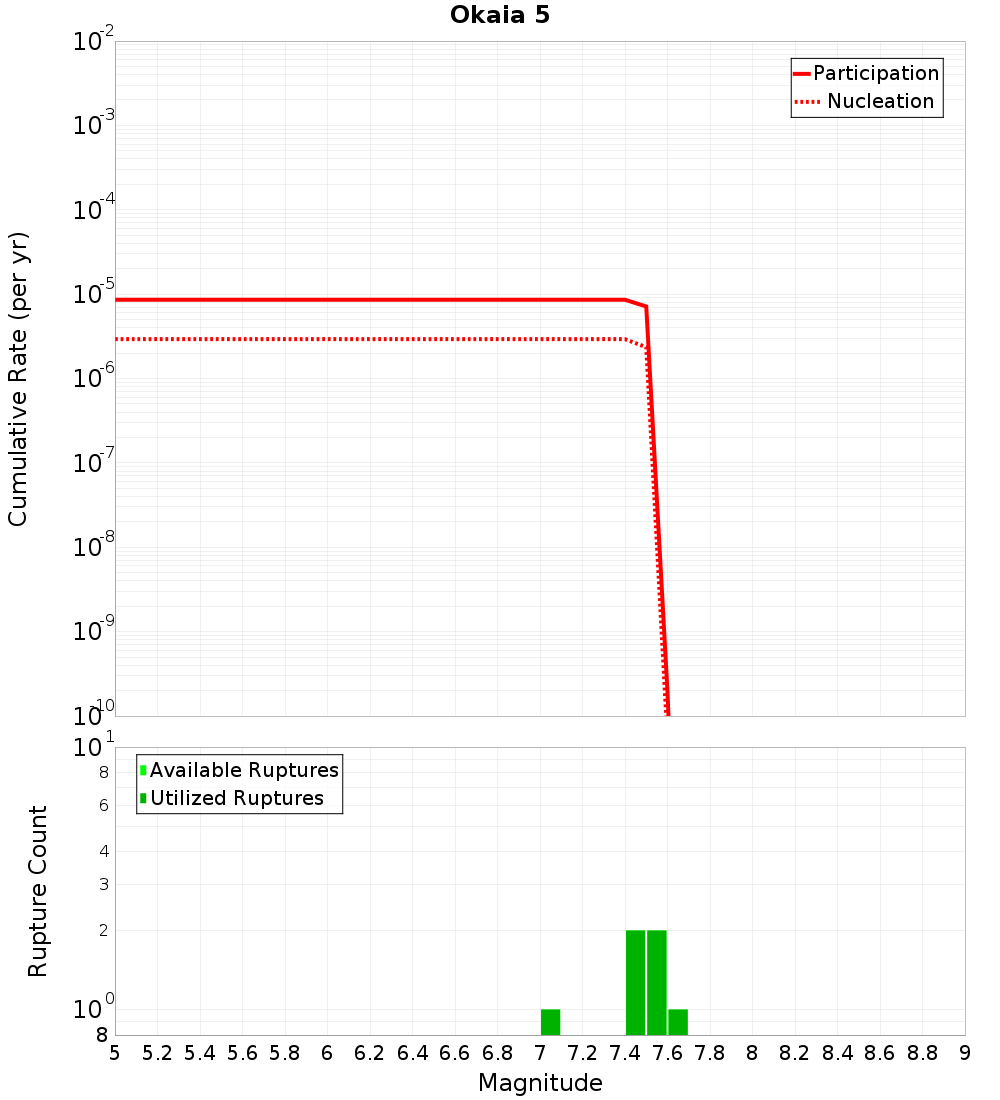

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

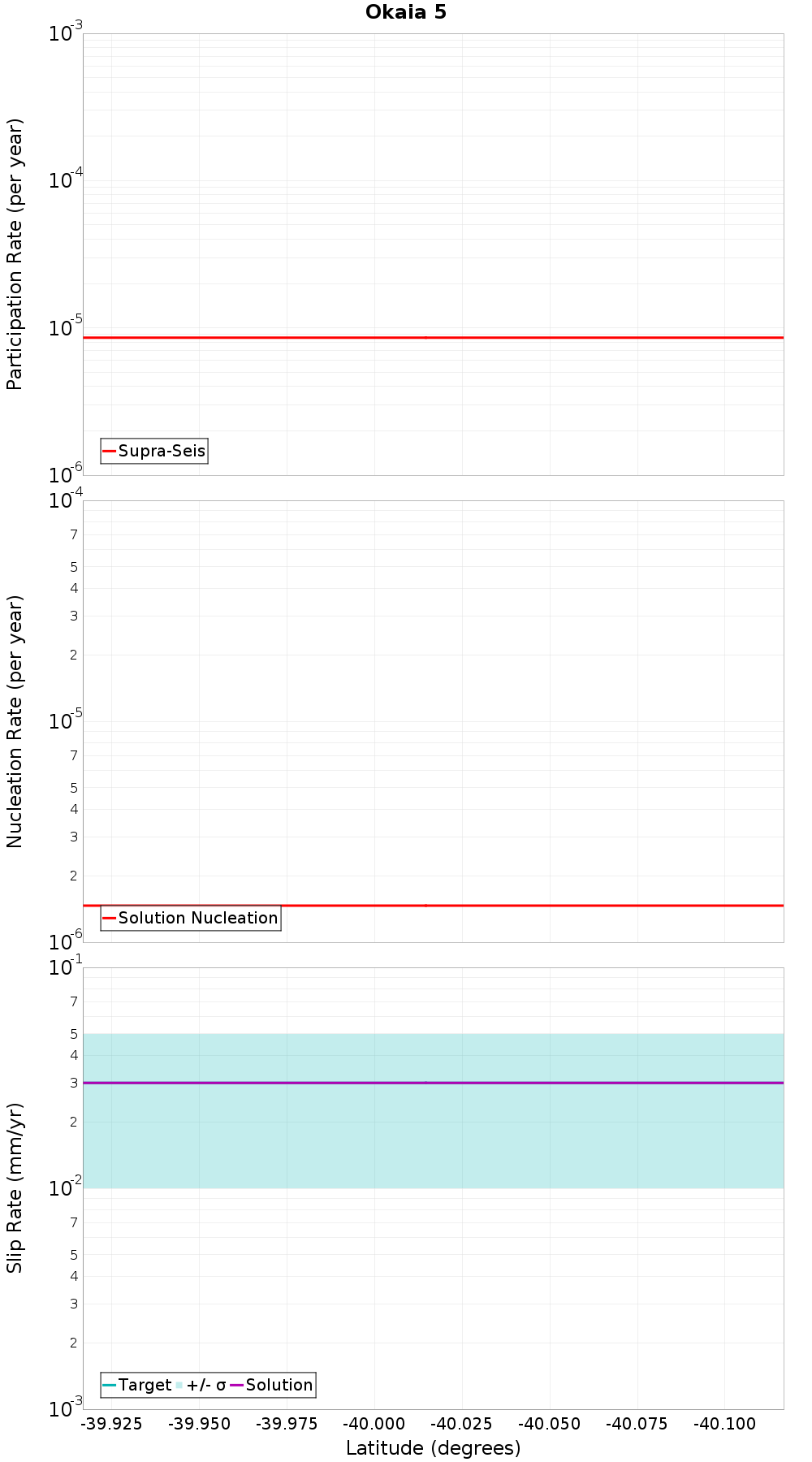

Along-Strike Values
Moment-Rates and b-Values

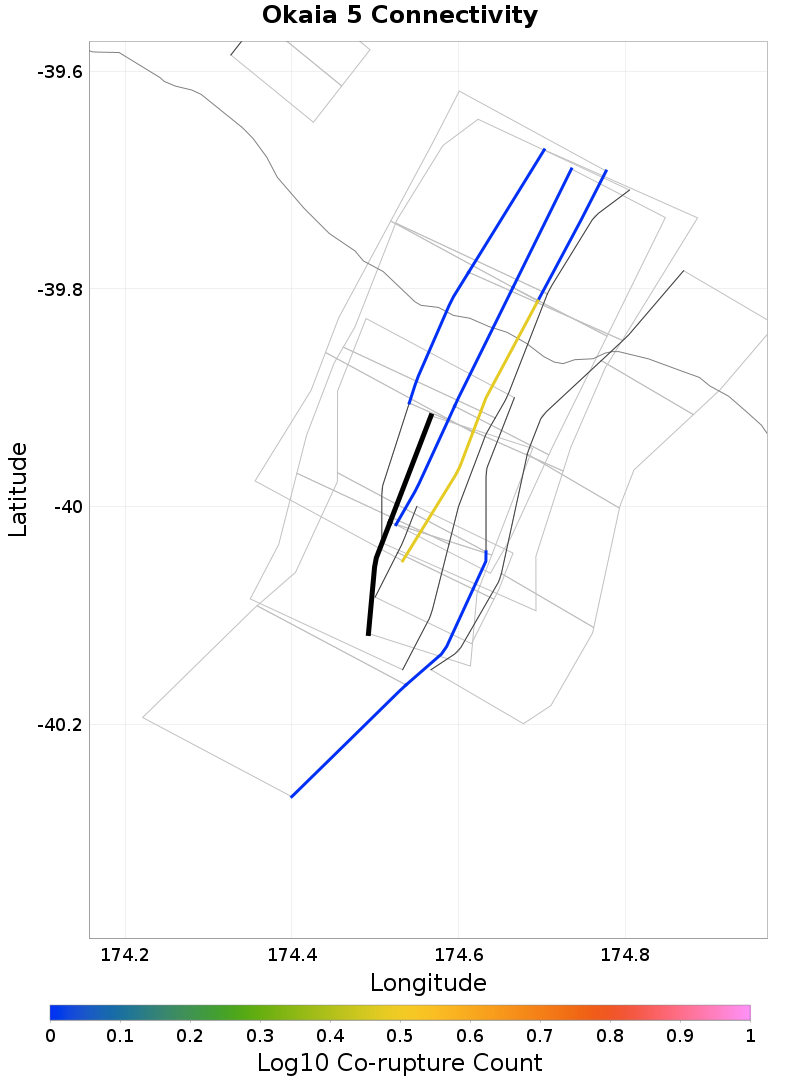

Connectivity
 |  |
|---|
Nearby Sections
Okaia 3, 0.08 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Waverley - Okaia 1, 0.09 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1 |
| Co-rupture Rate | 1.9380512E-10 |
Waitotara 8 & 9, 0.14 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1 |
| Co-rupture Rate | 1.3617599E-6 |
Waitotara 10 & 11, 0.23 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Ridge Road - Okaia 2, 0.34 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 3 |
| Co-rupture Rate | 6.5490703E-6 |
Moumahaki - Okaia 4, 0.59 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1 |
| Co-rupture Rate | 6.661412E-7 |
Nukumuru - Waitotara 1-6, 6.97 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
