Otara East 1 Details

Property	Value
Rupture Count	9,731
Ruptures Above Sect Min Mag	9,731
Ruptures w/ Nonzero Rates	63
Magnitude Range	[6.84, 8.34]
Length Range	[14, 608] km
Total Rate	9.799885E-4 /yr
Multi-Fault Rate	9.799885E-4 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	75

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

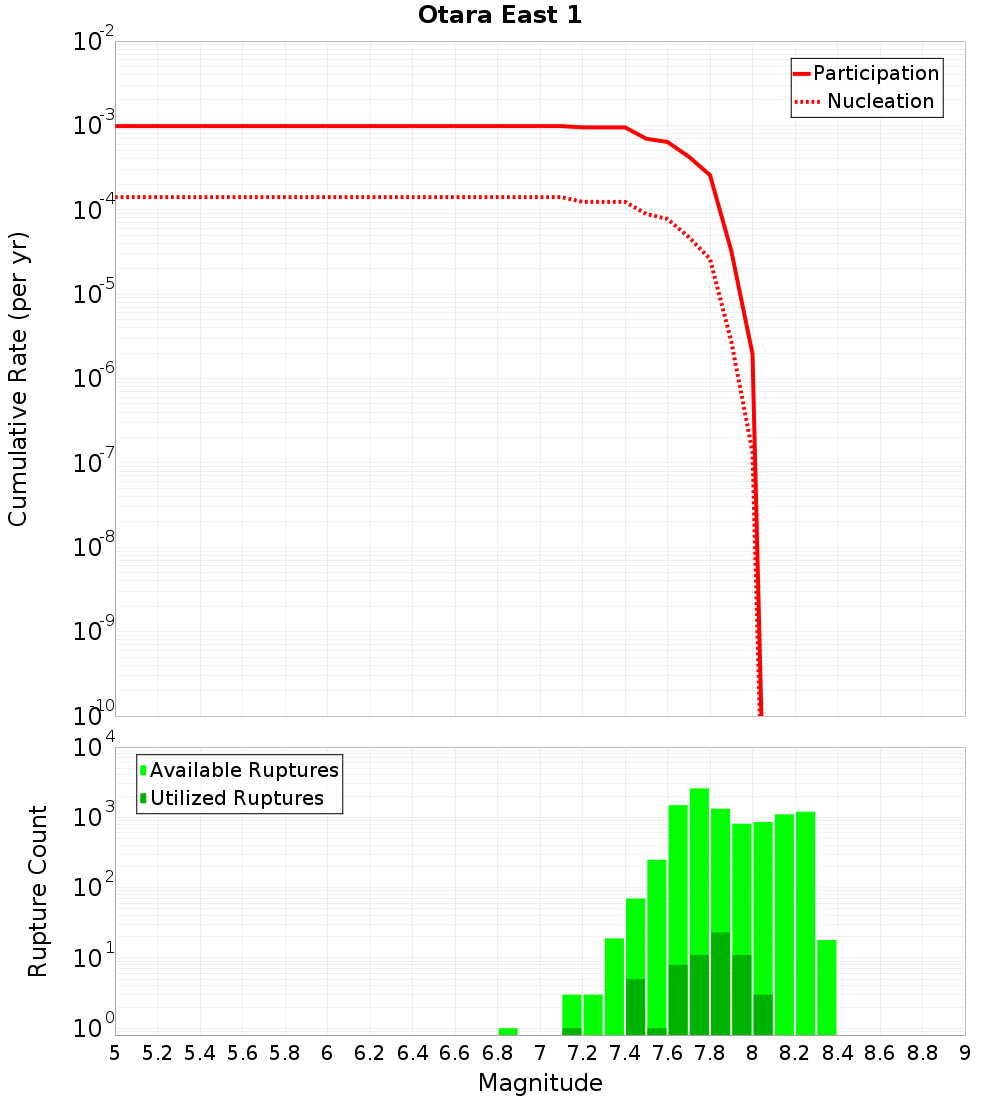

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

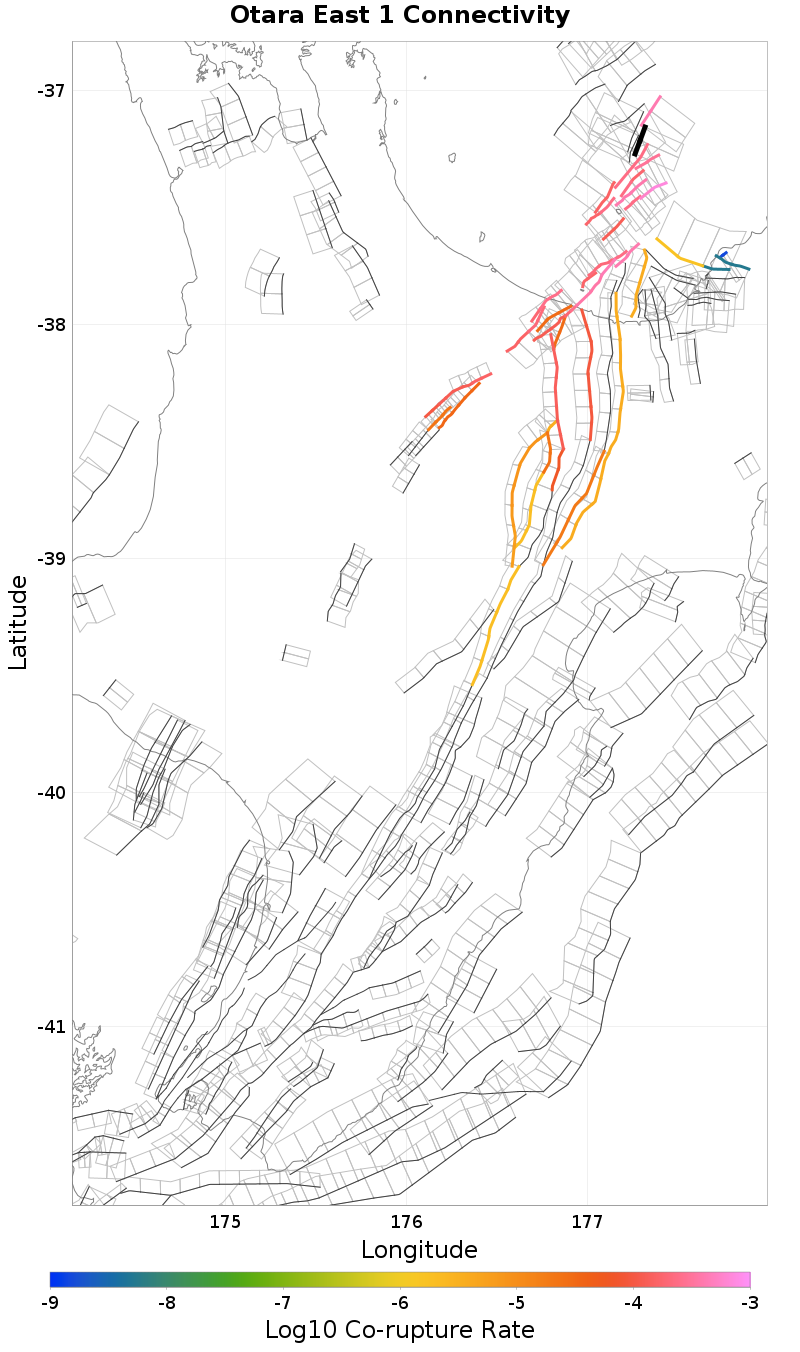

Connectivity

Nearby Sections

Fault Section
Tuatoru 2, 0.2 km away
Volkner 4, 0.22 km away
Otara East 2, 1.27 km away
Otara West 1, 1.57 km away
Otara West 2, 3.71 km away
Te Arawa 3, 5.22 km away
Otara West 3, 6.01 km away
Te Arawa 2, 7.74 km away
Te Arawa 1, 11.84 km away
Hariki, 14.16 km away
Volkner 3, 17.03 km away
Tauranga Trough East 2, 17.78 km away
Tuatoru 1, 19.26 km away

Tuatoru 2, 0.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?	true
Directly Connected?	true
Co-rupture Count	8,390
Co-rupture Rate	7.0244464E-4

Volkner 4, 0.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?	true
Directly Connected?	true
Co-rupture Count	874
Co-rupture Rate	2.3154334E-4

Otara East 2, 1.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?	true
Directly Connected?	true
Co-rupture Count	4,253
Co-rupture Rate	4.014618E-4

Otara West 1, 1.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Otara West 2, 3.71 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Te Arawa 3, 5.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?	true
Directly Connected?	true
Co-rupture Count	739
Co-rupture Rate	2.992347E-4

Otara West 3, 6.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Te Arawa 2, 7.74 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?	true
Directly Connected?	false
Co-rupture Count	2,697
Co-rupture Rate	2.3286486E-4

Te Arawa 1, 11.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?	true
Directly Connected?	false
Co-rupture Count	4,075
Co-rupture Rate	3.8879862E-4

Hariki, 14.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?	true
Directly Connected?	false
Co-rupture Count	12
Co-rupture Rate	1.6485193E-6

Volkner 3, 17.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?	true
Directly Connected?	false
Co-rupture Count	4
Co-rupture Rate	1.5500285E-4

Tauranga Trough East 2, 17.78 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Tuatoru 1, 19.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?	true
Directly Connected?	false
Co-rupture Count	2,458
Co-rupture Rate	2.3428004E-4
