Paparoa West Details

PropertyValue
Rupture Count171
Ruptures Above Sect Min Mag165
Ruptures w/ Nonzero Rates59
Magnitude Range[6.76, 7.90]
Length Range[18, 218] km
Total Rate6.2323123E-4 /yr
Multi-Fault Rate5.8448926E-4 /yr (93.78%)
Directly-Connected Faults5
All Co-Rupturing Faults9

Table Of Contents

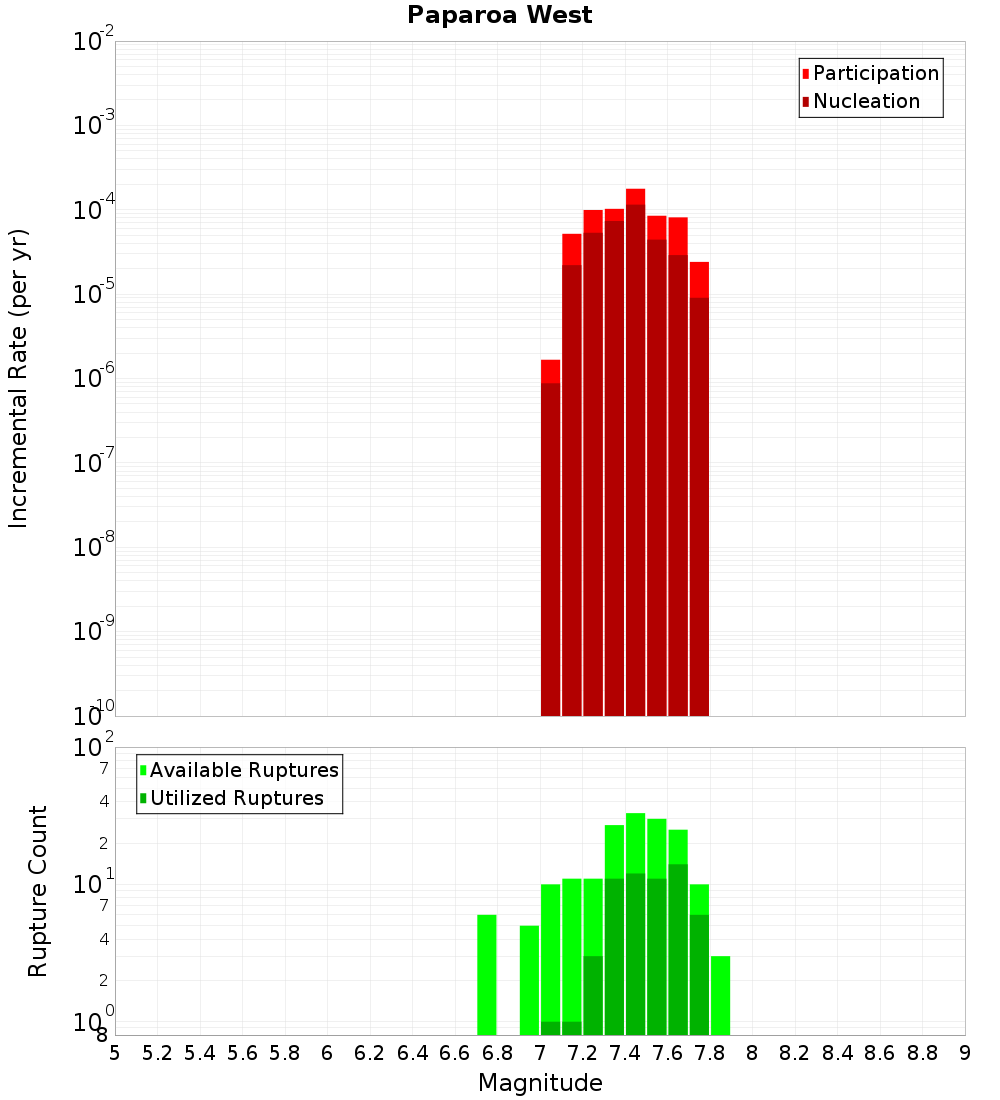

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

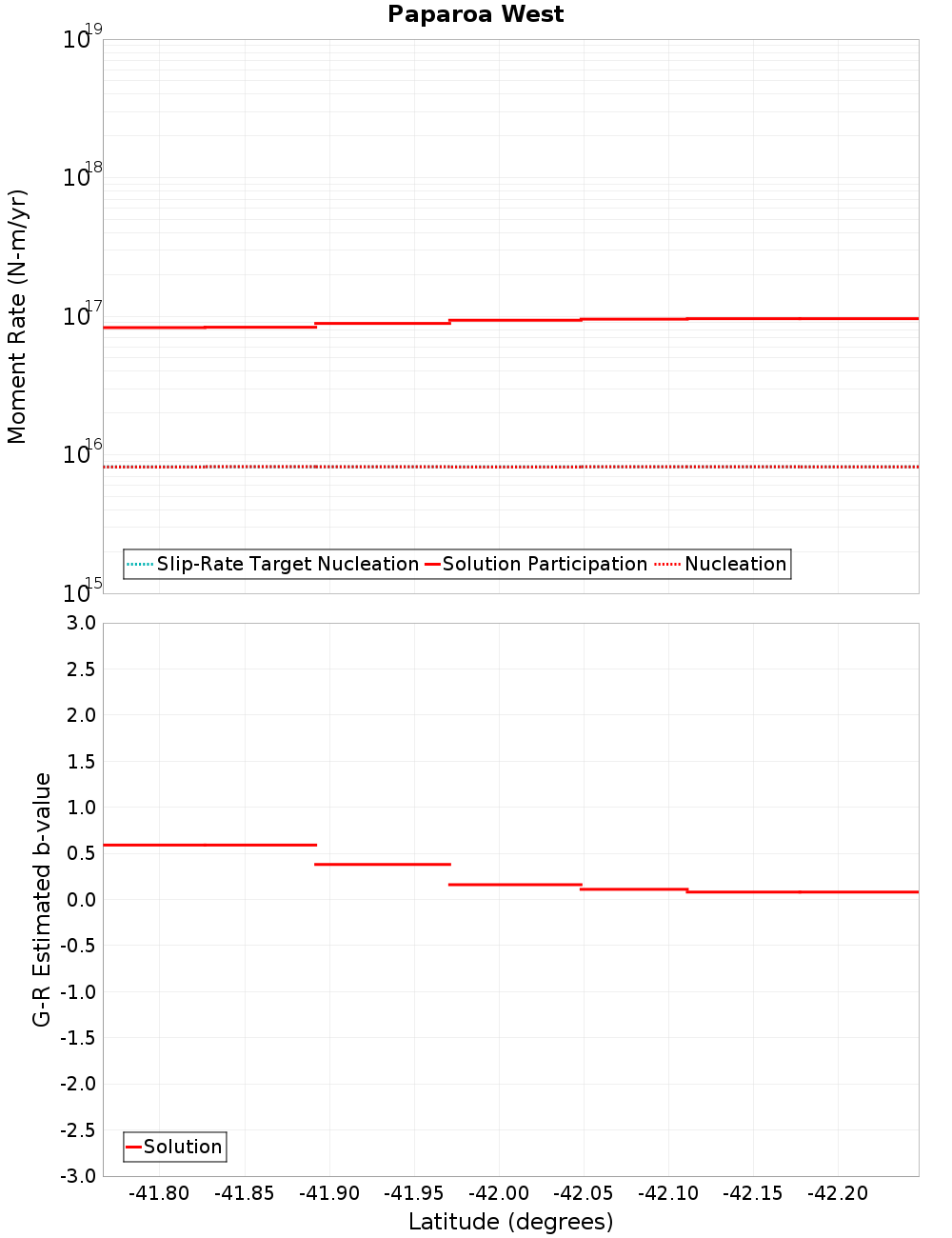

Moment-Rates and b-Values

(top)

Along-strike plot

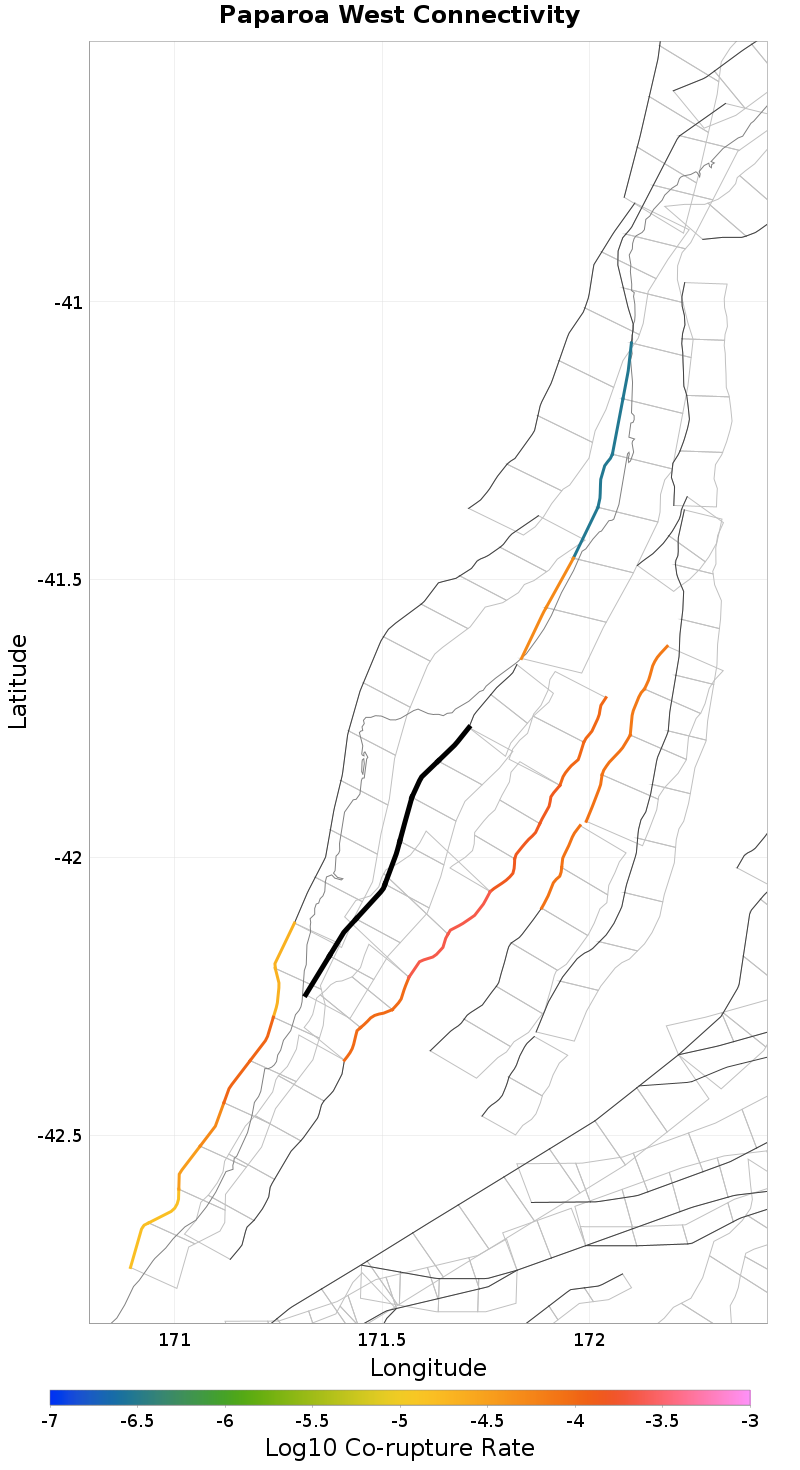

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Paparoa West: North, 0 km away
Maimai, 0.14 km away
Maimai: South, 0.22 km away
Inangahua, 1.12 km away
Maimai: North, 1.82 km away
Cape Foulwind 1, 4.61 km away
Maimai: Brunner Anticline, 7.81 km away
Cape Foulwind 2, 8.12 km away
Kongahau, 17.34 km away

Paparoa West: North, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Maimai, 0.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?true
Directly Connected?true
Co-rupture Count34
Co-rupture Rate2.2935317E-4

Maimai: South, 0.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?true
Directly Connected?true
Co-rupture Count13
Co-rupture Rate9.721413E-5

Inangahua, 1.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?true
Directly Connected?true
Co-rupture Count56
Co-rupture Rate1.0297399E-4

Maimai: North, 1.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?true
Directly Connected?true
Co-rupture Count10
Co-rupture Rate1.4164635E-4

Cape Foulwind 1, 4.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?true
Directly Connected?true
Co-rupture Count69
Co-rupture Rate1.286599E-4

Maimai: Brunner Anticline, 7.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Cape Foulwind 2, 8.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kongahau, 17.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?true
Directly Connected?false
Co-rupture Count49
Co-rupture Rate5.1672538E-5
