Pegasus Bay Details

PropertyValue
Rupture Count181
Ruptures Above Sect Min Mag174
Ruptures w/ Nonzero Rates42
Magnitude Range[6.60, 7.68]
Length Range[15, 159] km
Total Rate8.779138E-5 /yr
Multi-Fault Rate7.693109E-5 /yr (87.63%)
Directly-Connected Faults3
All Co-Rupturing Faults9

Table Of Contents

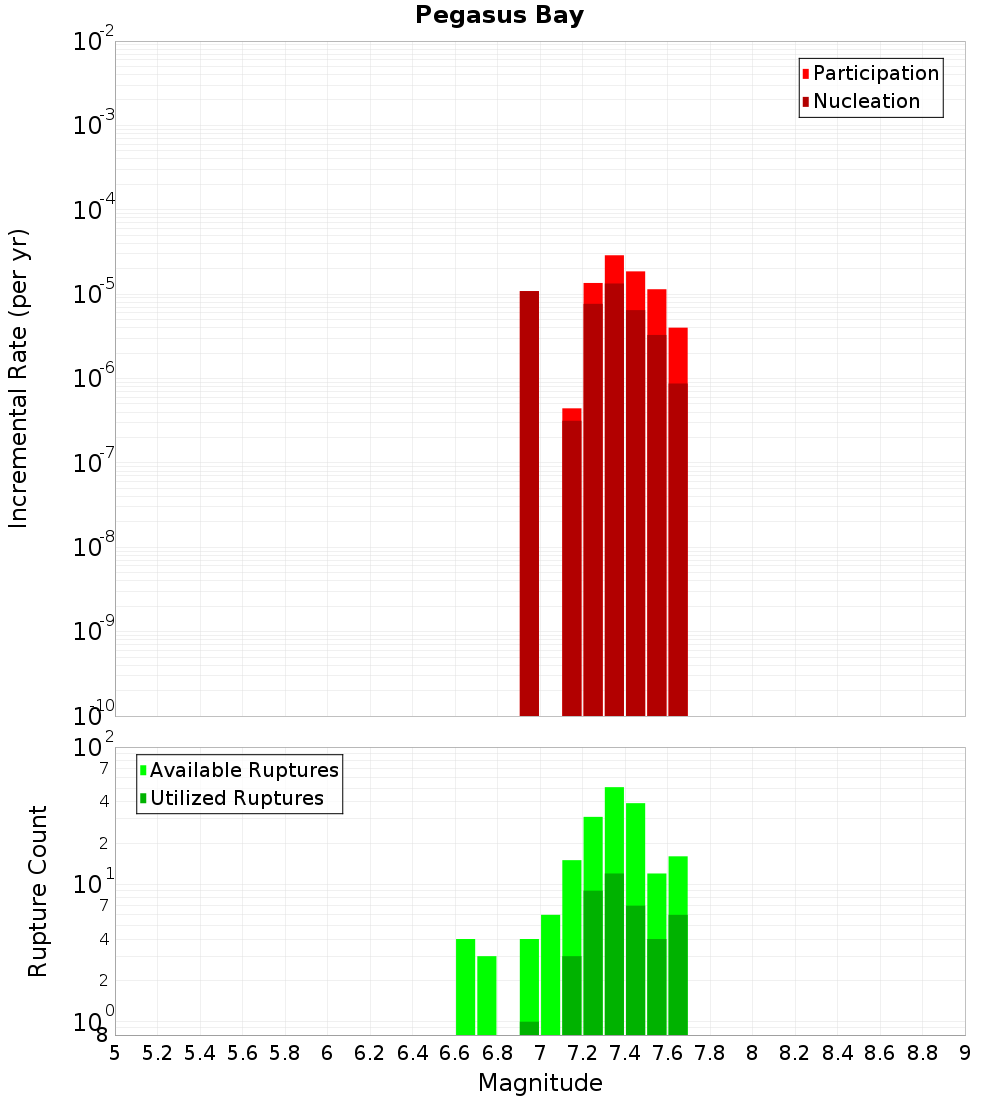

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

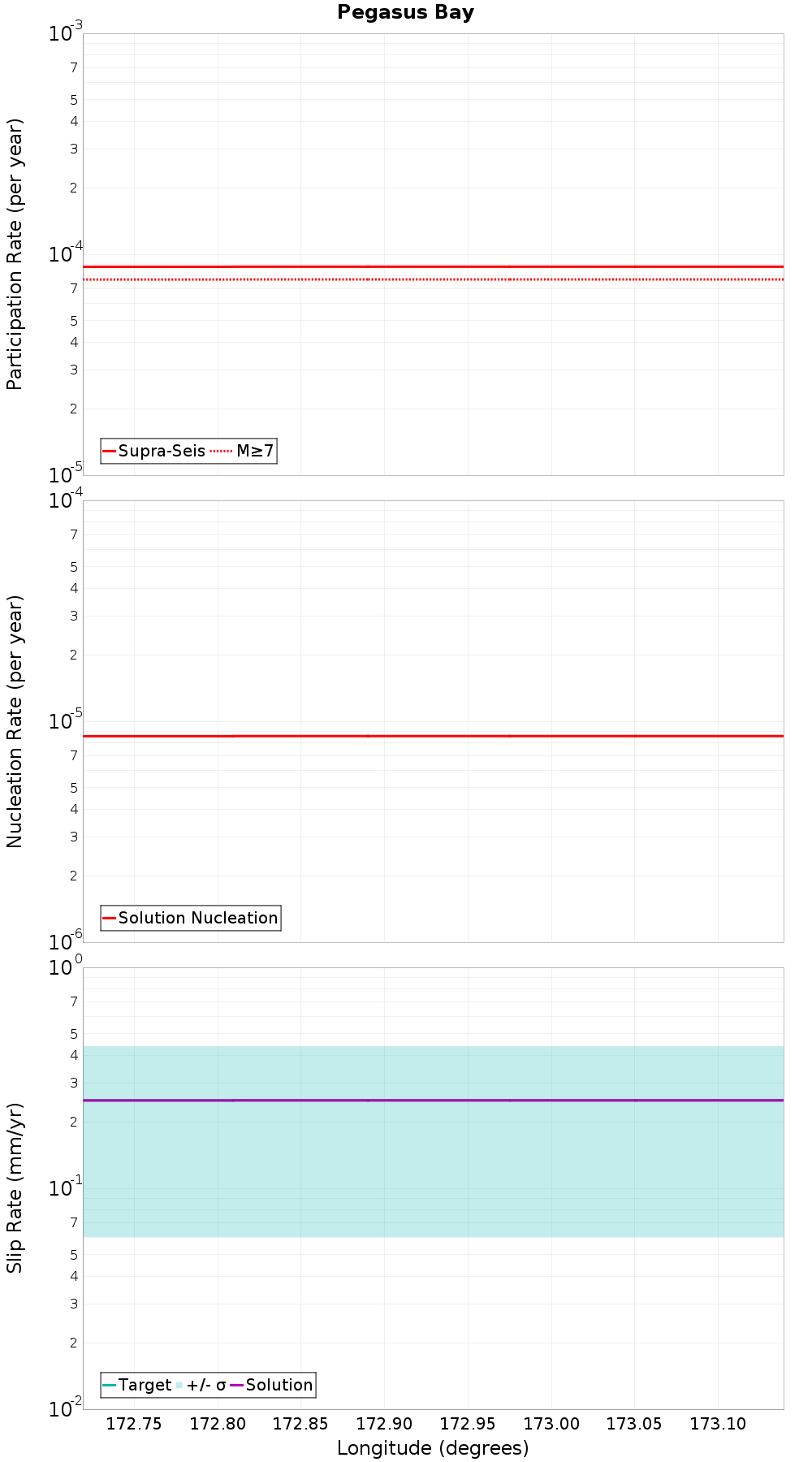

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

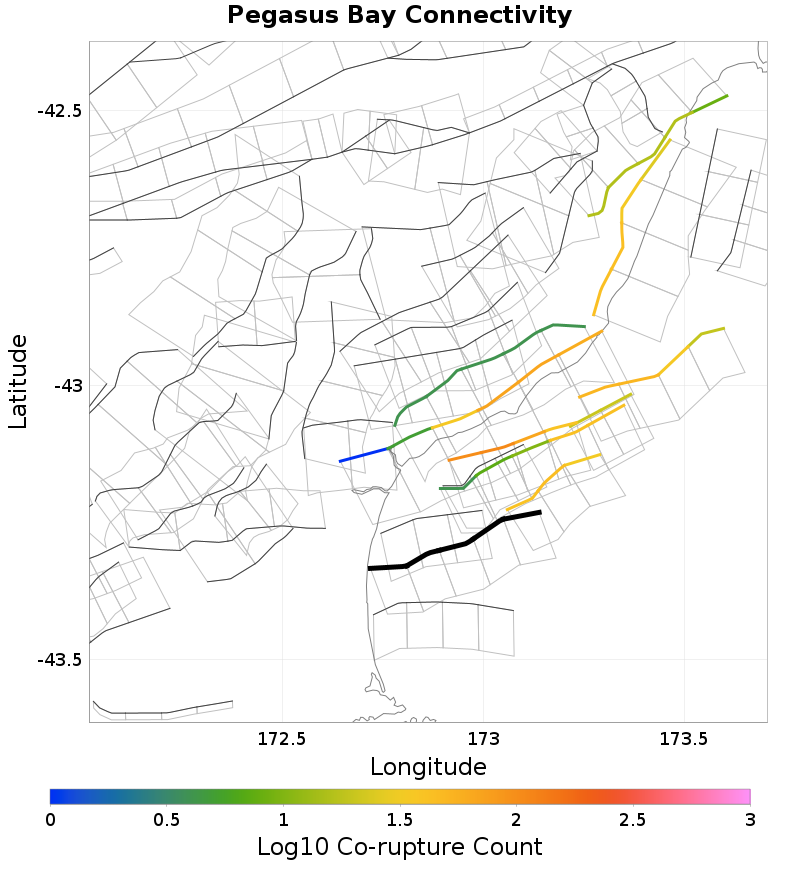

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
North Canterbury Shelf 4, 1.54 km away
Waikuku, 3.19 km away
CenPeg1n2, 6.09 km away
Leithfield - NCVI - NCVII, 7.81 km away
North Canterbury Shelf 2, 8.24 km away
Motunau, 11.59 km away
Starvation - Ashley, 12.18 km away
AmberBlyth, 14.66 km away
North Canterbury Shelf 11, 17.11 km away
Springbank, 17.58 km away

North Canterbury Shelf 4, 1.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?true
Directly Connected?true
Co-rupture Count45
Co-rupture Rate1.5675701E-5

Waikuku, 3.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

CenPeg1n2, 6.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Leithfield - NCVI - NCVII, 7.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?true
Directly Connected?false
Co-rupture Count42
Co-rupture Rate1.2164806E-5

North Canterbury Shelf 2, 8.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Motunau, 11.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?true
Directly Connected?true
Co-rupture Count111
Co-rupture Rate4.6380275E-5

Starvation - Ashley, 12.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

AmberBlyth, 14.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?true
Directly Connected?true
Co-rupture Count74
Co-rupture Rate3.29011E-5

North Canterbury Shelf 11, 17.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?true
Directly Connected?false
Co-rupture Count20
Co-rupture Rate2.4938838E-5

Springbank, 17.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
