Te Anau Details
| Property | Value |
|---|---|
| Rupture Count | 25 |
| Ruptures Above Sect Min Mag | 21 |
| Ruptures w/ Nonzero Rates | 14 |
| Magnitude Range | [7.01, 7.68] |
| Length Range | [24, 110] km |
| Total Rate | 3.1684732E-4 /yr |
| Multi-Fault Rate | 2.8266582E-5 /yr (8.92%) |
| Directly-Connected Faults | 1 |
| All Co-Rupturing Faults | 1 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

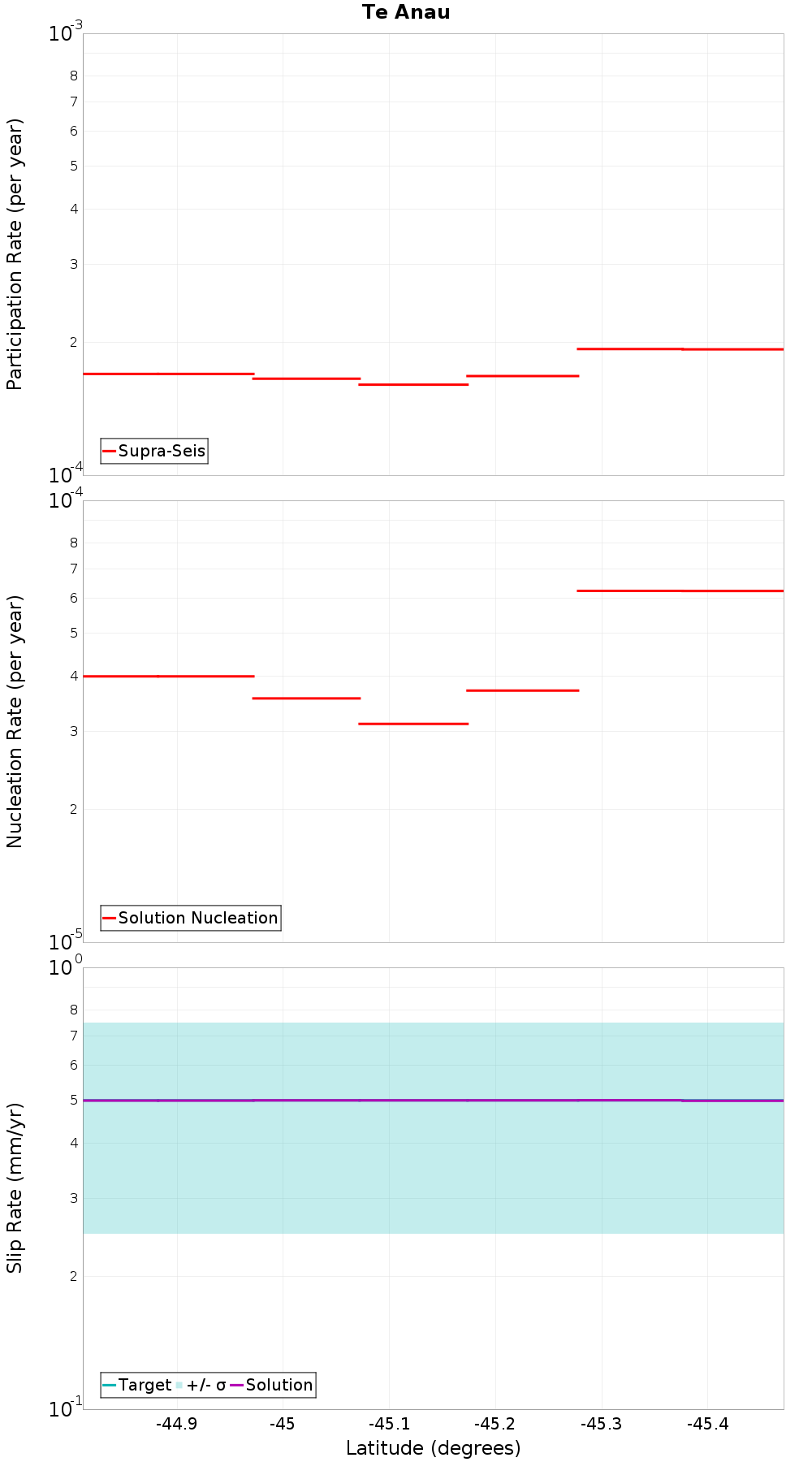

Along-Strike Values
Moment-Rates and b-Values

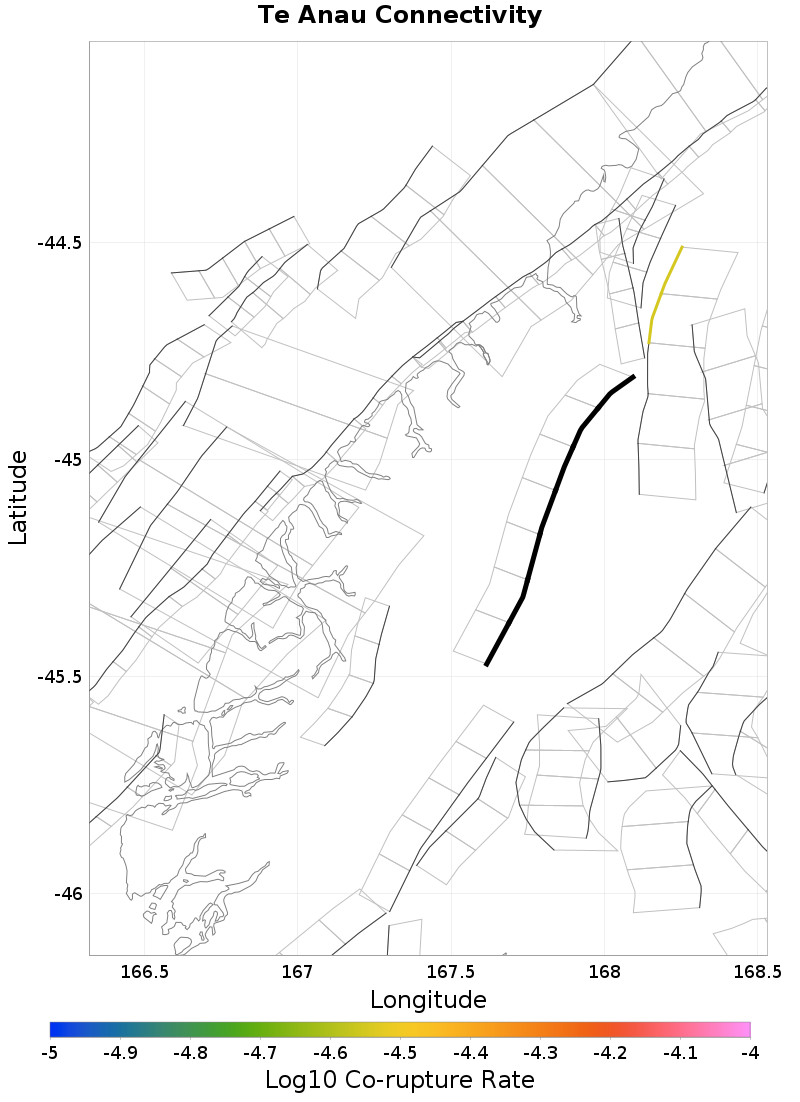

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Livingstone, 3.81 km away |
| Darran, 4.51 km away |
| Hauroko: North, 15.06 km away |
| Madagascar, 15.61 km away |
| Hollyford, 17.09 km away |
| West Wakatipu, 17.12 km away |
| South Wedge 2, 19.53 km away |
Livingstone, 3.81 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 4 |
| Co-rupture Rate | 2.8266582E-5 |
Darran, 4.51 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Hauroko: North, 15.06 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Madagascar, 15.61 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Hollyford, 17.09 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
West Wakatipu, 17.12 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
South Wedge 2, 19.53 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
