Waihi South Details
| Property | Value |
|---|---|
| Rupture Count | 15 |
| Ruptures Above Sect Min Mag | 14 |
| Ruptures w/ Nonzero Rates | 5 |
| Magnitude Range | [6.66, 7.17] |
| Length Range | [16, 60] km |
| Total Rate | 0.0013095648 /yr |
| Multi-Fault Rate | 0.0011551185 /yr (88.21%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 2 |
Table Of Contents

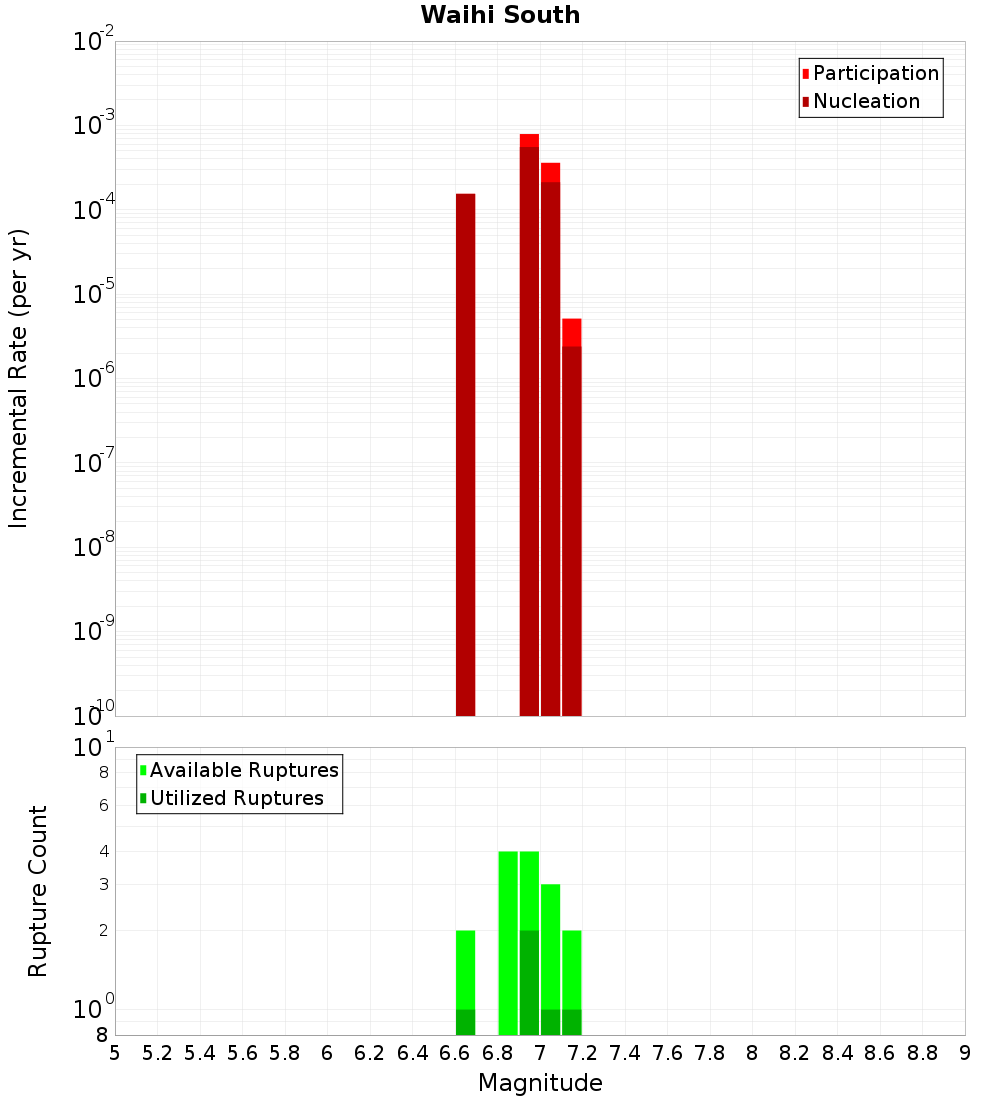

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

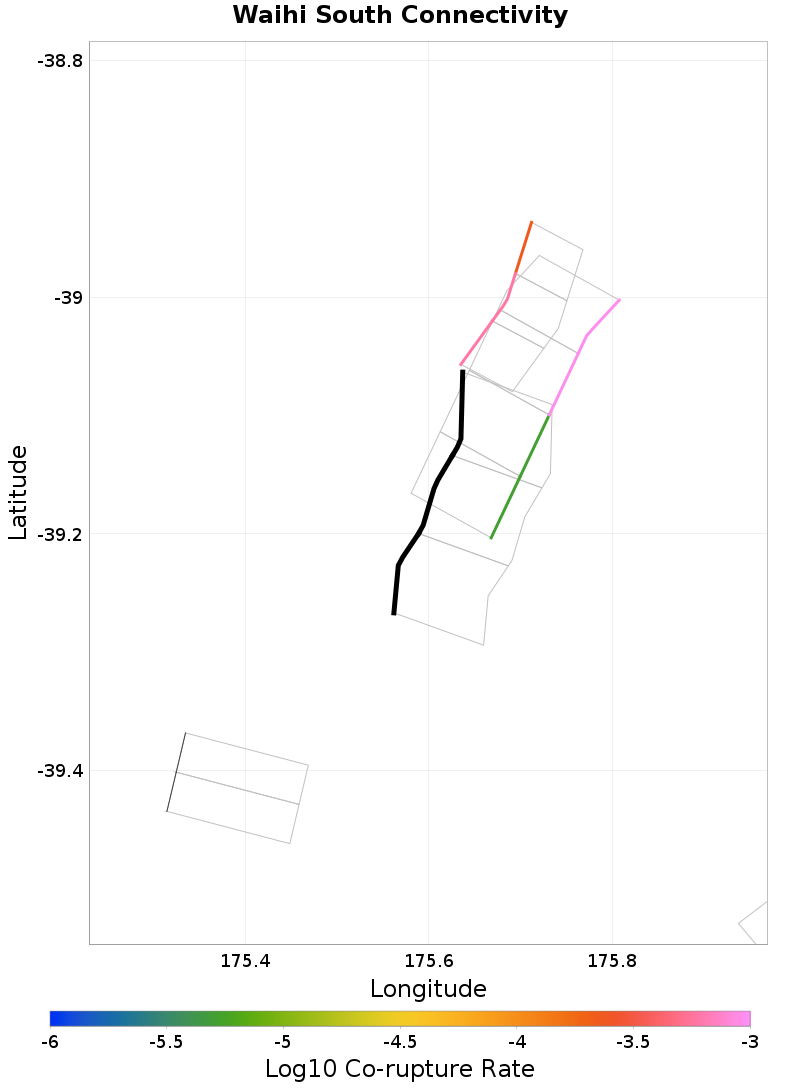

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Poutu, 0.22 km away |
| Waihi West, 0.44 km away |
Poutu, 0.22 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 8 |
| Co-rupture Rate | 9.251011E-4 |
Waihi West, 0.44 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 10 |
| Co-rupture Rate | 5.955453E-4 |
