Wellington Hutt Valley: 5 Details

PropertyValue
Rupture Count26,537
Ruptures Above Sect Min Mag26,536
Ruptures w/ Nonzero Rates65
Magnitude Range[6.67, 8.58]
Length Range[14, 1,046] km
Total Rate0.0024193153 /yr
Multi-Fault Rate0.0024193153 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults139

Table Of Contents

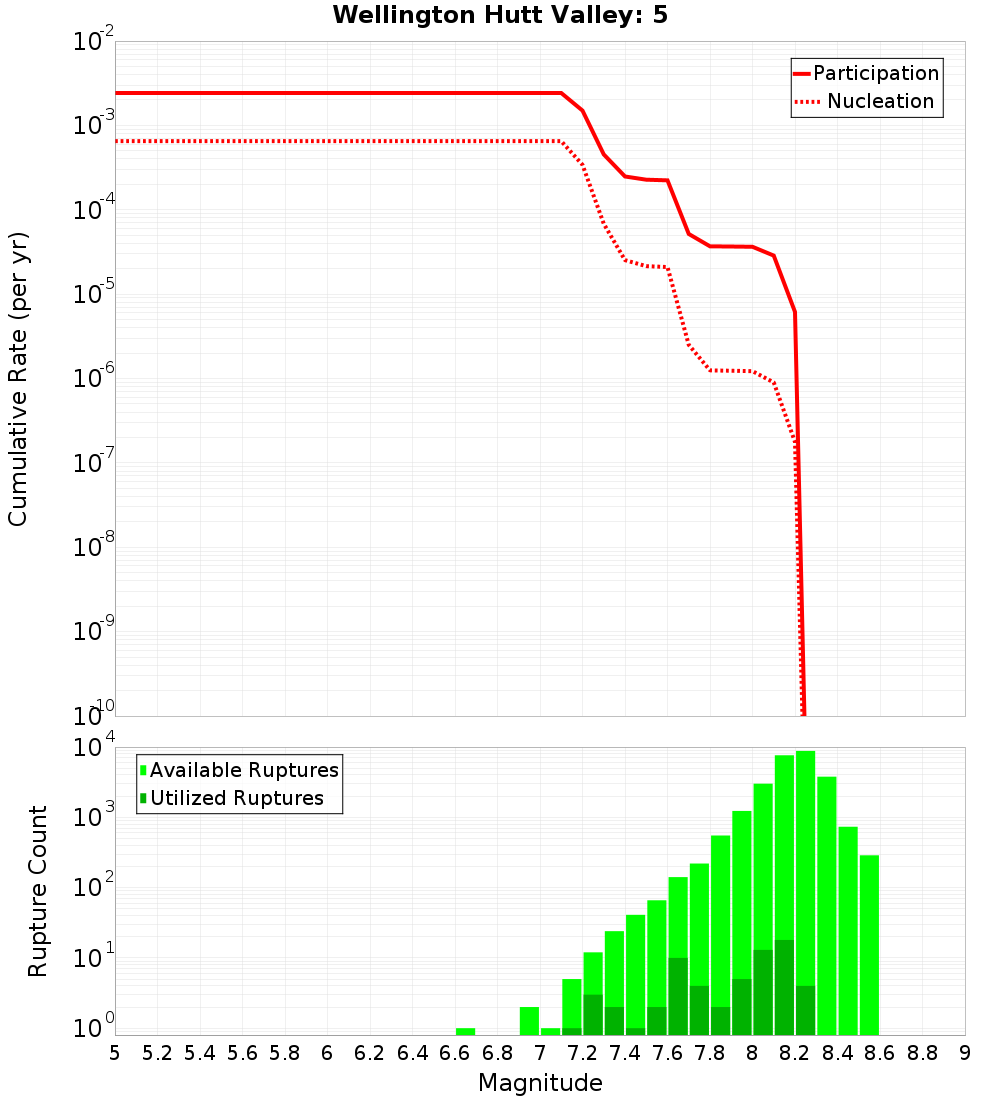

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

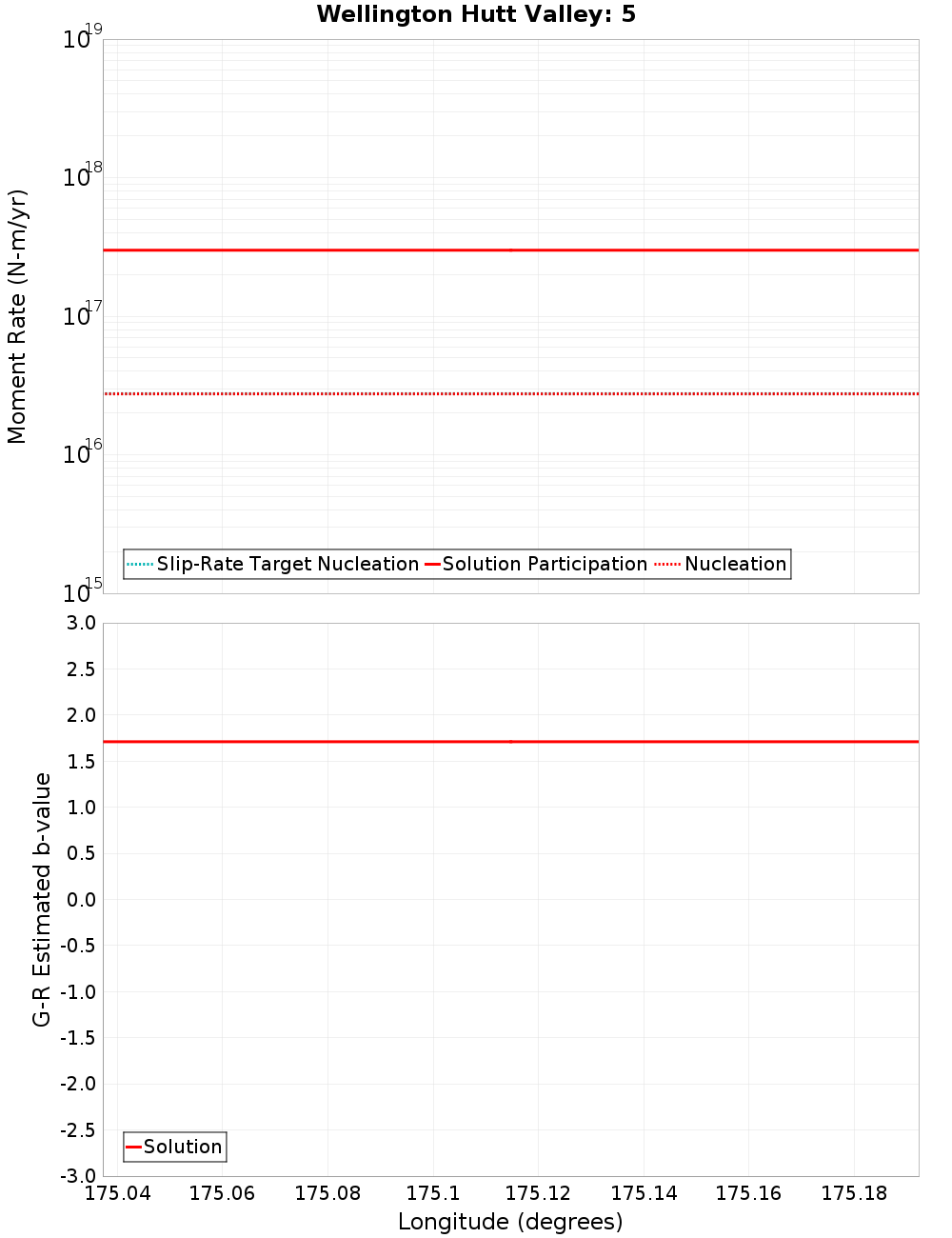

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Akatarawa, 0 km awayOtaki Forks: 1, 8.56 km away
Wellington Hutt Valley: 4, 0.01 km awayMartinborough, 10.73 km away
Wairarapa: 2, 0.33 km awayOhariu, 12.34 km away
Wairarapa: 1, 0.94 km awayDry River - Huangarua: 1, 15.87 km away
Wellington: Tararua 1, 1.46 km awayPukerua - Shepherds Gully: 3, 16 km away
Whitemans Valley, 2.4 km awayDry River - Huangarua: 2, 18.32 km away
Wharekauhau, 4.2 km awayWairarapa: 3, 19.01 km away
Wellington: Tararua 2, 4.56 km awayAotea - Evans Bay, 19.7 km away
Moonshine, 4.9 km awayCarterton, 19.71 km away
Bidwill, 6 km away

Akatarawa, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?true
Directly Connected?false
Co-rupture Count49
Co-rupture Rate1.4655823E-5

Wellington Hutt Valley: 4, 0.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?true
Directly Connected?true
Co-rupture Count5,646
Co-rupture Rate0.0022447698

Wairarapa: 2, 0.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?true
Directly Connected?false
Co-rupture Count835
Co-rupture Rate6.10909E-5

Wairarapa: 1, 0.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?true
Directly Connected?true
Co-rupture Count19,272
Co-rupture Rate6.10909E-5

Wellington: Tararua 1, 1.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?true
Directly Connected?false
Co-rupture Count229
Co-rupture Rate0.0010612176

Whitemans Valley, 2.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wharekauhau, 4.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?true
Directly Connected?true
Co-rupture Count2,352
Co-rupture Rate1.1501999E-4

Wellington: Tararua 2, 4.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?true
Directly Connected?true
Co-rupture Count26,069
Co-rupture Rate0.001099479

Moonshine, 4.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?true
Directly Connected?false
Co-rupture Count91
Co-rupture Rate0.0

Bidwill, 6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otaki Forks: 1, 8.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?true
Directly Connected?false
Co-rupture Count49
Co-rupture Rate1.4655823E-5

Martinborough, 10.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohariu, 12.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?true
Directly Connected?false
Co-rupture Count1,788
Co-rupture Rate2.0440955E-5

Dry River - Huangarua: 1, 15.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?true
Directly Connected?false
Co-rupture Count202
Co-rupture Rate0.0

Pukerua - Shepherds Gully: 3, 16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Dry River - Huangarua: 2, 18.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wairarapa: 3, 19.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?true
Directly Connected?false
Co-rupture Count28
Co-rupture Rate6.109078E-5

Aotea - Evans Bay, 19.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Carterton, 19.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTEuMEtIZ0tS
Connected?true
Directly Connected?false
Co-rupture Count441
Co-rupture Rate0.0
