Awakeri Details

Property	Value
Rupture Count	923
Ruptures Above Sect Min Mag	923
Ruptures w/ Nonzero Rates	9
Magnitude Range	[6.66, 7.50]
Length Range	[17, 143] km
Total Rate	8.1690356E-5 /yr
Multi-Fault Rate	8.1690356E-5 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	31

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

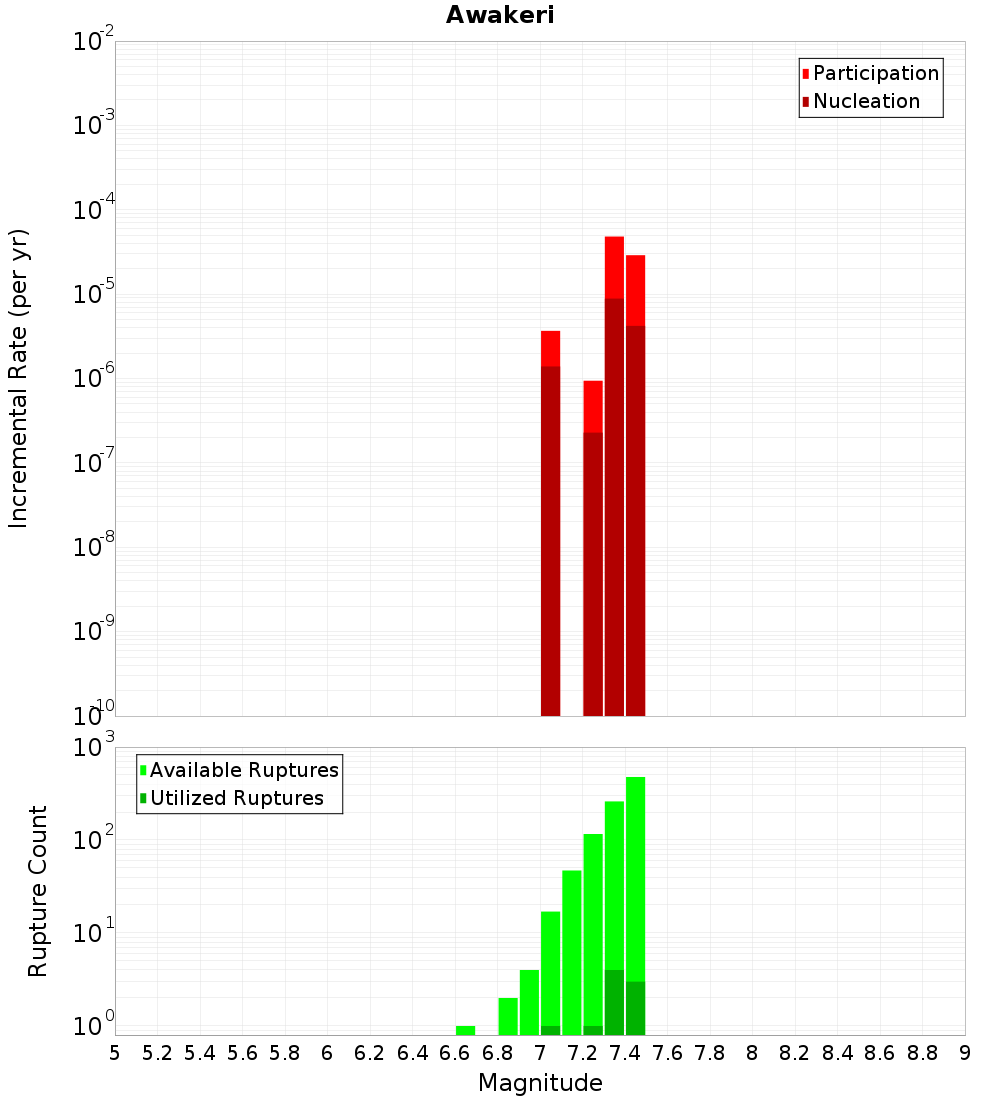

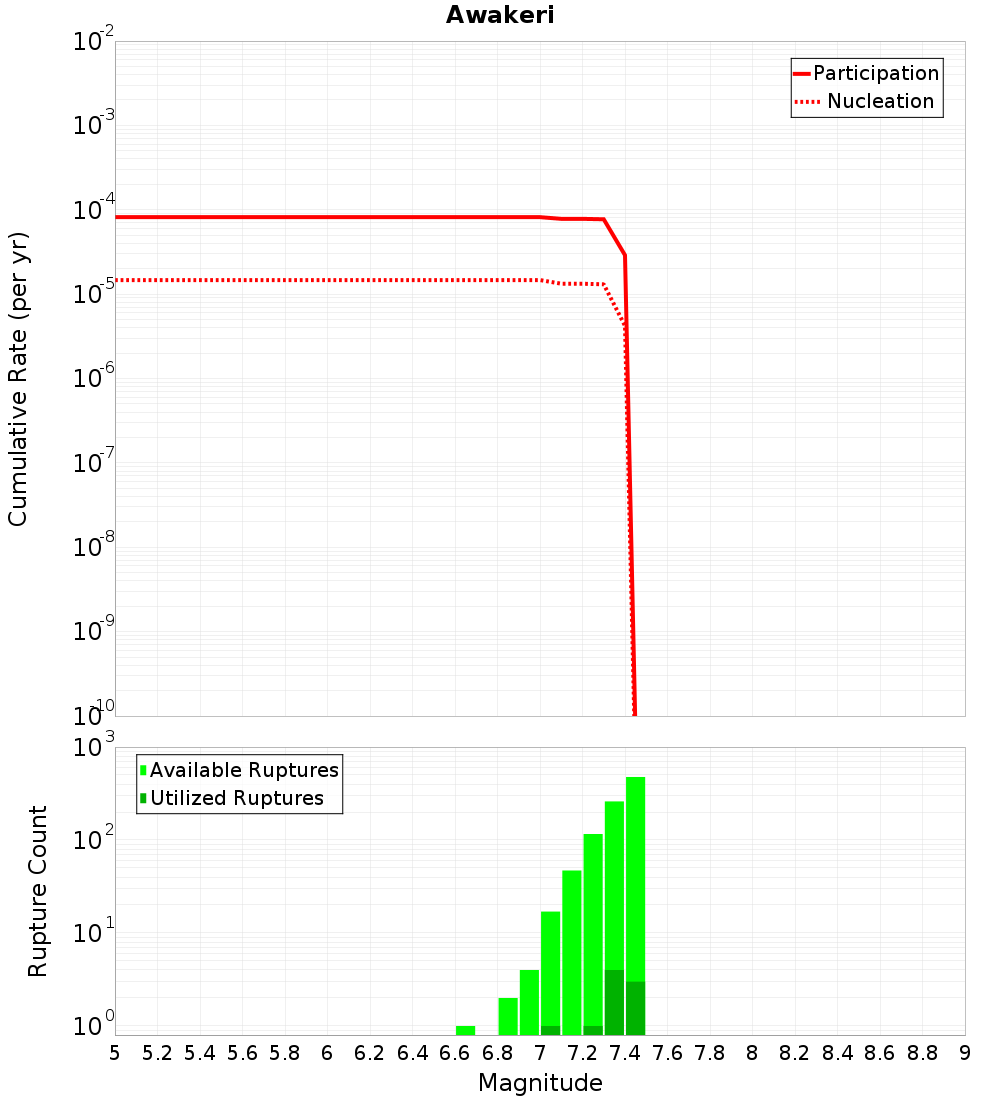

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

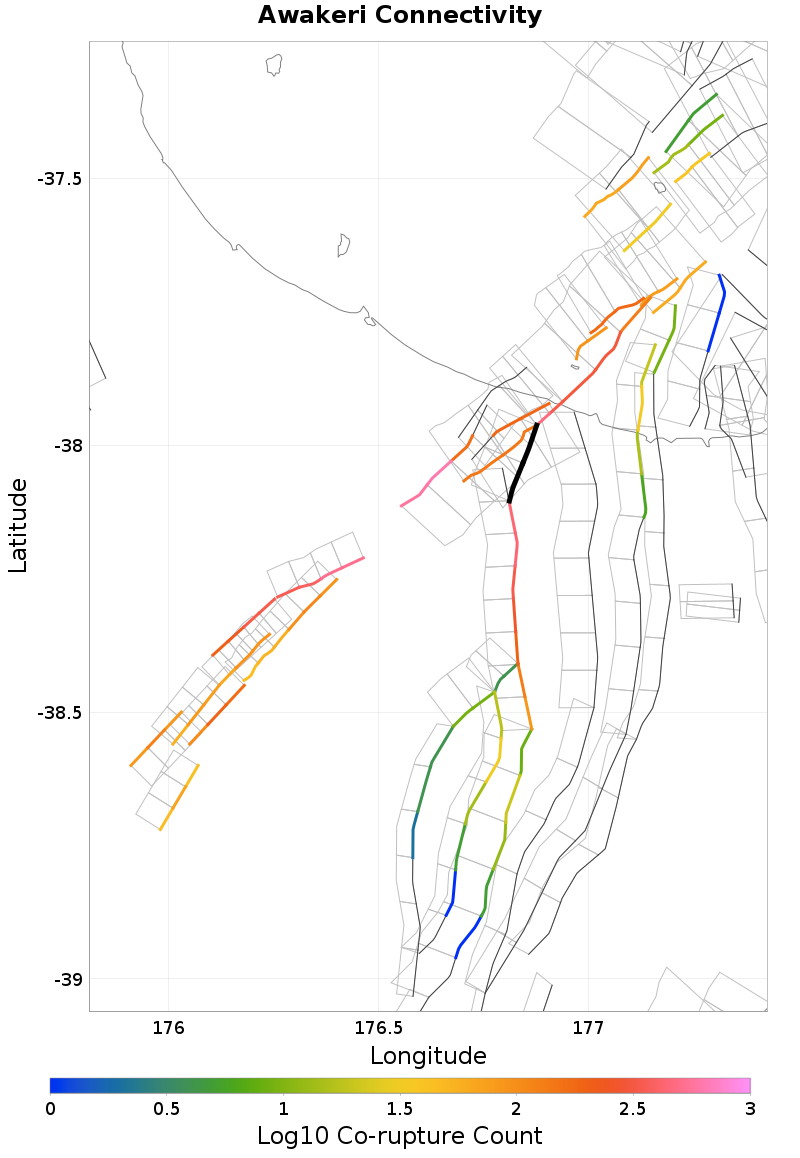

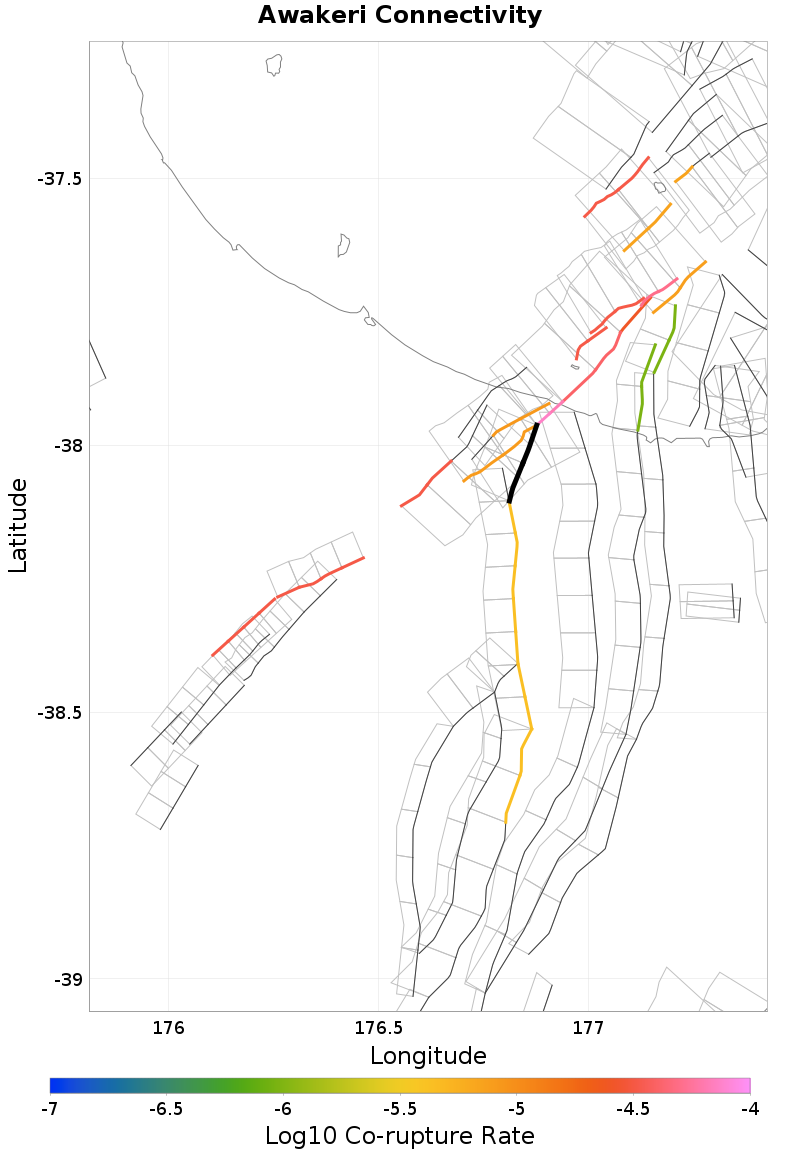

Connectivity

Nearby Sections

Fault Section
Edgecumbe 1987, 0 km away
Edgecumbe Coastal, 0 km away
Braemar, 0.1 km away
Otakiri, 0.1 km away
Waiohau: North, 0.13 km away
Matata, 0.16 km away
White Island 1, 7.32 km away
Whakatane: North, 7.56 km away
Rangitaiki 1, 16.13 km away

Edgecumbe 1987, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTguMFZRWEw3
Connected?	true
Directly Connected?	false
Co-rupture Count	143
Co-rupture Rate	8.016115E-6

Edgecumbe Coastal, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTguMFZRWEw3
Connected?	true
Directly Connected?	true
Co-rupture Count	466
Co-rupture Rate	7.324257E-5

Braemar, 0.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTguMFZRWEw3
Connected?	true
Directly Connected?	true
Co-rupture Count	627
Co-rupture Rate	3.2444503E-5

Otakiri, 0.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTguMFZRWEw3
Connected?	true
Directly Connected?	true
Co-rupture Count	185
Co-rupture Rate	8.4477915E-6

Waiohau: North, 0.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTguMFZRWEw3
Connected?	true
Directly Connected?	true
Co-rupture Count	432
Co-rupture Rate	4.3448713E-6

Matata, 0.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTguMFZRWEw3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

White Island 1, 7.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTguMFZRWEw3
Connected?	true
Directly Connected?	false
Co-rupture Count	302
Co-rupture Rate	3.995102E-5

Whakatane: North, 7.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTguMFZRWEw3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Rangitaiki 1, 16.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTguMFZRWEw3
Connected?	true
Directly Connected?	false
Co-rupture Count	90
Co-rupture Rate	3.2781947E-5
