Edgecumbe 1987 Details

PropertyValue
Rupture Count1,128
Ruptures Above Sect Min Mag1,128
Ruptures w/ Nonzero Rates12
Magnitude Range[6.79, 7.50]
Length Range[20, 136] km
Total Rate7.153052E-4 /yr
Multi-Fault Rate7.153052E-4 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults31

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

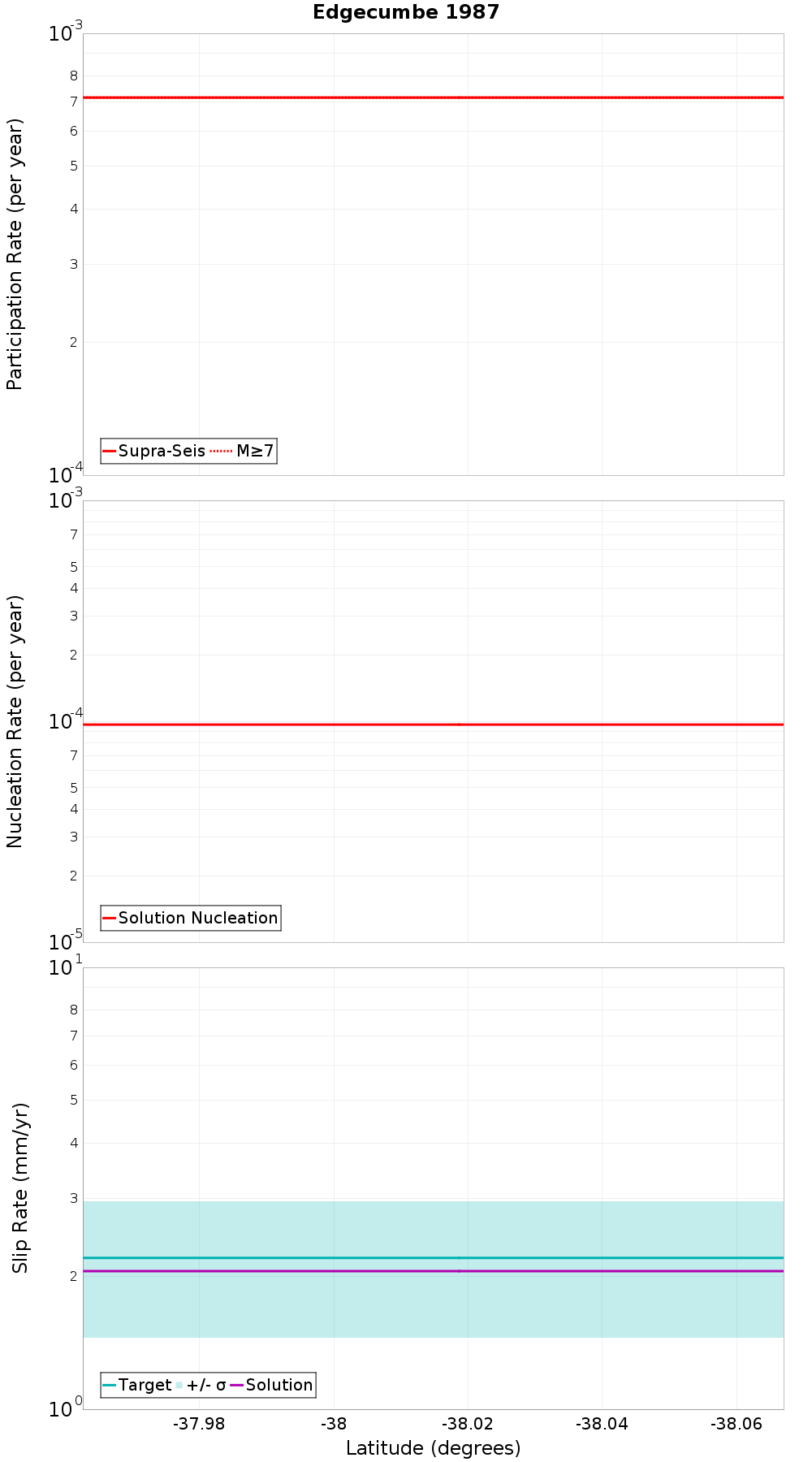

Along-Strike Values

(top)

Along-strike plot

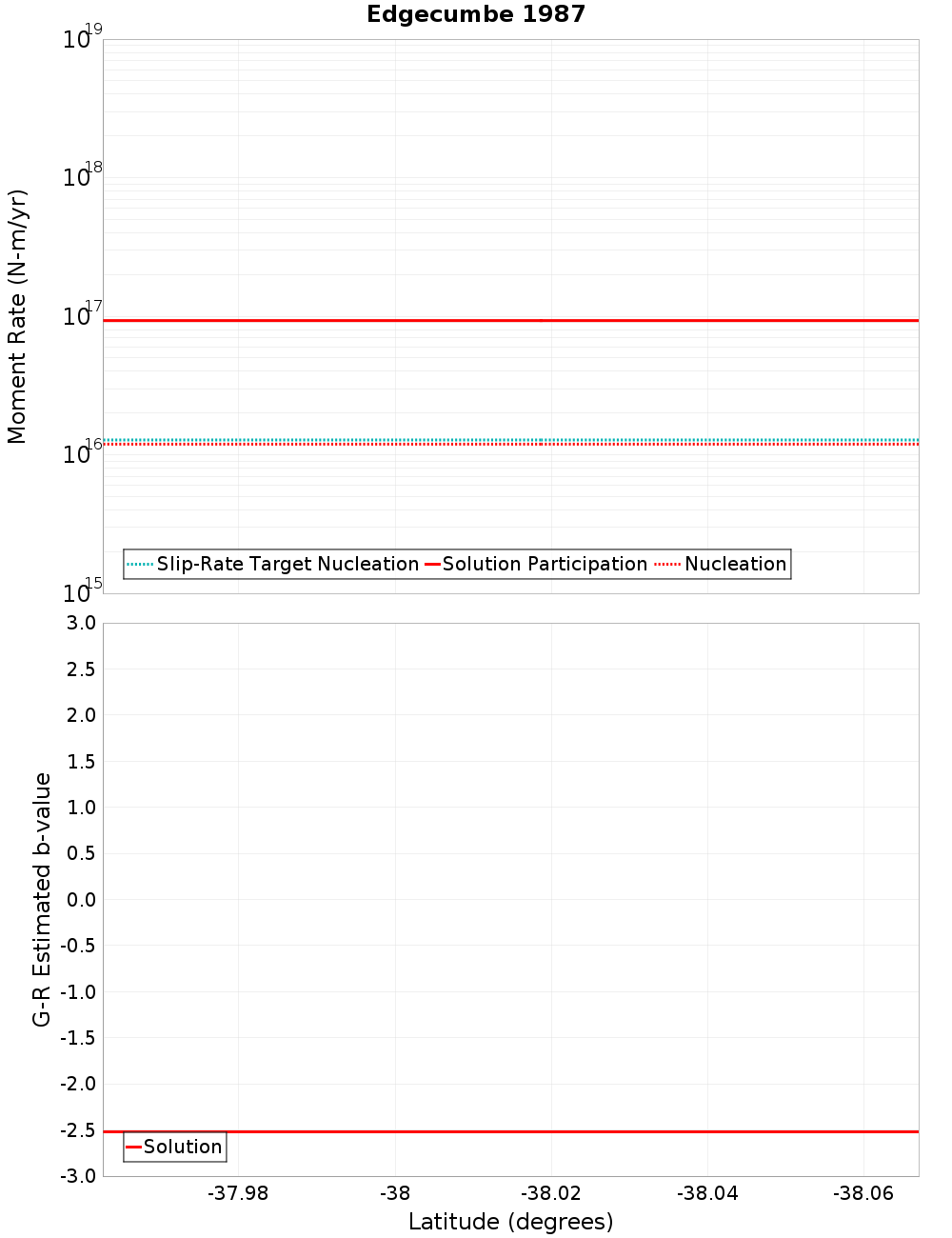

Moment-Rates and b-Values

(top)

Along-strike plot

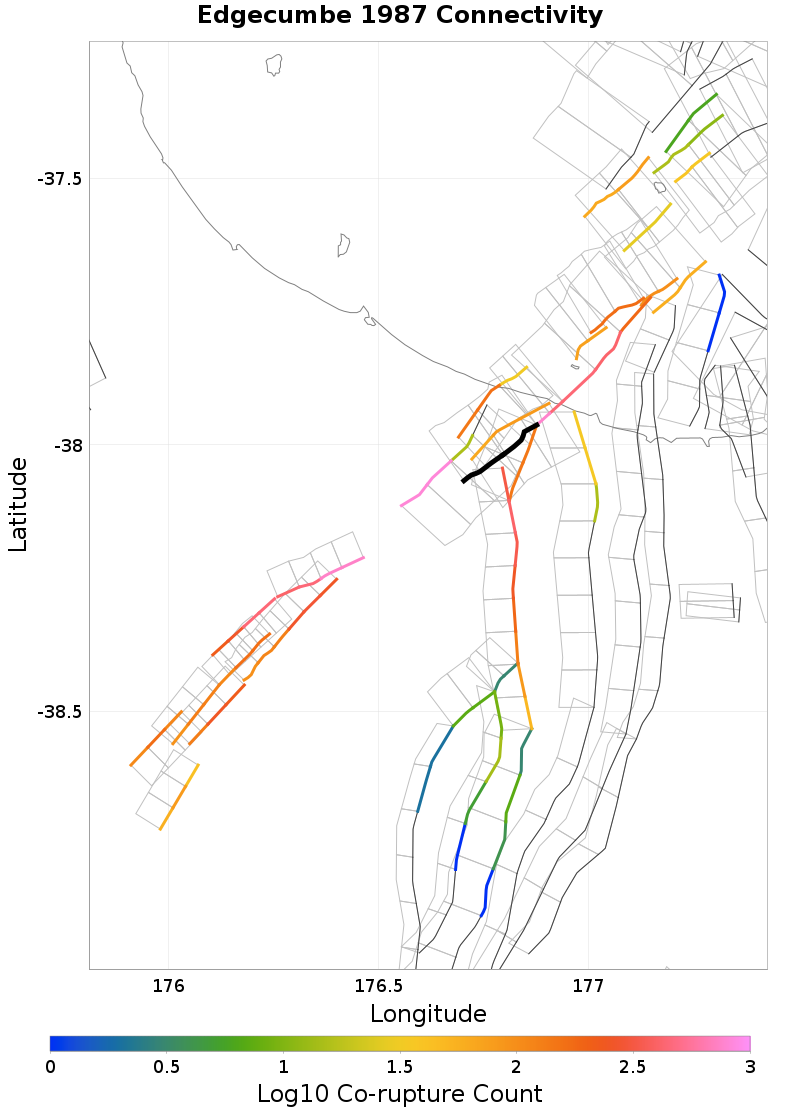

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Awakeri, 0 km away
Edgecumbe Coastal, 0 km away
Otakiri, 0.19 km away
Matata, 0.29 km away
Braemar, 0.32 km away
Waiohau: North, 2.18 km away
White Island 1, 4.49 km away
Whakatane: North, 7.15 km away
Rangitaiki 1, 15.01 km away

Awakeri, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTguMFZRWEw3
Connected?true
Directly Connected?false
Co-rupture Count143
Co-rupture Rate8.016115E-6

Edgecumbe Coastal, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTguMFZRWEw3
Connected?true
Directly Connected?true
Co-rupture Count762
Co-rupture Rate7.153052E-4

Otakiri, 0.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTguMFZRWEw3
Connected?true
Directly Connected?false
Co-rupture Count82
Co-rupture Rate3.447958E-4

Matata, 0.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTguMFZRWEw3
Connected?true
Directly Connected?false
Co-rupture Count158
Co-rupture Rate1.5501724E-5

Braemar, 0.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTguMFZRWEw3
Connected?true
Directly Connected?true
Co-rupture Count819
Co-rupture Rate4.921216E-4

Waiohau: North, 2.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTguMFZRWEw3
Connected?true
Directly Connected?true
Co-rupture Count420
Co-rupture Rate1.06779014E-4

White Island 1, 4.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTguMFZRWEw3
Connected?true
Directly Connected?true
Co-rupture Count438
Co-rupture Rate7.382957E-5

Whakatane: North, 7.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTguMFZRWEw3
Connected?true
Directly Connected?false
Co-rupture Count35
Co-rupture Rate1.33442E-4

Rangitaiki 1, 15.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTguMFZRWEw3
Connected?true
Directly Connected?false
Co-rupture Count72
Co-rupture Rate1.3972001E-4
