Oruawharo - Mangatoro Details

PropertyValue
Rupture Count50
Ruptures Above Sect Min Mag46
Ruptures w/ Nonzero Rates26
Magnitude Range[6.66, 7.86]
Length Range[16, 180] km
Total Rate0.0014643185 /yr
Multi-Fault Rate4.3148888E-4 /yr (29.47%)
Directly-Connected Faults3
All Co-Rupturing Faults6

Table Of Contents

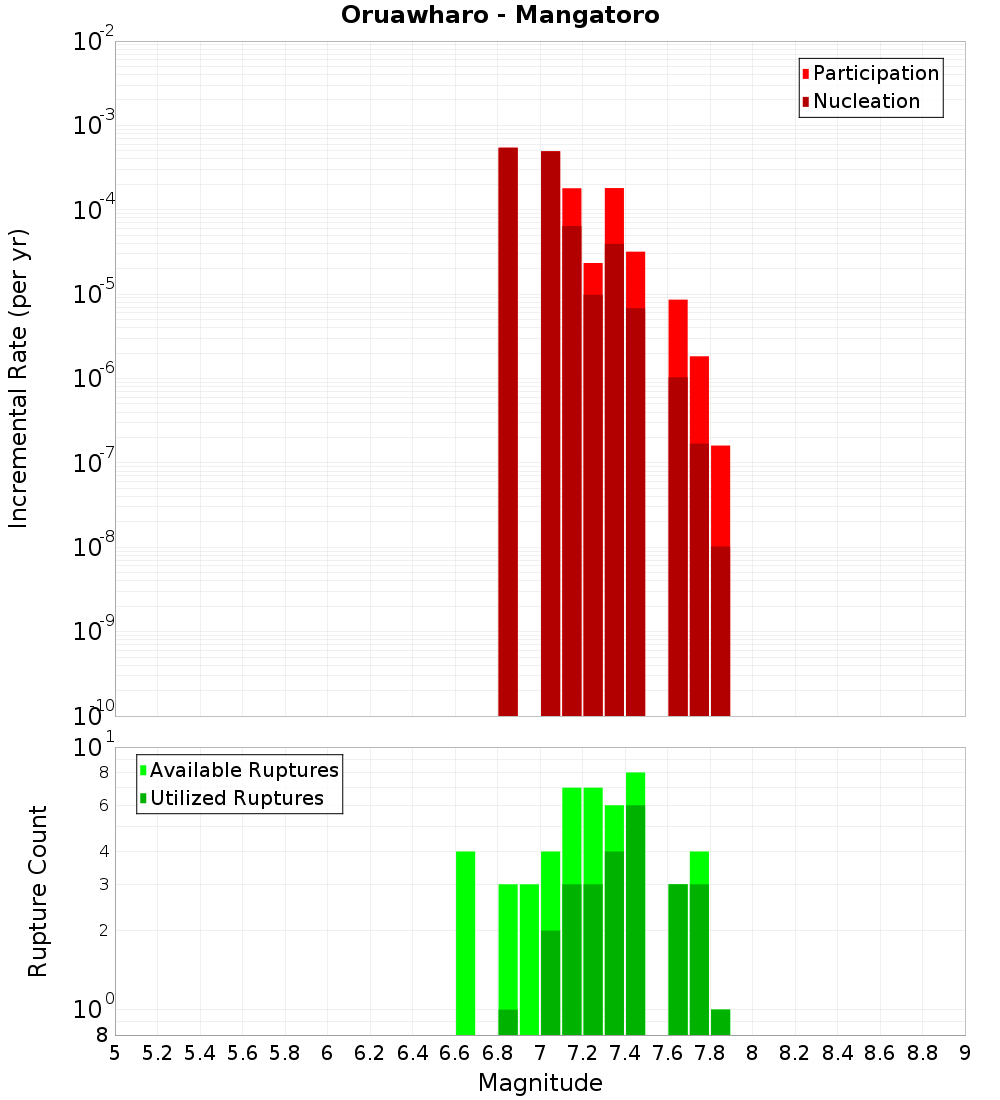

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

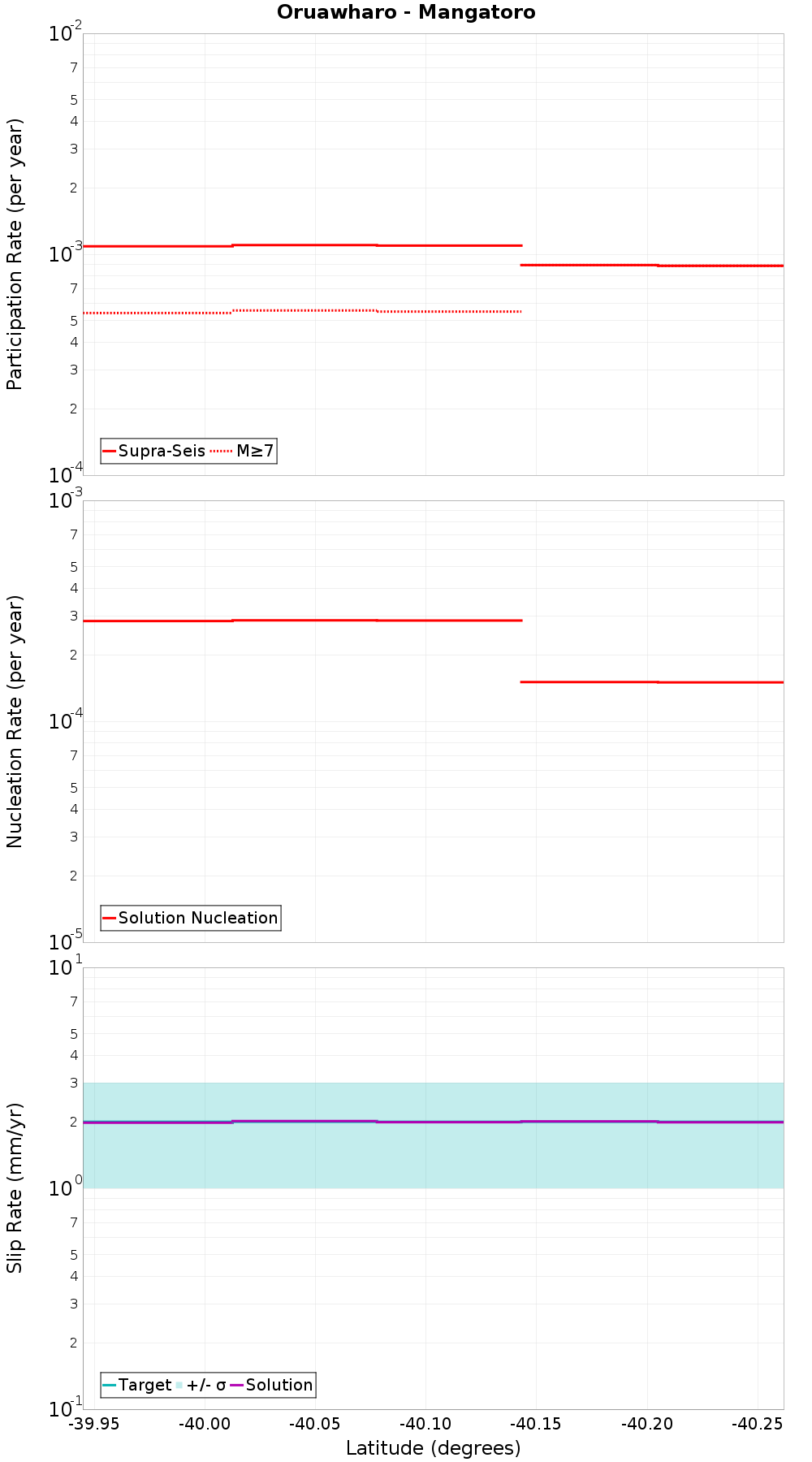

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Clear Hills - Waikopiro, 0.12 km away
Waipukurau - Poukawa, 3.21 km away
Waewaepa, 3.74 km away
Ruataniwha, 5.67 km away
Te Heka, 8.05 km away
Maunga, 8.13 km away
Tukituki Thrust, 9.21 km away
Waipukaka, 12.74 km away
Pongaroa - Weber, 14.66 km away
Rangefront, 15.62 km away
Pahiatua, 16.12 km away
Makuri - Waewaepa, 16.47 km away
Woodville, 17.77 km away
Mohaka: South, 18.37 km away
Wakarara, 18.53 km away

Clear Hills - Waikopiro, 0.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTguMFZRWEw3
Connected?true
Directly Connected?true
Co-rupture Count15
Co-rupture Rate4.6972193E-5

Waipukurau - Poukawa, 3.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTguMFZRWEw3
Connected?true
Directly Connected?true
Co-rupture Count13
Co-rupture Rate3.691481E-4

Waewaepa, 3.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTguMFZRWEw3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ruataniwha, 5.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTguMFZRWEw3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Te Heka, 8.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTguMFZRWEw3
Connected?true
Directly Connected?true
Co-rupture Count22
Co-rupture Rate4.7233036E-5

Maunga, 8.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTguMFZRWEw3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tukituki Thrust, 9.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTguMFZRWEw3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waipukaka, 12.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTguMFZRWEw3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pongaroa - Weber, 14.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTguMFZRWEw3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Rangefront, 15.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTguMFZRWEw3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pahiatua, 16.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTguMFZRWEw3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Makuri - Waewaepa, 16.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTguMFZRWEw3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Woodville, 17.77 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTguMFZRWEw3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mohaka: South, 18.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTguMFZRWEw3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wakarara, 18.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTguMFZRWEw3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
