Waimana: South Details

Property	Value
Rupture Count	19,445
Ruptures Above Sect Min Mag	19,443
Ruptures w/ Nonzero Rates	137
Magnitude Range	[7.02, 8.58]
Length Range	[25, 1,056] km
Total Rate	2.3720224E-4 /yr
Multi-Fault Rate	2.3720224E-4 /yr (100.00%)
Directly-Connected Faults	7
All Co-Rupturing Faults	89

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

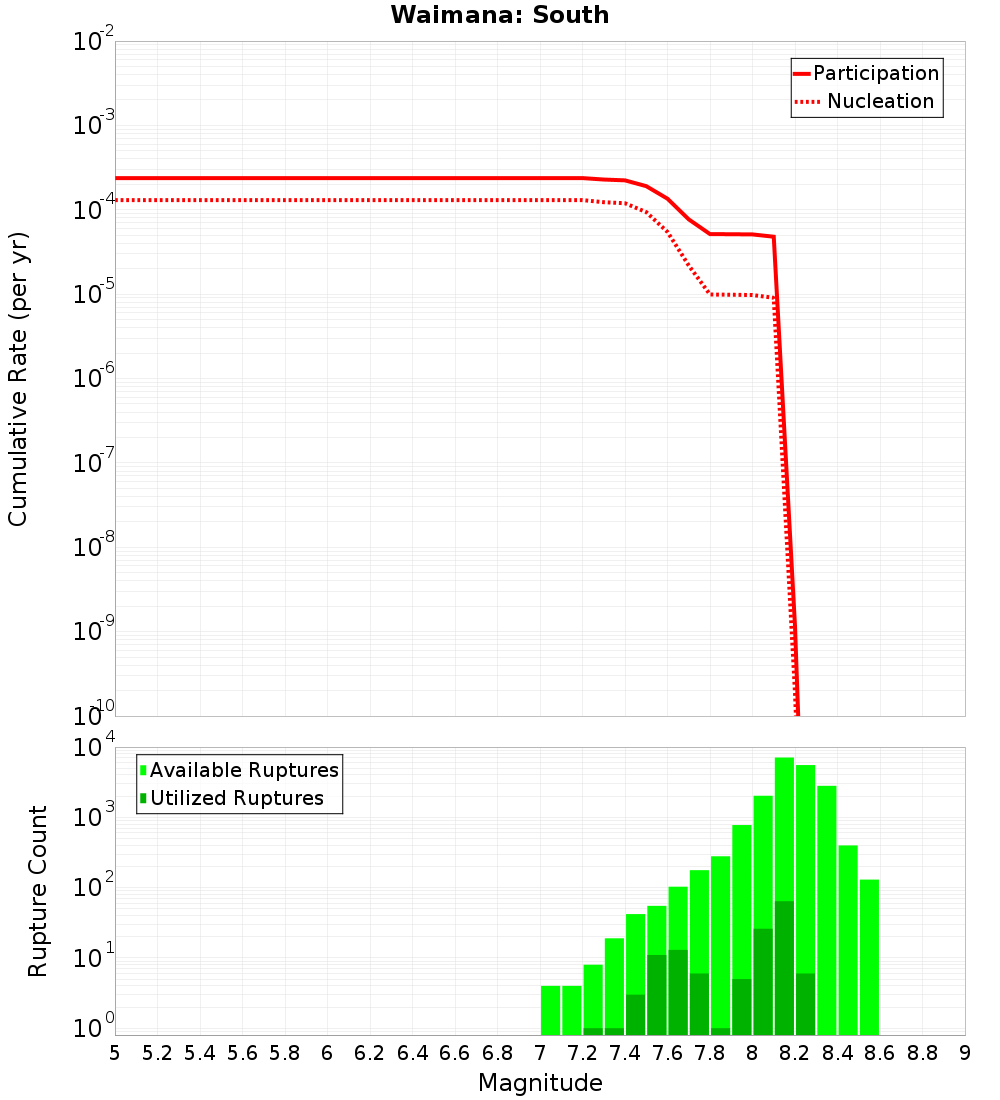

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

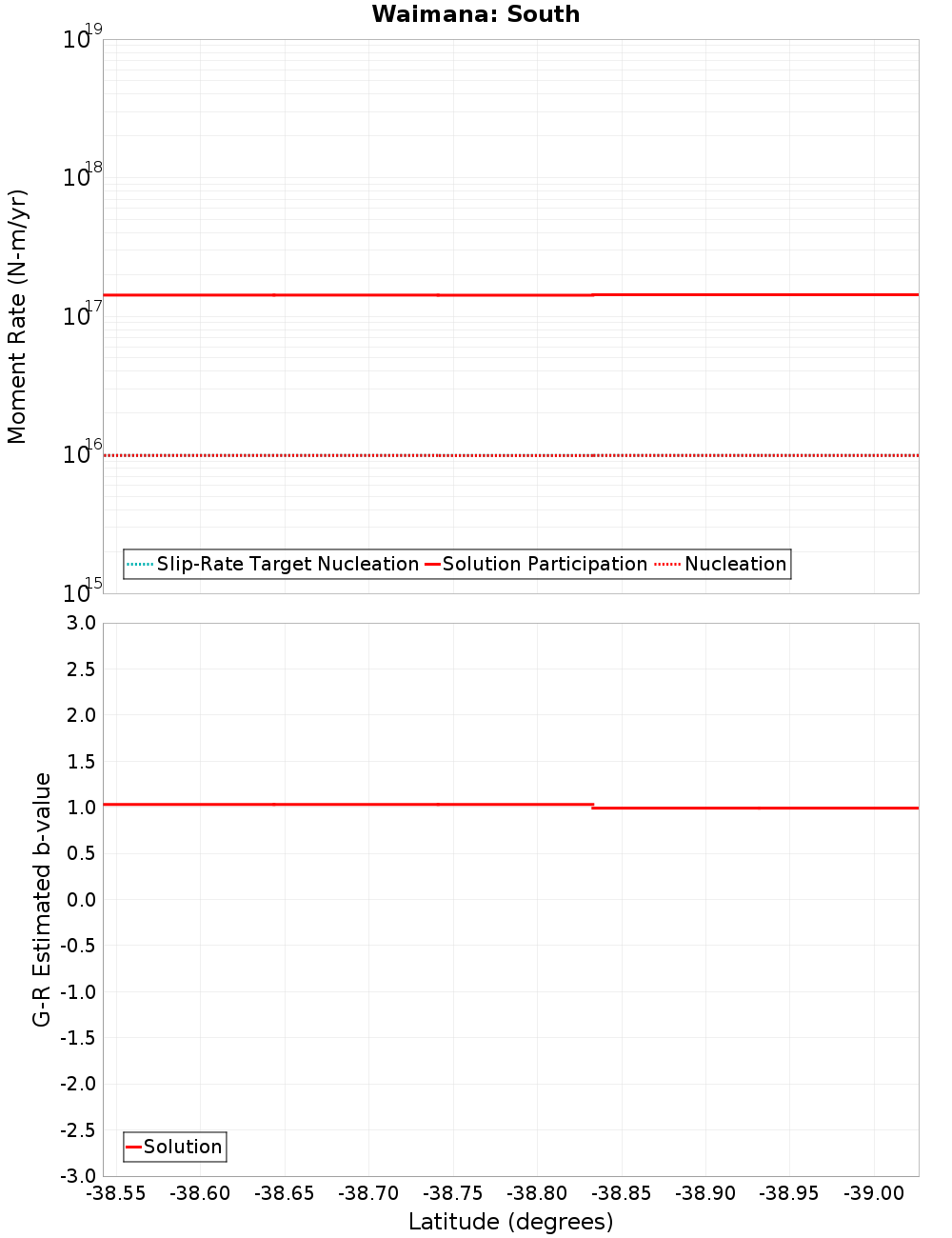

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Waimana: North, 0 km away
Whakatane: South, 0 km away
Mohaka: North, 0 km away
Waiotahi: South, 2.15 km away
Waiotahi: North, 2.4 km away
Waiohau: South, 8.02 km away
Whakatane: North, 8.55 km away
Patoka - Rangiora, 10.75 km away
Ruahine: North, 11.54 km away
Wheao: South, 14.54 km away
Te Whaiti South, 14.57 km away
Waiohau: North, 17.98 km away
Awanui, 18.53 km away

Waimana: North, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTguMFZRWEw3
Connected?	true
Directly Connected?	true
Co-rupture Count	7,648
Co-rupture Rate	5.758229E-5

Whakatane: South, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTguMFZRWEw3
Connected?	true
Directly Connected?	true
Co-rupture Count	619
Co-rupture Rate	2.6770283E-6

Mohaka: North, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTguMFZRWEw3
Connected?	true
Directly Connected?	true
Co-rupture Count	19,311
Co-rupture Rate	7.2351955E-5

Waiotahi: South, 2.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTguMFZRWEw3
Connected?	true
Directly Connected?	true
Co-rupture Count	3,587
Co-rupture Rate	4.047132E-6

Waiotahi: North, 2.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTguMFZRWEw3
Connected?	true
Directly Connected?	true
Co-rupture Count	5,846
Co-rupture Rate	3.76417E-5

Waiohau: South, 8.02 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTguMFZRWEw3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Whakatane: North, 8.55 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTguMFZRWEw3
Connected?	true
Directly Connected?	true
Co-rupture Count	502
Co-rupture Rate	1.4769191E-4

Patoka - Rangiora, 10.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTguMFZRWEw3
Connected?	true
Directly Connected?	false
Co-rupture Count	44
Co-rupture Rate	0.0

Ruahine: North, 11.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTguMFZRWEw3
Connected?	true
Directly Connected?	false
Co-rupture Count	3,131
Co-rupture Rate	5.079843E-7

Wheao: South, 14.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTguMFZRWEw3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Te Whaiti South, 14.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTguMFZRWEw3
Connected?	true
Directly Connected?	true
Co-rupture Count	39
Co-rupture Rate	2.8267923E-5

Waiohau: North, 17.98 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTguMFZRWEw3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Awanui, 18.53 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTguMFZRWEw3
Connected?	true
Directly Connected?	false
Co-rupture Count	2
Co-rupture Rate	0.0
