Falstone Details

Property	Value
Rupture Count	31
Ruptures Above Sect Min Mag	30
Ruptures w/ Nonzero Rates	5
Magnitude Range	[6.83, 7.67]
Length Range	[18, 135] km
Total Rate	1.5656206E-5 /yr
Multi-Fault Rate	1.5656206E-5 /yr (100.00%)
Directly-Connected Faults	3
All Co-Rupturing Faults	8

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

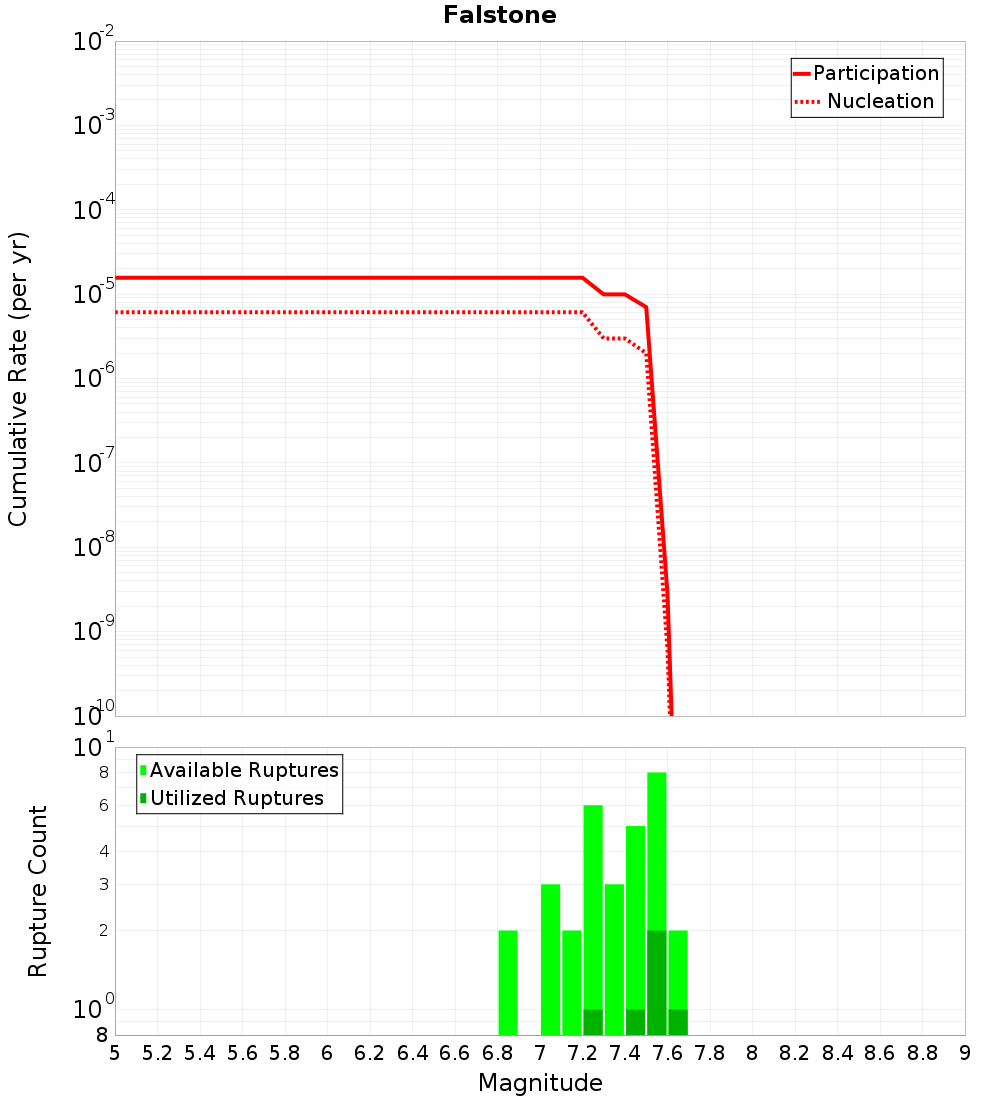

Magnitude-Frequency Distribution

Incremental	Cumulative

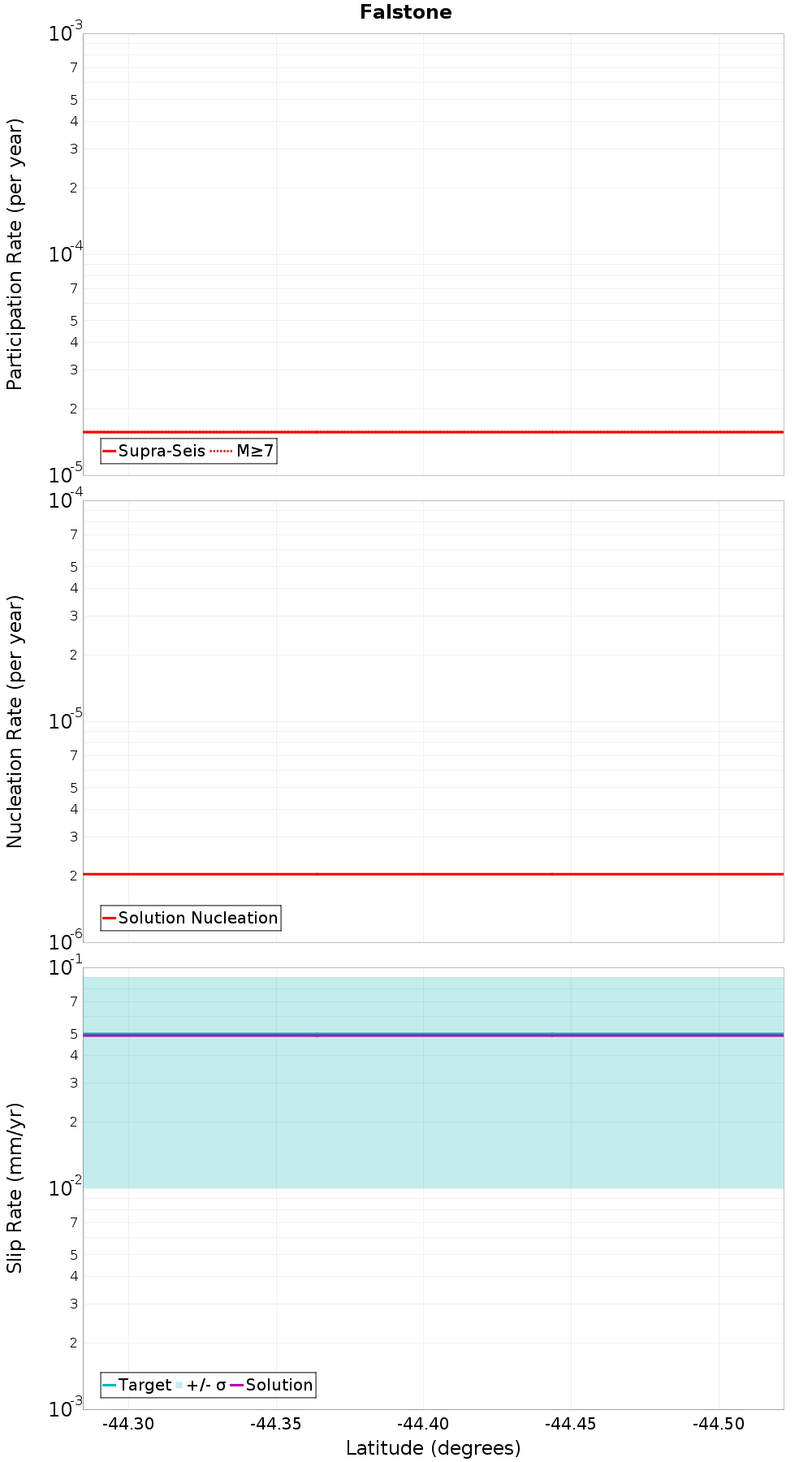

Along-Strike Values

Moment-Rates and b-Values

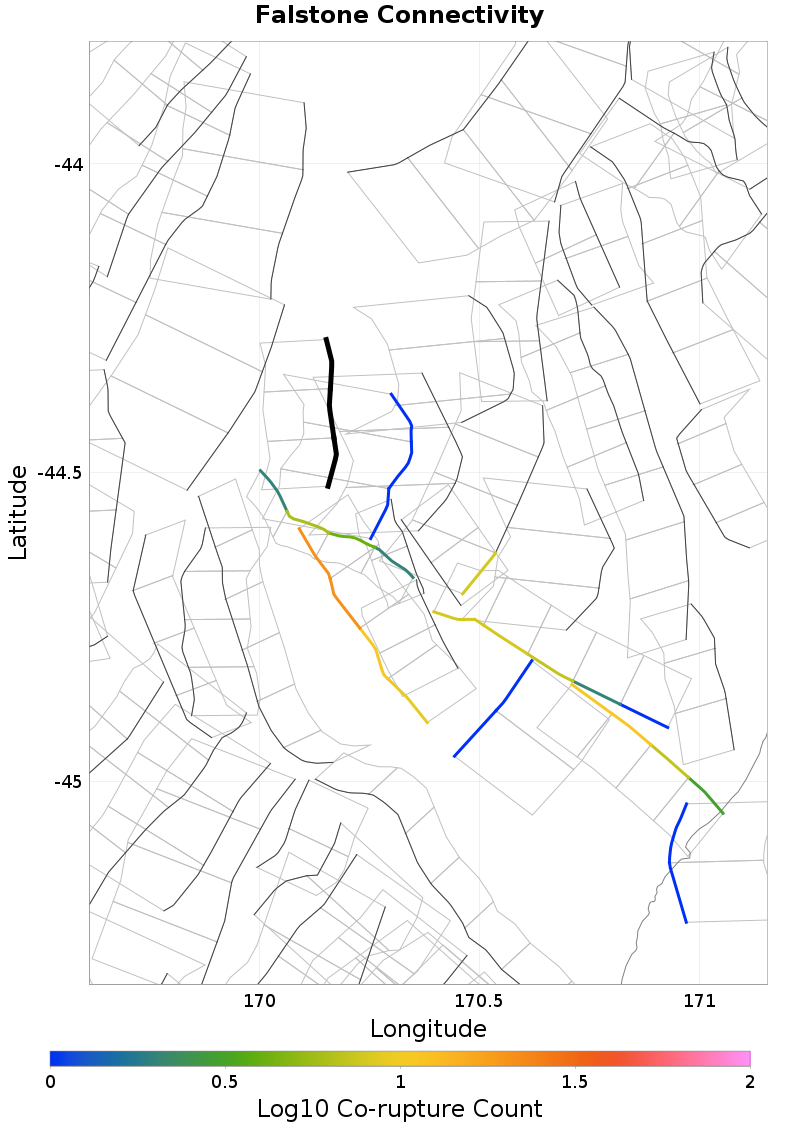

Connectivity

Nearby Sections

Fault Section
Gibson, 1.61 km away
Fern Gully, 2.99 km away
Hawkdun, 3.91 km away
Middle Range, 5.49 km away
Omarama Saddle, 6.83 km away
Mt Sutton, 7.01 km away
Ostler South, 8.01 km away
Waitangi, 11.14 km away
Ostler North, 11.42 km away
Grampian, 12.43 km away
Dryburgh, 14.51 km away
Blue Lake, 14.77 km away

Gibson, 1.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTkuMFZzM0xn
Connected?	true
Directly Connected?	true
Co-rupture Count	1
Co-rupture Rate	0.0

Fern Gully, 2.99 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTkuMFZzM0xn
Connected?	true
Directly Connected?	true
Co-rupture Count	6
Co-rupture Rate	5.7378666E-6

Hawkdun, 3.91 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTkuMFZzM0xn
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Middle Range, 5.49 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTkuMFZzM0xn
Connected?	true
Directly Connected?	true
Co-rupture Count	21
Co-rupture Rate	9.918338E-6

Omarama Saddle, 6.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTkuMFZzM0xn
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Mt Sutton, 7.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTkuMFZzM0xn
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ostler South, 8.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTkuMFZzM0xn
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waitangi, 11.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTkuMFZzM0xn
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ostler North, 11.42 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTkuMFZzM0xn
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Grampian, 12.43 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTkuMFZzM0xn
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Dryburgh, 14.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTkuMFZzM0xn
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Blue Lake, 14.77 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2OTkuMFZzM0xn
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
