Hauroko: North Details
| Property | Value |
|---|---|
| Rupture Count | 36 |
| Ruptures Above Sect Min Mag | 33 |
| Ruptures w/ Nonzero Rates | 2 |
| Magnitude Range | [6.98, 7.72] |
| Length Range | [23, 133] km |
| Total Rate | 3.292471E-4 /yr |
| Multi-Fault Rate | 3.280407E-5 /yr (9.96%) |
| Directly-Connected Faults | 1 |
| All Co-Rupturing Faults | 1 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

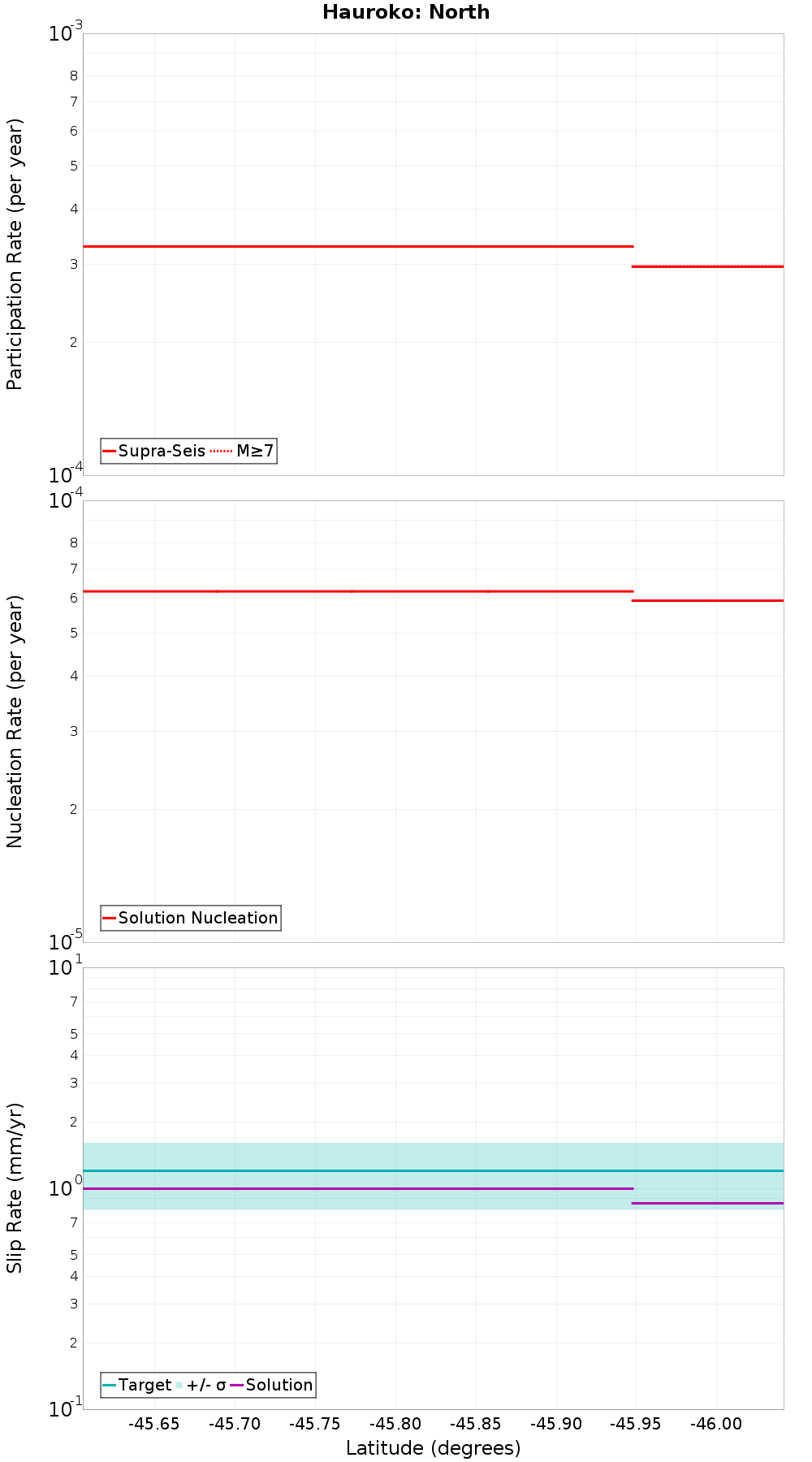

Along-Strike Values
Moment-Rates and b-Values

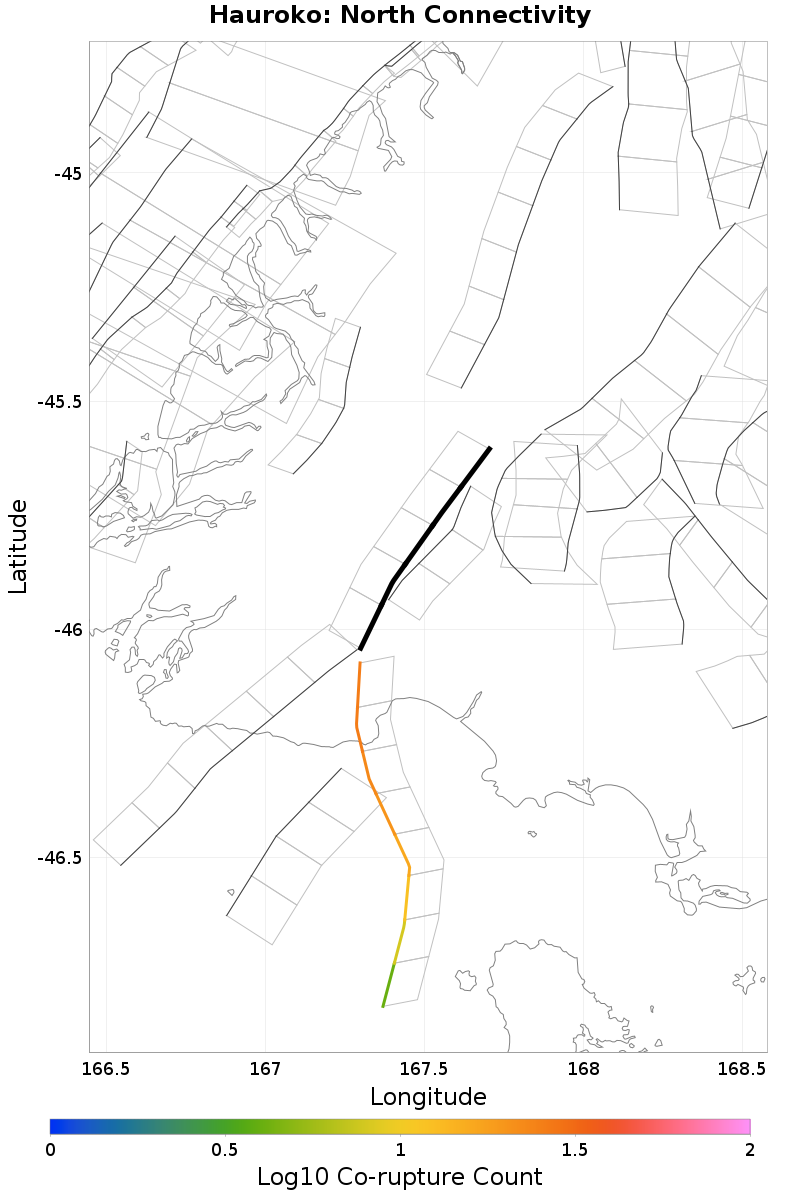

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Hauroko: South, 0.32 km away |
| Monowai, 1.01 km away |
| Hump Ridge, 3.59 km away |
| McKerchar, 6.27 km away |
| Tin Hut, 14.05 km away |
| Moonlight South, 14.39 km away |
| Te Anau, 15.06 km away |
Hauroko: South, 0.32 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDYuMGpvMmZU | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Monowai, 1.01 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDYuMGpvMmZU | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Hump Ridge, 3.59 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDYuMGpvMmZU | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 26 |
| Co-rupture Rate | 3.280407E-5 |
McKerchar, 6.27 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDYuMGpvMmZU | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Tin Hut, 14.05 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDYuMGpvMmZU | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Moonlight South, 14.39 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDYuMGpvMmZU | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Te Anau, 15.06 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDYuMGpvMmZU | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
