Pahiatua Details

PropertyValue
Rupture Count1,266
Ruptures Above Sect Min Mag1,263
Ruptures w/ Nonzero Rates6
Magnitude Range[6.74, 8.20]
Length Range[16, 442] km
Total Rate1.7438272E-4 /yr
Multi-Fault Rate3.3750348E-5 /yr (19.35%)
Directly-Connected Faults2
All Co-Rupturing Faults62

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

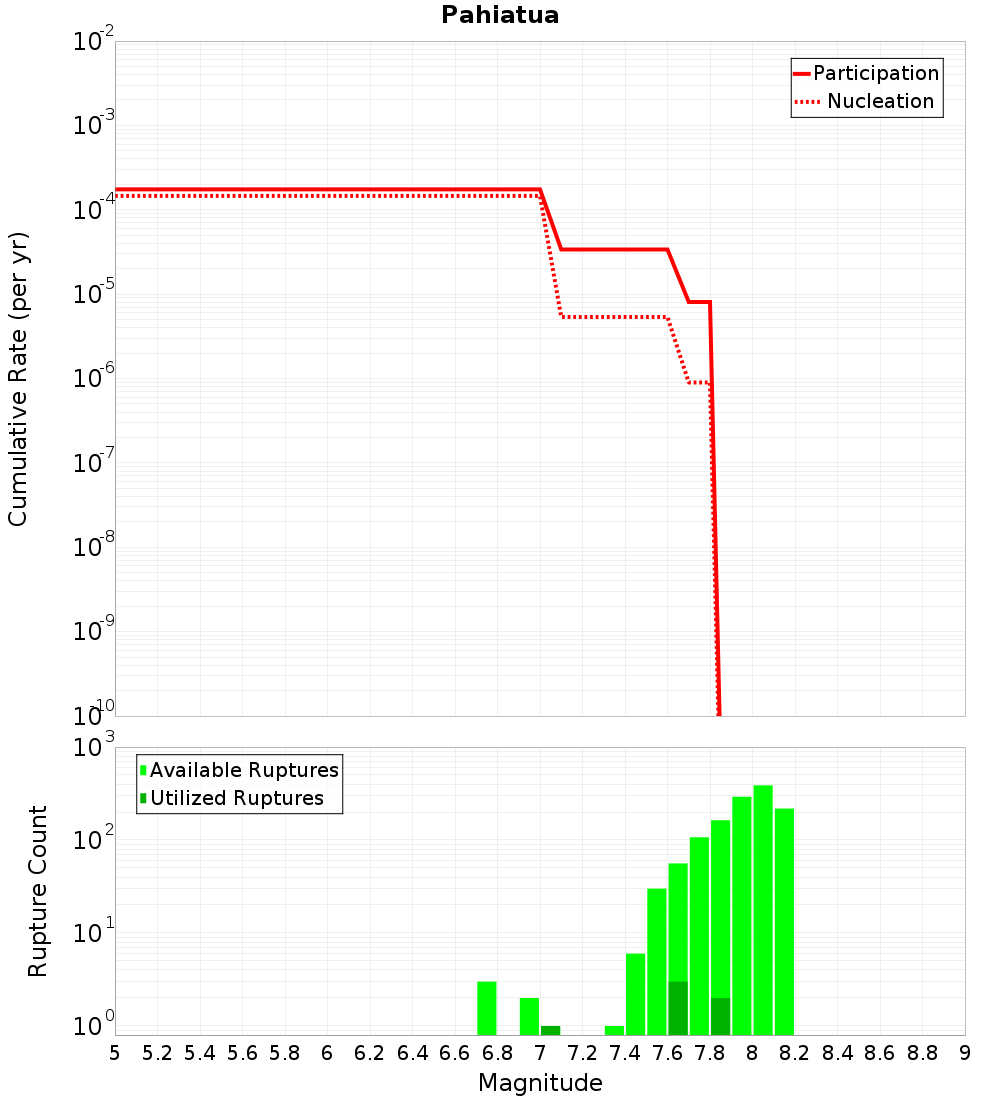

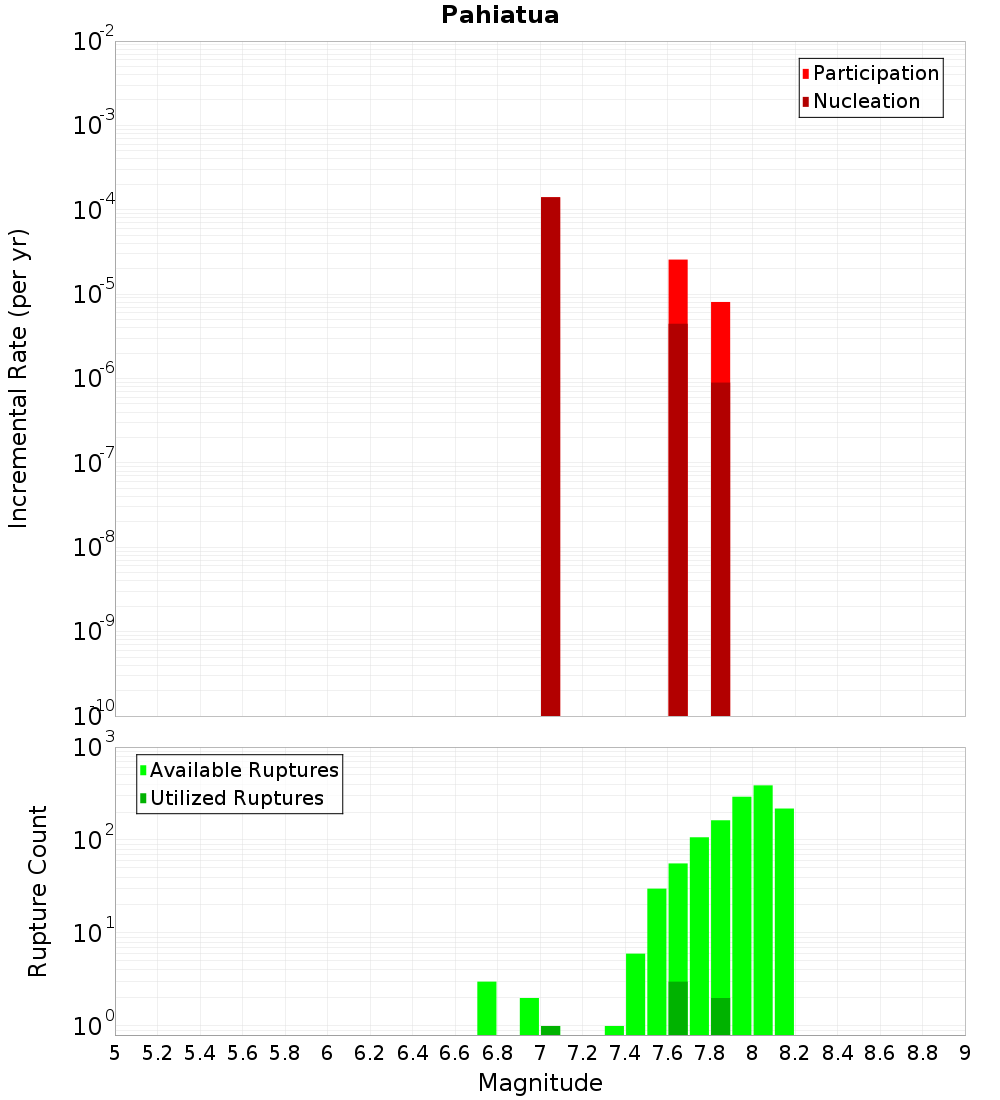

Incremental PlotCumulative Plot

Along-Strike Values

(top)

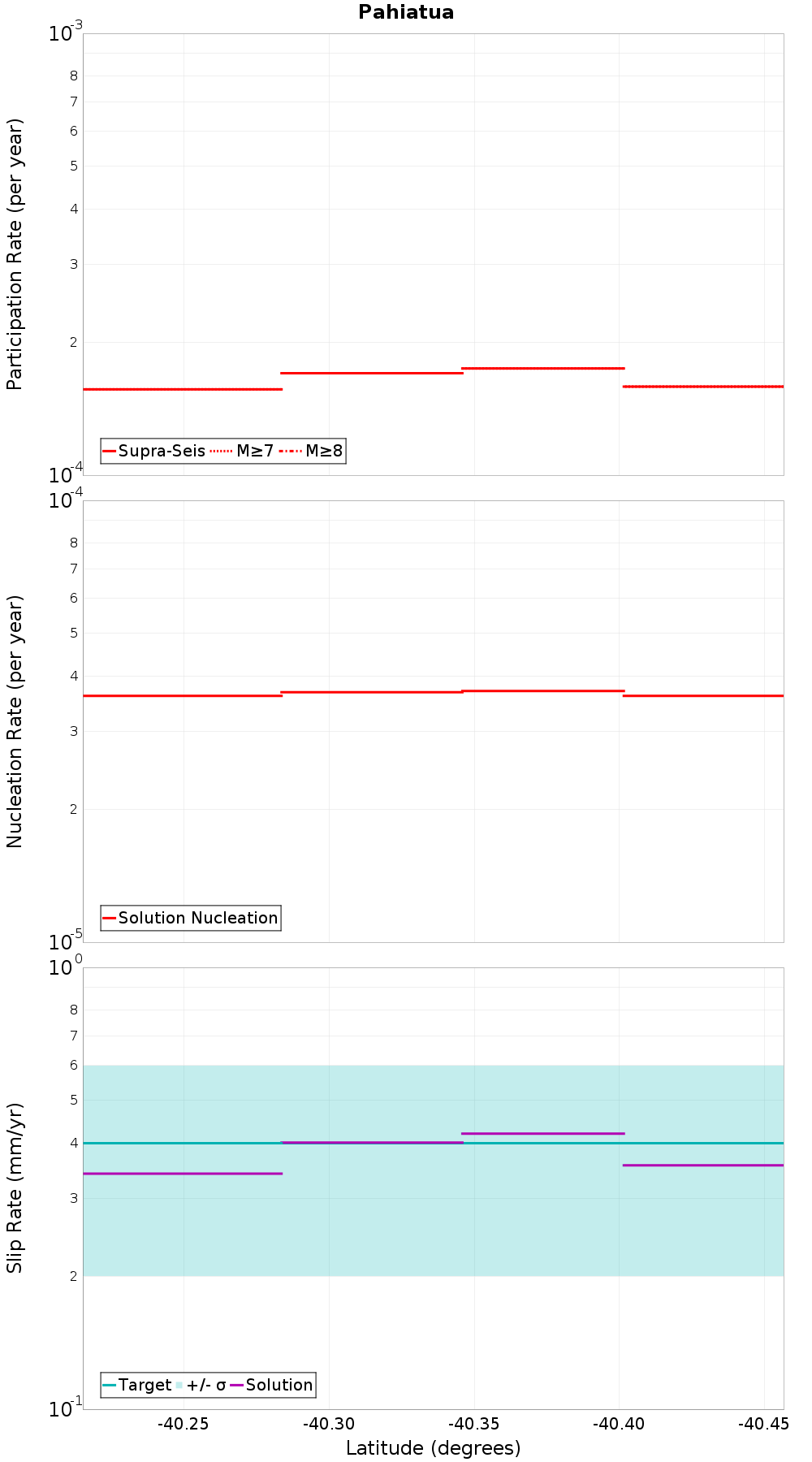

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

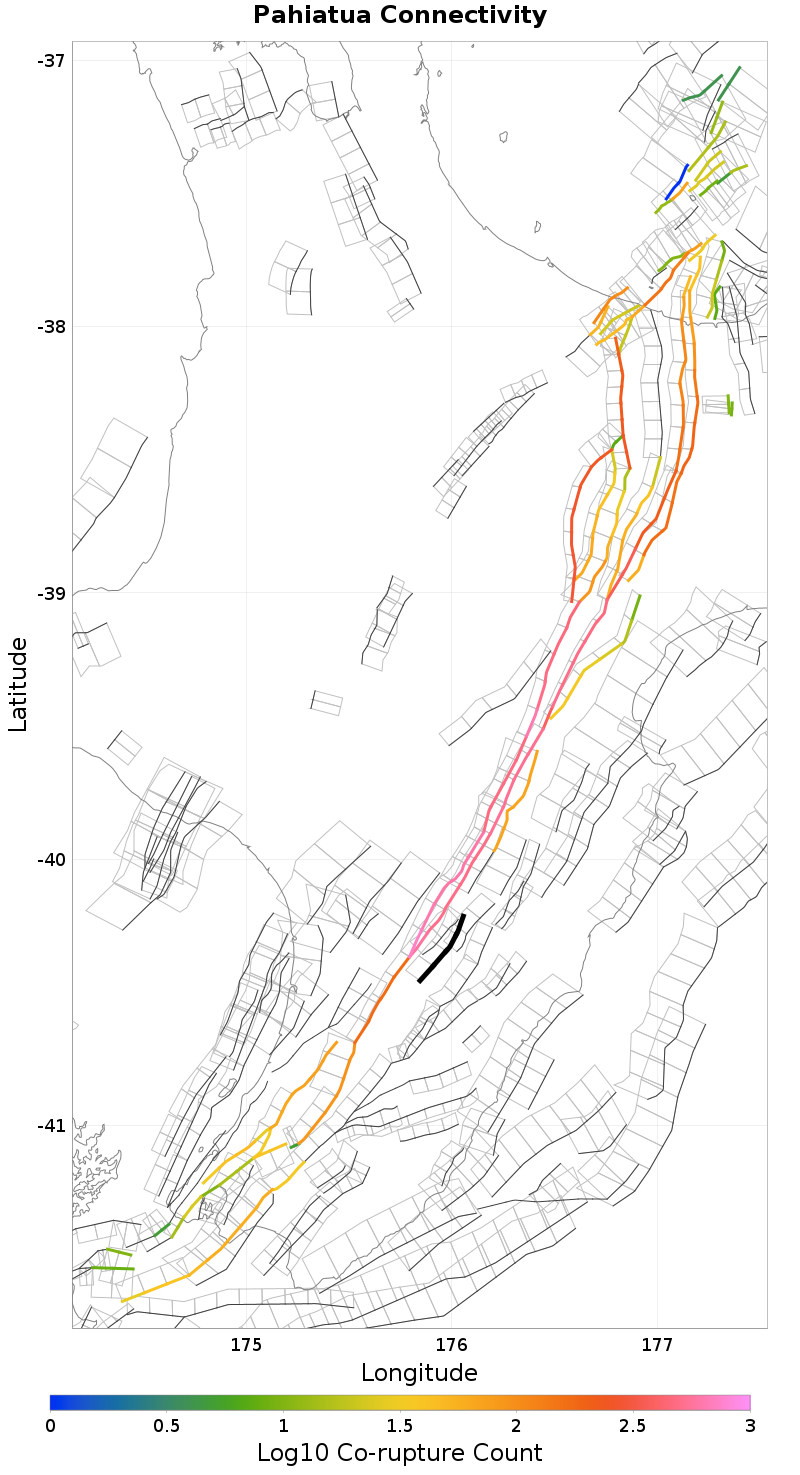

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Woodville, 1.01 km awayMakuri - Waewaepa, 12.67 km away
Maunga, 3.33 km awayAlfredton North, 12.97 km away
Mohaka: South, 4.26 km awayClear Hills - Waikopiro, 13.79 km away
Wellington: Pahiatua, 5.58 km awayPa Valley, 14.33 km away
Ruahine: South, 5.97 km awayRuataniwha, 14.82 km away
Tokomaru, 9.6 km awayNorthern Ohariu, 15.24 km away
Rangefront, 9.78 km awayOruawharo - Mangatoro, 16.12 km away
Waewaepa, 11.55 km awayPohangina, 17.63 km away

Woodville, 1.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDYuMGpvMmZU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Maunga, 3.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDYuMGpvMmZU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mohaka: South, 4.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDYuMGpvMmZU
Connected?true
Directly Connected?true
Co-rupture Count708
Co-rupture Rate1.7996414E-5

Wellington: Pahiatua, 5.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDYuMGpvMmZU
Connected?true
Directly Connected?false
Co-rupture Count172
Co-rupture Rate3.3750348E-5

Ruahine: South, 5.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDYuMGpvMmZU
Connected?true
Directly Connected?true
Co-rupture Count735
Co-rupture Rate1.5753933E-5

Tokomaru, 9.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDYuMGpvMmZU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Rangefront, 9.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDYuMGpvMmZU
Connected?true
Directly Connected?false
Co-rupture Count68
Co-rupture Rate0.0

Waewaepa, 11.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDYuMGpvMmZU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Makuri - Waewaepa, 12.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDYuMGpvMmZU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Alfredton North, 12.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDYuMGpvMmZU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Clear Hills - Waikopiro, 13.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDYuMGpvMmZU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pa Valley, 14.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDYuMGpvMmZU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ruataniwha, 14.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDYuMGpvMmZU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Northern Ohariu, 15.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDYuMGpvMmZU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Oruawharo - Mangatoro, 16.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDYuMGpvMmZU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pohangina, 17.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDYuMGpvMmZU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
