Otaheke North Details

PropertyValue
Rupture Count19
Ruptures Above Sect Min Mag17
Ruptures w/ Nonzero Rates3
Magnitude Range[7.09, 7.59]
Length Range[25, 78] km
Total Rate2.4390795E-4 /yr
Multi-Fault Rate2.4390795E-4 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults6

Table Of Contents

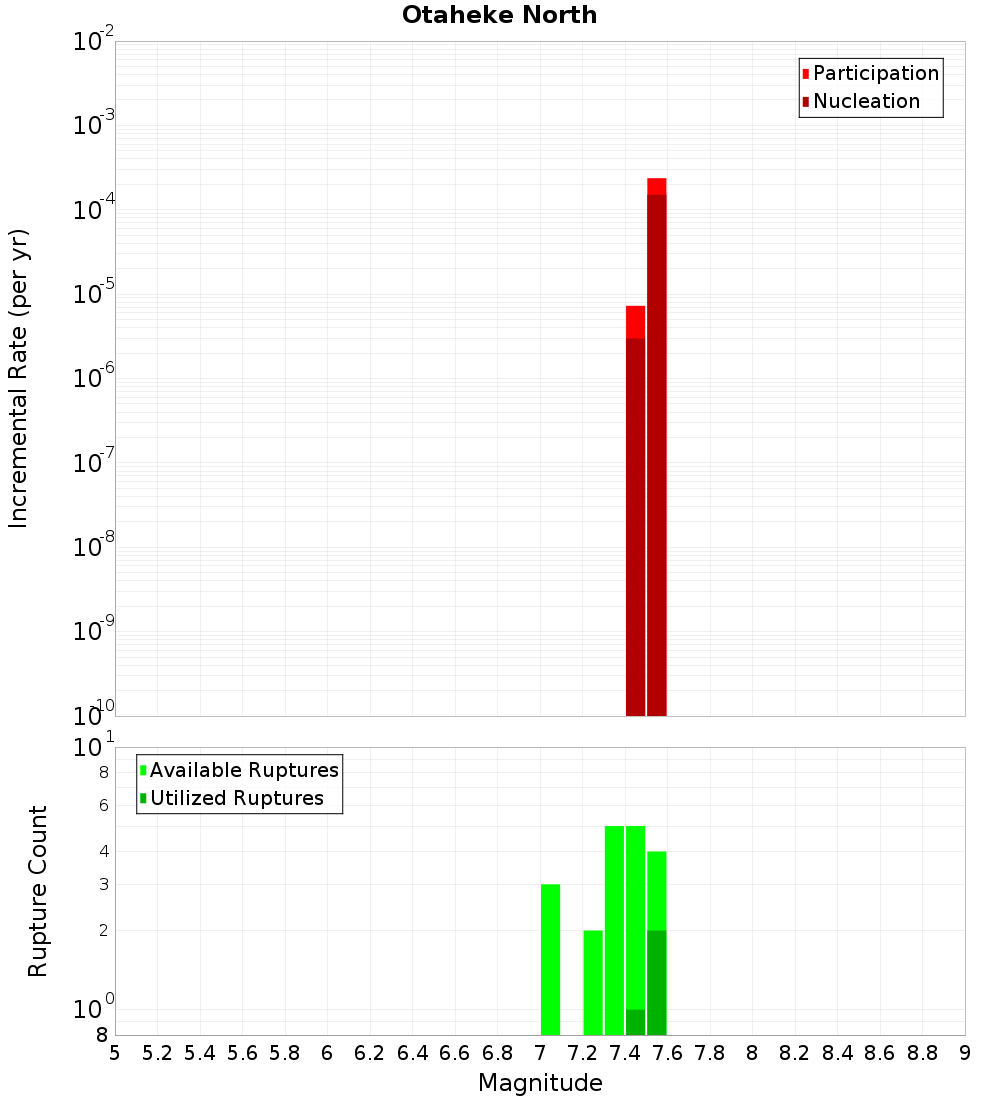

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

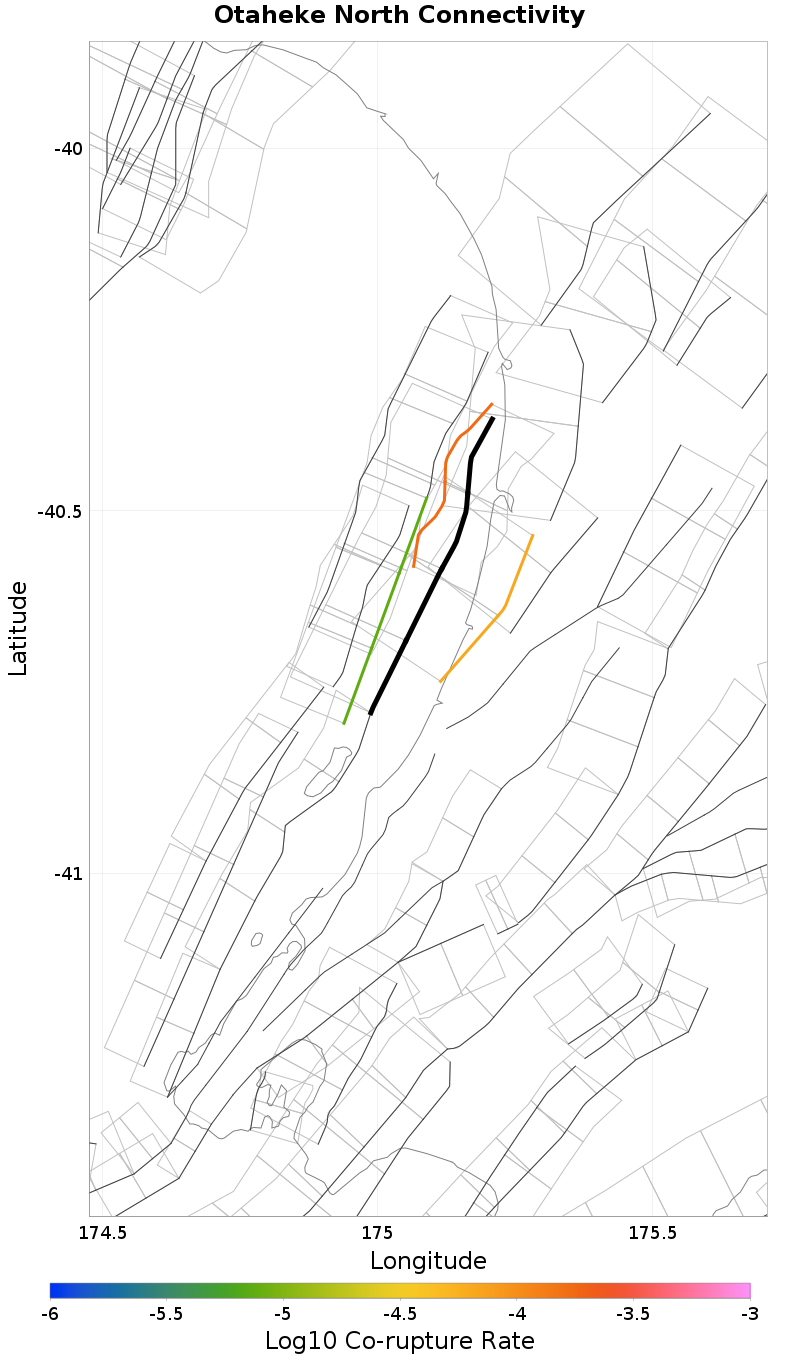

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Otaheke South, 0 km away
Rangitikei Offshore 1, 0.22 km away
Mascarin, 0.44 km away
Onepoto, 0.47 km away
Fisherman 3, 0.9 km away
Fisherman 2, 2.95 km away
Poroutawhao, 4.09 km away
Okupe 1, 8 km away
Himatangi, 8.54 km away
Levin Anticline, 10.05 km away
Northern Ohariu, 11.55 km away
Ohariu, 11.65 km away
Mt Stewart, 12.34 km away
Leedstown, 16.27 km away

Otaheke South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Rangitikei Offshore 1, 0.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?true
Directly Connected?true
Co-rupture Count1
Co-rupture Rate1.7126922E-4

Mascarin, 0.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?true
Directly Connected?true
Co-rupture Count2
Co-rupture Rate0.0

Onepoto, 0.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?true
Directly Connected?true
Co-rupture Count6
Co-rupture Rate7.268743E-6

Fisherman 3, 0.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?true
Directly Connected?true
Co-rupture Count2
Co-rupture Rate0.0

Fisherman 2, 2.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Poroutawhao, 4.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?true
Directly Connected?true
Co-rupture Count1
Co-rupture Rate6.536999E-5

Okupe 1, 8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Himatangi, 8.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Levin Anticline, 10.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?true
Directly Connected?true
Co-rupture Count1
Co-rupture Rate0.0

Northern Ohariu, 11.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohariu, 11.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mt Stewart, 12.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Leedstown, 16.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
