Otara East 1 Details

PropertyValue
Rupture Count6,550
Ruptures Above Sect Min Mag6,550
Ruptures w/ Nonzero Rates77
Magnitude Range[6.84, 8.00]
Length Range[14, 298] km
Total Rate3.9411001E-4 /yr
Multi-Fault Rate3.9411001E-4 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults47

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

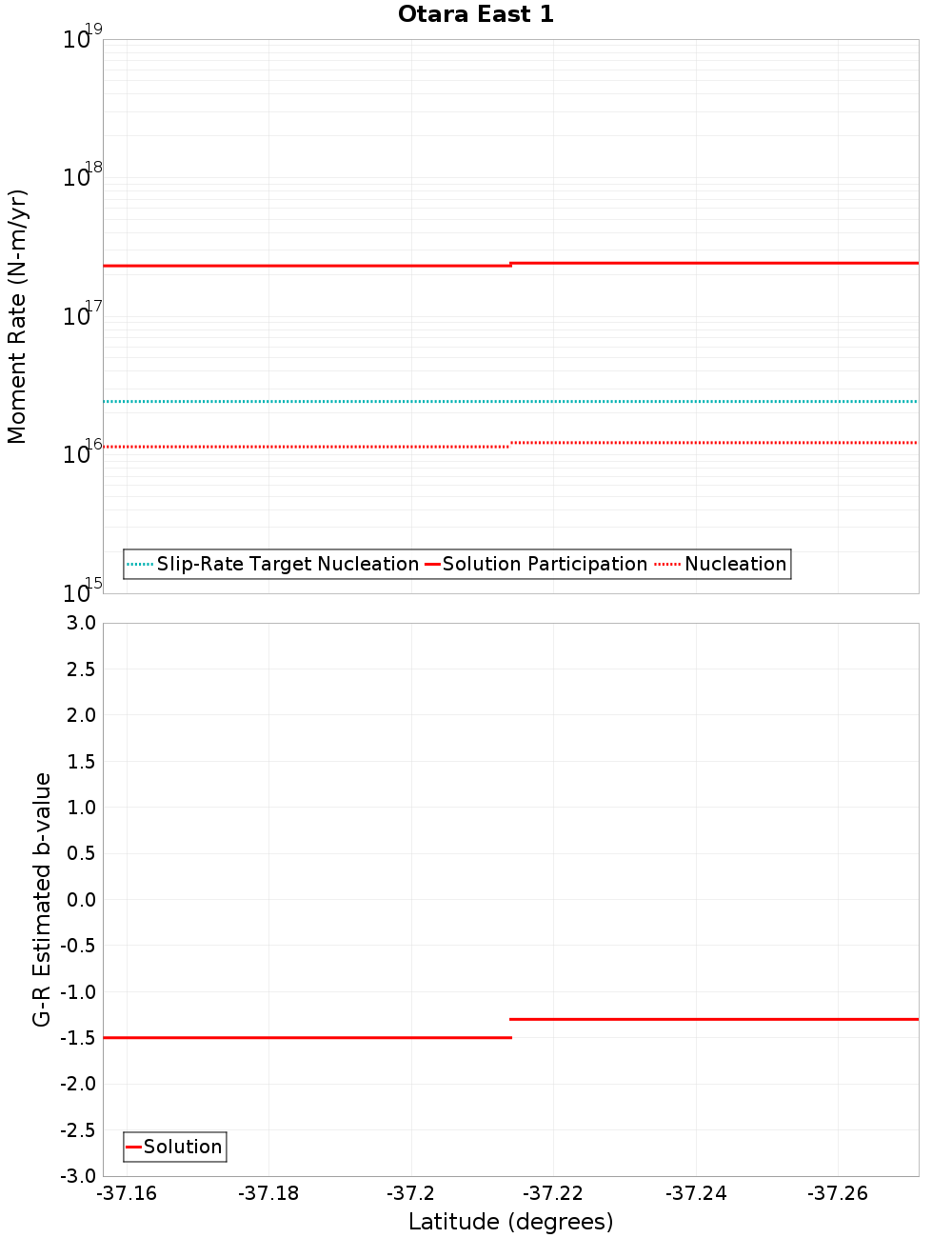

Moment-Rates and b-Values

(top)

Along-strike plot

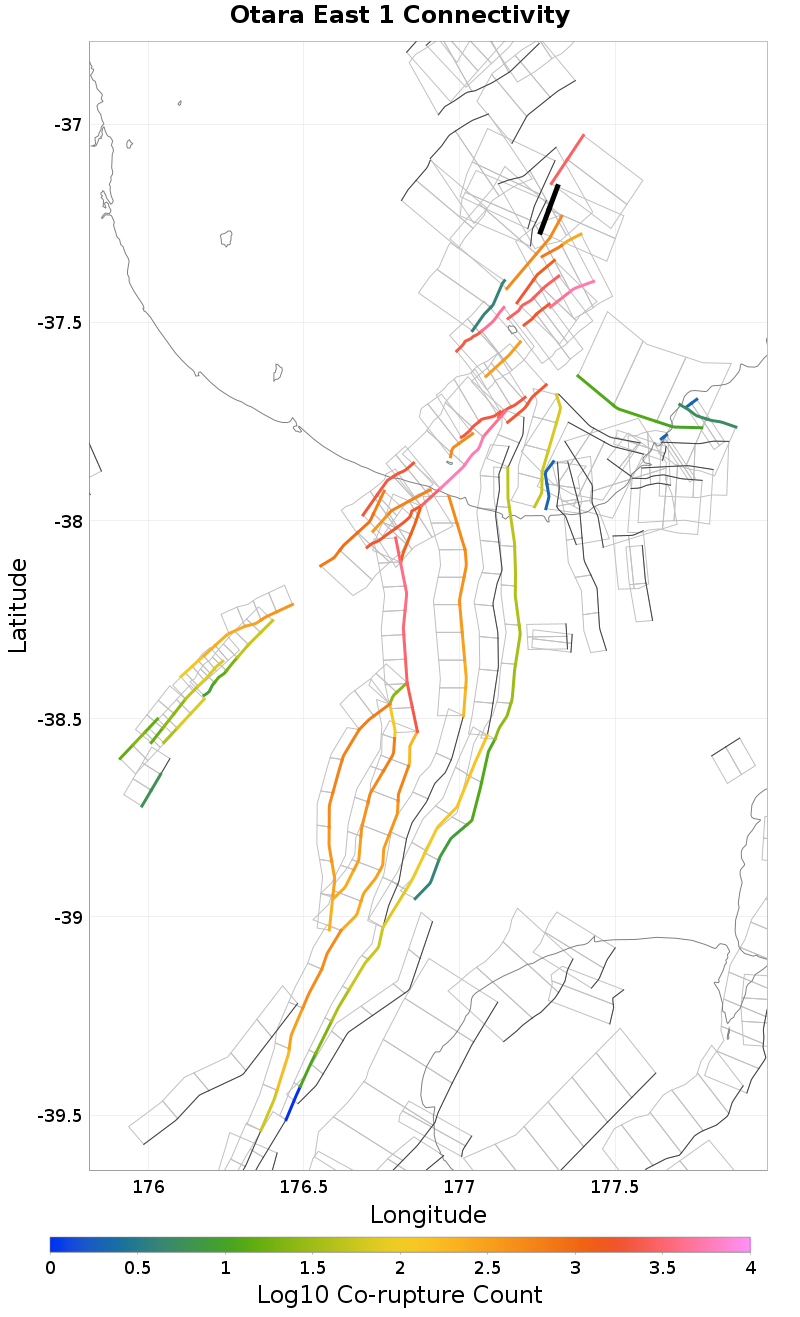

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Tuatoru 2, 0.2 km away
Volkner 4, 0.22 km away
Otara East 2, 1.27 km away
Otara West 1, 1.57 km away
Otara West 2, 3.71 km away
Te Arawa 3, 5.22 km away
Otara West 3, 6.01 km away
Te Arawa 2, 7.74 km away
Te Arawa 1, 11.84 km away
Hariki, 14.16 km away
Volkner 3, 17.03 km away
Tauranga Trough East 2, 17.78 km away
Tuatoru 1, 19.26 km away

Tuatoru 2, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?true
Directly Connected?true
Co-rupture Count5,553
Co-rupture Rate3.9411001E-4

Volkner 4, 0.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?true
Directly Connected?true
Co-rupture Count530
Co-rupture Rate0.0

Otara East 2, 1.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?true
Directly Connected?true
Co-rupture Count2,874
Co-rupture Rate2.7370887E-4

Otara West 1, 1.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otara West 2, 3.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Te Arawa 3, 5.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?true
Directly Connected?true
Co-rupture Count735
Co-rupture Rate3.1730084E-5

Otara West 3, 6.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Te Arawa 2, 7.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?true
Directly Connected?false
Co-rupture Count1,834
Co-rupture Rate1.5191377E-4

Te Arawa 1, 11.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?true
Directly Connected?false
Co-rupture Count2,734
Co-rupture Rate1.3523726E-4

Hariki, 14.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?true
Directly Connected?false
Co-rupture Count12
Co-rupture Rate0.0

Volkner 3, 17.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate0.0

Tauranga Trough East 2, 17.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tuatoru 1, 19.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?true
Directly Connected?false
Co-rupture Count1,782
Co-rupture Rate2.165352E-4
