Otaraia Details

Property	Value
Rupture Count	1,504
Ruptures Above Sect Min Mag	1,501
Ruptures w/ Nonzero Rates	7
Magnitude Range	[6.69, 8.15]
Length Range	[17, 416] km
Total Rate	4.2108662E-5 /yr
Multi-Fault Rate	4.2108662E-5 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	65

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

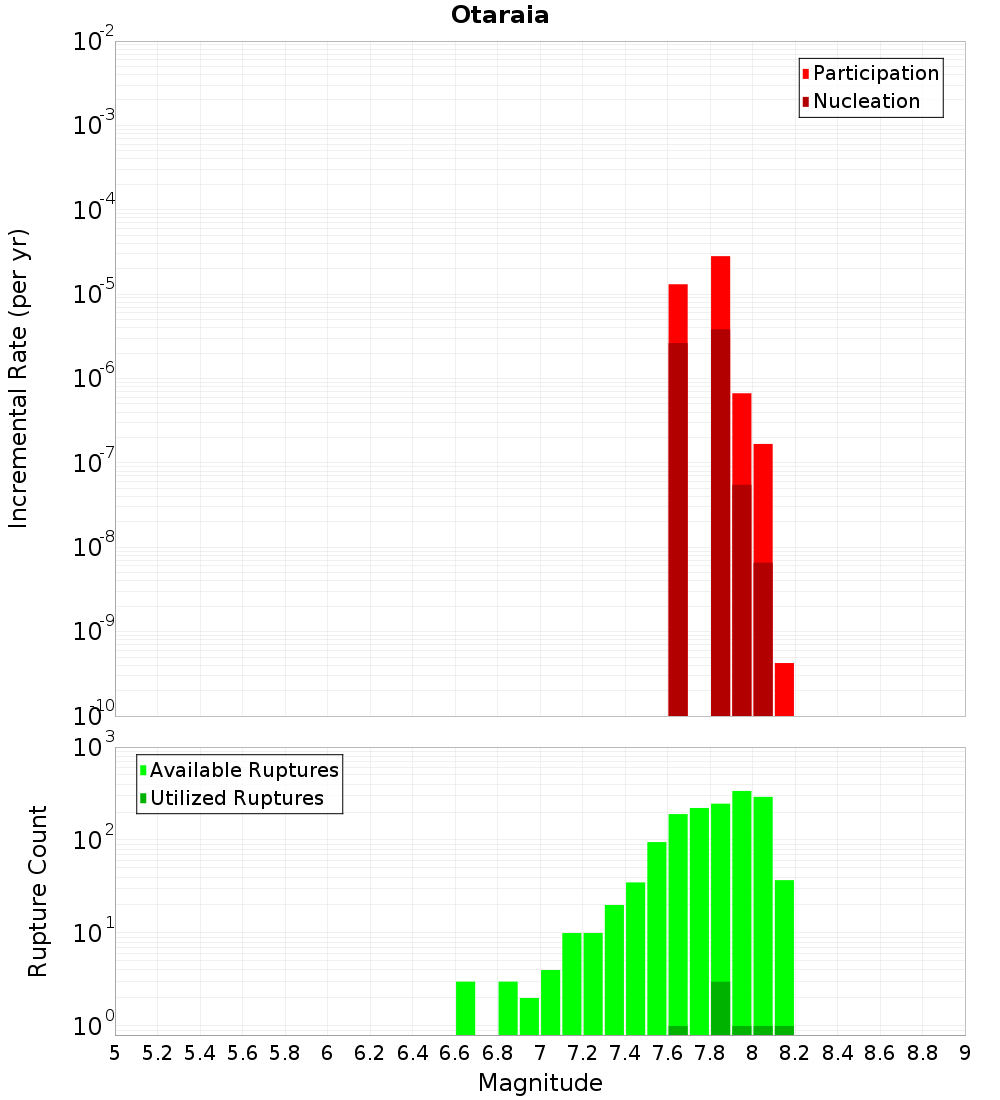

Magnitude-Frequency Distribution

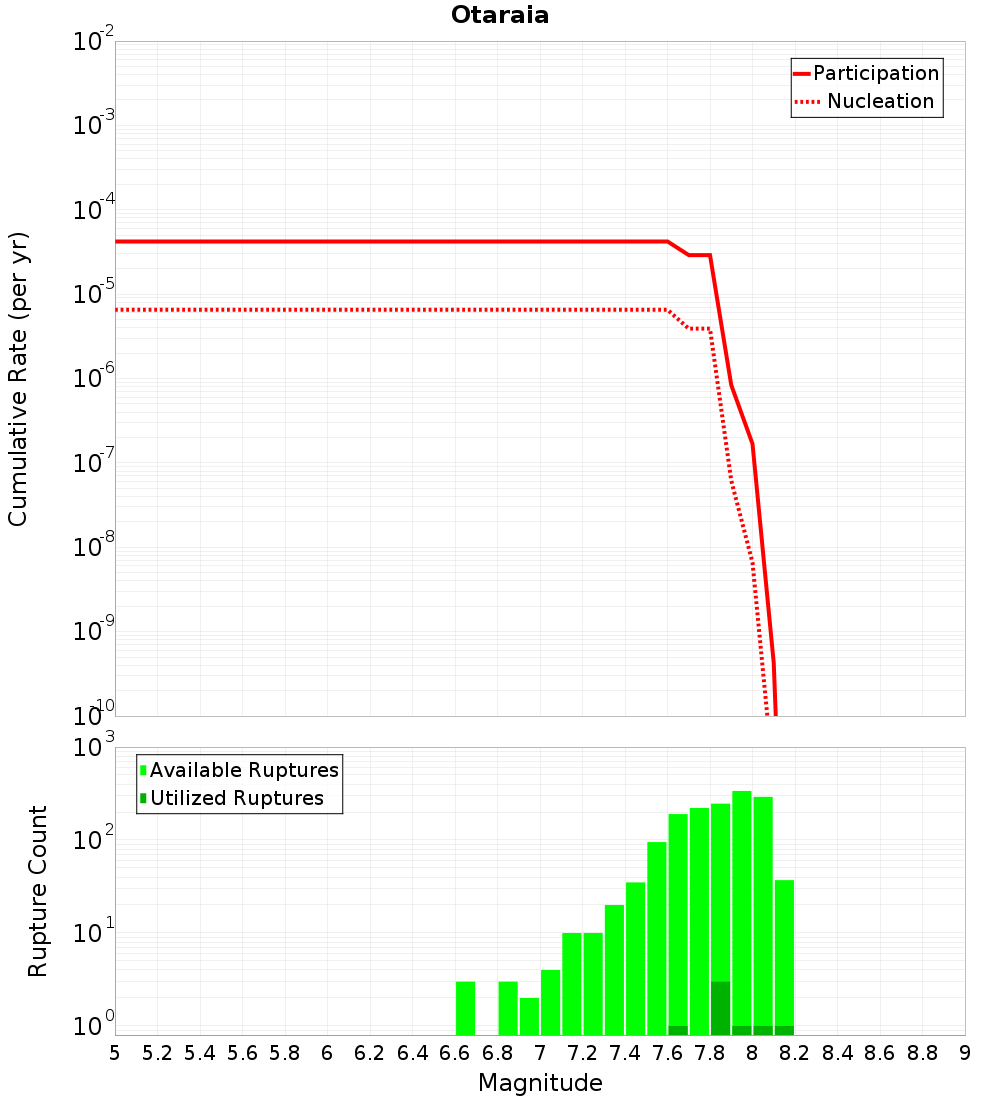

Incremental	Cumulative

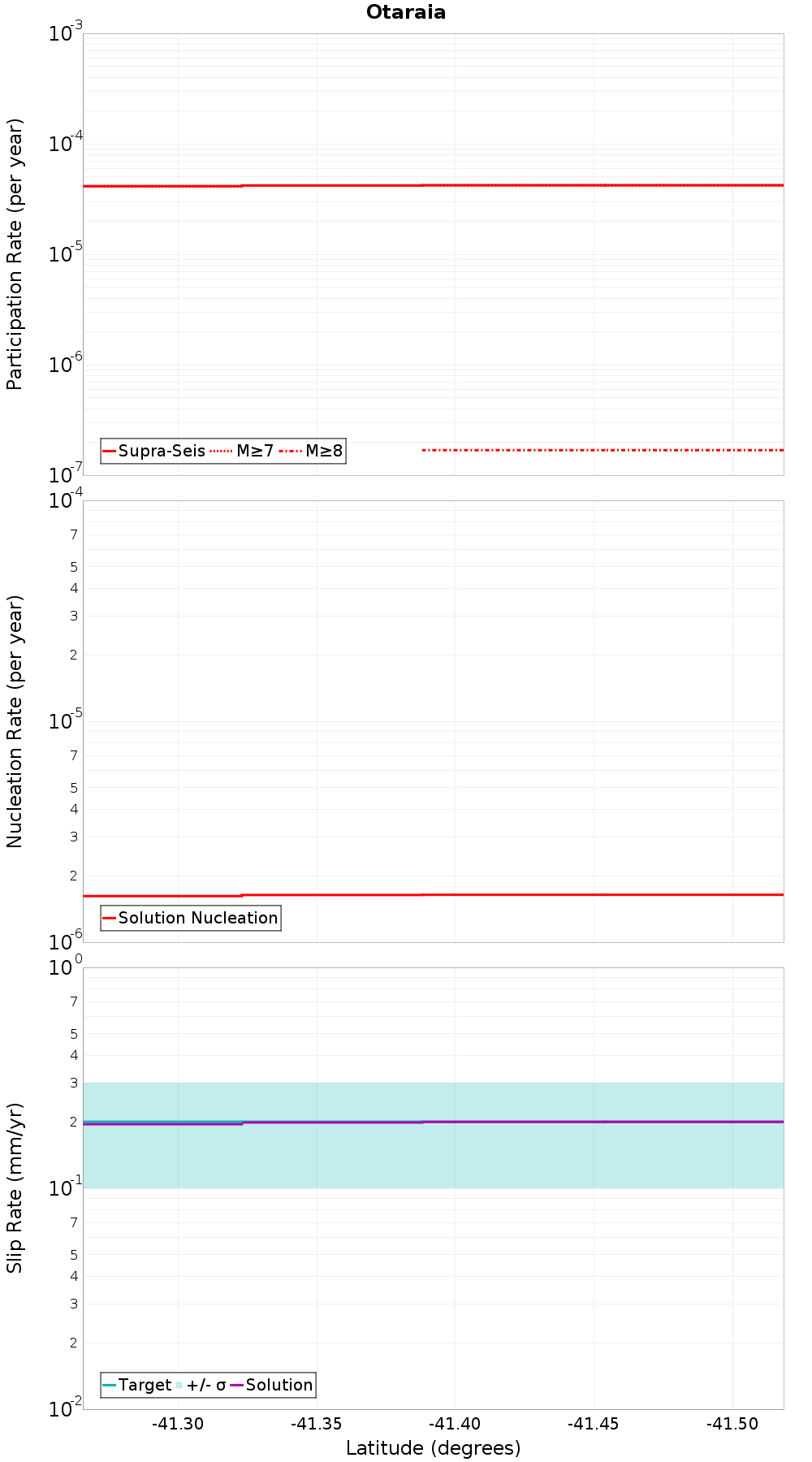

Along-Strike Values

Moment-Rates and b-Values

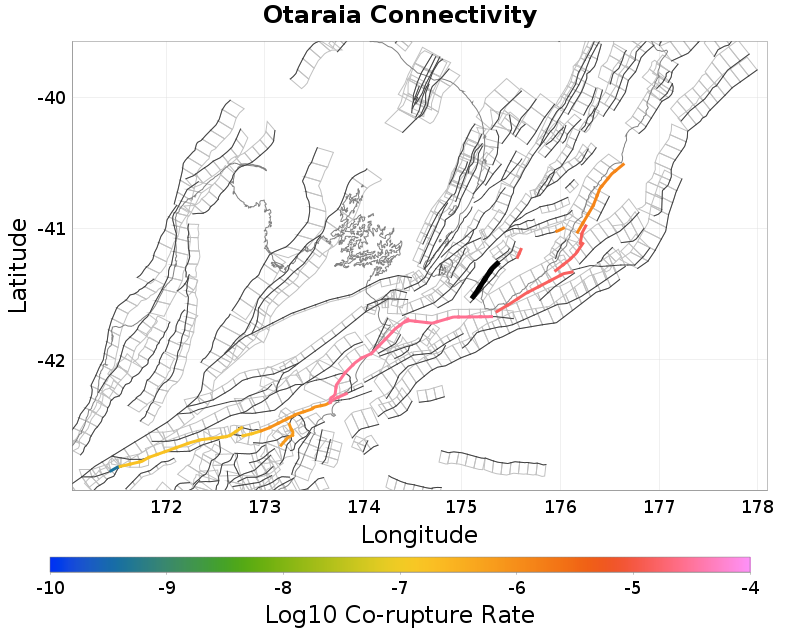

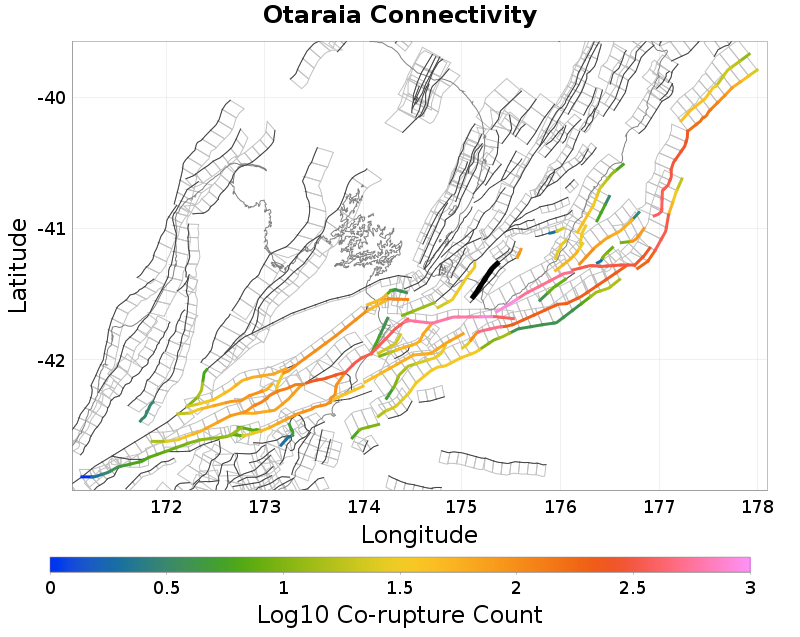

Connectivity

Nearby Sections

Fault Section
Dry River - Huangarua: 1, 0.39 km away
Palliser - Kaiwhata, 1.7 km away
Martinborough, 1.89 km away
Bidwill, 3.57 km away
BooBoo, 5.91 km away
Dry River - Huangarua: 2, 7.52 km away
Opouawe - Uruti, 7.95 km away
Wharekauhau, 12.78 km away
Dry River - Huangarua: 3, 13.48 km away
Wairarapa: 2, 13.88 km away
Wairarapa: 1, 16.28 km away
Pahaua, 18.34 km away

Dry River - Huangarua: 1, 0.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Palliser - Kaiwhata, 1.7 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?	true
Directly Connected?	true
Co-rupture Count	845
Co-rupture Rate	1.4396149E-5

Martinborough, 1.89 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Bidwill, 3.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

BooBoo, 5.91 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?	true
Directly Connected?	true
Co-rupture Count	809
Co-rupture Rate	2.7712513E-5

Dry River - Huangarua: 2, 7.52 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Opouawe - Uruti, 7.95 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?	true
Directly Connected?	false
Co-rupture Count	514
Co-rupture Rate	0.0

Wharekauhau, 12.78 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?	true
Directly Connected?	true
Co-rupture Count	30
Co-rupture Rate	0.0

Dry River - Huangarua: 3, 13.48 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?	true
Directly Connected?	true
Co-rupture Count	83
Co-rupture Rate	1.395918E-5

Wairarapa: 2, 13.88 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wairarapa: 1, 16.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Pahaua, 18.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?	true
Directly Connected?	false
Co-rupture Count	28
Co-rupture Rate	0.0
